Hypercardioid Consenser microphone for wind instruments, drums and percussion
- Miniature gooseneck for accurate microphone alignment
- Flat frequency response delivers a natural, powerful, and clear sound.
- Integrated, switchable bass cut
- For direct wired Phantom Powering via XLR cable
C 519 M for external phantom powering – includes standard 3 pin male XLR phantom power adapter

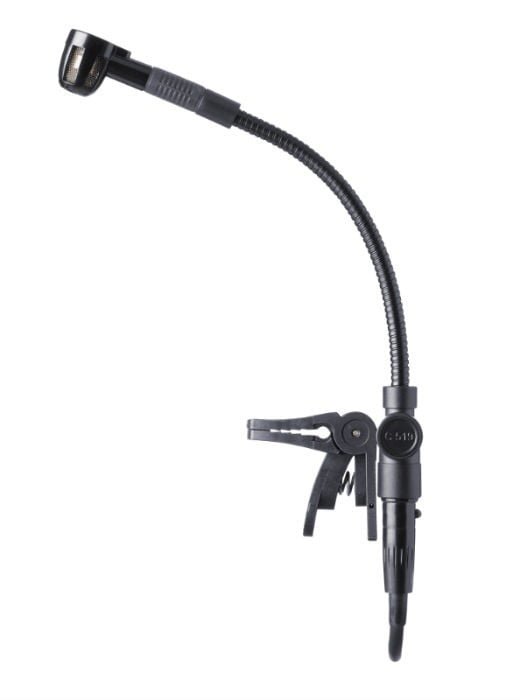

This condenser clip-on microphone has been designed specifically for wind instruments including saxophone, trumpet, trom-bone, tuba, etc. The C 519 is also en excellent choice for percussion or on the snare drum. A frequency-independent hypercardioid polar pattern reduces spillover from neighboring instruments to a minimum. A rubber coated clamp ensures easy attachment to the bell of a horn, and a 110-mm (4.3-inch) adjustable gooseneck allows precise microphone alignment.
Features
- Hypercardioid Consenser microphone for wind instruments, drums and percussion
- Miniature gooseneck for accurate microphone alignment
- Flat frequency response delivers a natural, powerful, and clear sound.
- Integrated, switchable bass cut
- Including wireless direct adapter for easy use with AKG pocket transmitters
- Detachable microphone cable
- Transducer shock mount reduces handling and cable noise
- adapter plate A 400 allows easy attachment of the AKG pocket transmitters.
Alternative Versions:
C 519 M for external phantom powering – includes standard 3 pin male XLR phantom power adapter
C 519 ML for use with the B 29 L battery power supply, AKG WMS Series bodypack transmitters, or the MPA V L adapter for external phantom powering.
Specifications
Polar pattern cardioid
Frequency range 60 Hz to 20 kHz
Sensitivity 5 mV/Pa (-46 dBV)
Max. SPL 130/132 dB SPL (for 1 %/3 % THD)
Equivalent noise level 31 dB(A)
Signal/noise ratio (A-weighted) 63 dB
Impedance Recommended load impedance >= 2000 ohms
Powering Power requirement B 29 L battery power supply, MPA V L phantom adapter, AKG WMS bodypack transmitters
Connector 3-pin mini XLR
Cable 1.5 m (5 ft.)
Finish matte black
Dimensions Length: 213 mm (8.4 in.) (microphone only); max. width: 47 mm (1.9 in.)
Net weight C 519 M: 195 g (6.9 oz.)
C 519 ML: 85 g (3 oz.) (microphone and cable)
Shipping weight C 519 M: 430 g (15.2 oz.)
C 519 ML: 310 g (11 oz.)
