SIMPLY SCALABLE

A scalable installed audio ecosystem.

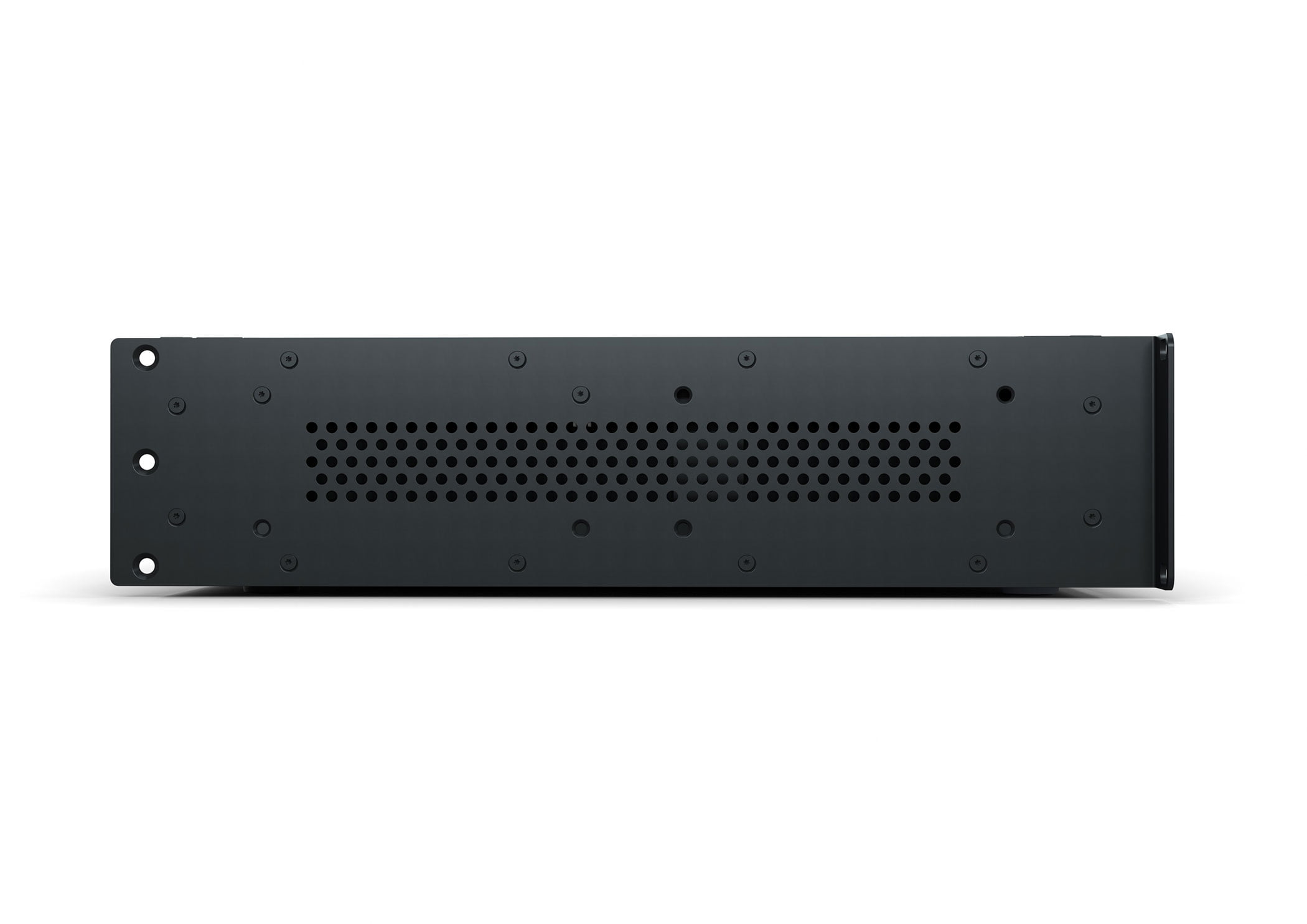

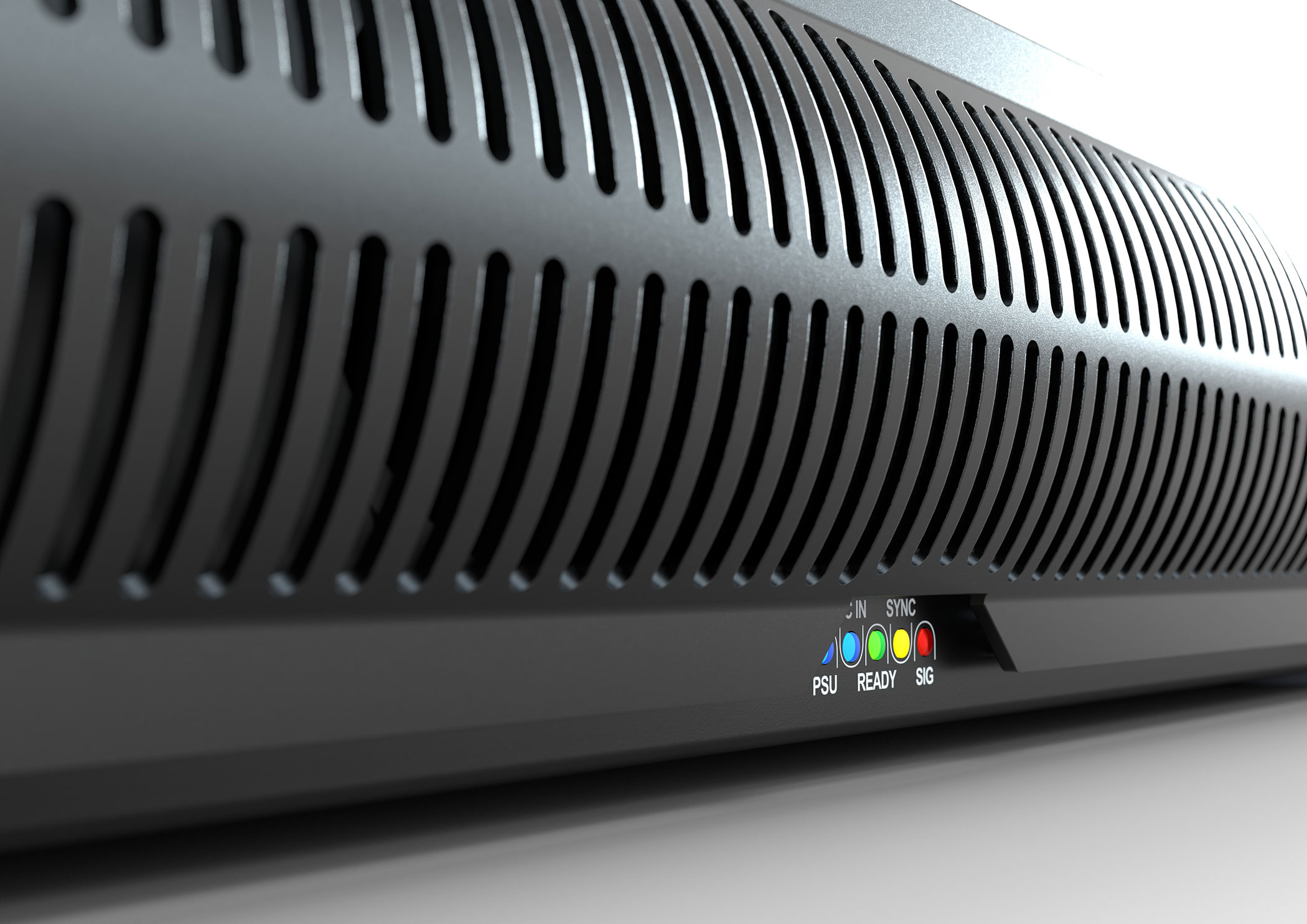

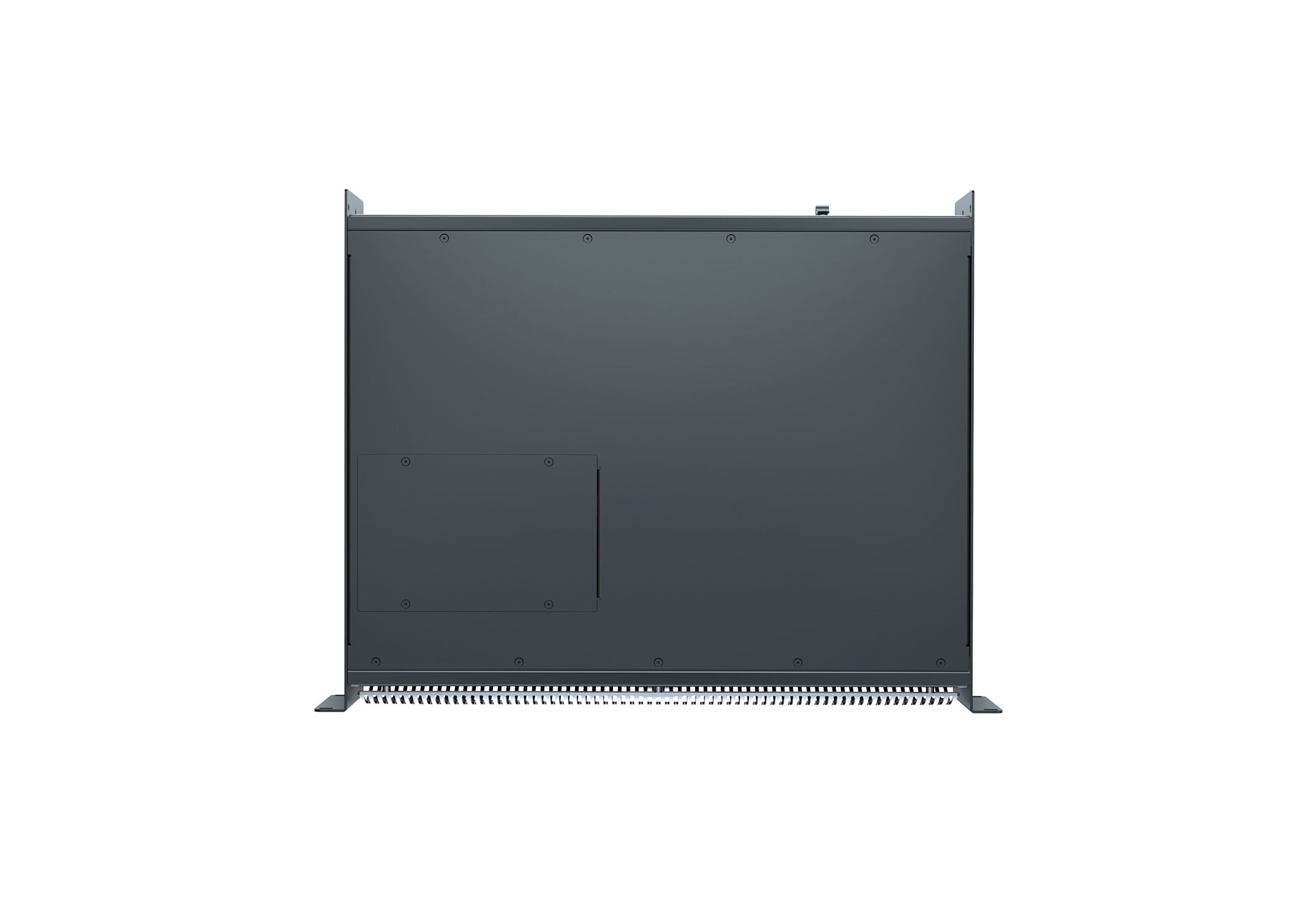

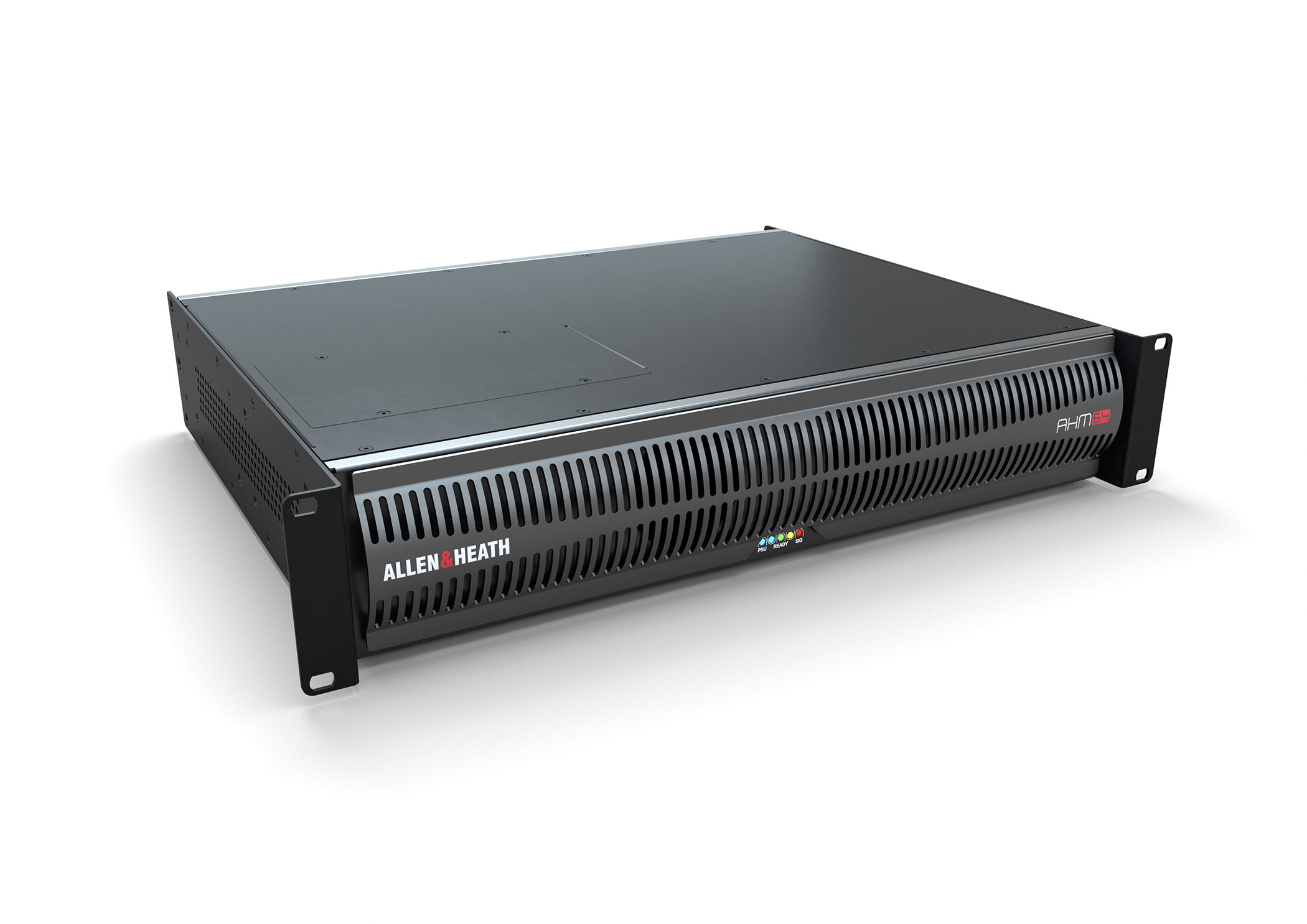

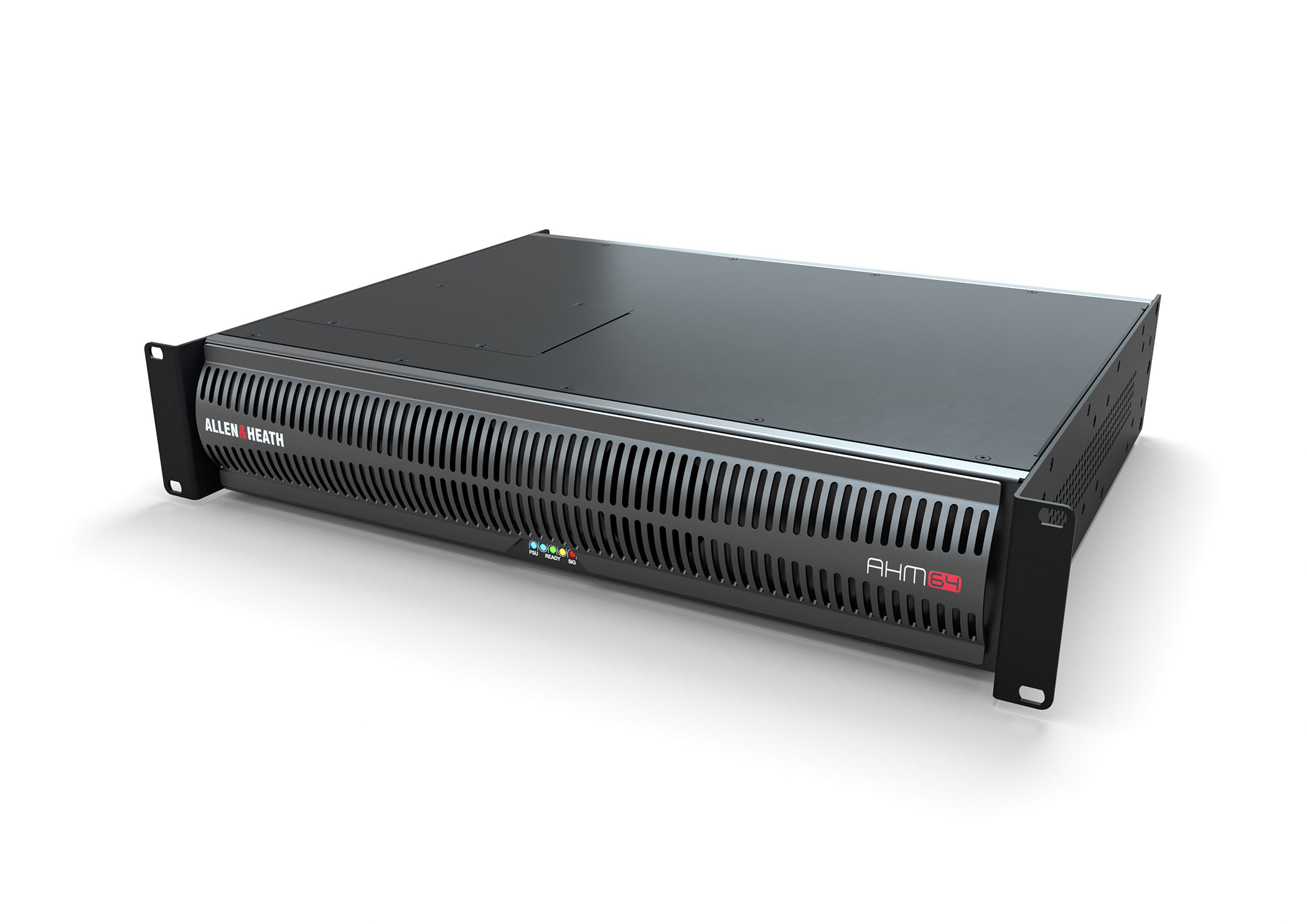

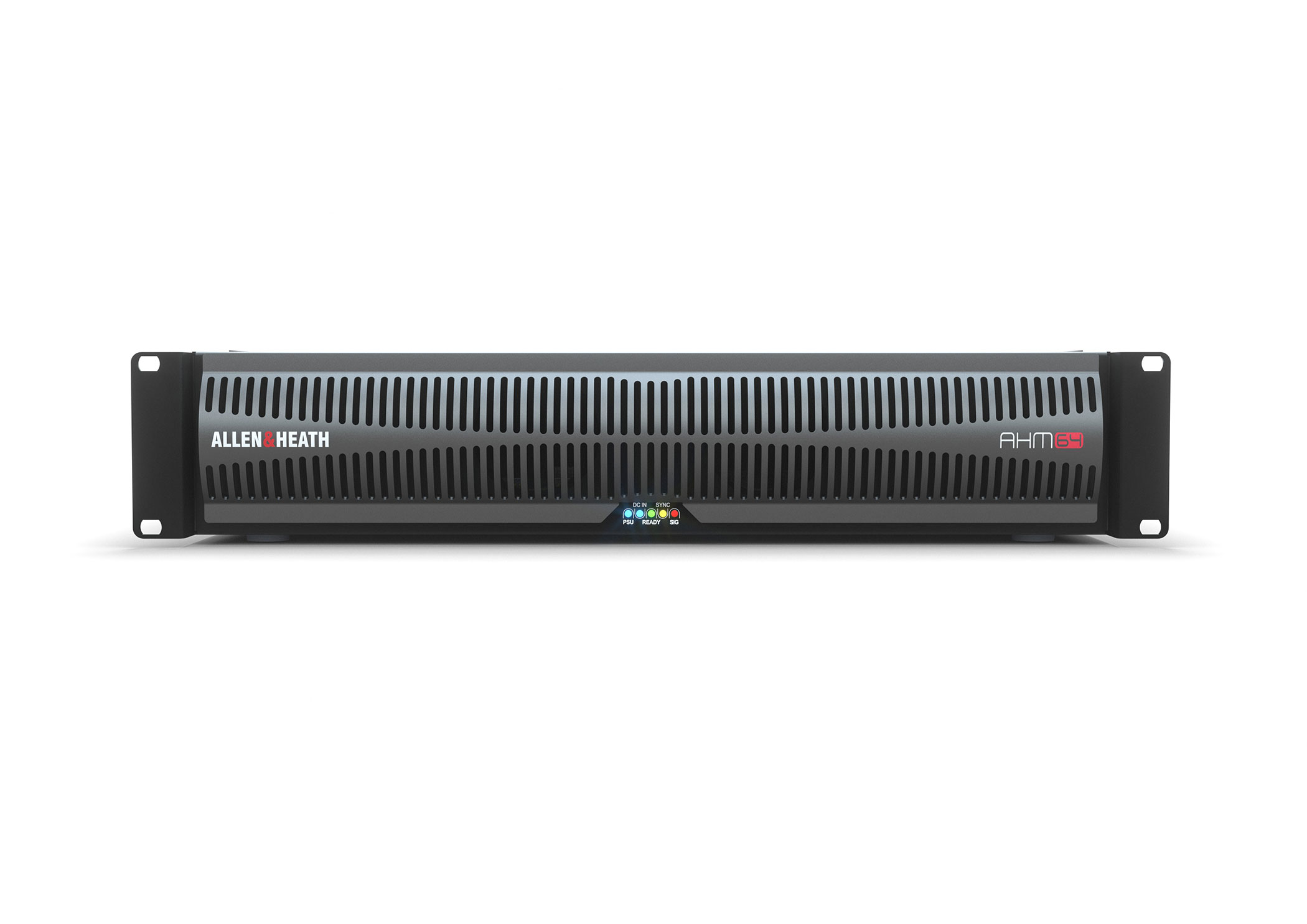

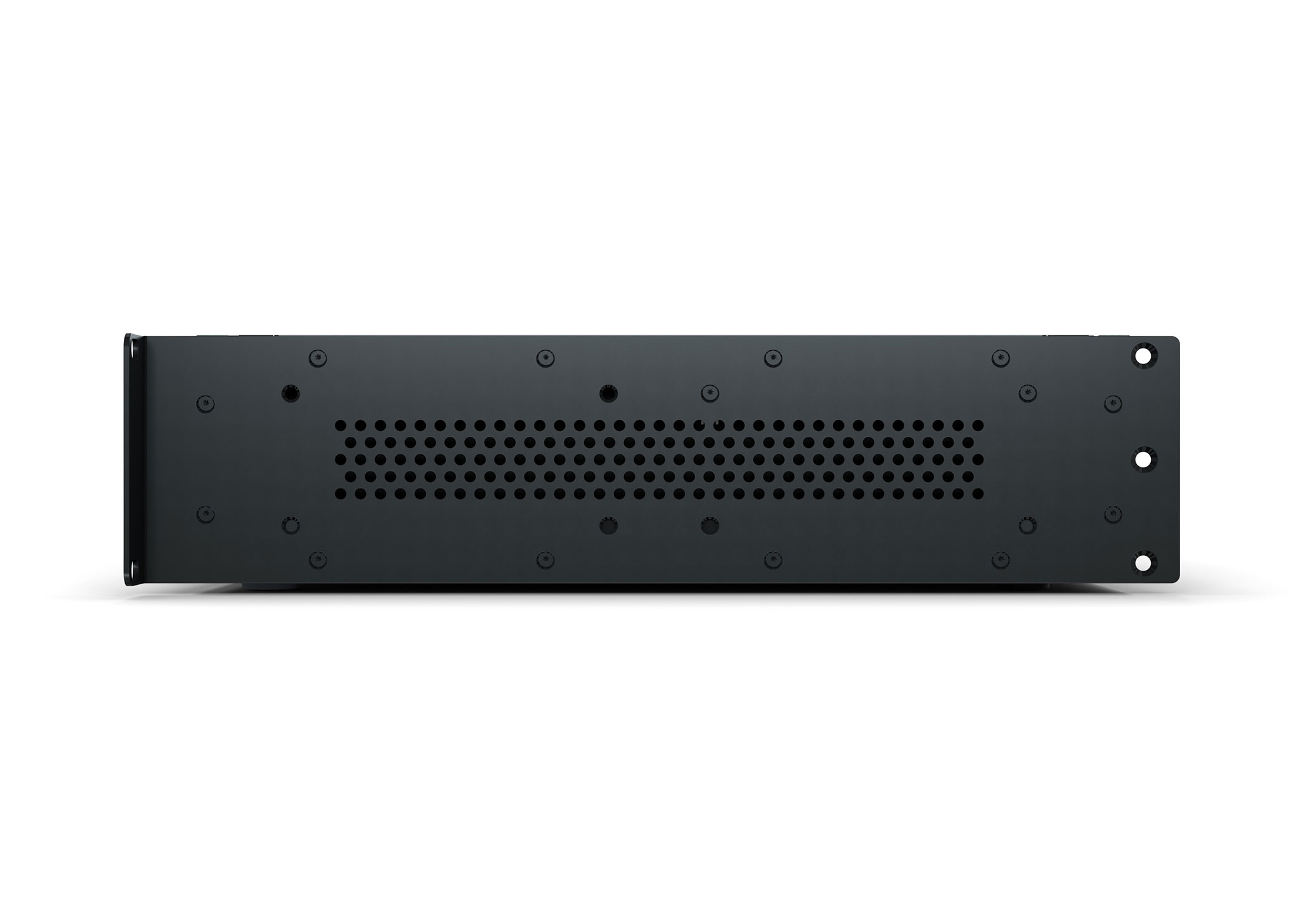

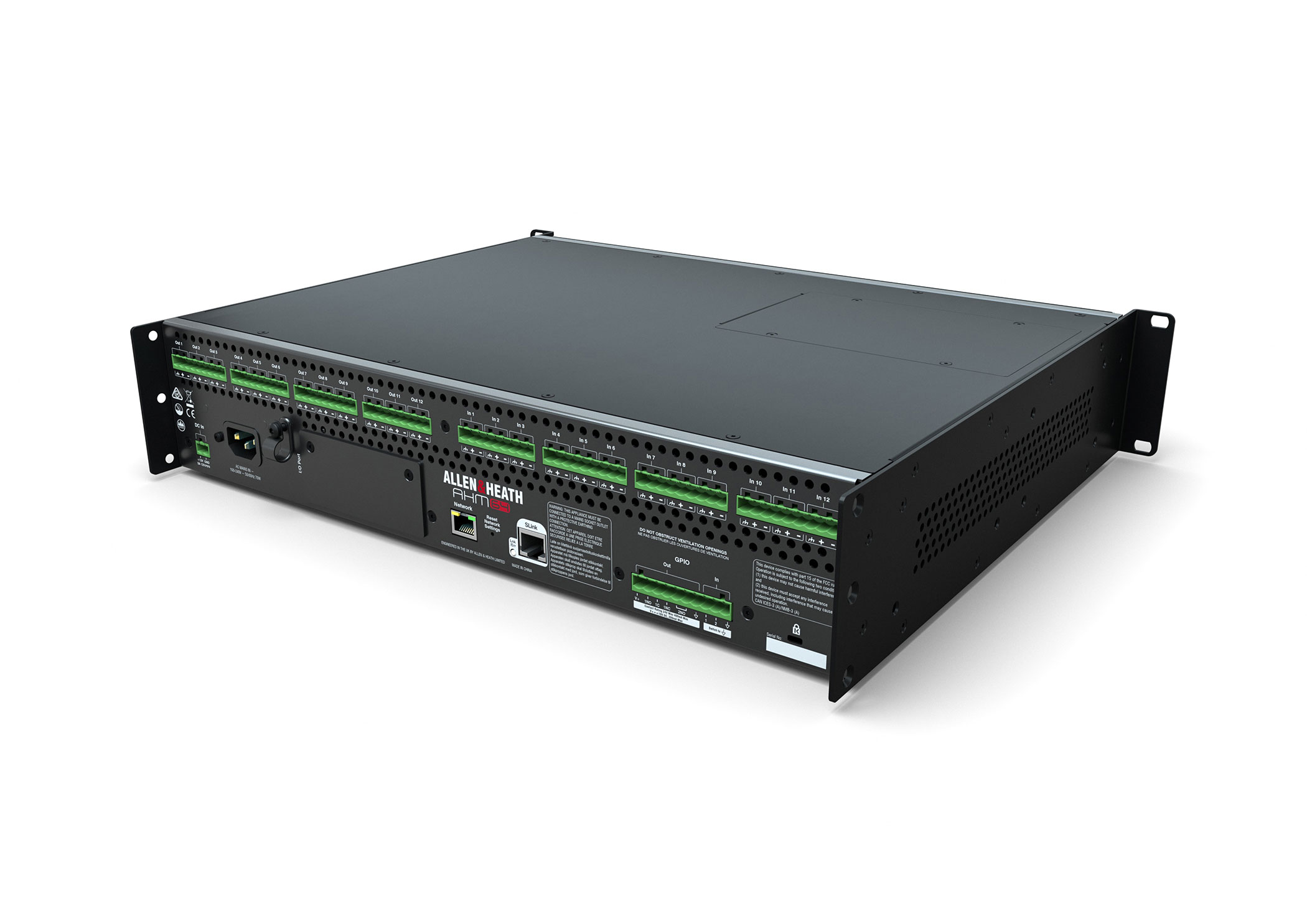

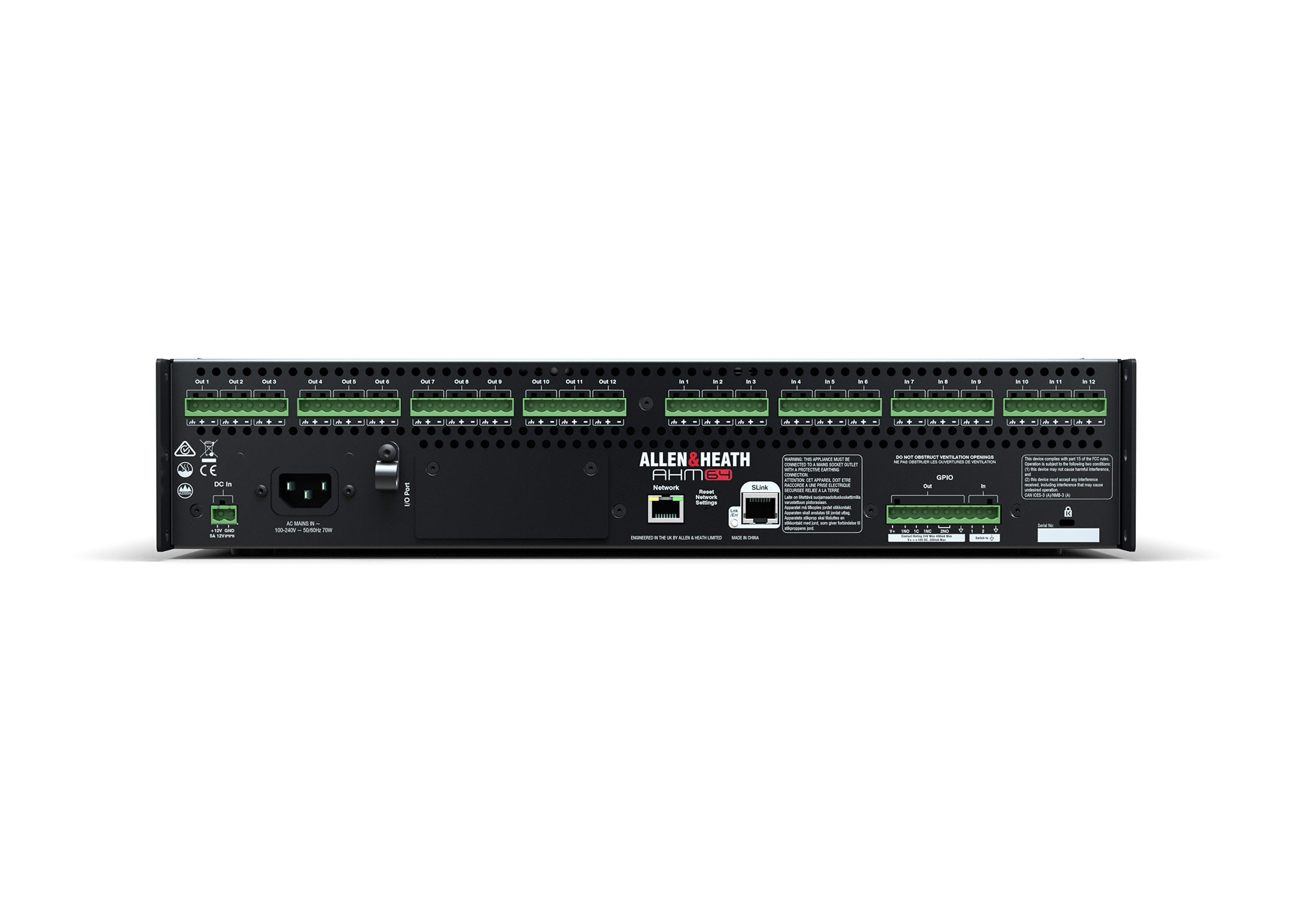

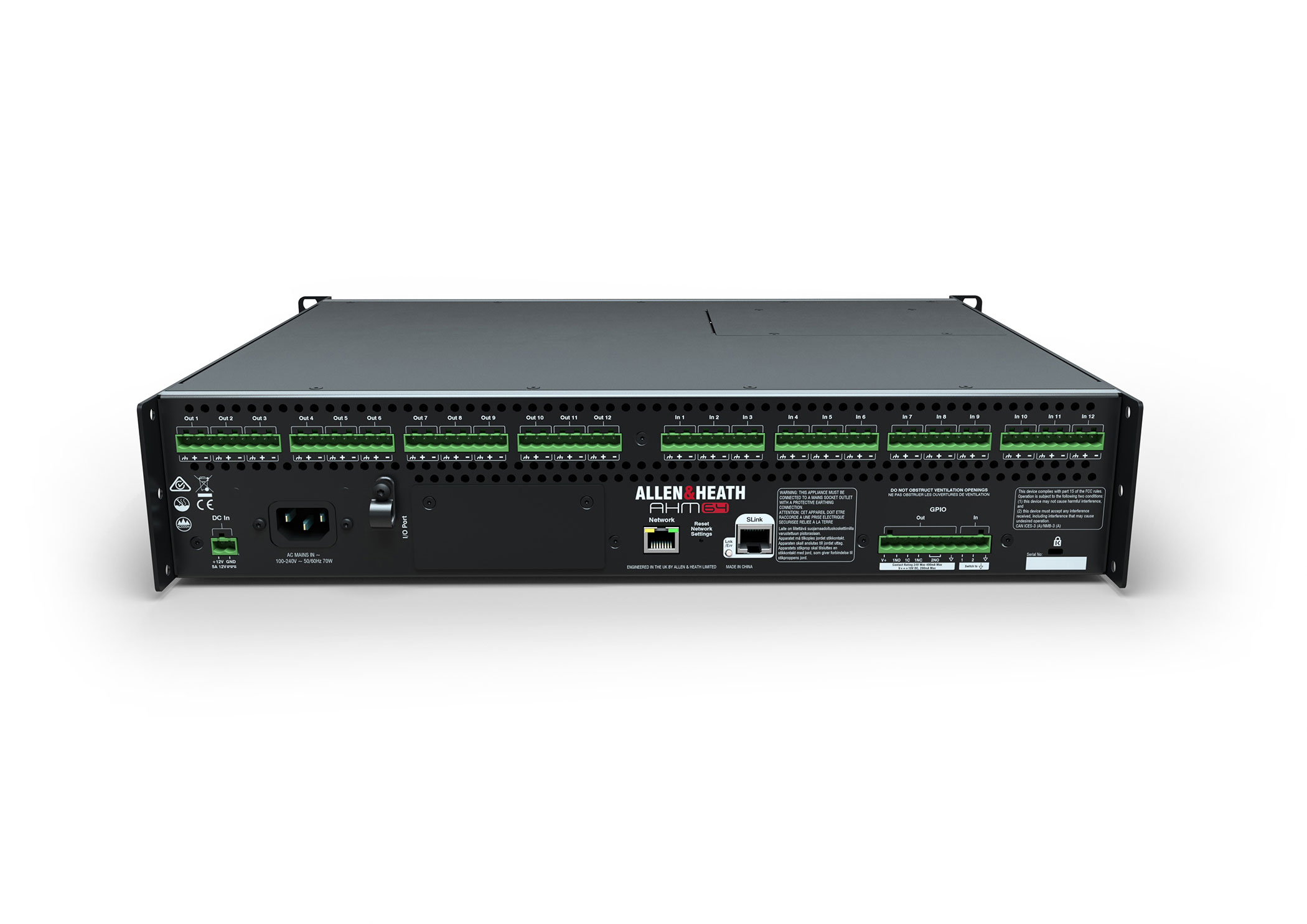

AHM-64 is a powerful 64×64 Audio Matrix Processor supported by a comprehensive ecosystem of scalable I/O, control and Dante solutions. Designed to excel in corporate, retail, hospitality and education environments, AHM-64 allows integrators to quickly create systems that build from a single boardroom to a complete campus.

Features

• 64×64 processing matrix
• 12×12 local analogue I/O
• I/O Port for audio networking, up to 128×128
• Dante 96kHz 64×64 optional card (AES67 and DDM ready)
• 128×128 built-in SLink port for audio expansion
• 64 configurable processing outputs – mono / stereo zones or speaker processing
• 96kHz FPGA core with ultra-low latency
• Compatible with IP1, IP6, IP8 remote controllers
• 2×2 local GPIO plus networkable GPIO interface
• TCP/IP protocol for third party integration
• Crestron, AMX and Extron drivers
• DC backup power supply
• Mac / Windows System Manager software
• Custom Control app and editor for BYOD
• 32 user profiles
• Integrated stereo playback
• Event scheduler

Sound management tools

• 8x Automatic Mic Mixers
• ANC (Ambient Noise Compensation)
• Priority ducking
• 8-band PEQ, dynamics and delay on every input and zone
• Speaker processing with x-over filter, delay, limiter and PEQ
• Processing expansion module

Everything I/O

AHM-64’s SLink port allows plug ‘n play connection to up to 8 remote expanders from Allen & Heath’s extensive Everything I/O range, which includes wall mount, rack and portable options. With up to 268 routable system inputs and outputs, AHM-64 can cater for projects ranging from a single room to large, distributed spaces.

DX168

Portable stage box / optional rack kit, 16 XLR Input / 8 XLR Output, 96kHz

DT168 Dante I/O

Portable stage box / optional rack kit, 16 XLR Input / 8 XLR Output, 96kHz Dante

DX164-W

Wall / floor mount, 16 XLR Input / 4 XLR Output, 96kHz

DT164-W Dante I/O

Wall / floor mount, 16 XLR Input / 4 XLR Output, 96kHz Dante

GX4816

48 XLR Input / 16 XLR Output, Rack mount 5U, 96kHz

DX012

12 XLR Output Analogue/AES, Rack mount 1U, 96kHz

DX32

Modular Expander, Rack mount 4U, 96kHz

AR2412

Rack mount 3U, 24 XLR Input / 12 XLR Output, 48kHz

AB168

Portable stage box / optional rack kit, 16 XLR Input / 8 XLR Output, 48kHz

AR84

Rack mount 1U, 8 XLR Input / 4 XLR Output, 48kHz

DX Hub

Remote DX Expander Hub, 4 32×32 channel DX Link ports

A WORLD OF CONTROL

An AHM-64 system can be controlled using our range of remote controllers, GPIO and 3rd party devices. With up to 96 IP remote controllers over a standard TCP/IP network, every room can enjoy local volume control, source select and preset recall.

IP1

• 1x push n turn rotary
• 1x LCD display
• Wallplate (US or EU/UK standard)
• PoE

IP6

• 6x push n turn rotaries
• 18x SoftKeys
• 8x LCD displays
• Free standing or flush mount
• PoE or wall wart

IP8

• 8x 60mm motor faders
• 22x SoftKeys
• 8x LCD displays
• Free standing, flush mount or mic stand
• PoE+ or wall wart

GPIO

• 8x GPI
• 8x GPO (N/O)
• Half U, rack-mountable
• PoE or wall wart

CUSTOM CONTROL APP

Designing the perfect user interface for each type of user has never been so easy. Custom Control is a customizable, cross-platform control app, providing elegant, bespoke control over an AHM-64 system.

• Multiple user interfaces (per user, per device type)
• Custom graphics and background
• Kiosk mode
• BYOD friendly
• Optional password protection
• iOS / Android / Windows / Mac

ACOUSTIC ECHO CANCELLATION

The Acoustic Echo Cancellation (AEC) module for AHM-64 provides 12 channels of AEC and is designed for teleconferencing and video conferencing scenarios.

SYSTEM MANAGER SOFTWARE UNCOMPROMISED POWER AND FLEXIBILITY

Intuitive AHM System Manager software and AHM-64’s flexible architecture allow rapid configuration, with no certified programming training required. AHM-64 strikes a balance between the simplicity and set latency of fixed architecture, and the flexibility normally reserved for open architecture platforms, allowing it to handle sound management, paging, audio distribution, conferencing and speaker processing roles.

AHM-64 deploys next-generation FPGA technology and 96kHz sample rate, bringing acclaimed Allen & Heath sound quality and sub-millisecond latency to installation. The audio engine has the power to deliver far more processing than the usual open architecture platforms, including 8-band PEQ, gate, compressor and delay on all input channels, and 8-band PEQ / 30-band GEQ, compressor, ANC, source selector, limiter and delay on all zone outputs.

Channels view

Horizontal signal-flow and processing diagram, with clear visibility of what is available, what is / isn’t active, and mouse-over real time audio monitoring.

Assign view

Zoomable matrix view for I/O and routing, with optional level and mute indication, and including Tieline patching and Zone to Zone routing for unparalleled flexibility.

DANTE SPOKEN HERE

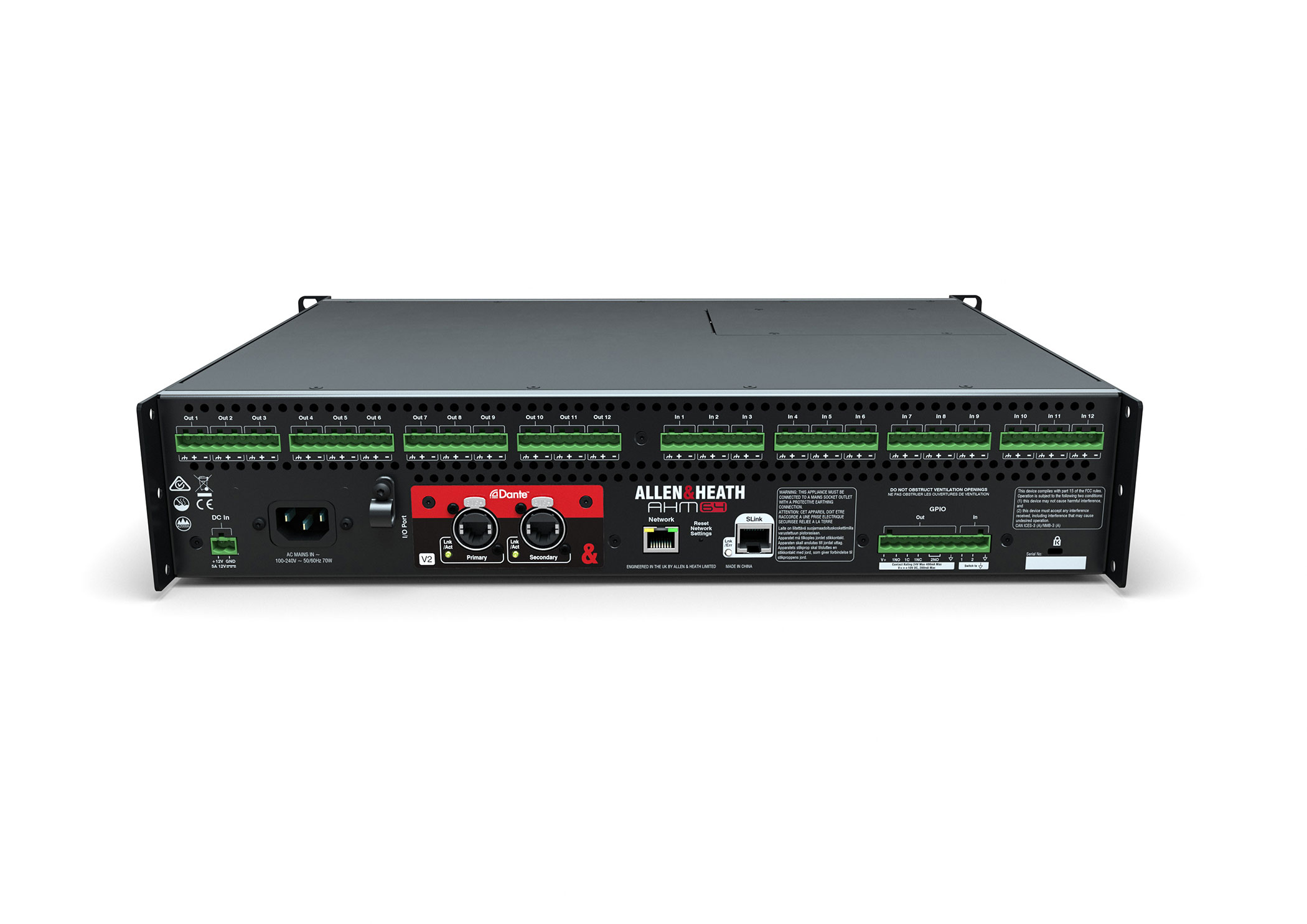

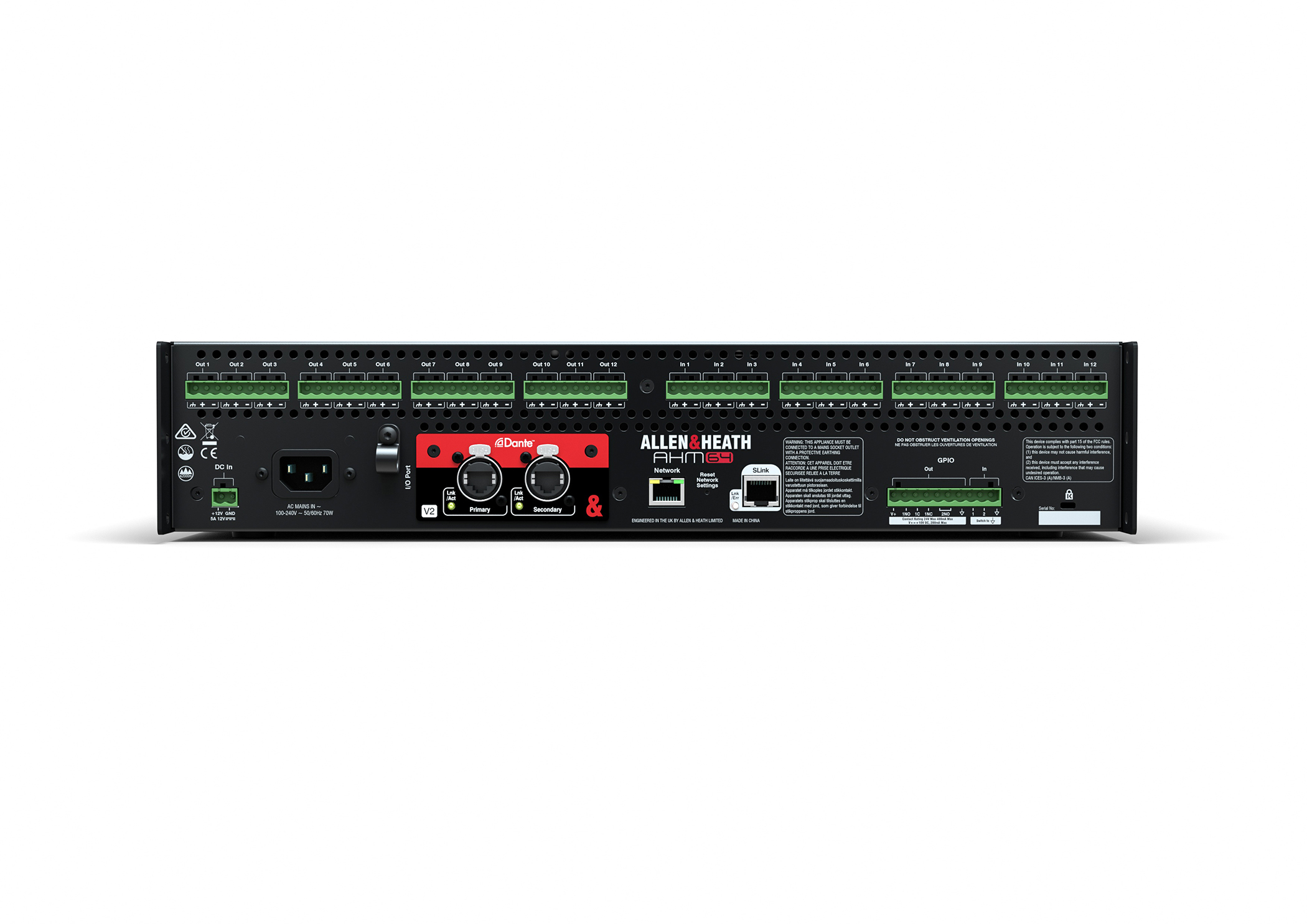

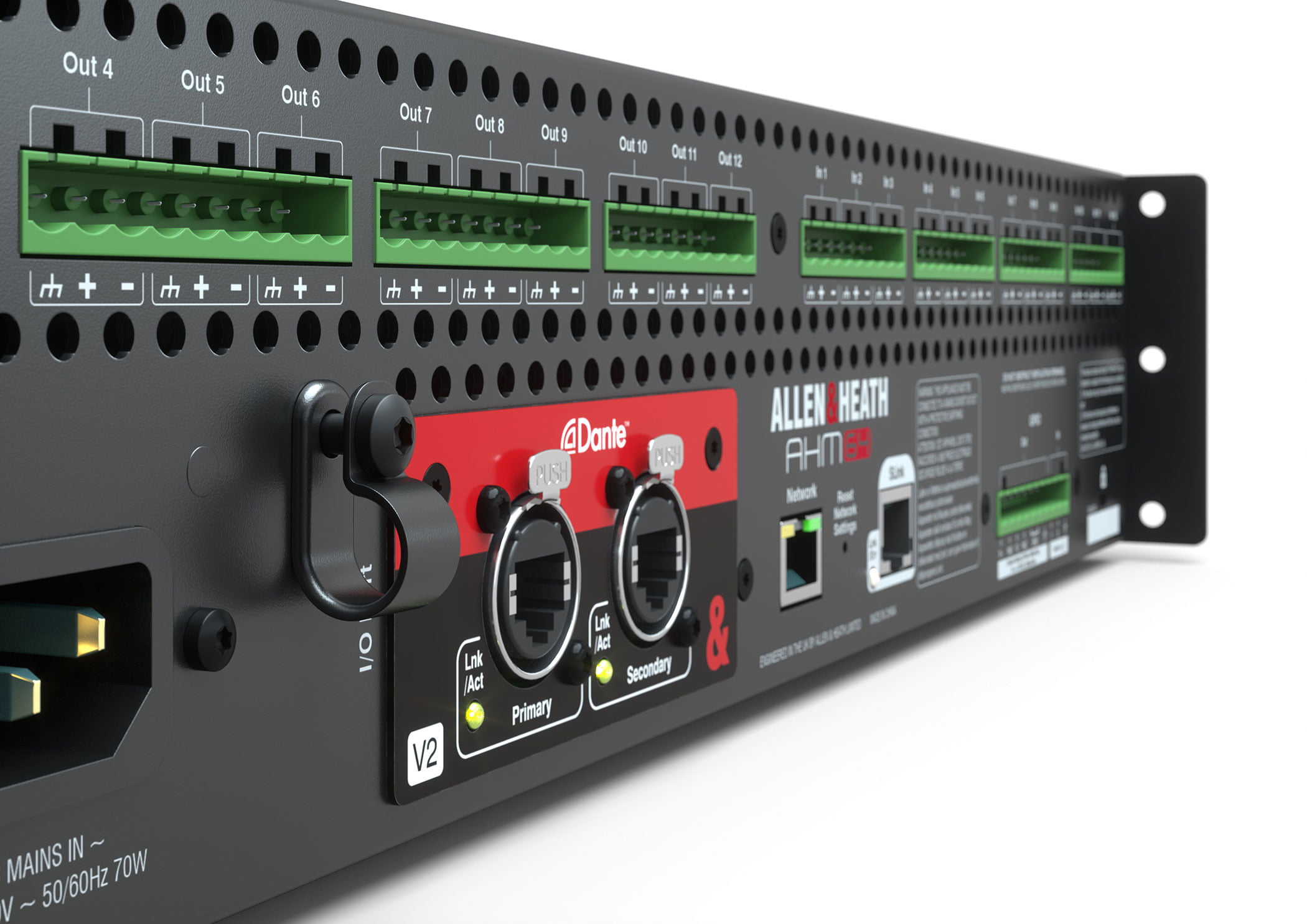

A 64×64 channel Dante option card allows AHM-64 to seamlessly connect to amplifiers, microphones and other devices on a Dante network, including the DT164-W and DT168 Dante I/O expanders. The card can be switched between 96kHz and 48kHz to accommodate Dante networks running at either sample rate.

• 64×64 channel audio and control over a network
• 96kHz or 48kHz operation
• Two ports with redundant and switch modes
• Internal Control Network Bridge
• Locking Ethercon connectors
• Dante Domain Manager ready
• AES67 compatible

WAVES INTEGRATION

The SQ Waves option card provides AHM-64 unit with a 64×64, 96kHz or 48kHz interface to a Waves SoundGrid network using the I/O Port. Installers can now fit the Waves card to AHM-64 for Waves plugin processing, multitrack recording (at 96kHz or 48kHz) and audio distribution applications.

• 64×64 channel digital audio over a network
• 96kHz or 48kHz operation
• Integration with a Waves plugin server or Waves Native
• Multichannel recording / playback
• Two ports with integrated switch
• Internal Control Network Bridge
• Locking Ethercon connectors
