Avantis is a 64 channel / 42 configurable mixer platform featuring our 96kHz XCVI FPGA engine with class-leading 0.7ms latency plus add-on processing from our flagship dLive mixing system.

Two Mixers, One Engine
Pick your size (with no compromise)

Avantis and Avantis Solo are both built on the same 64 input / 42 bus 96kHz mix engine with the only difference being the amount of physical control and I/O available on the mixer. Just pick the form factor that best suits your application or mixing style.

Common Features:

• 96kHz FPGA Processing

• 64 Input Channels

• 42 Bus

• Fully Configurable Mix Architecture

• dPack Upgrade for Additional dLive Processing

• 12 RackExtra FX slots with dedicated stereo returns

• Two 128×128 I/O Ports for Audio Networking

• 16 DCAs

• Range of Remote Expanders

Avantis

• Dual 15.6” Full HD capacitive touchscreens
• 24 assignable SoftKeys
• 24 faders, 6 layers
• 12 Analog and 1 stereo AES Inputs
• 12 Analog and 2 stereo AES Outputs

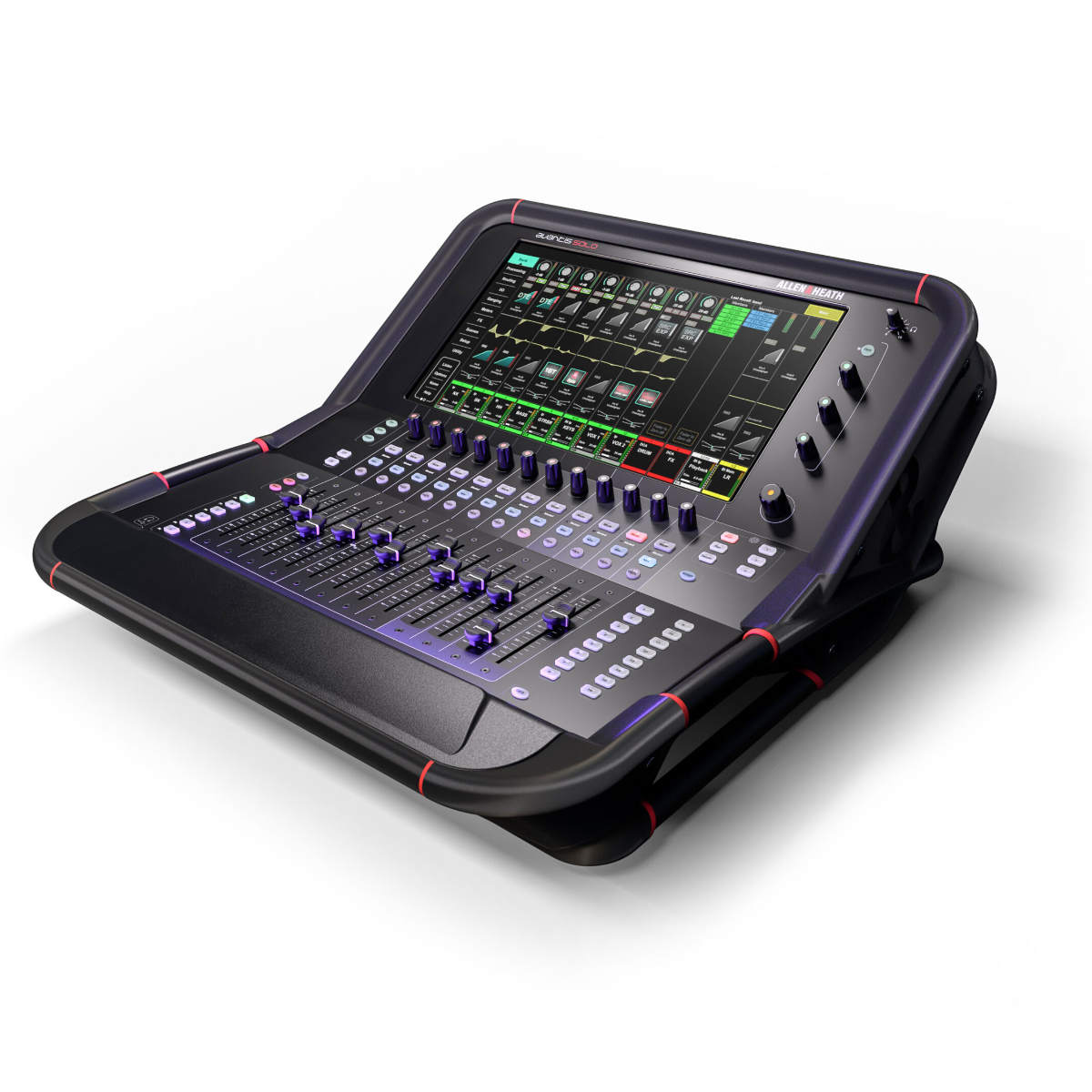

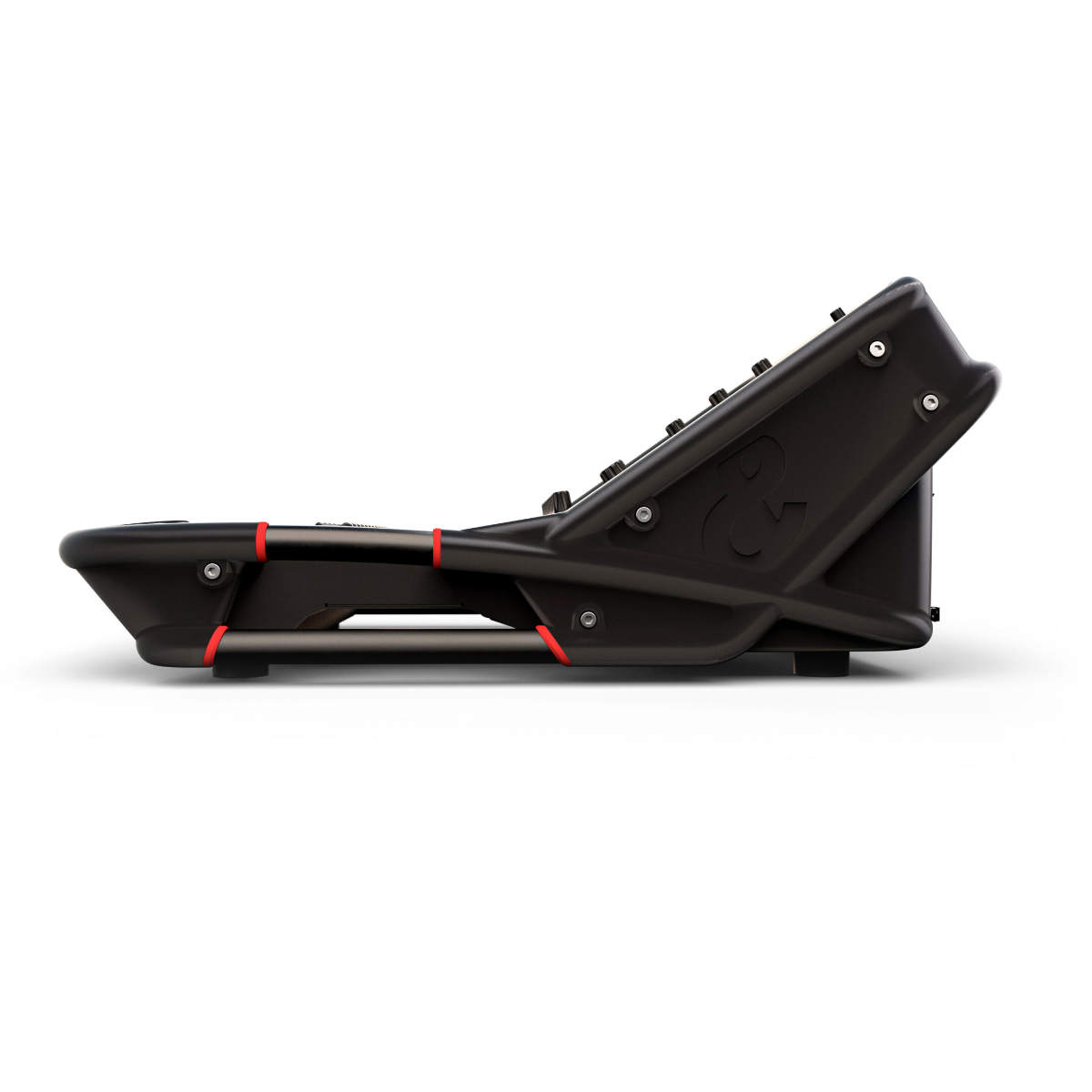

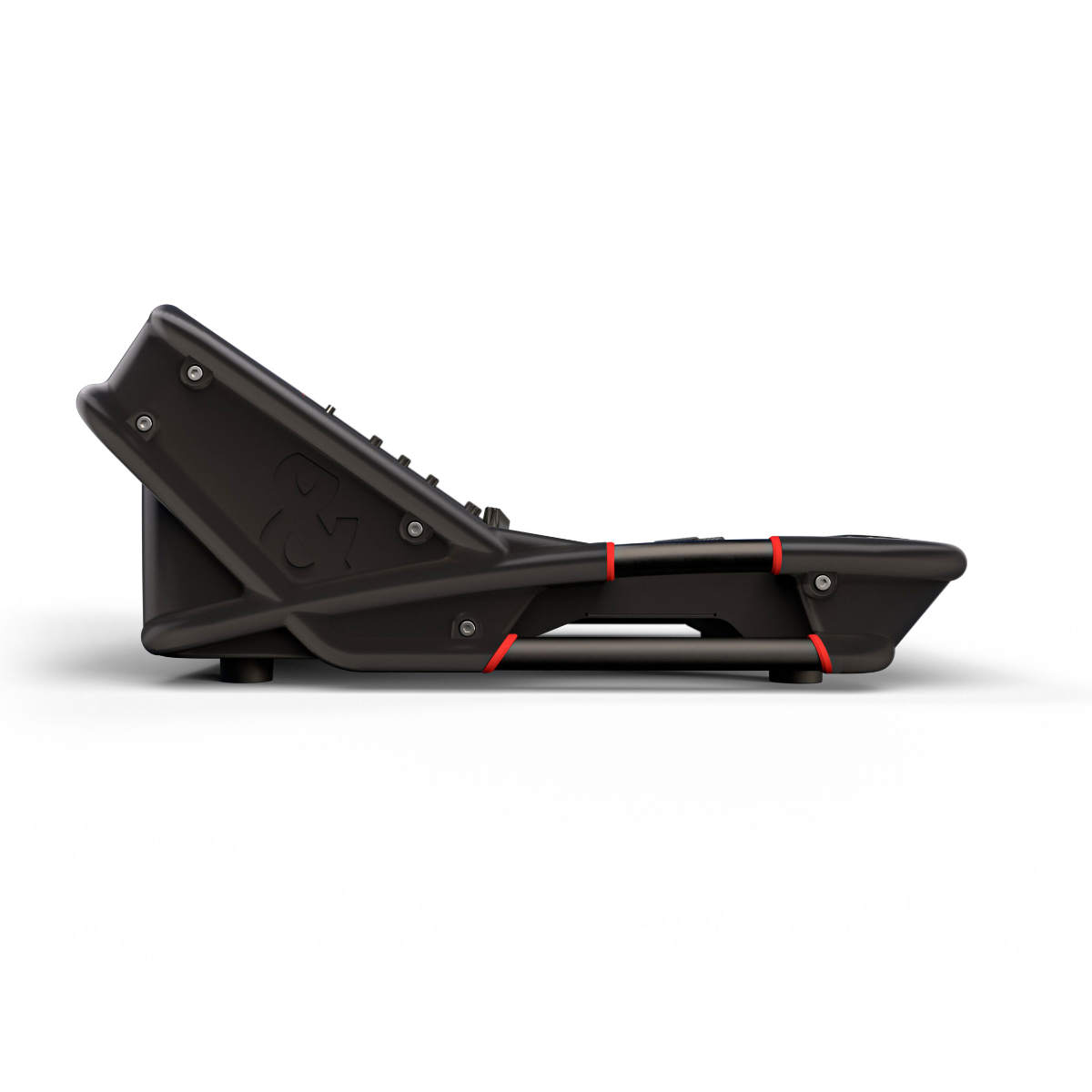

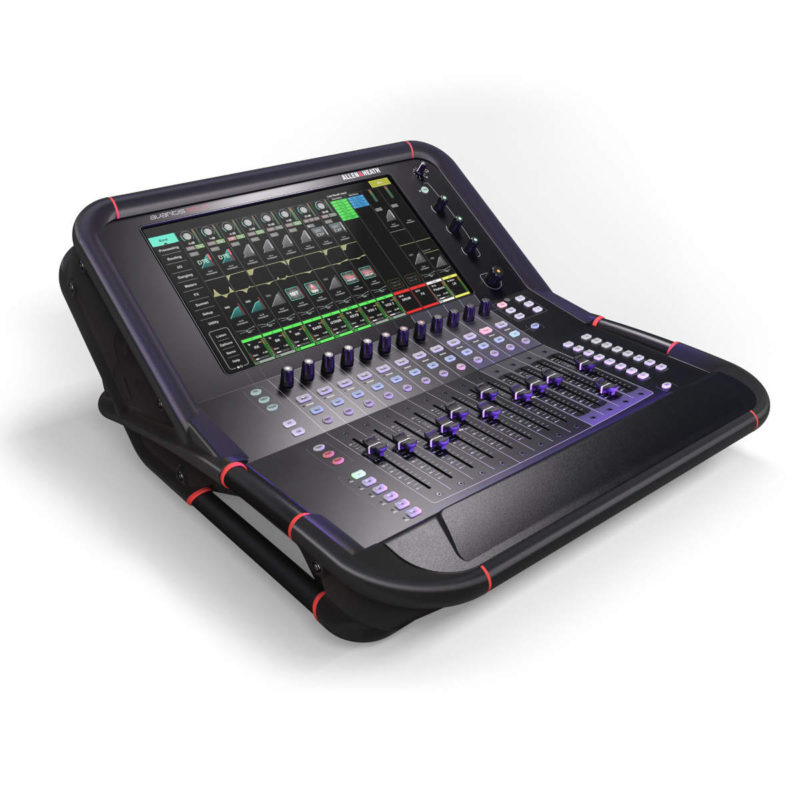

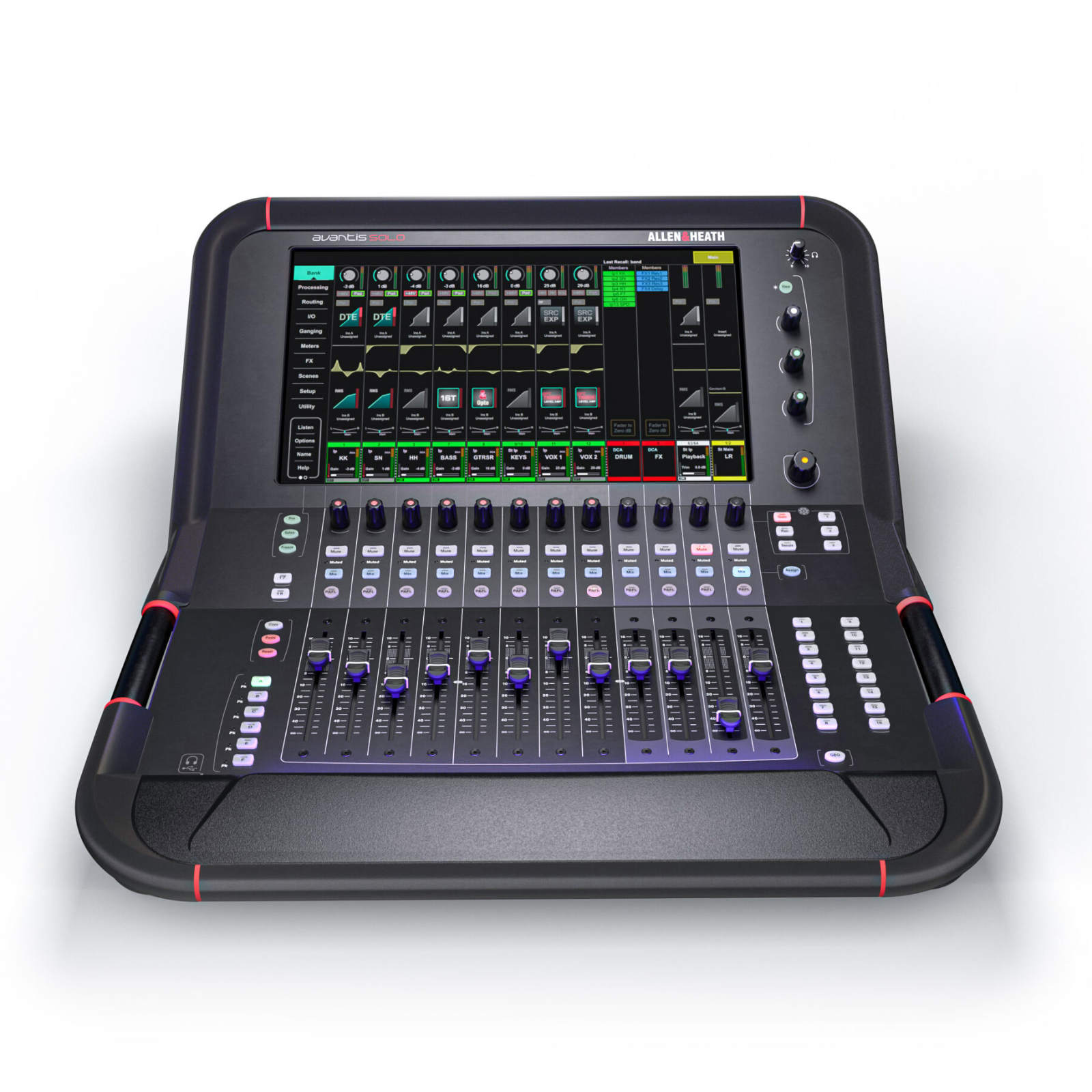

Avantis Solo

• Single 15.6” Full HD capacitive touchscreen
• 18 assignable SoftKeys
• 12 faders, 6 layers
• 6 Analog and 1 stereo AES Inputs
• 6 Analog and 1 stereo AES Outputs

Continuity UI

It’s your mixer, so mix your way.

With a 15.6″ Full HD touchscreen at the heart of the experience, Continuity UI allows you to see and instantly interact with more of what matters, enabling a seamless connection between the physical controls and the screen.

The faders react on touch to immediately highlight the active channels for instant visual feedback.

The channel rotaries let you work gains or pans, then at the touch of a button, dynamically fold the display to show EQ or compressor parameters across the whole bank.

The screen also features a FastGrab tab on the right-hand side, giving you split-second access to key freely-assignable parameters like aux sends, EQ, compressor and FX on the currently selected or specific channel.

The whole system is set up to dynamically surface the information you need at any moment and put control right at your fingertips.

Everything I/O

I/O Expansion for all Applications

Whether you’re an owner/operator looking to build a compact system, or a rental company with existing Allen & Heath stock, the SLink connection on Avantis allows true flexibility by connecting to the entire range of Allen & Heath audio expander hardware.

Add a Dante card to your system and you’ve got even more options, with our dedicated Dante expanders, DT168 and DT164-W.

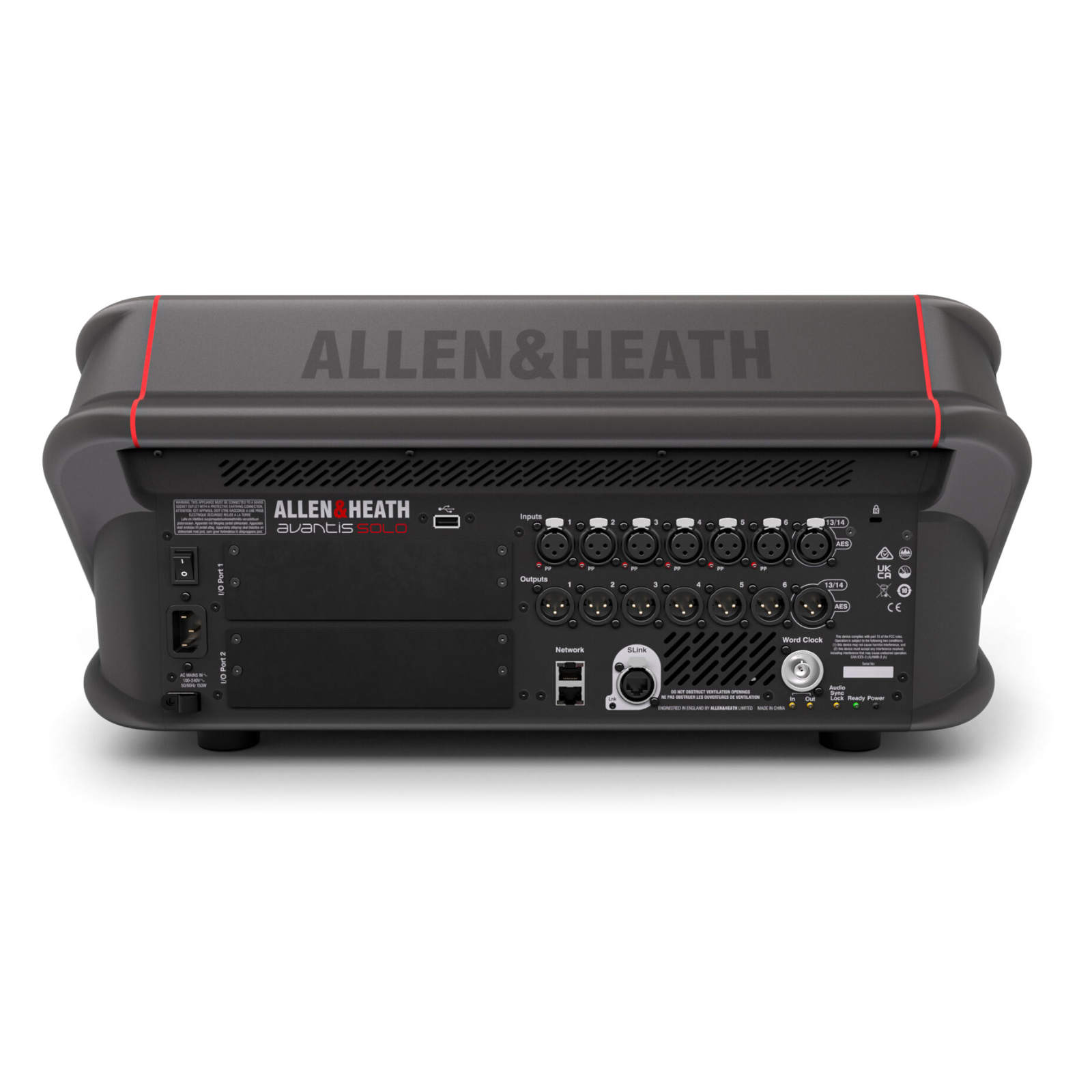

Well Connected

Dante. Waves. And so much more.

For local I/O, Avantis is well equipped with XLR analogue inputs, XLR analogue outputs, plus AES (Stereo In, Stereo Out).

Two additional I/O Ports allow Avantis to benefit from the full range of current dLive option cards, including Dante (64×64 and 128×128), Waves, gigaACE, MADI and more, expanding the scope for system integration, FoH / monitor splits and multitrack recording.

Controllers

A World of Control

Avantis can be controlled using the Avantis Director software, MixPad app, Custom Control app or from our range of remote controllers and GPIO interfaces, with up to 48 IP remote controllers over a standard TCP/IP network.

Applications include control of IEM mixes on stage, extra fader banks at FOH, and local control in breakout rooms.

Avantis MixPad

Remote Mixing

Avantis MixPad is an engineer’s mixing tool providing wireless mobile control for Allen & Heath Avantis digital mixers. It gives you the freedom to walk the room or stage and control the sound right where it is needed. Avantis MixPad and the Avantis mixer can work together to provide simultaneous control of independent functions, for example one engineer using the mixer to mix front-of-house sound, and another using the iPad to mix monitors on stage. Several iPads can be connected, each providing independent control.

Avantis OneMix

Personal Monitoring

OneMix is a cut down version of the Avantis MixPad app that locks control to a single Aux (monitor) mix. Multiple iPads may be set up by the ‘Admin’ user to give each musician customised personal monitor control via Wi-Fi connection to Avantis without the risk of affecting the other monitors or FOH main mix. Avantis OneMix can be configured to provide as much or as little control as needed.

Features

• 96kHz 64 channel / 42 bus digital mixer
• XCVI FPGA core with ultra-low latency (0.7ms)
• Fully configurable mix bus architecture
• Super-tough, full metal chassis
• Continuity UI seamlessly connects physical and touchscreen controls for the fastest, most intuitive workflows
• dPack option adds dLive processing, including 16 Dyn8 engines, plus per-channel zero-latency DEEP Compressors and Dual-Stage Valve preamp
• 12 RackExtra FX slots with dedicated stereo returns
• 16 DCAs
• Dual 15.6” Full HD capacitive touchscreens with gesture control
• AMM (Automatic Mic Mixer) up to 64 channels across 1, 2 or 4 zones
• Fully assignable layout
• 144 fader strips (24 faders, 6 layers) with optional dedicated master section
• SLink port for connection to Remote I/O Expanders and the ME Personal Mixing System
• 12 analogue XLR Inputs / 12 analogue XLR Outputs
• 1 Stereo AES In / 2 Stereo AES Out
• 2 I/O Ports, both capable of 128×128 operation at 96kHz – for optional cards inc. Dante, MADI and gigaACE
• User configurable rotary controls
• 24 assignable SoftKeys
• Comprehensive metering with multi-point peak detection
• Internal storage for stereo playback and recording
• USB stereo playback
• BNC Word Clock
