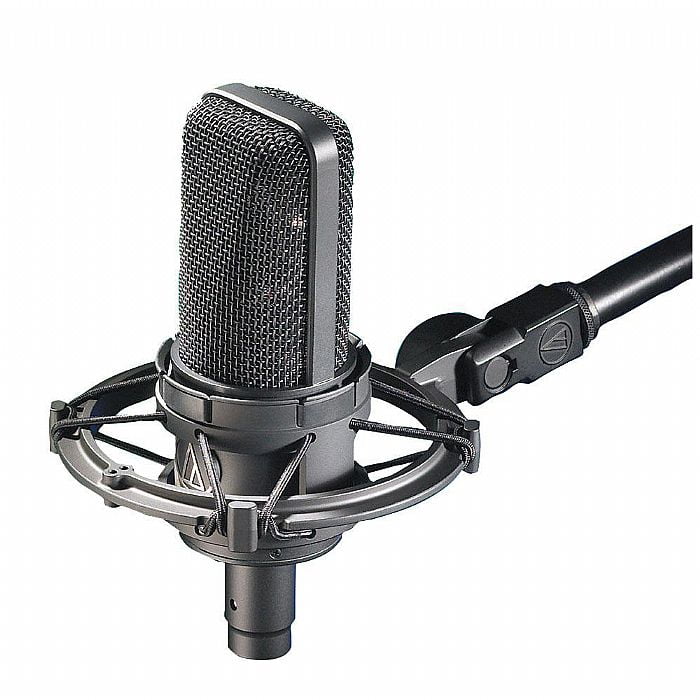

Cardioid Condenser side-address vocal studio Microphone
- A strong up-front presence
- Transformerless circuitry
- The 2-micron-thick, vapor-deposited gold diaphragm
- Floating-construction capsule assembly
- State-of-the-art surface-mount electronics
- Custom shock mount provides superior isolation
The side-address AT4033aSM offers low-noise, symmetrical, transformerless circuitry that results in exceptional transient response and clean output signals.A strong up-front presence characterizes the sonic signature of this 40 Series pro-audio classic. The AT4033aSM’s 80Hz high-pass filter easily switches between flat frequency response and a low-end roll-off that diminishes ambient noise and popping with closely-miked vocals.
- A strong up-front presence characterizes the sonic signature of this versatile pro-audio classic
- Transformerless circuitry virtually eliminates low-frequency distortion and provides superior correlation of high-speed transients
- Precision-machined, nickel-plated brass, acoustic element baffle provides enhanced element stability and optimal sensitivity
- The 2-micron-thick, vapor-deposited gold diaphragm undergoes a five-step aging process so that the optimum characteristics achieved remain constant over years of use
- Floating-construction capsule assembly provides isolation from noise and vibration
- Open acoustical environment of the symmetrical housing assembly minimizes unwanted internal reflections
- State-of-the-art surface-mount electronics ensure compliance with Audio-Technica’s stringent consistency and reliability standards
- Custom shock mount provides superior isolation
Element: Fixed-charge back plate, permanently polarized condenser
Polar Pattern: Cardioid

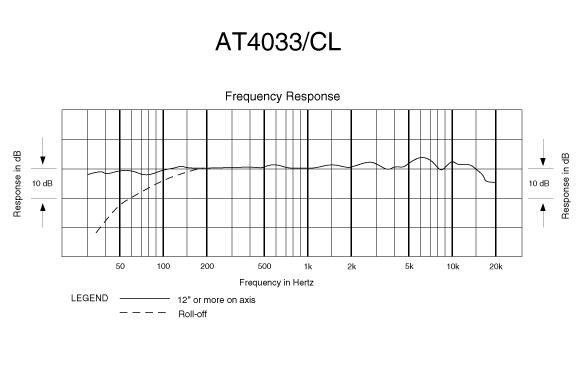

Frequency Response: 30-20,000 Hz
Low Frequency Roll Off: 80 Hz, 12 dB/octave
Open Circuit Sensitivity: -32 dB (25.1 mV) re 1V at 1 Pa
Impedance: 100 ohms
Maximum Input Sound Level: 145 dB SPL, 1 kHz at 1% T.H.D.; 155 dB SPL, with 10 dB pad (nominal)
Dynamic Range: 128 dB, 1 kHz at Max SPL
Signal to Noise Ratio: 77 dB, 1 kHz at 1 Pa
Phantom Power Requirements: 48V DC, 3.2 mA typical
Weight: 13.4 oz (380 g)
Dimensions: 6.69″ (170.0 mm) long, 2.10″ (53.4 mm) maximum body diameter
Output Connector: Integral 3-pin XLRM-type

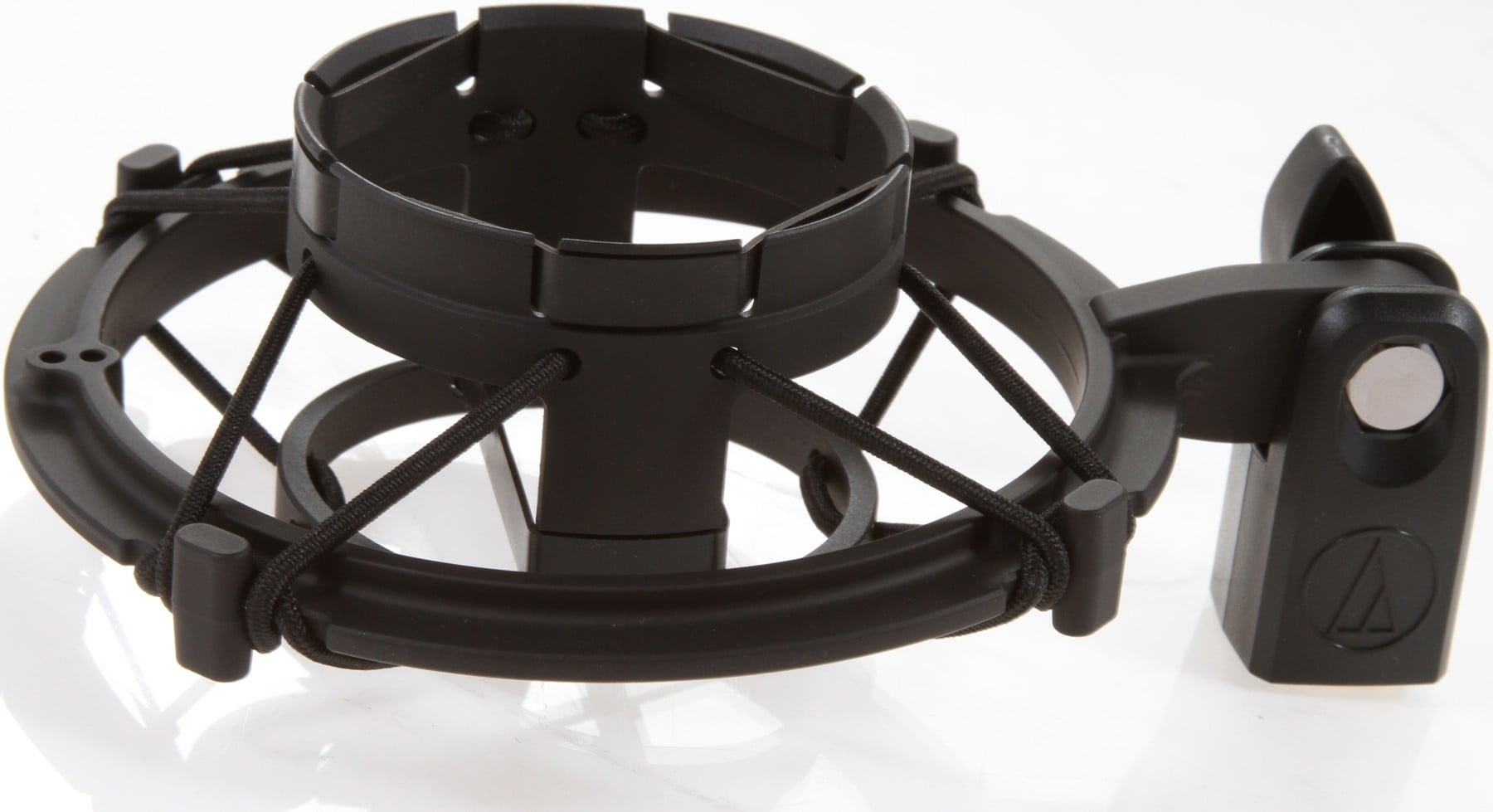

Accessories: AT8449 shock mount for 5/8″-27 threaded stands; protective carrying case
