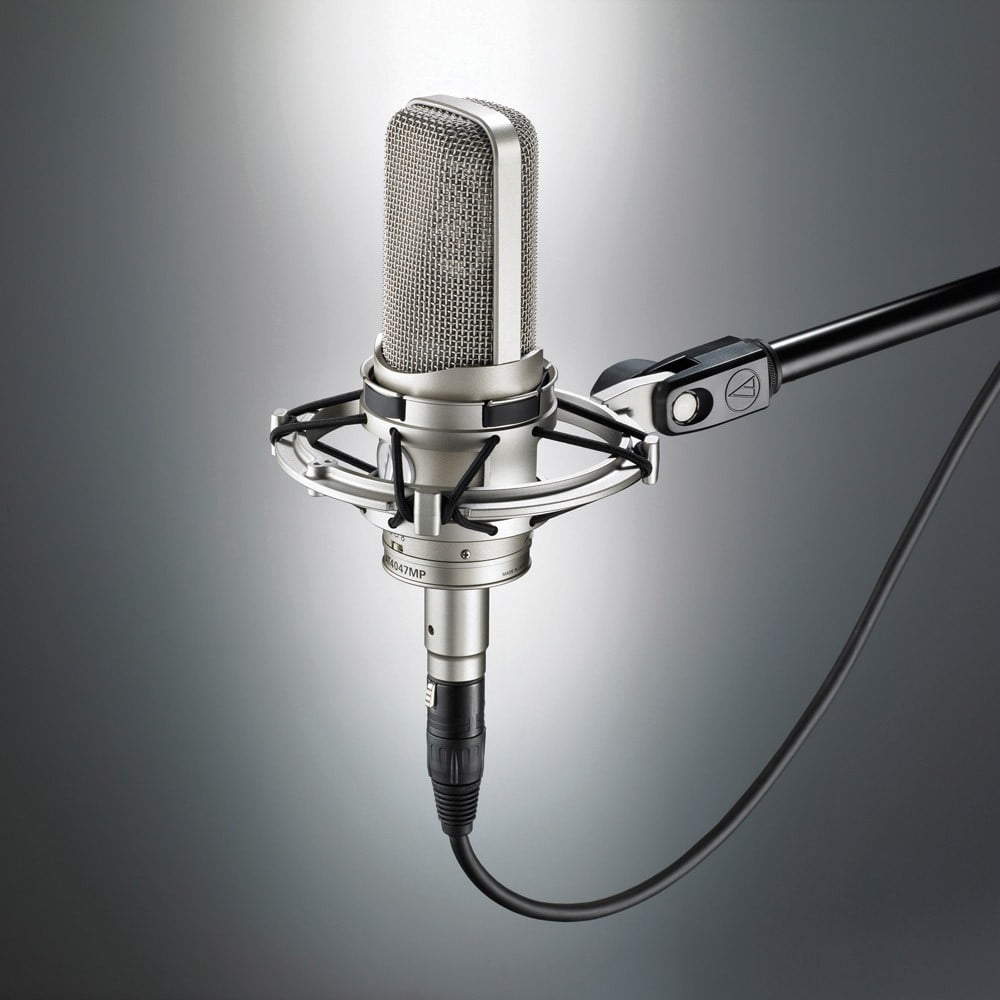

Audio Technica AT4047MP

£799.00 Inc VAT

Vintage Sound Studio Mic

  • 3 switchable polar patterns: cardioid, omnidirectional, figure-of-eight
  • For professional recording, broadcast and sound reinforcement
Audio Technica
Categories: , , SKU: MI/CON/ATEC102FP

Audio-Technica’s AT4047MP delivers vintage sound in a multi-pattern design with selectable omnidirectional, cardioid, and figure-of-eight polar patterns.

The microphone’s transformer-coupled output and specially tuned element provide sonic characteristics reminiscent of early F.E.T. studio microphone designs.

With a wide dynamic range, incredibly low self-noise and high SPL capability, this versatile microphone excels on vocals, strings, acoustic guitar, instrument ensembles, small vocal groups and voiceovers.

  • Three switchable polar patterns: cardioid, omnidirectional, figure-of-eight
  • Engineered to meet the critical acoustic requirements of professional recording, broadcast and sound reinforcement
  • Transformer-coupled output and specially tuned element provide sonic characteristics reminiscent of early F.E.T. studio microphone designs
  • Exceptionally low self-noise, wide dynamic range and high SPL capability
  • Dual-diaphragm capsule design maintains precise polar pattern definition across the full frequency range of the microphone
  • Precision-machined, nickel-plated brass, acoustic element baffle provides enhanced element stability and optimal sensitivity
  • Vintage silver-matte finish on microphone and shock mount
  • Open acoustical environment of the symmetrical housing assembly minimizes unwanted internal reflections
  • Custom shock mount provides superior isolation
  • Integral 80 Hz high-pass filter switch and 10 dB pad switch

Element: Externally-polarized (DC bias) condenser

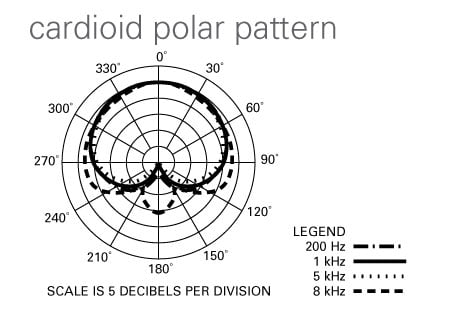

Polar Pattern: Cardioid, Omnidirectional, Figure-of-eight

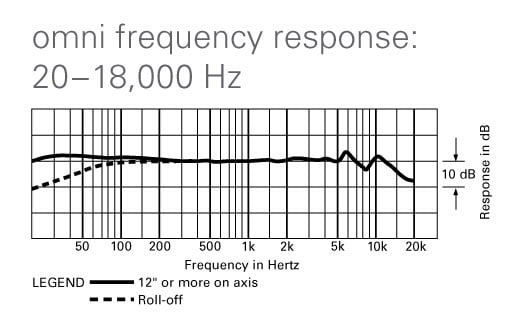

Frequency Response: 20-18,000 Hz

Low Frequency Roll-off: 80 Hz, 12 dB/octave

Open Circuit Sensitivity: -42 dB (7.9 mV), re 1V at 1 Pa

Impedance: 100 ohms

Maximum Input Sound Level: 155 dB SPL, 1 kHz at 1% T.H.D.; 165 dB SPL, with 10 dB pad (nominal)

Noise: 14 dB

Dynamic Range (Typcial): 141 dB, 1 kHz at Max SPL

Signal-to-Noise Ratio: 80 dB, 1 kHz at 1 Pa

Phantom Power Requirements: 48V DC, 3.4 mA typical

Switches: Polar selection; Flat, roll-off;10 dB pad (nominal)

Weight: 524 g (18.5 oz)

Dimensions: 188.0 mm (7.40″) long,53.4 mm (2.10″) maximum body diameter

Output Connectors: Integral 3-pin XLRM-type

Accessories Furnished: AT8449/SV shock mount for 5/8″-27 threaded stands; microphone dust cover; protective carrying case

Audio-Technica Case Style: R1
