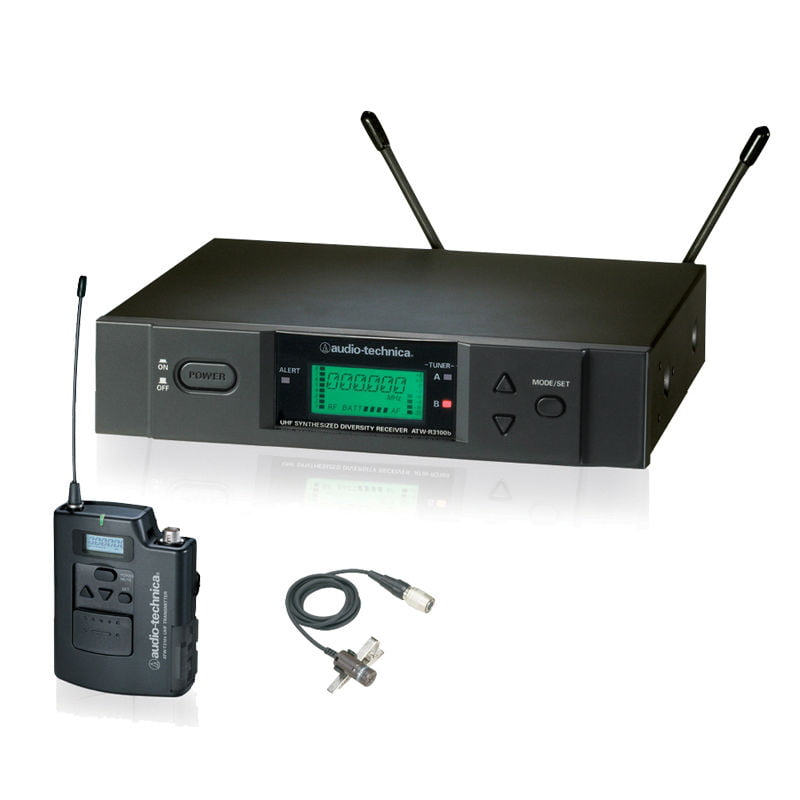

Lapel radio mic system – standard lapel mic included
UHF true diversity radio system with 1001 selectable channels
Frequency scanning and polit tone squelch.

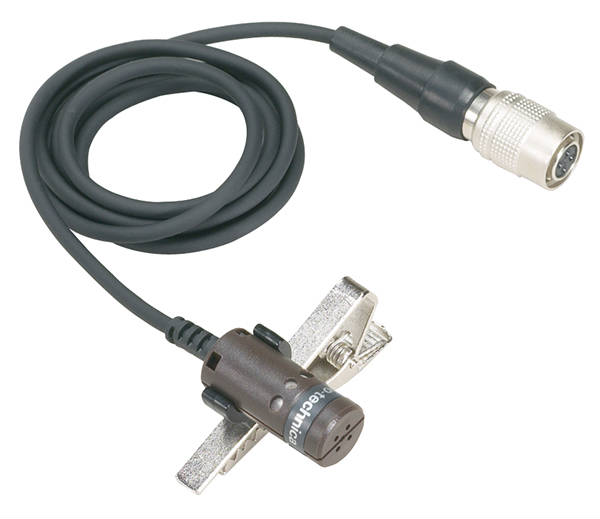

Includes AT829cW basic cardioid lapel mic

Channel 38 ‘U band’ (606-614Mhz) is a regulated frequency range for radio mics and requires a licence.
Please contact us for information and licence purchase.

For the wireless user ready to step up to an advanced UHF system, the 3000A Series is the solution. Offered in two UHF frequency bands, the 3000A Series features Audio-Technica’s Digital Tone Lock Squelch plus an easy-to-read LCD information display in each unit which provides convenient visual indications of settings and operation status. The new frequency-scan function enables automatic assignment of clear open channels.

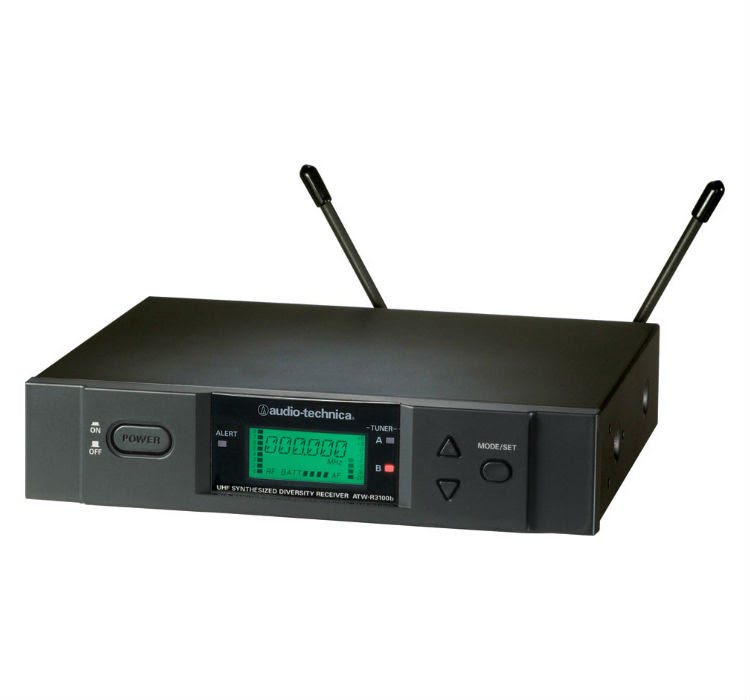

The new ATW-R3100 receiver benefits from a newly designed high-specification front-end filtering system along with the latest Audio-Technica 1/2-wave antenna technology to maximise both simultaneous frequency use and range. Other features include 200-channel UHF True Diversity frequency-agile operation, soft-touch controls on all components, and step-through menus for setting preferences.

Features

• Automatic frequency scanning for easy set-up
• 200 PLL-synthesized channels per band selectable via soft-touch controls on receiver and transmitter
• Available in two frequency bands:
• 840.125 – 864.875 MHz (F Band).
• 795.500 – 820.000 MHz (E Band)
• True Diversity operation selects the better signal from two independent receiver sections, reducing dropouts
• Interference-resistant UHF band operation
• Advanced digital ToneLock“ squelch
• Red alert light that warns of low battery power, signal loss and input overload
• Transmitter battery-life fuel gauge on the receiver
• Ground-lift switch
• Balanced and unbalanced audio output jacks
• Two receivers can be mounted side-by-side in a single 19″ rack space

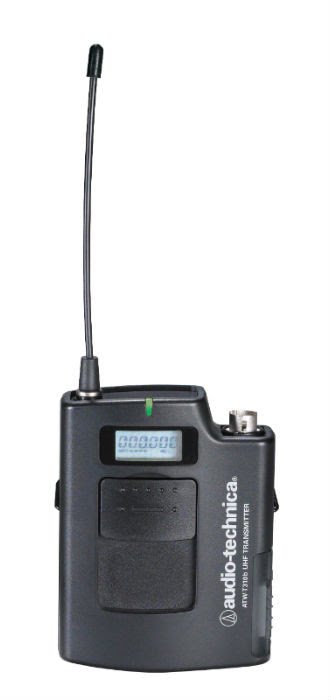

• ATW-T310 UniPak’ transmitter includes Super Hi-Z input that provides optimum load for guitar pickups
