Audio Technica Basic Wired Lapel Mic

£180.00 Inc VAT
  • Audio Technica AT829cW lapel mic and AT8539 phantom power adapter
  • Product bundle offers ready-to-go wired lapel mic
  • Requires Phatom Power from mixer
  • Use with regular XLR mic lead
  • Compact and discreet microphone setup
Audio Technica

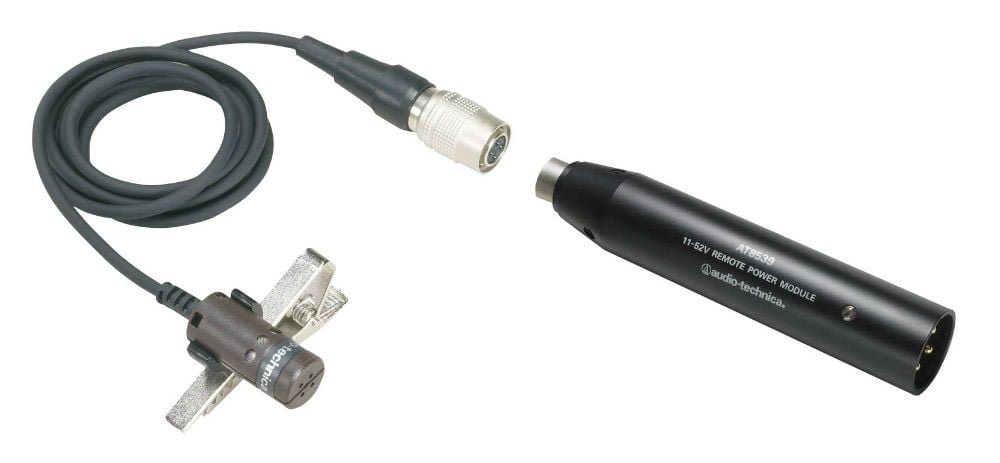

Audio Technica AT829cW lapel mic and AT8539 phantom power adapter

  • Product bundle offers ready-to-go wired lapel mic
  • Requires Phatom Power from mixer
  • Use with regular XLR mic lead
  • Compact and discreet microphone setup

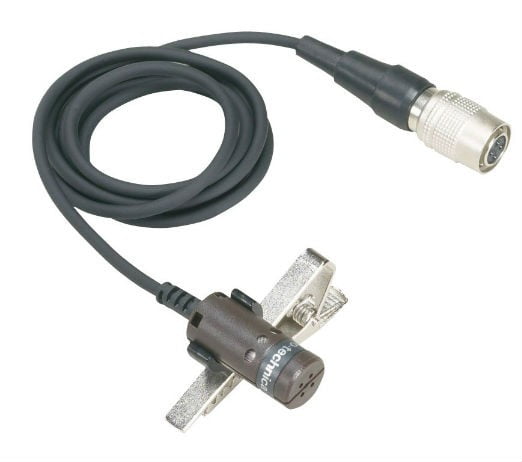

AT829cW lapel mic

  • General purpose, cardioid lapel microphone for the Audio Technica radio mic systems
  • Terminated with locking 4-pin HRS connector for A-T UniPak’ body-pack wireless transmitters.&nbsp
  • 55″ (1.4 m) cable.

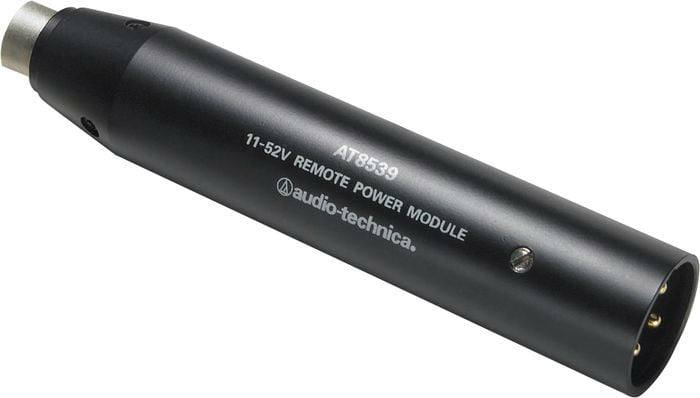

AT8539 power module

Allows any Audio-Technica Wireless Essentials® microphone to operate as a wired microphone.

The power module’s HRS-type 4-pin input connector mates with any Audio-Technica Wireless Essentials® (wireless microphone with model number ending in
a cW); its output is a standard 3-pin XLRM-type connector.

It offers a low-cut filter to help minimize the pickup of unwanted low frequencies.

To engage the low-cut filter, use the end tip of a paperclip or other small pointed instrument to slide the switch toward the “bent” line.

The power module is constructed of rugged steel for maximum durability and optimum shielding from hum. A snap-on belt clip is included.

AT829cW lapel mic
Element: Fixed-charge back plate, permanently polarized condenser
Polar Pattern: Cardioid
Frequency Response: 70-16,000 Hz
Open Circuit Sensitivity: -42.8 dBV (7.3mV) re 1V at 1 Pa
Signal to Noise Ratio: 67.1 dBA, 1 kHz at 1 Pa
Weight: 2.4g
Dimensions: 24mm long, 10.5mm diameter
Cable: 1.4 m long (permanently attached to microphone), terminated with HRS connector
Accessories: AT8131 foam windscreen; AT8434 clothing clip;

AT8539 power module
Input/Output connectors HRS-type 4-pin / XLRM-type
Frequency response Microphone dependent
Impedance 250 ohms
Low-cut filter 80 Hz, 18 dB/octave
Phantom power 11-52V DC, 2 mA typical
Switch Flat / Roll-off
Dimensions 97.6 mm (3.84″) long , 18.9 mm (0.74″) diameter
Accessory included Belt clip

Brand

Audio Technica

Audio Technica
