Hanging microphone – Cardioid pickup
- Designed for quality sound reinforcement
- Ideal for suspension over choirs, instrumental groups and theater stages
- Superior off-axis rejection for maximum gain before feedback
- Requires phantom power
- UniGuard’ RFI-shielding tfor rejection of radio frequency interference
- Available in two colors: black (ES933C) and white (ES933WC)
With durable construction and unobtrusive appearance, the ES933C offers versatile solutions for speech, theater, orchestra and choir sound reinforcement and recording. The microphone’s low-profile element provides a uniform cardioid polar pattern with 120° acceptance angle. Available in two colors: black (ES933C); white (ES933WC), the microphone offers unsurpassed immunity from radio frequency interference thanks to UniGuard’ innovations. The ES933C also offers an 80 Hz low-cut UniSteep’ filter that reduces pickup of low-frequency ambient noise.
Features
- Designed for quality sound reinforcement, professional recording, television and other demanding sound pickup applications
- Small size and excellent response are ideal for suspension over choirs, instrumental groups and theater stages
- Low-profile element provides uniform cardioid polar pattern with 120° acceptance angle
- Available interchangeable elements permit angle of acceptance from 90° to 360°
- Superior off-axis rejection for maximum gain before feedback
- Requires 11V to 52V DC phantom power
- UniGuard’ RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
- Integral UniSteep’ filter provides a steep low-frequency attenuation to improve sound pickup without affecting voice quality
- Available in two colors: black (ES933C) and white (ES933WC)
- RoHS compliant – free from all substances specified in the EU directive on hazardous substances
Specifications
Element: Fixed-charge back plate, permanently polarized condenser

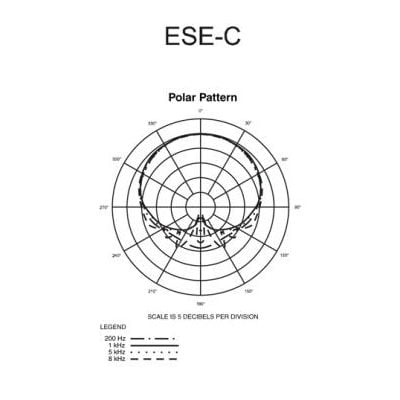

Polar Pattern: Cardioid

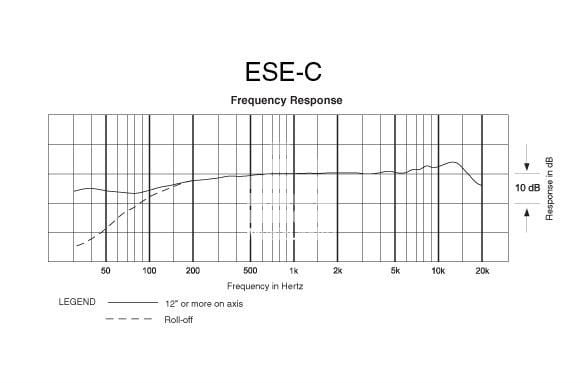

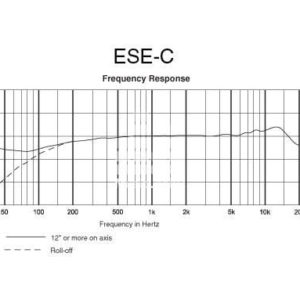

Frequency Response: 30-20,000 Hz
Low Frequency Roll Off: 80 Hz, 18 dB/octave
Open Circuit Sensitivity: -40 dB (10.0 mV) re 1V at 1 Pa
Impedance: 250 ohms
Maximum Input Sound Level: 138 dB SPL, 1 kHz at 1% T.H.D.
Dynamic Range: 109 dB, 1 kHz at Max SPL
Signal to Noise Ratio: 65 dB, 1 kHz at 1 Pa
Phantom Power Requiremens: 11-52V DC, 2 mA typical
Switch: Flat, roll-off
Cable: 15.2 m (50′) long (permanently attached to microphone), 3.2 mm (0.13″) diameter, 2-conductor shielded cable, terminated with TA3F-type connector
Accessories
ES933C: AT8109 two-stage foam windscreen; AT8452 steel hanger ES933WC: AT8109(WH) two-stage foam windscreen; AT8452(WH) steel hanger Both: AT8538 power module
