Australian Monitor MX61

Call for price

6 Imput mono mixer
XLR input switchable between microphone and line level
15dB /- gain trim control per input
Input 1 is switchable to be pre/post master
24VDC or mains power operation
Optional remote VCA/Tone generator/muting boards available
Whisper quiet operation
Dual colour signal present indication LED per input.

Category: Rack Mounted MixersSKU: MX/UNP/AM02

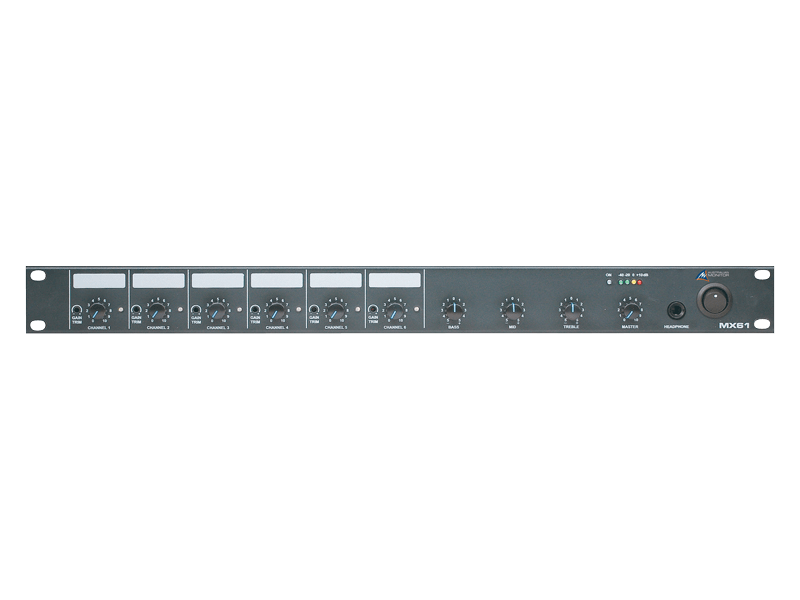

The MX61 Mixer brings a range of new features to the AMIS standard 1 RU mixer range. The MX61 mixer features the new Australian Monitor Standard (AMS) input section which has an XLR input switchable between microphone and line level, dual RCA line inputs, signal present LED indication, individually switchable phantom power, and /- 15dB of gain trim available per input.

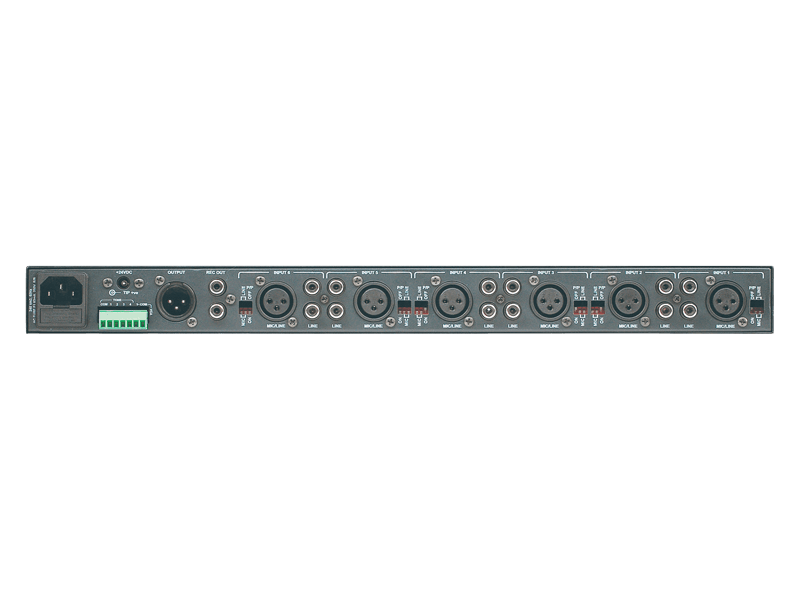

The MX61 also boast whisper quiet operation, four segment output level indicators and balanced line output, record output and headphone outputs. The MX61 has six AMS inputs to one output and operate via 110 or 220-240 VAC or 24VDC via an external 24 volt external power supply. Remote VCA volume control, tone generators and muting boards are also available for the MX61.

Frequency Response 20Hz – 20kHz ( 0,-3dB)
Total Harmonic Distortion < 0.1% @ 1kHz
Signal To Noise Ratio > 90dB (all pots at centre position)
Crosstalk Between channels >70dB
Tone Controls Bass @ 100Hz /- 12dB
Middle @ 1.6kHz /- 12dB
Treble @ 10kHz /- 12dB
Sensitivity Mic Sens 4.36mV, -45dBu, Imp 1k3ohm (Trim in centre 0dB)
Line Sens 0.775V, 0dBu, Imp >100ohm
RCA 200mV, -12dBu, Imp 30kohm
Max Level in XLR mic -15dBu line
30dBu
RCA >30dBu
Max Level out 21dBu
Phantom Power 15V DC
Outputs Master Out Nominal Level 0dBu
into 1kohm
Imp 100ohm
Mono Headphone Out Nom -6dB into 200ohm
Imp 10ohm
Mono Rec Out Nom -12dB into 10kohm
Imp 10kohm
Power Input AC: 230V/50Hz or 115V/60Hz, 3 pin IEC320-C14 connector;
DC: 24 Volts via 2.1mmx5.5mm, DC socket
Power Consumption (max) 7 VA
Fuses Mains (115V) 120mA
Mains (230V) 63mA
Dimensions (H x W x D) 44 x 482 x 182mm (1.75” x 19” x 7.2”)
Shipping Dimensions (H x W x D) 90 x 505 x 270mm (3.5” x 19.9” x 10.6”)
Weight Net 2.75kg (6.1lb)
Shipping 3.75kg (8.3lb)
