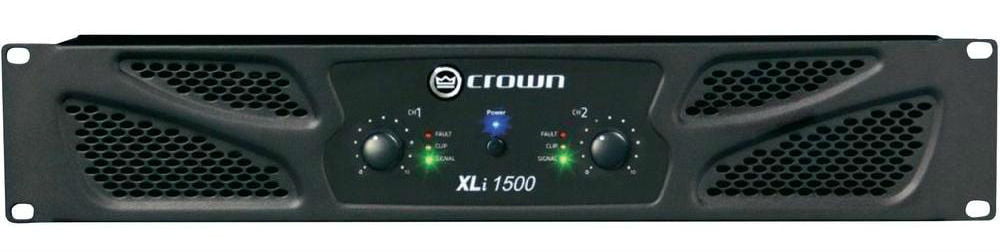

900W Bridgeable PA Power Amplifier
The XLi Series of power amplifiers from Crown represents a new era in affordable, quality power amplification. All four models in the series are powerful, rugged and reliable.
The talented Crown XLi 1500 PA amplifier receives signals reliably from the stereo RCA line or XLR inputs, and produces a clean sound.
The Crown XLi 1500 conveniently switches between stereo and parallel modes, while a mono mode is also possible with the bridging mode of the amplifier.

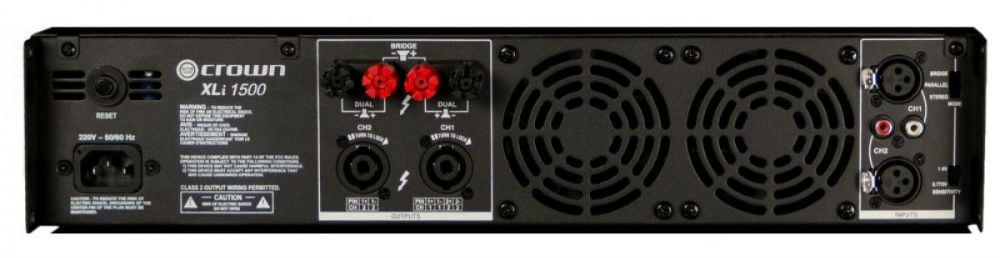

Thanks to the screw terminals and PA outputs, connecting the Crown XLi 1500 to different speaker setups is not an issue.
Smooth operation is guaranteed with the Crown XLi 1500. It is protected against the most common problems, such as short circuiting, no-load, on/off thumps and radio frequency interference.
For a structured application, the Crown XLi 1500 is the perfect size and can easily be installed into a 19″ (48cm) rack, using 2 rack units.
PA amplifier with 2 x 450W RMS power at 4 ohms, 2 x 330W RMS at 8 ohms, 1 x 900W RMS at 8 ohms (in bridged mode)
Stereo, bridge and parallel mode
Bridgeable – 2/1 channel operation
Selectable sensitivity: 0.775V or 1.4V
Suitable for 19″ (48cm) rack installation – 2 rack units
Channels : 2
Sensitivity (for full rated power at 4 ohms) : 0.775V or 1.4V
Signal to Noise Ratio (below rated power 20Hz to 20kHz, A-Weighted) : > 103 dB
Total Harmonic Distortion (THD) (20Hz – 20kHz) : < 0.1%
Intermodulation Distortion (60 Hz and 7 kHz at 4:1 from full rated output to –30 dB) : = / < 0.35%
Frequency Response (at 1W, 20 Hz – 20 kHz) : ± 0.5 dB
Crosstalk (below rated power) : at 1 kHz: –78 dB, at 20 kHz: –59 dB
Damping Factor (from 10 Hz to 400 Hz, 8ohm load) : > 200
AC Line Voltage and Frequency Configurations (± 10%) : 120VAC / 60 Hz
Dimension (H x W X D) : 19” x 3.5” x 12.4”, (8.9 x 48.3 x 31.5 cm)
Net Weight : 25.1 lb (11.4 kg)
