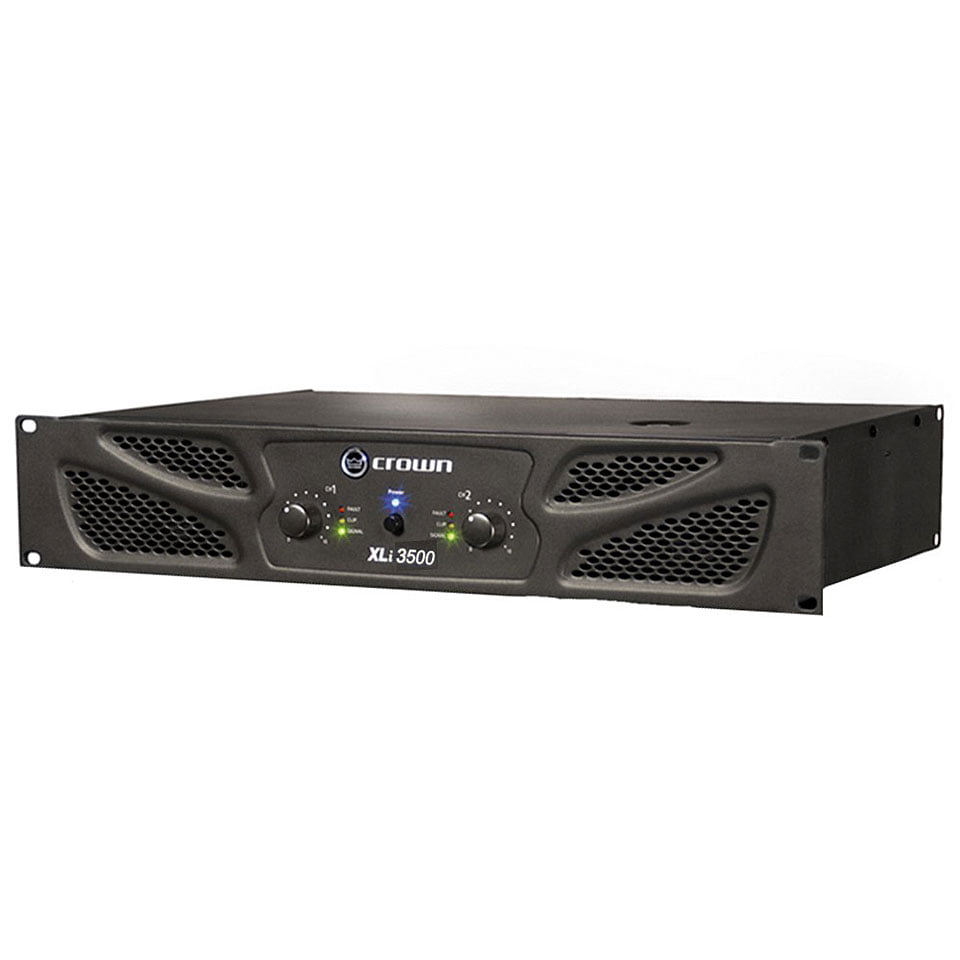

2700W Bridgeable PA Power Amplifier. 2 x 1350 Watts @ 4 Ohms / 1000 Watts @ 8 Ohms
The XLi Series of power amplifiers from Crown represents a new era in affordable, quality power amplification. All four models in the series are powerful, rugged and reliable.
The XLI Series of power amplifiers from Crown® represents a new era in affordable, quality power amplification. All four models in the series are powerful, rugged and reliable. They are suited for musicians, DJs, and entertainers as well as houses of worship, discos, and pubs. The four models in the series are the XLi800, XLi1500, XLi2500 and XLi-3500. They are identical except for output power. Features include RCA and XLR inputs, user selectable input sensitivity of 0.755V or 1.4V, Speakon® and binding post outputs, stereo/parallel/bridge-mono mode, power/fault/signal presence/clip indicators, forced-air cooling; and protection against shorts, no-load, on/off thumps and radio-frequency interference. With over six decades of experience designing and building rock-solid products, Crown is the standard in amplifier technology. So check out the affordable Crown XLI Series. They are a powerful argument for quality and value.
Efficiency
Efficient forced-air cooling prevents excessive thermal buildup.
Inputs/Outputs

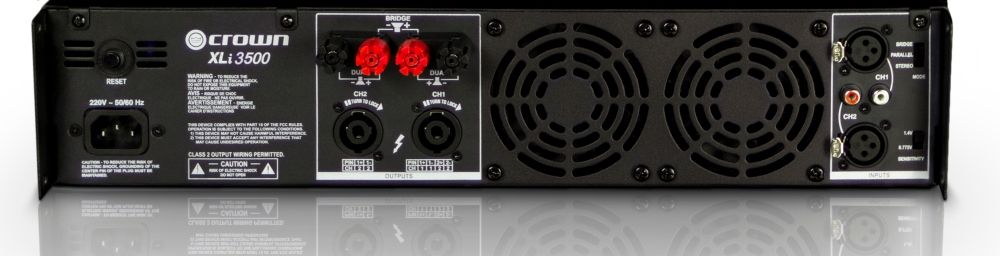

Electronically balanced RCA & XLR inputs; binding post and Speakon outputs.
Controls

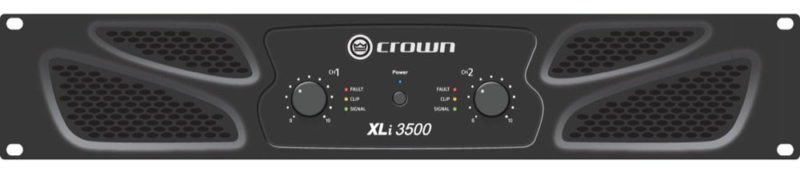

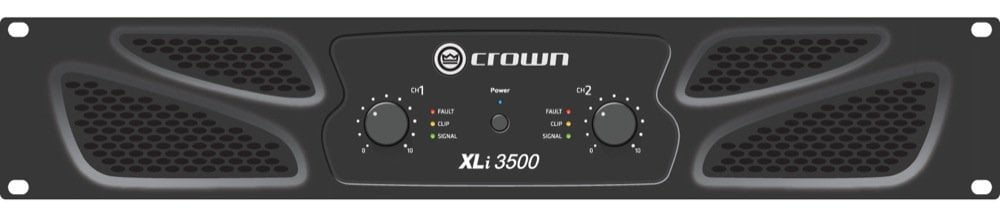

Two level controls, power switch, power LED, and six LEDs which indicate signal presence, clip and fault for each channel.
Channels : 2
Sensitivity (for full rated power at 4 ohms) : 0.775V or 1.4V
Signal to Noise Ratio (below rated power 20Hz to 20kHz, A-Weighted) : > 103 dB
Total Harmonic Distortion (THD) (20Hz – 20kHz) : < 0.1%
Intermodulation Distortion (60 Hz and 7 kHz at 4:1 from full rated output to –30 dB) : = / < 0.35%
Frequency Response (at 1W, 20 Hz – 20 kHz) : ± 0.5 dB
Crosstalk (below rated power) : at 1 kHz: –78 dB, at 20 kHz: –59 dB
Damping Factor (from 10 Hz to 400 Hz, 8ohm load) : > 200
AC Line Voltage and Frequency Configurations (± 10%) : 120VAC / 60 Hz
Dimension (H x W X D) : 19” x 3.5” x 14.4”, (8.9 x 48.3 x 36.58 cm)
Net Weight : 43 lbs (19.5 kg)
