Stereo Amplifier
450 W x 450 W at 4 ohms
Input Sensitivity Selector
Stereo, Bridged Mono or Parallel Operation

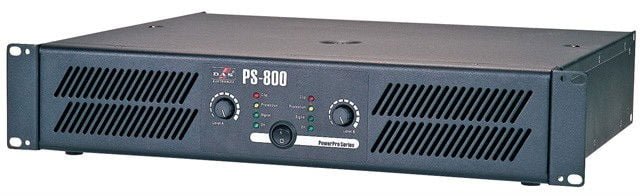

The PS-800 is a stereo amplifier which incorporates a rugged 2 unit all-steel chassis ensuring structural rigidity and protecting components. The low-noise fans offer both quiet and cool operation while the high energy toroidal transformer saves weight. The amplifier incorporates rear located switches which permit ground lift, operational mode selection (bridge, stereo or parallel) and input sensitivity selection.
Power EIA (1 kHz@THD 1%) 8/4? 250 W/ 450 W
Power EIA (1 kHz@THD 1%) Bridged 8? 400 W
Frequency Response 20 Hz-20 kHz /- 1 dB
Signal/Noise (20 Hz-20 kHz) -90 dB
Distortion (SMPTE-IM) Less than 0.5%
Distortion (typical) 20 Hz-20 kHz Less than 0.5%
Damping Factor 8 ? >100
Input Sensitivity 0.775 V/1.0 V/1.44 V
Input Impedance 10 kohms Un-balanced, 20 kohms Balanced
Voltage Gain 41.5 dB
Output Circuitry AB
AC Requirements 230 VAC 50 Hz
Current Draw (1/3 Power 4 ?/230V) 1.8 A
Dimensions (H x W x D) 8.8 x 48.2 x 36 cm, 3.5 x 19 x 14.2 in
Weight 18 kg (39.6 lb)
