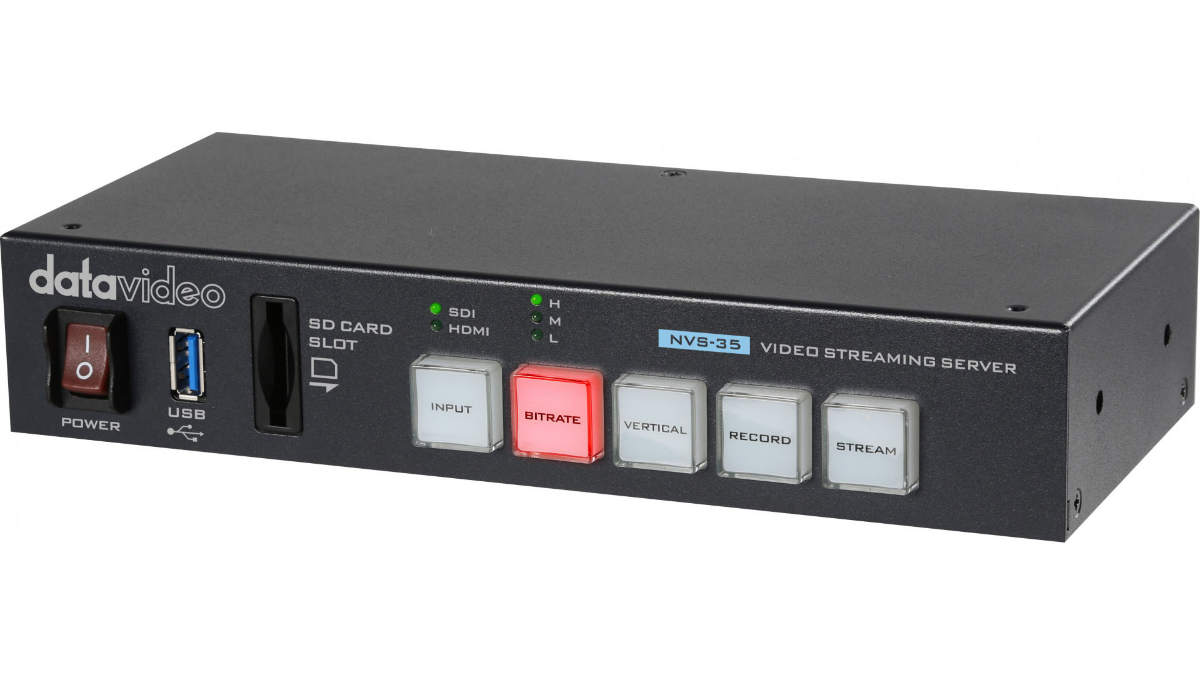

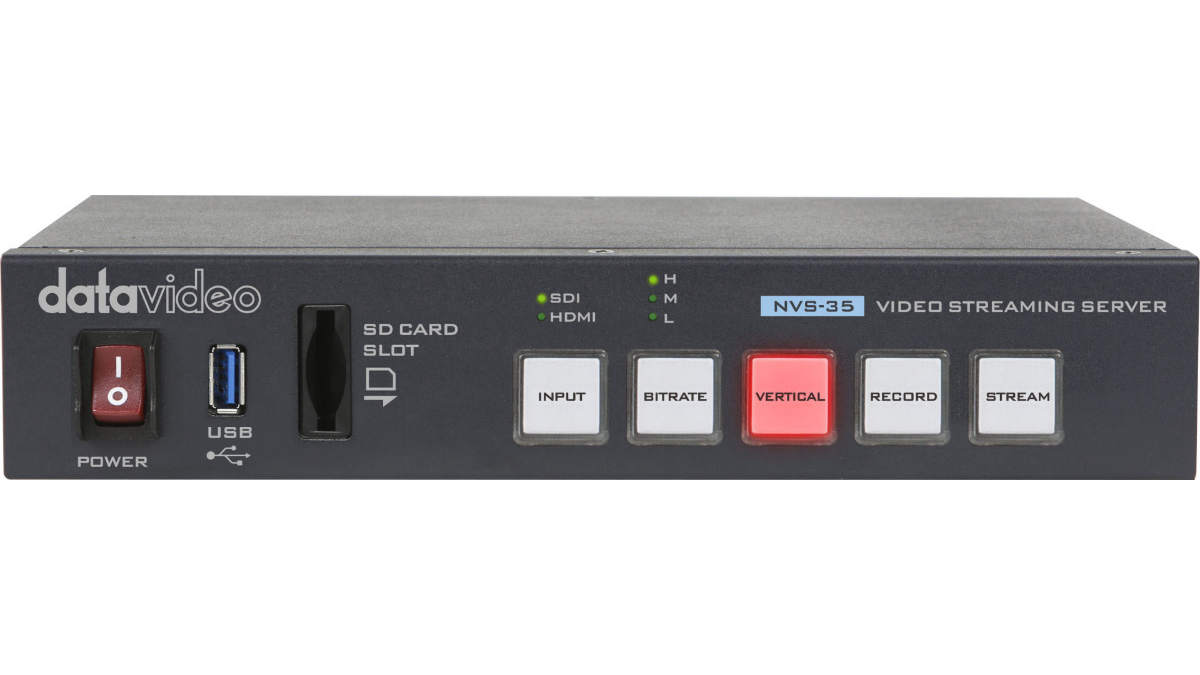

Dual Streaming Encoder
- H.264 streaming and recording simultaneously
- Not only an encoder but also a recorder (record to SD card)
- Dual streaming to two different platforms or CDNs
- HDMI/SDI video input is supported
- XLR and RCA audio inputs are provided.
- H.264 streaming and recording simultaneously
- Not only an encoder but also a recorder
Simultaneous live streaming and recording in H.264 format is supported, suitable for a variety of applications. - Supports multiple inputs configurations
HDMI/SDI video input is supported. For audio, XLR and RCA audio inputs are provided. - Direct recording to SD card, supports multiple file systems and continuous recording
Support FAT32/exFAT/NTFS file systems, continuous recording without file size limitation. - Dual streaming to two different platforms or CDNs
Simultaneously live streaming to two platforms such as Youtube and Facebook, thus gaining more viewers. - Vertical screen streaming
There are about 50% of viewers using a smart phone to watch the video stream and 94% of them prefer vertical orientation. NVS-35 offers vertical screen streaming function and you can easily create a vertical oriented video with a few basic settings. - Selectable audio output
Optional embedded audio/external audio/mixed audio, with wide compatibility.
Support SRT streaming protocol, no need to worry about an unreliable network environment
Many broadcasters have experienced pixelated video during live streaming, often due to unstable network environments caused by bandwidth volatility.
Streaming RTMP over unreliable, low-bandwidth networks can cause issues. With dvCloud, you can now replace the RTMP protocol with SRT, which will fix most streaming issues you may have. SRT is better than RTMP because it handles problematic networks more efficiently.
It requires less bandwidth, and it solves data errors faster. As a result, your viewers will experience a better stream, with less buffering and pixelization.
Build a reliable SRT live streaming workflow with all Datavideo products.
Datavideo’s wide range of encoders, cameras, and hand-carry switchers are fully supported by SRT and dvCloud. Datavideo encoders and dvCloud provide reliable streams over unreliable networks. By using a Datavideo encoder and dvCloud together, you can utilize SRT (instead of RTMP) on the initial problematic connection or “First Mile.” After your video stream reaches dvCloud, you can depend on dvCloud’s reliable, high-bandwidth network to deliver the stream to your favourite destinations, like Facebook and YouTube.
Model Number
Video Input
SDI x1
Supported Video Input Resolution
1080p 30/29.97/25/24/23.98
1080i 60/59.94/50
720p 60/59.94/50
480i 59.94, 576i 50

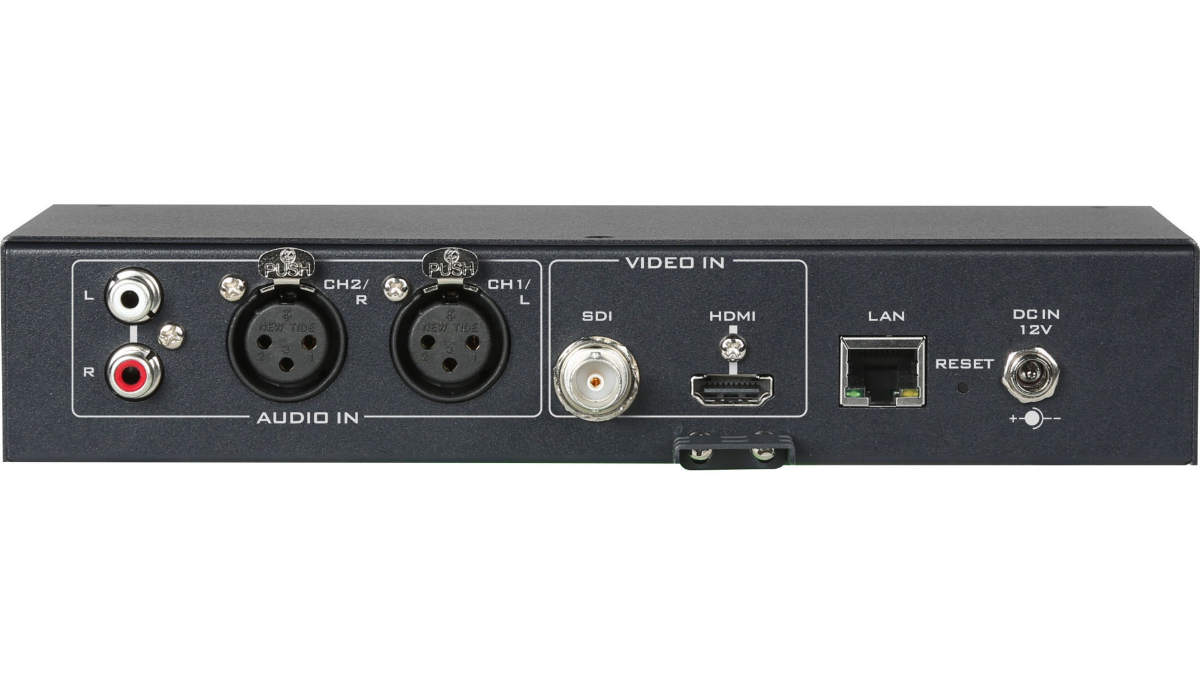

Video Output
Audio Input
(Audio depends on the source/ both stereo and mono supported)
1 x SDI embedded audio
1 × RCA (audio level calibration: +10/+12dB ~ -6dB)
2 x XLR (audio level calibration: +10/+12dB ~ -6dB)
Mix (Embedded + RCA+XLR)
Encode
Video Bitrate
Stream Only: Up to 10Mbps (1080p50/60)
Rec and Stream: Up to 36Mbps (1080p50/60) (dual stream)
Video Rate Mode
Audio Mode
Audio Bitrate
Sample rate: 48KHz, 16bit
Configurable bit rate: 128K or 256K or 384K
Streaming Protocols
RTSP over HTTP/TCP/UDP (RTSP Elementary Stream)
RTMP/RTMPS(Publish)
SRT
