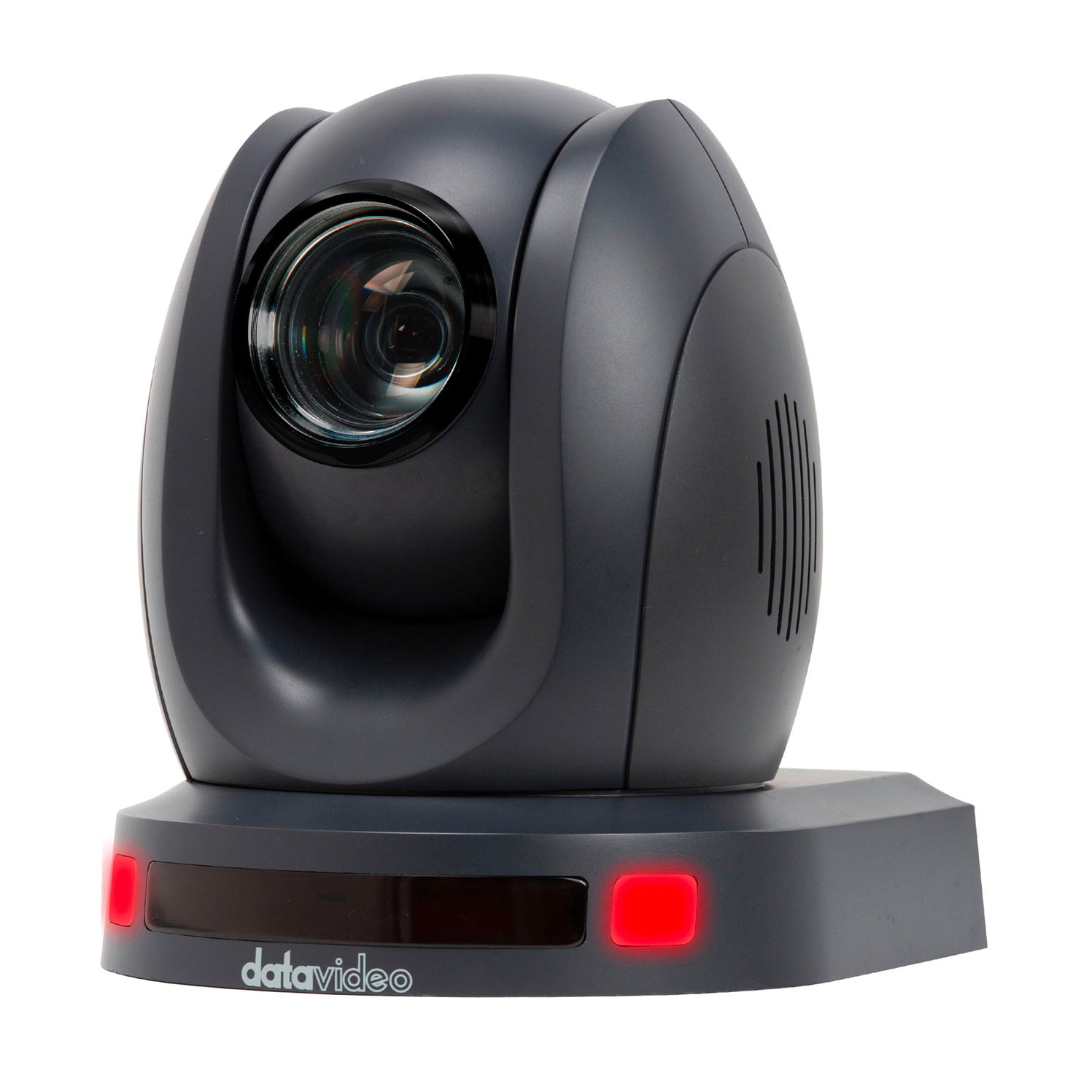

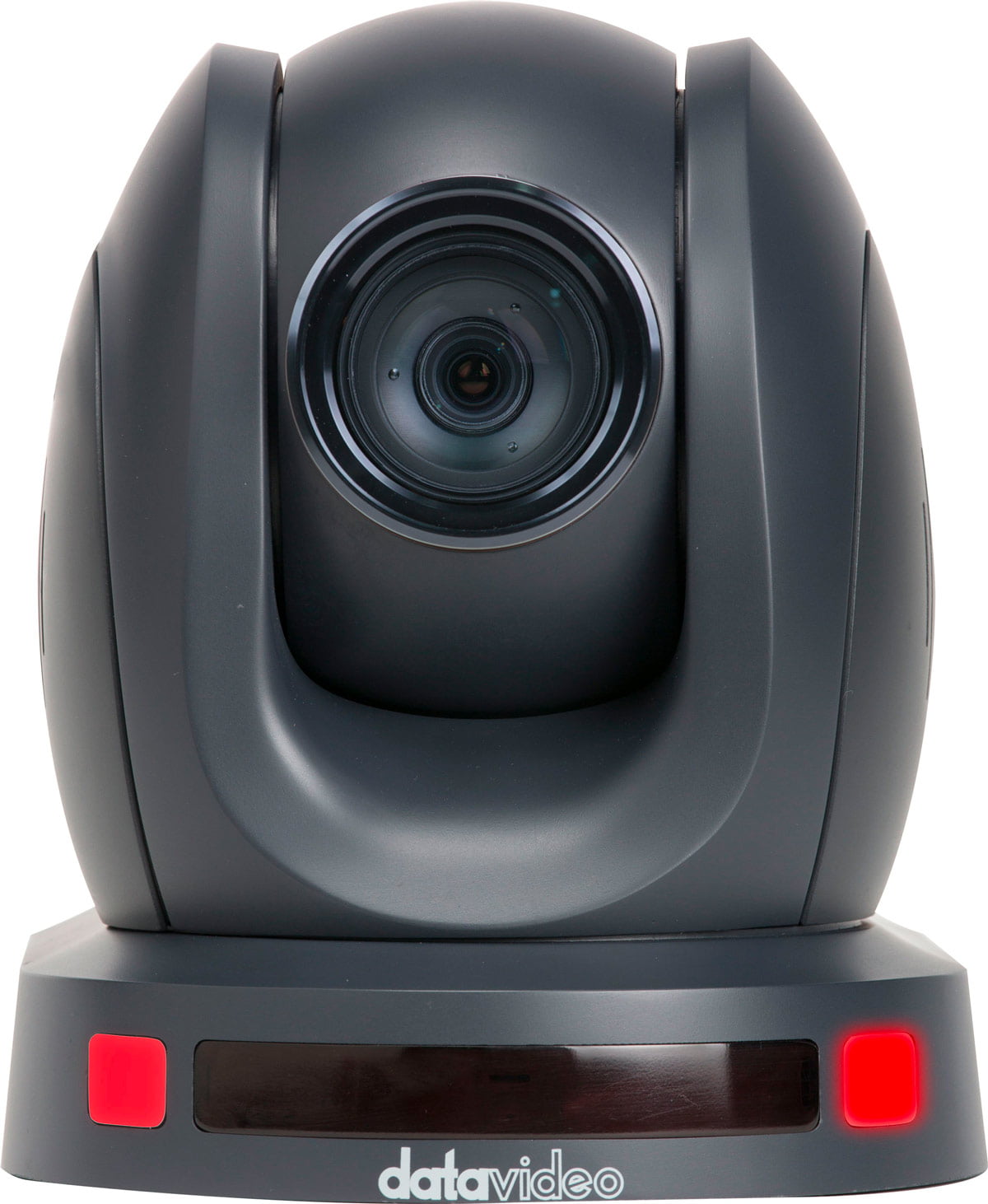

The PTC-140 is a low-cost SDI/HDMI PTZ camera, which features 20x optical zoom, 10 digital zoom.
- HD PTZ Camera
- 1/2.8 inch CMOS sensor. Resolution up to 1920 x 1080 with frame rate up to 60fps
- Audio Input Interface
- Available in Black or White
The PTC-140 is a low-cost SDI/HDMI PTZ camera, which features 20x optical zoom, 10 digital zoom. The PTC-140 is an IP camera as well, supporting H.264/H.265 video compression and dual stream output.
Stunning Full HD resolution
The PTC-140 features 1/2.8 inch CMOS sensor, 1920x1080px Full HD resolution, 60fps.
20x Optical Zoom, 10x Digital Zoom
The PTC-140’s 20x optical zoom and 10x digital zoom allows you to mount it near or far and still get great, sharp shots.
Advanced 2D/3D noise reduction function
Supports advanced digital noise reduction, even in less-than-perfect lighting conditions can shoot clear and smooth image.
H.264/H.265 video compression for streaming
With built-in streaming encoder, can encode up to 2 simultaneous streams to any cloud service.

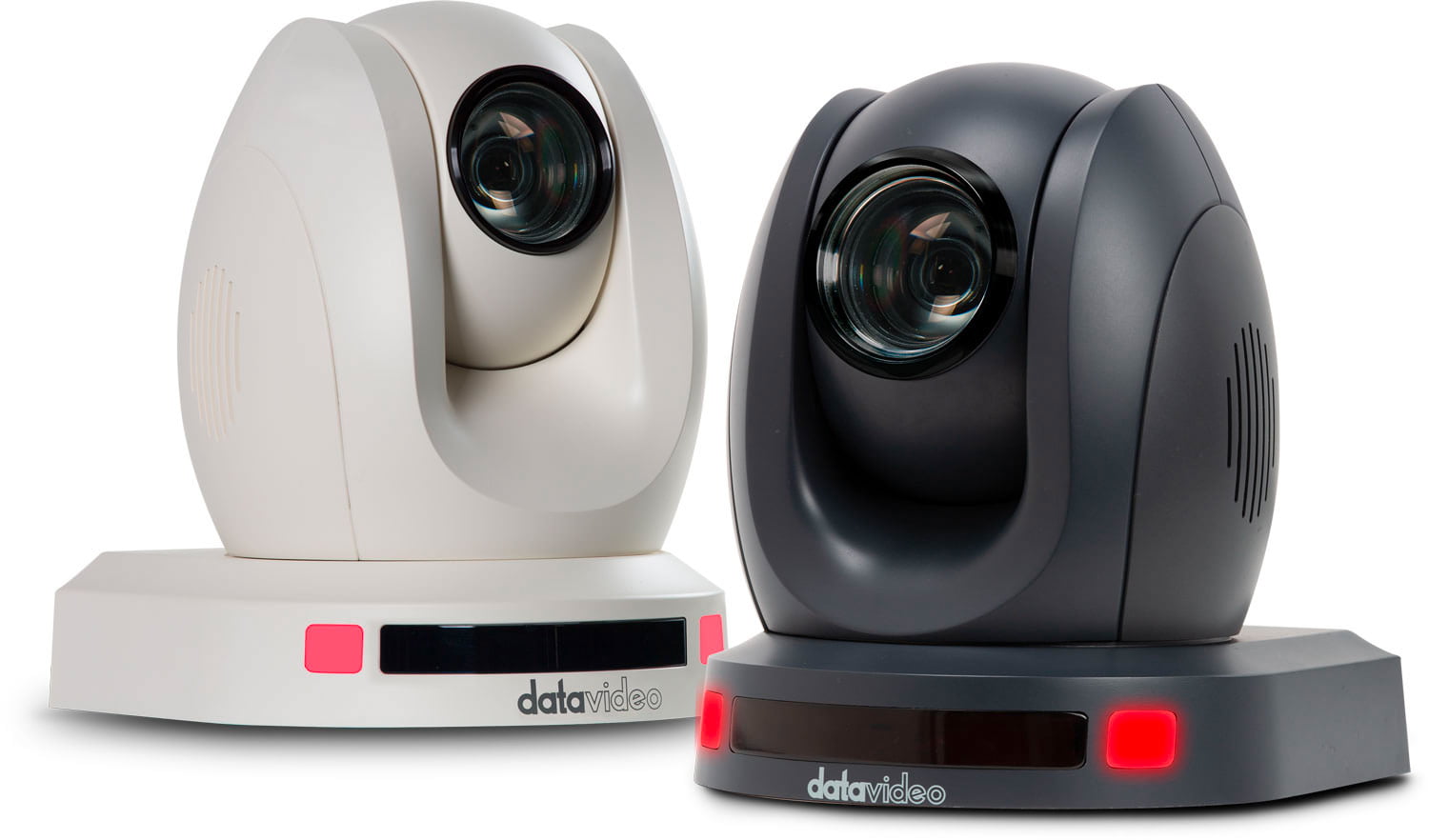

Dark or Light Body
The PTC-140 is available in dark gray or white to remain inconspicuous in permanent setups.
Simple multi-camera control at your fingertips
With its ergonomic joystick and tactile button layout, the RMC-180 (optional camera controller) makes it easy to set up and control up to four Datavideo PTC-140 cameras for any live video production.
Remote control and preview by web user interface
The web user interface provides preview, pan-tilt-zoom control and configurations setting in IP mode.
| Video format | 1080p 60/59.94/50/30/29.97/25 1080i 60/59.94/50 720p 60/59.94/50 |
| Image Sensor | 1/2.8 inch high quality HD CMOS sensor |
| Effective Pixels (approx.) | 2.07 Mega pixels |
| S/N Ratio | >55dB |
| Min. Illumination | 0.5Lux (F1.8, AGC ON) |
| Electronic Shutter | Auto / Manual |
| Zoom Ratio | 20x Optical Zoom, 10x Digital Zoom |
| Gamma Control | Off / Normal |
| Iris Control | Auto / Manual |
| Digital Noise Reductions | Yes |
| On-Screen Display (OSD) | English, Simplified Chinese |
| White Balance | Auto, Manual, One Push, 3000K, 4000K, 5000K, 6500K |
| AGC / Gain Control | Auto / Manual |
| Mirror / Flip Image | Yes |
| Focus Mode | Auto / Manual |
| Panning / Tilting Range | Pan: 340° , Tilt: +90° to -30° |
| Panning / Tilting Speed | Pan: 0.1~60°/sec Tilt: 0.1~30°/sec |
| Preset | 255 Position |
| Focal Length | f=5.2 (wide) to 98 (tele) mm F1.6 to F3.5 |
| Field of View (Horizontal, Wide) | Approx. 54.7° (WIDE END) / 3.3° (TELE END) |
| Image Compensation | Backlight Compensation |

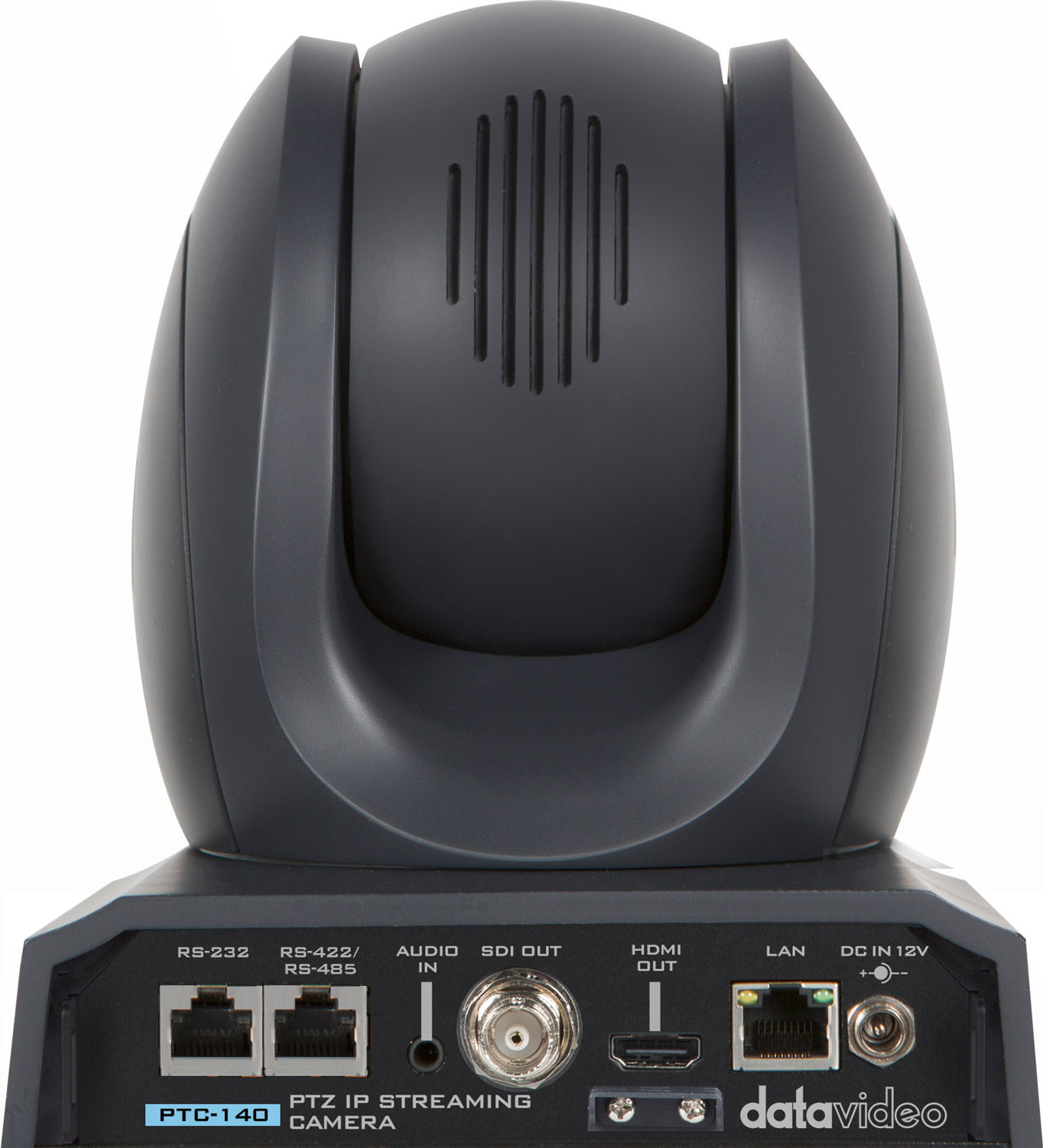

| Video Output | HDMI x 1 SDI x 1 |
| Audio Input | 3.5mm Line in |
| Tally LED | Dual color (Red, Green) |
| Filter | M52.0 x 0.75 Thread with UV Protection |
| Protocol | VISCA/Pelco-D/Pelco-P; Baud Rate:115200/38400/9600/4800/2400bps DVIP |
| Remote Control Interface and Transmit Distance | RJ-45: for IP control (DVIP) RS-232: Mini DIN 8-pin (IN) Mini DIN 8-pin (OUT) RS-485 |
| Video Compression Format | H.264, H.265, Dual stream output |
| Audio Compression Format | AAC/MP3/PCM Audio compression |
| HD IP Interface | 100M IP port(100BASE-TX); Support DVIP |
| Network Protocol | RTSP, RTMP |
| F/W Update | Ethernet |

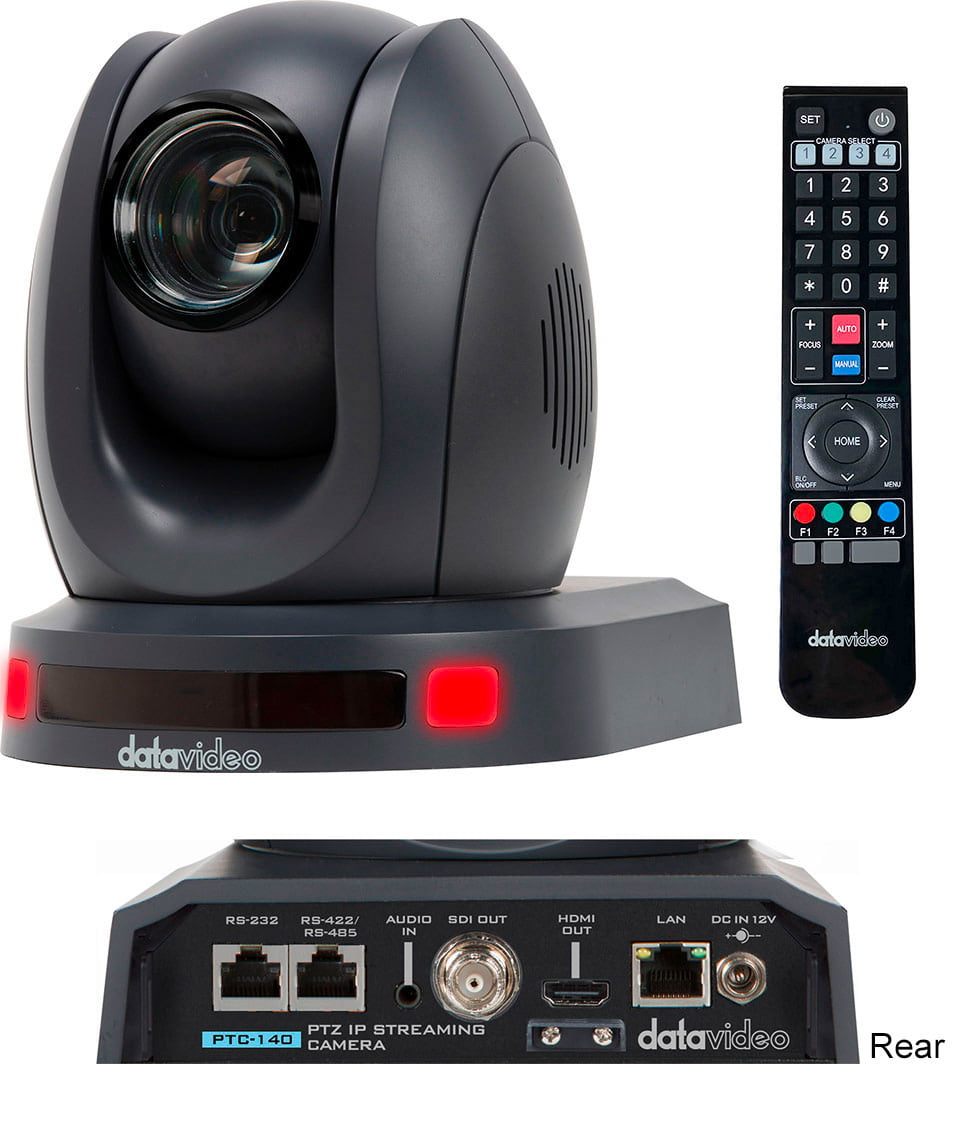

| IR Control | Yes |
| Camera Control Unit | RMC-180/RMC-300C |
| Tripod Mount | 1/4-20 UNC |
| Options | WM-1 |
| Color | Black/White |
| Dimension (LxWxH) | 156 x 182 x 186 mm |
| Weight | 1.6 kg |
| Operating Temp. Range | 0~40 °C |
| Power | DC 12V 12W |
| What’s in the Box | 1 x PTC-140 Unit 1 x IR remote controller 1 x PTC-140 Thank You Card 1 x Ceiling mount bracket-A 1 x Ceiling mount bracket -B 6 x Ceiling mount bracket screw M3*4mm 1 x UV Filter 1 x DC 12V Power Adaptor 1 x Power Cord 1 x A braided safety cable 1 x RS-232 DB9 9 Pin to 8 Pin Mini DIN Cable 1 x RS-485 2 Pin Connector |
