NDI|HX PTZ Camera
- Operate via a single Ethernet Cable with NDI® | HX Technology
- 20x Optical Zoom
- NDI-HX Protocol
- SDI & HDMI video outputs
- 1/2.8 inch CMOS sensor. Resolution up to 1920 x 1080 with frame rate up to 60fps
NDI|HX PTZ Camera
Broadcast Quality 1/2.8-Inch CMOS Sensor
Resolution is up to 1920×1080 with a frame rate up to 60fps.
Low Noise CMOS Ensures High SNR of Camera Video
Advanced 2D/3D noise reduction technology is used to further reduce the noise, while ensuring image sharpness.

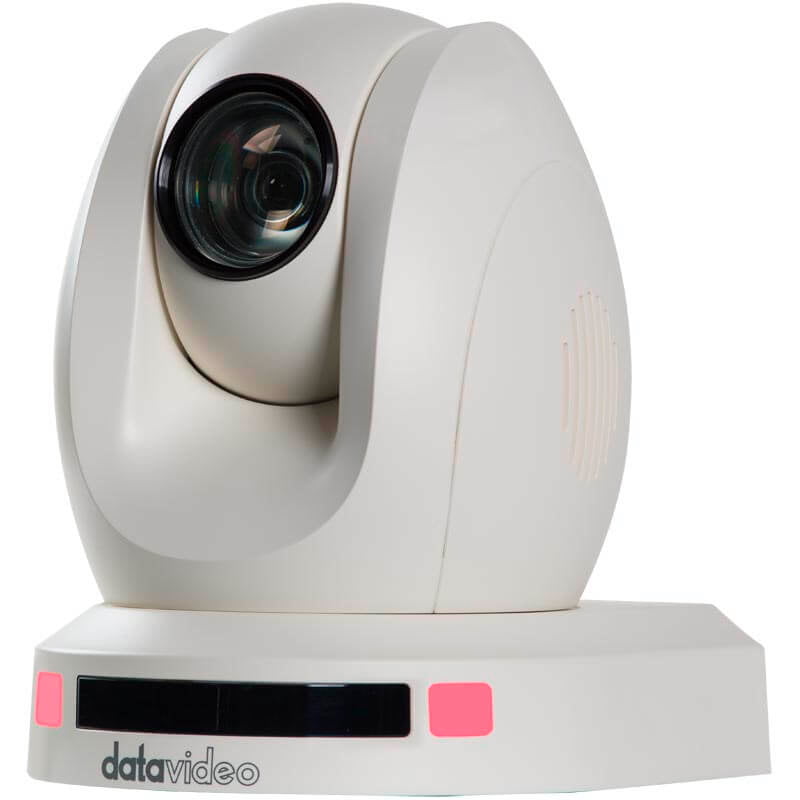

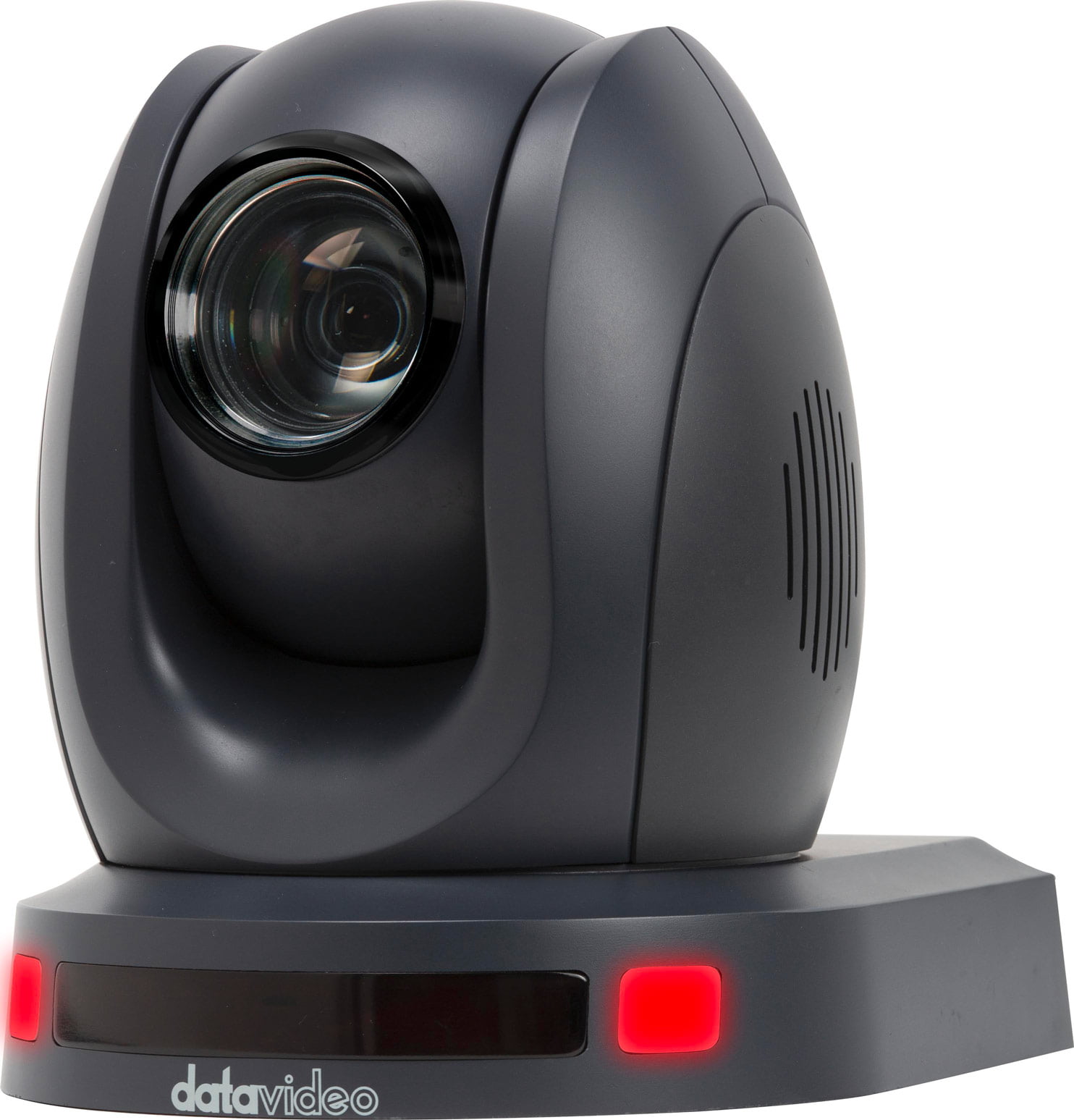

Dark Blue and White Colour Models
PTC-140NDI is available in two colours, dark blue and white.
Suitable for broadcast, worship, video conferencing and etc.
Supports H.264/H.265 Video Compression
Support compression of resolution up to 1920×1080 with frame up to 60fps and 2 channel 1920x1080p with 30fps compression. AAC, MP3 and PCM audio compression also supported.
Many Ways to Control
Control real-time pan, tilt, and zoom camera movements with Datavideo RMC-300A and 180.
RS-232, RS-422 and RS-485 ports to use DVIP and VISCA commands to integrate with larger control systems.
One Ethernet Cable with NDI® | HX Technology
There is no need for multiple cables and complicated setup. Single-wire concept helps you to transfer video, audio, power, tally, and control over only one Ethernet cable.
Power Over Ethernet (PoE) functionality allows you transmit all the information and power over only one cable.
NDI® is a registered trademark of Newtek, Inc.
NDI® Virtual Input
Present PTC-140NDI as the video input source to video streaming applications Skype, GoToMeeting, WebEx, Zoom, and more.
Multiple Network Protocol
Support RTSP, RTMPS protocols, easy to stream directly to your desired CDN streaming platform.
Tally Light
Tally lights show the preview and program status.
| PTC-140NDI NDI PTZ Camera | |
|---|---|
| Video format | 1080p 60/59.94/50/30/29.97/25 1080i 60/59.94/50 720p 60/59.94/50 |
| Image Sensor | 1/2.8 inch high quality HD CMOS sensor |
| Effective Pixels (approx.) | 2.07 Mega pixels |
| S/N Ratio | >55dB |
| Min. Illumination | 0.5Lux (F1.8, AGC ON) |
| Electronic Shutter | Auto / Manual |
| Zoom Ratio | 20x Optical Zoom, 10x Digital Zoom |
| Gamma Control | Off / Normal |
| Iris Control | Auto / Manual |
| Digital Noise Reductions | Yes |
| On-Screen Display (OSD) | English, Simplified Chinese |
| White Balance | Auto, Manual, One Push, 3000K, 4000K, 5000K, 6500K |
| AGC / Gain Control | Auto / Manual |
| Mirror / Flip Image | Yes |
| Focus Mode | Auto / Manual |
| Panning / Tilting Range | Pan: 340° Tilt: +90° to -30° |
| Panning / Tilting Speed | Pan: 0.1~60°/sec Tilt: 0.1~30°/sec |
| Preset | 255 Positions |
| Focal Length | f=5.2 (wide) to 98 (tele) mm F1.6 to F3.5 |
| Field of View (Horizontal, Wide) | Approx. 54.7° (WIDE END) / 3.3° (TELE END) |
| Image Compensation | Backlight Compensation |
| Video Output | HDMI x 1 SDI x 1 |
| Audio Input | 3.5mm Line in |
| Tally LED | Dual colors (Red, Green) |
| Lens Filter | M52.0 x 0.75 Thread with UV Protection |
| Control Protocol | VISCA/Pelco-D/Pelco-P; Baud Rate:115200/38400/9600/4800/2400bps DVIP, NDI® |
| Remote Control Interface and Transmit Distance | LAN: for IP control (DVIP / NDI®) RS-232, RS-422, RS-485 |
| Video Compression Format | H.264, H.265, Dual stream output |
| Audio Compression Format | AAC/MP3/G.711A Audio compression |
| HD IP Interface | 100M IP port(100BASE-TX); Support DVIP and NDI® |
| Streaming Protocols | TCP/IP, HTTP, RTSP, RTMP, DHCP, Multicast, etc |
| F/W Update | Ethernet |
| IR Control | Yes |
| Camera Control Unit | RMC-180/RMC-300A |
| Tripod Mount | 1/4-20 UNC |
| Optional Accessories | WM-1/ WM-10/WM-11 |
| Color | Dark Blue/White |
| Dimension (LxWxH) | 156 x 184 x 186 mm |
| Weight | 1.6 kg |
| Operating Temp. Range | 0~40 °C |
| Power | DC 12V 12W |
Brand
Datavideo
