Datavideo PTC-140T

£1,430.00 Inc VAT

HDBaseT PTZ Camera – Allows for Signal, Power & Control all over a single CAT Cable!

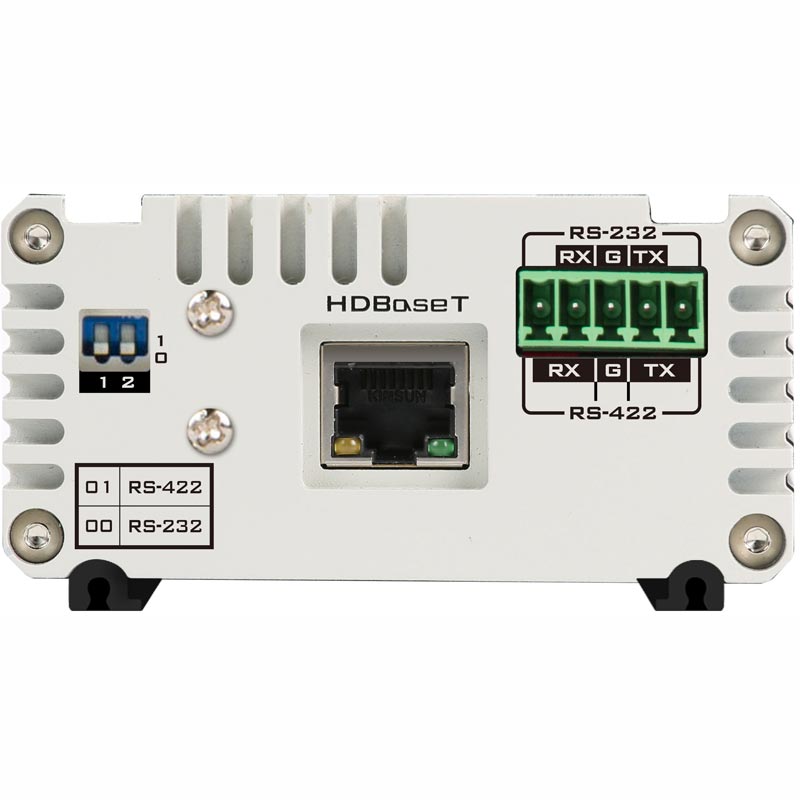

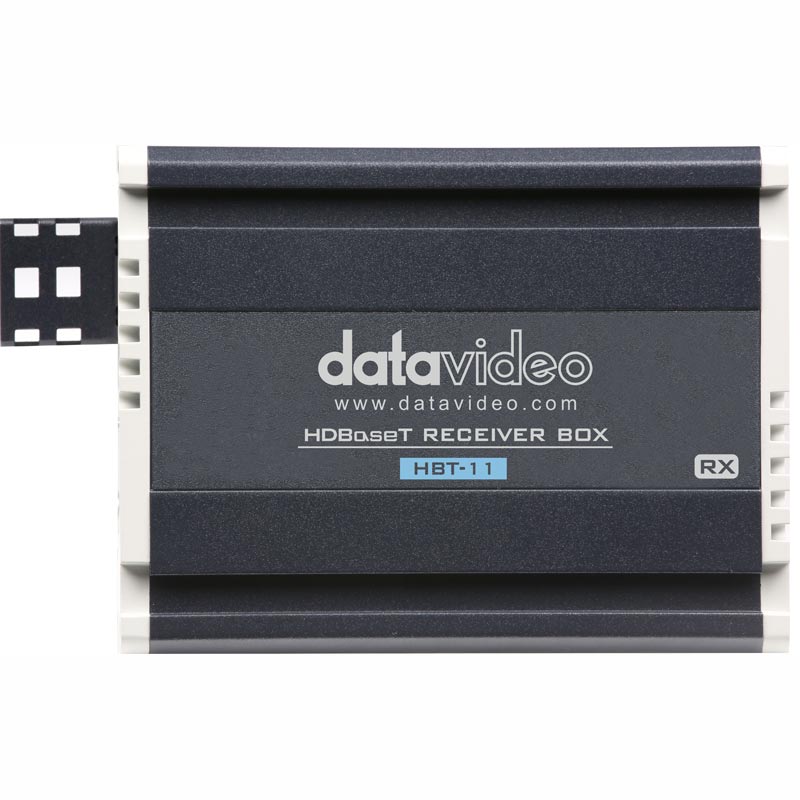

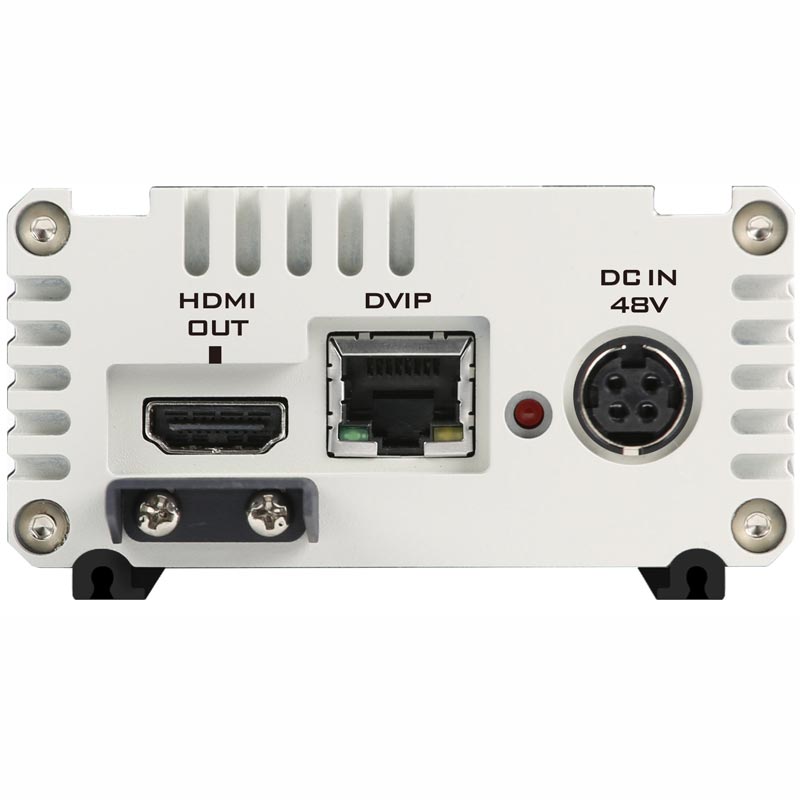

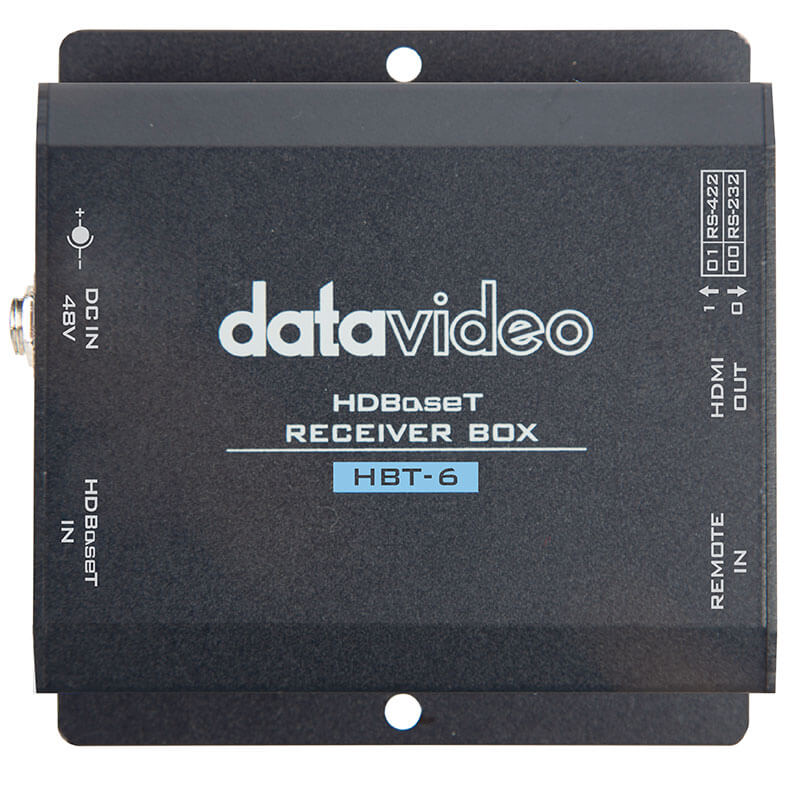

Requires HBT-6 or HBT-11 HDBaseT Receiver

  • 1/2.8 inch CMOS sensor. Up to Full HD with 60fps.
  • 20x Optical Zoom, 10x Digital Zoom
  • Control with joystick controllers or via Wireless App
Datavideo

Categories: , SKU: CAM/DATA06

Made with HDBaseT Technology

Rather than using one cable for video, a second cable for power, and a third cable for camera control, the PTC-140T is able to do all of the above using a single ethernet cable (with HBT-6 or HBT-11 HDBaseT Receiver). This increase in flexibility greatly reduces setup time, and now you can mount the camera in challenging locations, like spots without nearby power outlets.

Stunning Full HD resolution

The PTC-140T features 1/2.8 inch CMOS sensor, 1920x1080px Full HD resolution, 60fps.

20x Optical Zoom, 10x Digital Zoom

The PTC-140T features 1/2.8 inch CMOS sensor, 1920x1080px Full HD resolution, 60fps.

Advanced 2D/3D noise reduction function

Supports advanced digital noise reduction, even in less-than-perfect lighting conditions can shoot clear and smooth image.

Simple multi-camera control at your fingertips

With its ergonomic joystick and tactile button layout, the RMC-180 makes it easy to set up and control up to four Datavideo PTC-140T cameras for any live video production.

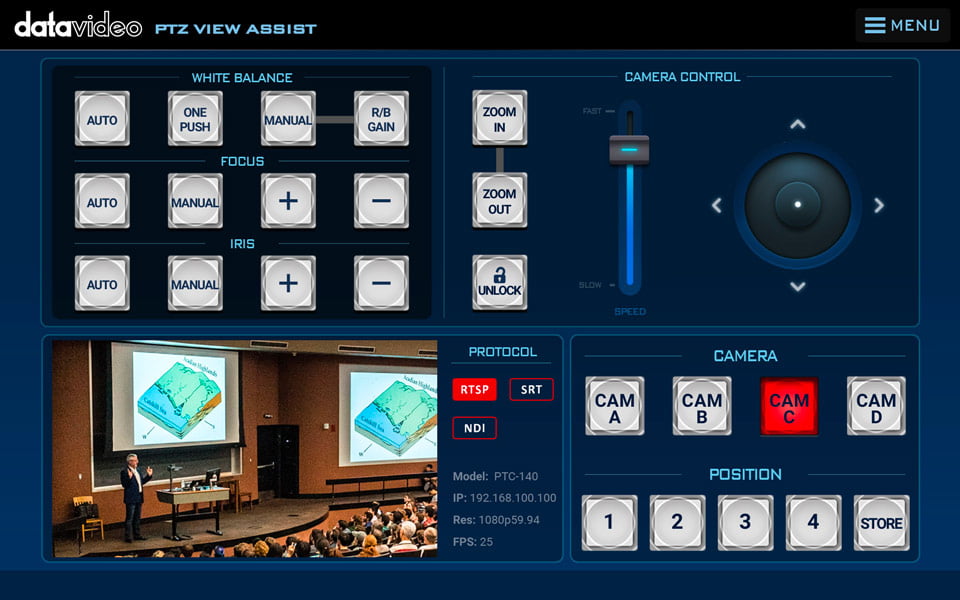

FREE PTZ View Assist APP

Control up to four cameras with your Wireless Touch Screen. It can monitor the live streaming video from PTC-140 series. The app can control up to 4 cameras simultaneously via DVIP, you can intuitively set up and recall the presets, and adjust white balance, focus, and IRIS.

PTC-140T HDBaseT PTZ Camera
Video format 1080p 60/59.94/50/30/29.97/25
1080i 60/59.94/50
720p 60/59.94/50
Image Sensor 1/2.8 inch high quality HD CMOS sensor
Effective Pixels (approx.) 2.07 Mega pixels
S/N Ratio >55dB
Min. Illumination 0.5Lux (F1.8, AGC ON)
Electronic Shutter Auto / Manual
Zoom Ratio 20x Optical Zoom, 10x Digital Zoom
Gamma Control Off / Normal
Iris Control Auto / Manual
Digital Noise Reductions Yes
On-Screen Display (OSD) English, Simplified Chinese
White Balance Auto, Manual, One Push, 3000K, 4000K, 5000K, 6500K
AGC / Gain Control Auto / Manual
Mirror / Flip Image Yes
Focus Mode Auto / Manual
Panning / Tilting Range Pan: 340° , Tilt: +90° to -30°
Panning / Tilting Speed Pan: 0.1~60°/sec
Tilt: 0.1~30°/sec
Preset 255 Position
Focal Length f=5.2 (wide) to 98 (tele) mm
F1.6 to F3.5
Field of View (Horizontal, Wide) Approx. 54.7° (WIDE END) / 3.3° (TELE END)
Image Compensation Backlight Compensation
Video Output HDBaseT (PoE) x1
RJ-45 x1
Audio Input Line In (IP Stream Output)
Tally LED Dual color (Red, Green)
Filter M52.0 x 0.75 Thread with UV Protection
Protocol VISCA, DVIP
Remote Control Interface and Transmit Distance RS-232
Lan (RJ-45)
HDBaseT (RJ-45)/ DVIP on Receiver Box: Transmit up to 100m
Video Compression Format H.264, H.265, Dual stream output
Audio Compression Format AAC/MP3/G.711A Audio compression
HD IP Interface 100M IP port(100BASE-TX); Support DVIP
Network Protocol RTSP, RTMP
F/W Update Ethernet
IR Control Yes
Camera Control Unit HS-1500T/HS-1600T/RMC-180
Tripod Mount 1/4-20 UNC
Options WM-1
Colour Black/White
Dimension (LxWxH) 156 x 182 x 186 mm
Weight 1.6 kg
Operating Temp. Range 0~40 °C
Power DC 12V 12W
What’s in the Box 1x PTC-140T
1x Ceiling Mount Bracket-A
1x Ceiling Mount Bracket -B
6x Ceiling Mount Bracket screw M3*4mm
1x IR Remote Controller
1x DC 12V adaptor
1x UK Figure 8 Power Cable
Cable Requirement Requires Solid Core, Cat -6 Shielded cable for Ethernet connection
