HD PTZ Video Camera
- HD Resolution: 1/2.8″ High Definition 2.14 MegaPixels progressive MOS sensor
- 30x optical zoom (f=4.3 mm to 94.6 mm)
- High definition formats supported: 1080p/59.94 (4:2:2), 1080p/50 (4:2:2), 1080p/29.97, 1080p/25, 1080i/59.94, 1080i/50, 720p/59.94, 720p/50
- Standard definition formats supported: 480i, 576i
- Video Output: HDMI, HD/SD-SDI, CVBS
- Dehazing technology allows the foggy or hazy images to be clear and sharp
HD PTZ Video Camera
One-person camera crew
The beauty of multiple PTC-150 cameras is the ability to control all of them from a single control panel. Pair up to 4 cameras with the RMC-180 controller, and you can reduce your camera crew to just… you.
Fantastic 3G Resolution
The PTC-150 shoots video at a maximum resolution of 1080p60, with advanced digital noise reduction for beautiful, smooth image quality even in less-than-perfect lighting conditions.
30x Optical Zoom
The PTC-150’s impressive 30x optical zoom allows you to mount it near or far and still get great, sharp shots.
Dark or Light Body

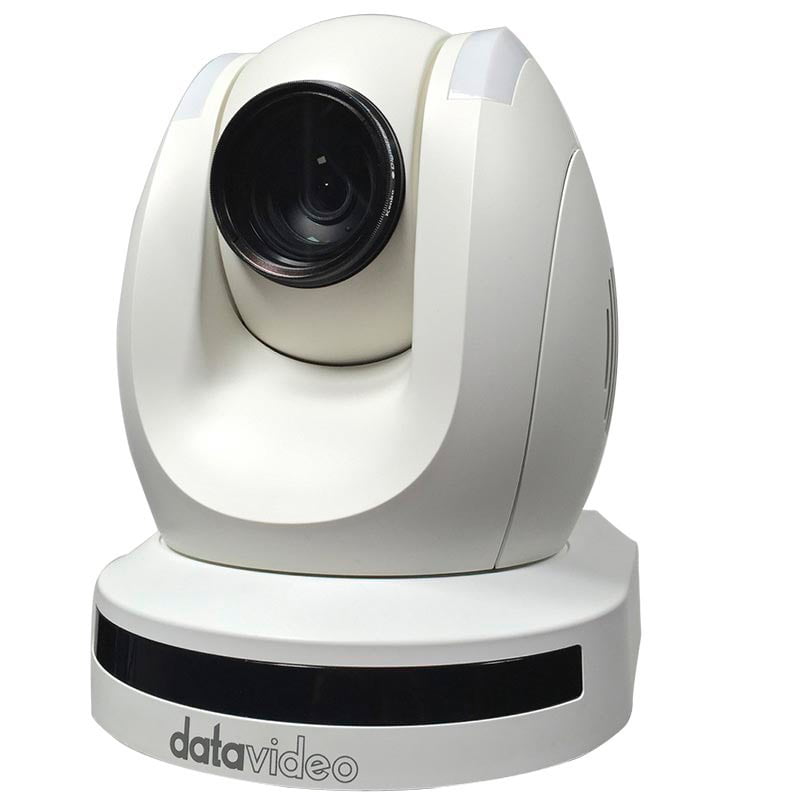

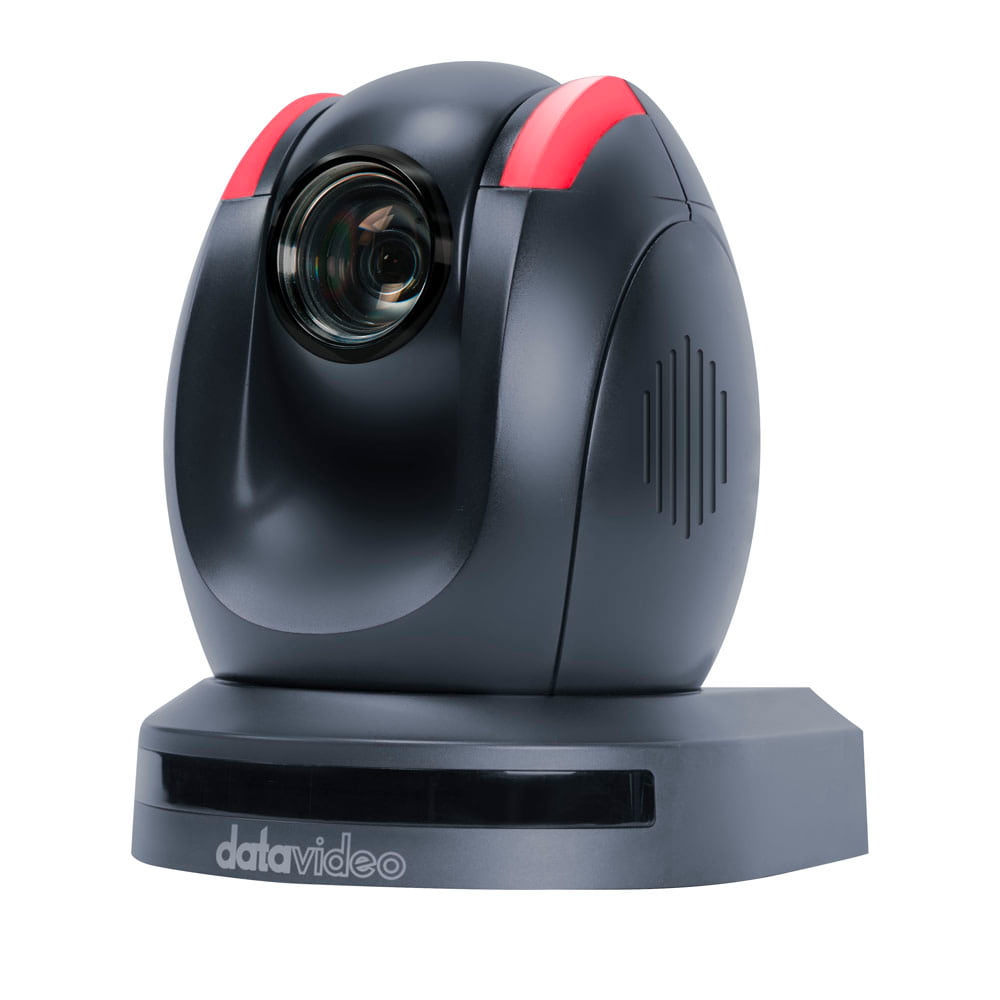

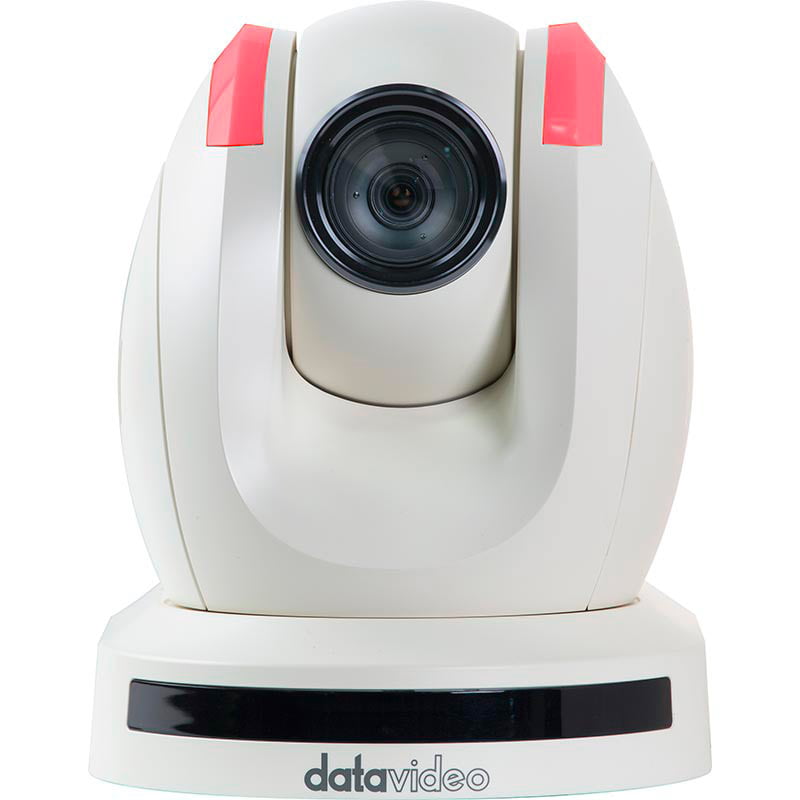

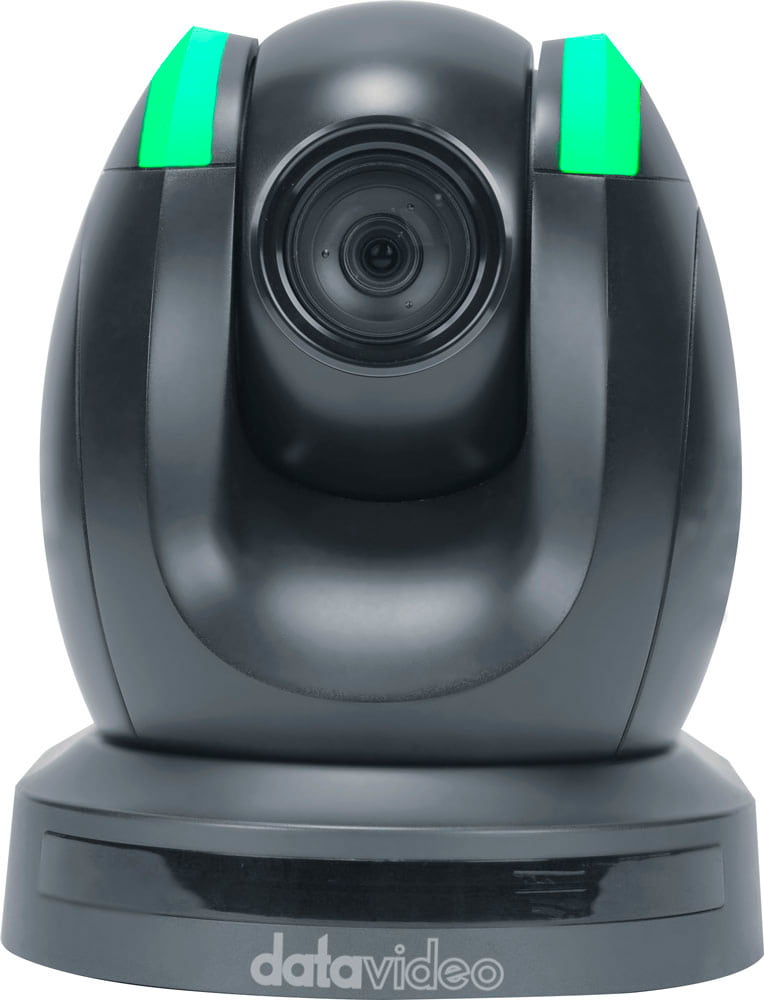

The PTC-150 is available in dark gray or white to remain inconspicuous in permanent setups.
Simple multi-camera control at your fingertips
With its ergonomic joystick and tactile button layout, the RMC-180 makes it easy to set up and control up to four Datavideo PTC-150 cameras for any live video production.
| PTC-150 HD/SD PTZ Video Camera | |
|---|---|
| Video format | 1080p 59.94/50/29.97/25 1080i 59.94/50 720p 59.94/50 480i, 576i (on CVBS) |
| Image Sensor | 1/2.8” type progressive scan CMOS sensor |
| Effective Pixels (approx.) | 2.14 Mega pixels |
| S/N Ratio | 50dB |
| Min. Illumination | Color : 0.4 lx B/W : 0.03 lx (F1.6, 1/30 sec, 50IRE, Gain: High) |
| Electronic Shutter | 1/25~1/1250 sec (50/25Hz) 1/30~1/1500 sec (59.94/29.97Hz) |
| Zoom Ratio | 30x Optical Zoom |
| Gamma Control | Off / Normal / Standard Mode 1-4 |
| Iris Control | Auto / Manual |
| Digital Noise Reductions | Yes |
| On-Screen Display (OSD) | English |
| White Balance | AWB, MWB, One push WB, Outdoor, Indoor, Fluorescent |
| AGC / Gain Control | Auto / Manual Max. Gain Limit |
| Mirror / Flip Image | Yes |
| Focus Mode | Auto / Manual |
| Panning / Tilting Range | Pan: 270° , Tilt: +90° to -20° |
| Panning / Tilting Speed | Manual: 1~150°/Sec Swing: 1~150°/Sec |
| Preset | 50 Position |
| Focal Length | f=4.3 mm (WIDE) to 129 mm (TELE) F1.6 to F4.7 |
| Field of View (Horizontal, Wide) | Approx. 63.7° (WIDE END) / 2.3° (TELE END) |
| Image Compensation | Day & Night Function |

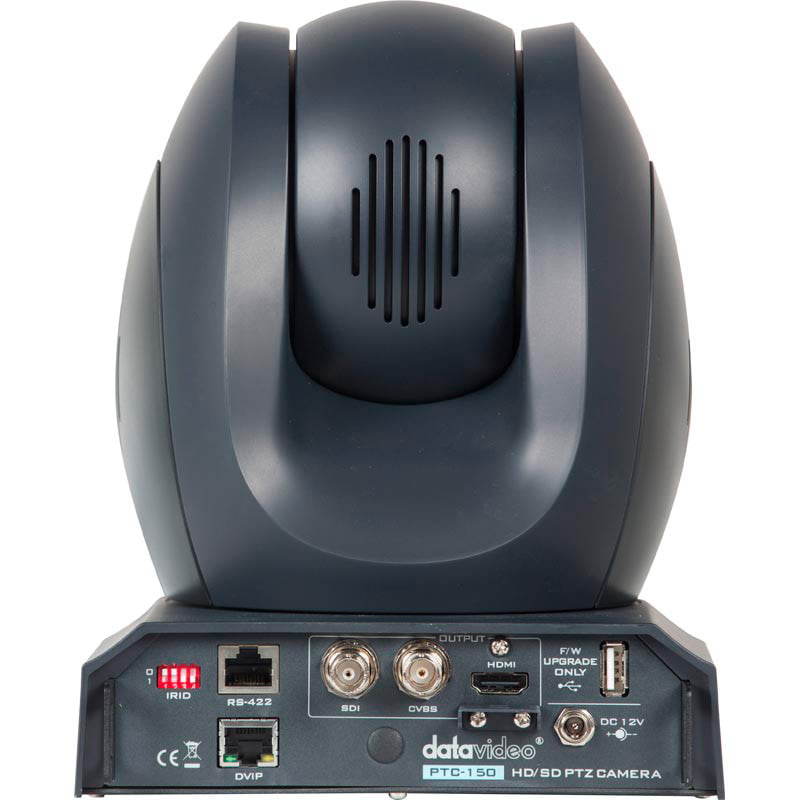

| Video Output | 3G-SDI x1 HDMI x1 CVBS x1 |
| Tally LED | Dual color (Red, Green) |
| Filter | M52.0 x 0.75 Thread with UV Protection |
| Protocol | VISCA, DVIP |
| Remote Control Interface and Transmit Distance | RS-422: Transmit up to 1000m DVIP (RJ45): 100m |
| F/W Update | USB |
| IR Control | Yes |
| Camera Control Unit | RMC-180 |
| Tripod Mount | 1/4-20 UNC |
| Options | WM-1/WM-10 |
| Color | Black/White |
| Dimension (LxWxH) | 173 x 189 x 219 mm |
| Weight | 2.7 kg |
| Operating Temp. Range | 0~40 °C |
| Power | DC 12V 29W |
| What’s in the Box | |
| Content | 1 x PTC-150 Unit 1 x IR remote controller 1 x PTC-150 Thank You Card 1 x Ceiling mount bracket-A 1 x Ceiling mount bracket -B 6 x Ceiling mount bracket screw M3*4mm 1 x DC 12V Power Adaptor 1 x Power Cord 1 x A braided safety cable |
Brand
Datavideo
