Super-Fast Installation

The PTC-150TL HD PTZ camera is equipped with HDBaseT Technology for transmitting remote control, video, power and tally signals. This means that a single Cat5 or Cat6 cable can replace four individual cables. Additionally, the camera can be positioned in virtually any location, regardless of the position of power sockets.

The camera can be installed and mounted quickly on a wall, ceiling, floor, or tabletop. The PTC-150TL/W combines perfectly with the HS-1500T to allow the user to control the camera at a remote location with just one Ethernet cable.

Superb Image Quality

The camera captures HD video at 1920 x 1080 resolution and features wide dynamic range with backlight compensation. It features a motorized 30x optical zoom capability and its image mirror and image rotation functions allow you to electronically adjust the image and deliver a correctly orientated image.

For multi-camera shoots, the built-in tally light can identify the active camera. The camera features a built in IR cut filter in the image path for low light shooting and then returns for daytime shooting. Also, PTC-150TL/W supports real time position report on a per frame basis; this is helpful in virtual studio applications.

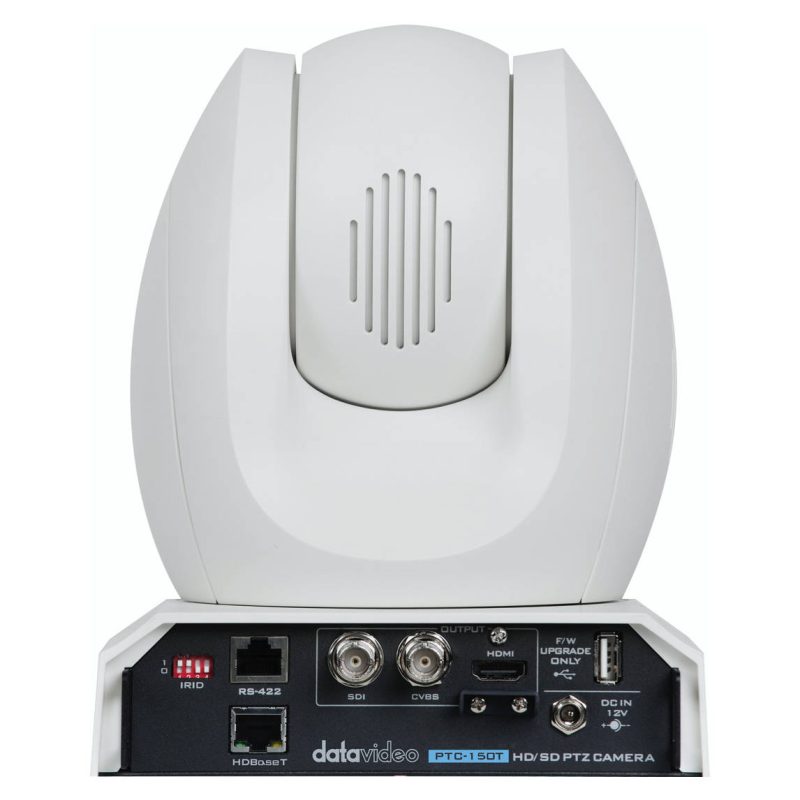

The camera supports Sony VISCA protocol for PTZ control using RS-422 interface over the unit’s RJ-45 port.

• HD PTZ Video Camera with HDBaseT Technology
• Video, audio, tally, control and power over a single cat-6 cable
• Ideal for use with HS-1500T HDBaseT Portable Video Studio with PTZ Control
• HD Resolution: 1/2.8″ High Definition 2.14 M Pixels progressive CMOS sensor
• 30x optical zoom (f = 4.3 mm to 94.6 mm)
• High definition formats supported: 1080/59.94p, 1080/50p, 1080/59.94i, 1080/29.97p, 1080/25p, 1080/50i, 720/59.94p, 720/50p
• Standard definition formats supported: 480i, 576i
• Digital Noise Reduction Function (DNR) to reduce the noise and enable clearer image under low light conditions.
• Position coordinates report in real time per frame.
• Video Output: HD-SDI + CVBS + HDMI synchronously
• Tally LED Design (IR / RF Controller / RS-422 / DVIP Operation)
• Supports VISCA Protocol Keyboard
• Supports VIP Control Protocol

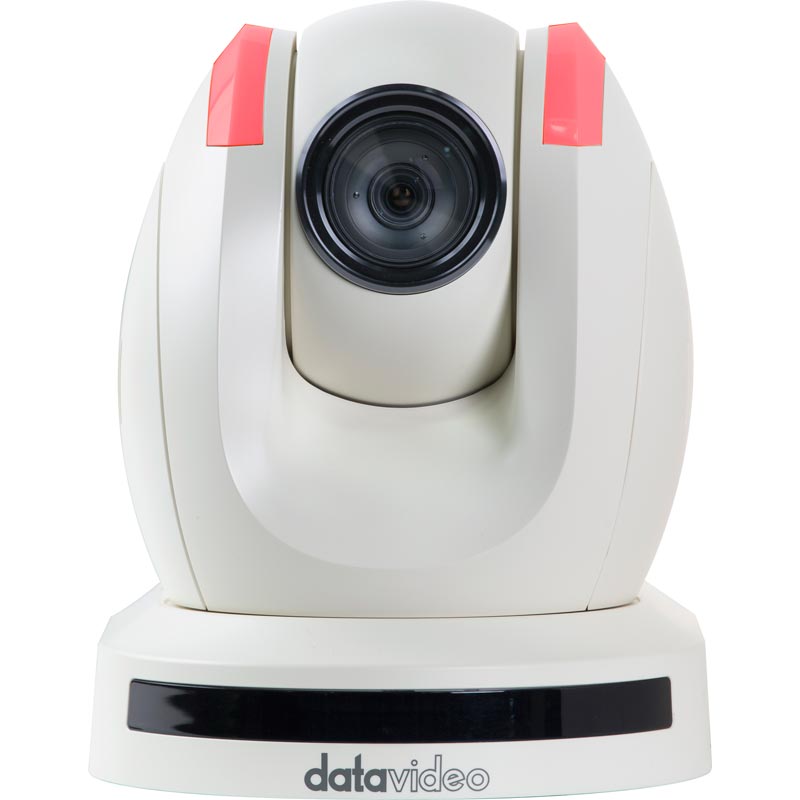

• Also available in white

* Note, unlike the PTC-150T/PTC-150TW, PTC-150TL/PTC-150TLW is not supplied with PSU and Datavideo HBT-11 HDBaseT Receiver
