dB Technologies B-Hype M

Call for price

B-Hype M Portable PA System

  • Internal Rechargeable Battery (or Mains) powered
  • Integrated wireless microphone system (handheld or bodypack/headset transmitter)
  • On board audio media player
  • SD card, USB and Bluetooth connection
  • Up to 4 input channels (3 in +1 Bluetooth)
  • Integrated wheels plus retractable handle
dB Technologies
Categories: , , SKU: MX/POW/DBT01

B·Hype on the move! A mobile, battery-powered, complete PA.

  • Integrated wireless microphone system (handheld or bodypack transmitter)
  • On board audio media player
  • SD card, USB and Bluetooth connection
  • Up to 4 input channels (3 in +1 Bluetooth)
  • Integrated wheels plus retractable handle

B·Hype M mixes the professional acoustic performance of the B·H family with the most advanced versatility of a complete portable PA equipped with a wireless microphone system, audio media player with Bluetooth connection, SD card and USB port, a long lasting battery, wheels and a retractable top handle: all you need for a professional performance on the move. A perfect solution for portable PA and all kind of performance set in outdoor or unconventional venues.

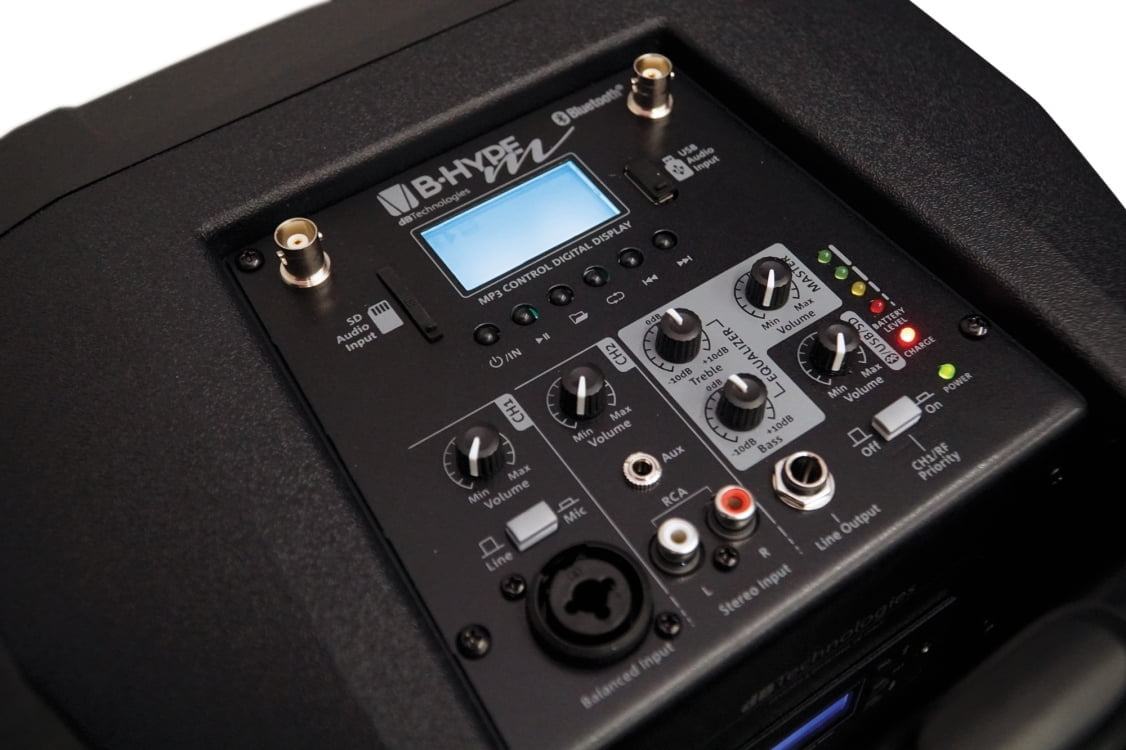

The system is equipped with: one 1” compression driver exit and one 10” woofer. The input section allows the user to connect: up to three wired inputs, one wireless microphone, and different media inputs (including Bluetooth® ). Users can also connect the audio output to a second speaker. The control section is equipped with an equalizer and a CH1/RF priority function that attenuates the level of every channel but Channel 1 and the Radio microphones for a smooth automatic ducking effect.

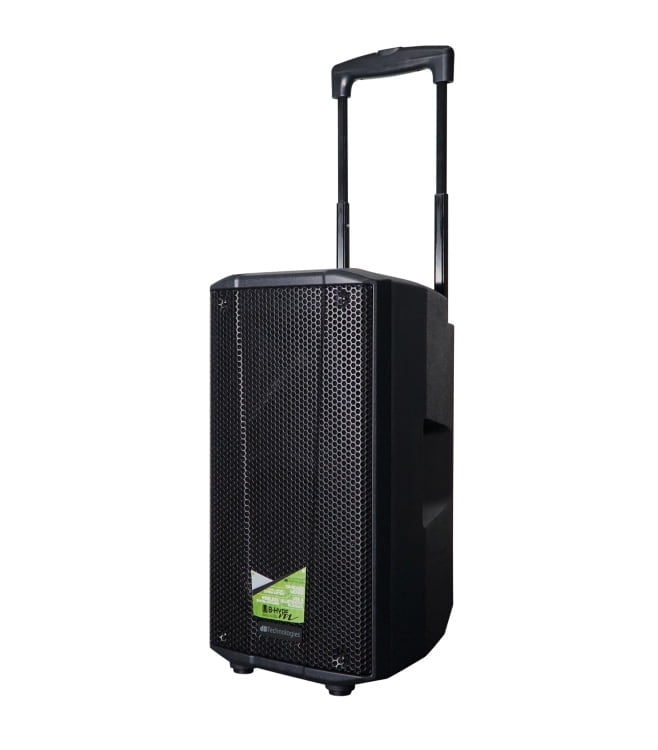

The sturdy and compact cabinet (only 12.5 kgs – 27 lbs) is equipped with wheels and 3 handles (1 per side and 1 retractable on the top). A 36 mm pole mounting also allow use on a speaker stand.

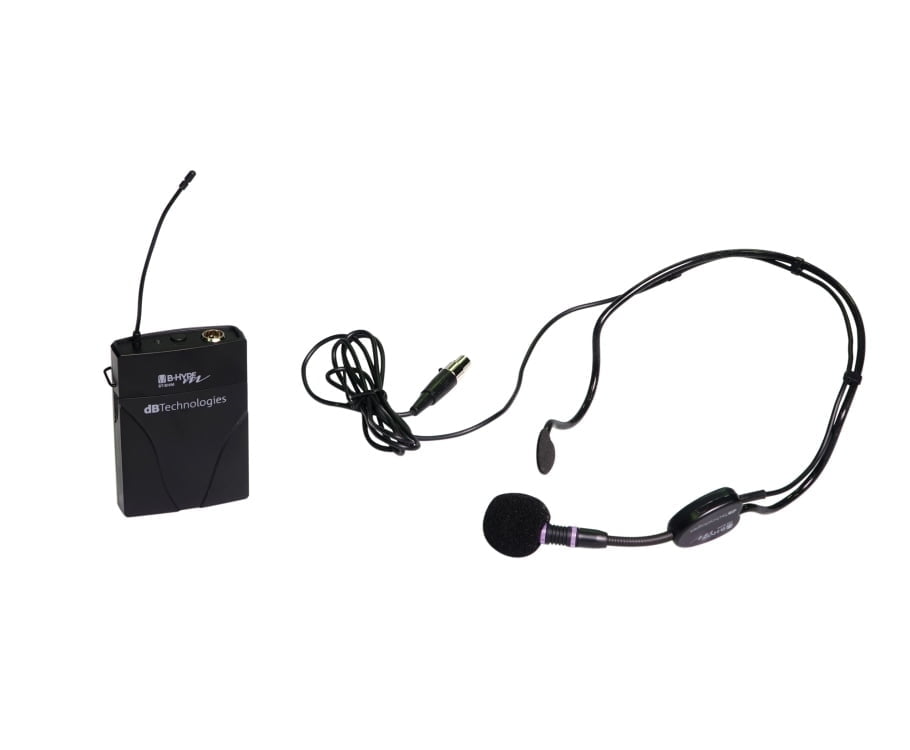

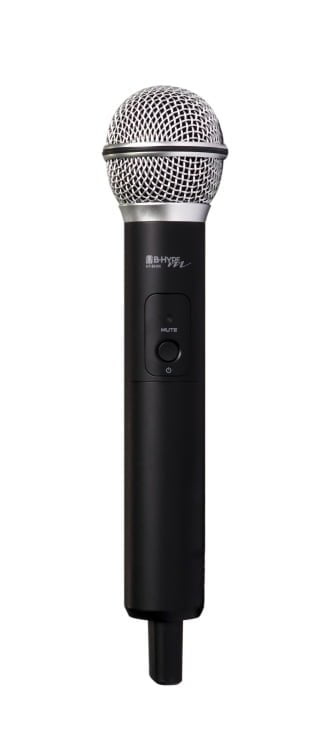

B·Hype M is available in two versions: with handheld transmitter (B-HYPE M HT bundle) or bodypack transmitter (B-HYPE M BT bundle). Both are provided with wireless antennas.

Specifications

  • PA Type: 2-Way battery speaker with wireless microphone
  • Frequency Response:
    • -10dB: 62Hz – 20kHz
    • -6dB: 66Hz – 18.1kHz
  • Maximum SPL (1m): 123dB
  • HF Compression Driver: 1” exit with 1” voice coil
  • LF Woofer: 10” with 1.5” voice coil
  • Crossover Frequency: 2400Hz
  • Dispersion: 90° (H) x 45° (V)
  • Amplifier Technology: SMPS Power Supply
  • Amplifier Class: Class-D
  • RMS Power: 95W
  • Peak Power: 190W
  • Cooling: Passive (convection)
  • Supported Audio Formats:
    • MP3
    • WAV
    • WMA
  • Wireless Operating Frequency: 863MHz – 865MHz
  • RF Selectable Channels: 8
  • Transmission Range: Up to 35m
  • Housing: Plastic cabinet
  • Grille: Full grille
  • Handles:
    • 1 x carry handle on each side
    • 1 x retractable tow handle on the top
  • Mounting Pole: 36mm
  • Mixer Controls:
    • Volume controls
    • EQ – Bass, Treble
    • CH1/RF priority
  • Signal I/O:
    • 1 x Combo XLR/TRS IN
    • 1 x Stereo RCA IN
    • 1 x Mini-Jack IN
    • 1 x TRS Link OUT
  • Mains Connection: VDE
  • Operating Voltage: 220-240V
  • Operating Temperature: -10°C to +55°C
  • Charger Operating Temperature: 0°C to +44°C
  • Battery Type: Li-Ion (25.9V / 2200mAh)
  • Charging Time: <2 Hours
  • Mean Usage Time: 4 Hours
  • Dimensions (W x H x D): 300mm x 568mm x 301mm / 11.81” x 22.36” x 11.86”
  • Weight (Without Transmitter): 12.5kg / 27lbs
