Installation Version ZX1 speaker
- Low Impedance 200W @ 8ohm
- DH2005 true compression driver
- 90 x 50 degree coverage pattern
- 4-pin detachable Phoenix-style connector
- Includes ‘Click n Mount’ quick SAM mounting wall bracket
- Available in Black or White

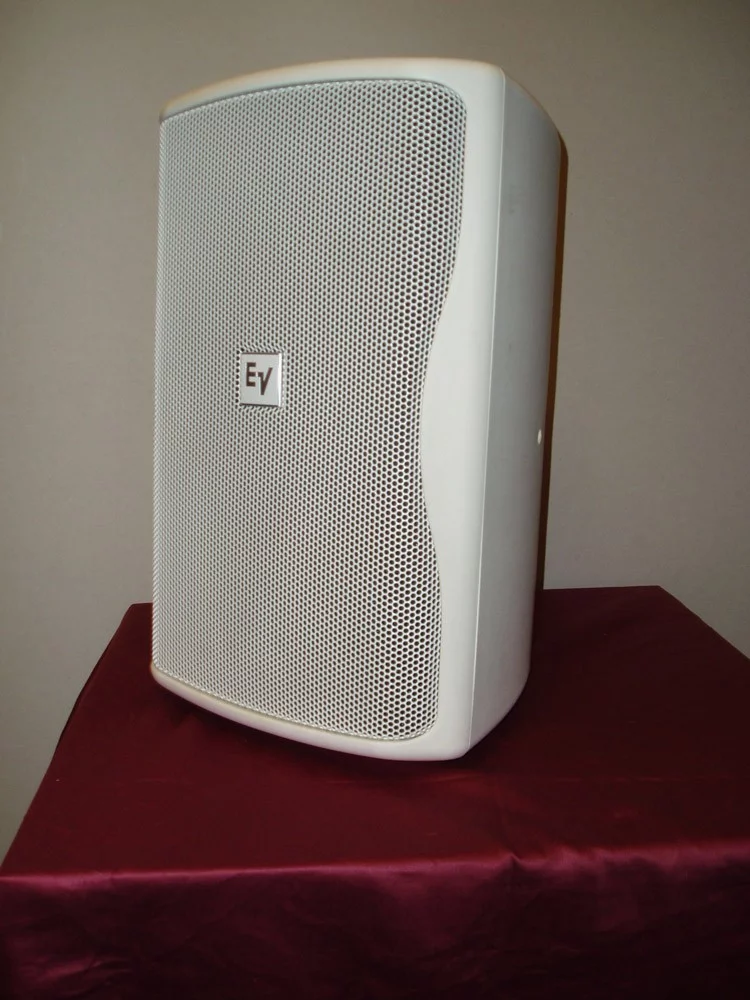

Installation version ZX1 Low impedance speaker
Available in Black or White – please specify
Features
- Designed for Commercial Sound/Life Safety, House of Worship, and other applications.
- EV8L weatherized woofer
- DH2005 true compression driver
- 90 x 50 degree coverage pattern
- Weatherized for indoor and outdoor use

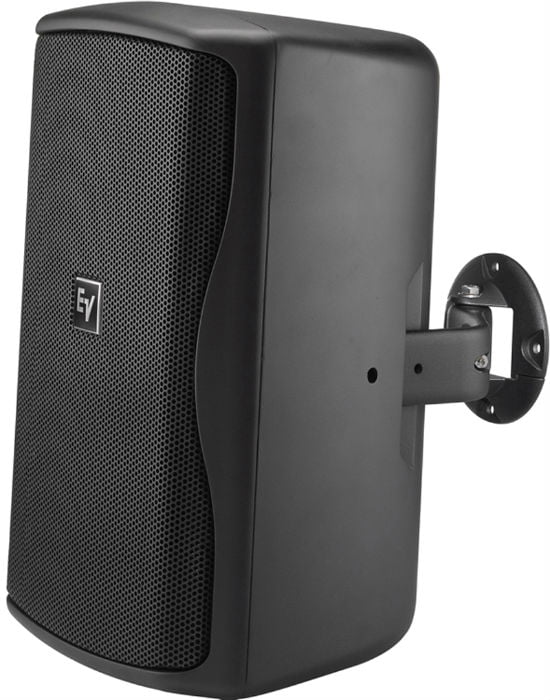

- Click n Mount Quick SAM mounting system
- Wide range of motion included

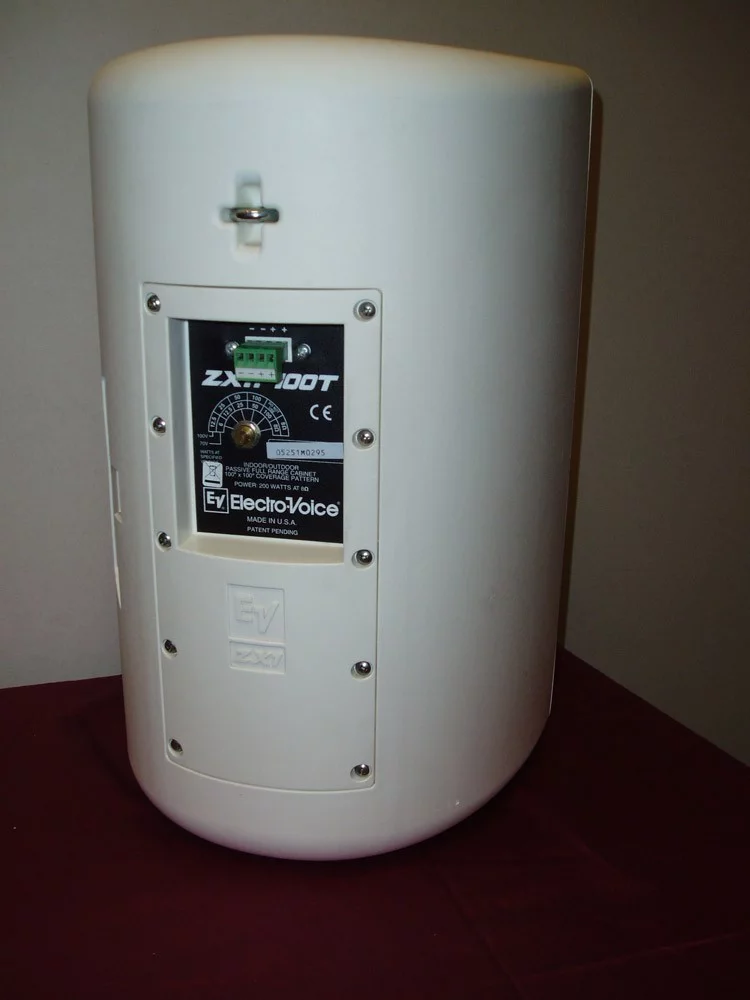

- 4-pin detachable Phoenix-style connector
- Dedicated transformer models with wide range of selectable tabs
DM Music Says
“This is one of our favourite, full range installation speakers for speech, prerecorded and even live music when used with a sub or two. ‘Easy to fit’ wall brackets, controlled sound dispersion angles, smart polypropylene cabinets and it’s excellent sound clarity make this one of our top recommendations for installed church sound systems”
Chassis Size 203.2 mm (8″)
Color White or Black
Speaker Type Fullrange
Speaker Type Mid-High
Speaker Type Two-Way
Frequency Response (-3 dB) 60 – 20000 Hz
Frequency Response (-10 dB) 48 – 20000 Hz
Internal Crossover Yes
Sensitivity 1 W/1 m 94 dB
Max. SPL/1m (calc) 123 dB
Coverage
(Nominal -6 dB) H- 90
Coverage
(Nominal -6 dB) V- 50
Rotatable Horn Yes
System Power Handling (Continuous/Program/Peak) 200 Watts
LF Transducer EV8L
HF Transducer DH2005
Flying Yes
Outdoor Yes
Height 451 mm (17.76″)
Width 282 mm (11.1″)
Depth 263 mm (10.35″)
Weight Net 8.4 kg (18.52 lbs)
