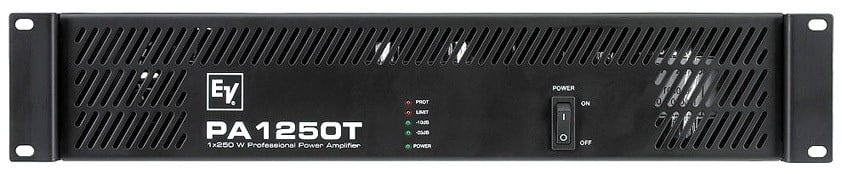

100 volt line amp – mono
1 x 250w
Compact 2U design
Selectable 50 Hz or 300 Hz high-pass filter
Thermal protection, peak limiting, turn-on delay

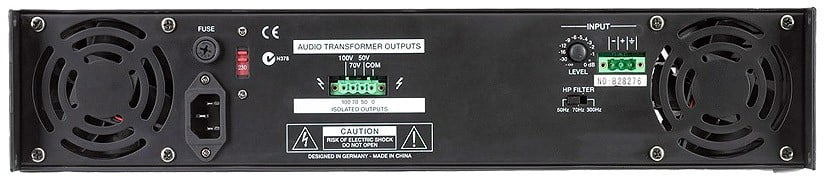

Phoenix-type inputs and outputs
Integrated rack ears for direct mounting
Cool-running, saturation-free power for distributed installations
Ideal for sound reinforcement, paging, and life safety
250 W mono for 70/100 V lines
Compact 2 RU design
Stepped rear-panel level attenuation
Selectable 50 Hz or 300 Hz high-pass filter
Thermal protection, peak limiting, turn-on delay
Multi-voltage operation from 110-240 VAC
Phoenix-type inputs and outputs
Three-stage front-to-rear fans
Integrated rack ears for direct mounting
- Continuous Rated Power (1 kHz, THD 1%) 100v 270 Watts
- Continuous Rated Power (1 kHz, THD 1%) 70v 270 Watts
- Continuous Rated Power (20-20 kHz, THDContinuous Rated Power (20-20 kHz, THDDIM 30 0.1 %
- Input Sensitivity 0 dBu
- Intermodulation Distortion (SMPTE) 0.1 %
- Network Control (IRIS-Net) No
- Total Harmonic Distortion 0.1 %
- Height 2RU 88 mm (3.46″)
- Width 483 mm (19.02″)
- Depth 406 mm (15.98″)
- Weight Net 16.5 kg (36.38 lbs)
Brand
Electro-Voice
