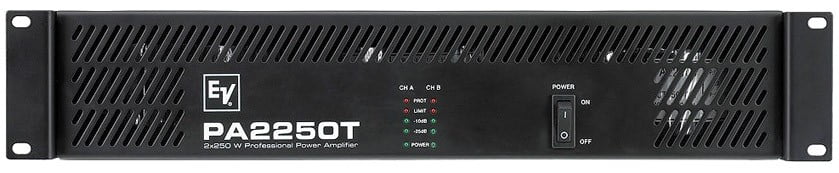

100 volt line amp – stereo
2 x 250 W per channel for 4 O or 70/100 V lines
Bridged mono out for 540 W into 8 O
Compact 2U design
Selectable 50 Hz or 300 Hz high-pass filter
Thermal protection, peak limiting, turn-on delay

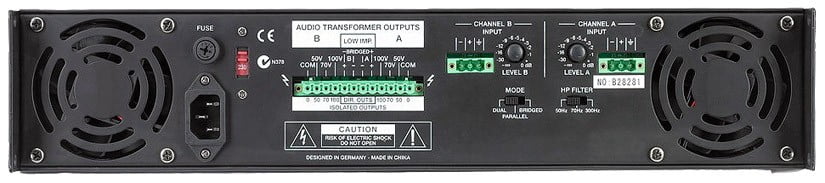

Phoenix-type inputs and outputs
Efficient performance for low impedance or distributed systems
Ideal for sound reinforcement, paging, and life safety
250 W per channel for 4 ? or 70/100 V lines
Bridged mono out for 540 W into 8 ?
Compact 2 RU design
Stepped rear-panel level attenuation
Selectable 50 Hz or 300 Hz high-pass filter
Thermal protection, peak limiting, turn-on delay
Multi-voltage operation from 110-240 VAC
Phoenix-type inputs and outputs
Three-stage front-to-rear fans
Integrated rack ears for direct mounting
Amplifier Gain 34.3 dB
Continuous Rated Power (1 kHz, THD 1%) 100v 270 Watts
Continuous Rated Power (1 kHz, THD 1%) 4? 270 Watts
Continuous Rated Power (1 kHz, THD 1%) 70v 270 Watts
Continuous Rated Power (1 kHz, THD 1%) 8? 135 Watts
Continuous Rated Power (20-20 kHz, THDContinuous Rated Power (20-20 kHz, THDContinuous Rated Power (20-20 kHz, THDContinuous Rated Power (20-20 kHz, THDDIM 30 0.1 %
Input Sensitivity 0 dBu
Intermodulation Distortion (SMPTE) 0.1 %
Network Control (IRIS-Net) No
Total Harmonic Distortion 0.1 %
Height 2RU 88 mm (3.46″)
Width 483 mm (19.02″)
Depth 406 mm (15.98″)
Weight Net 23.5 kg (51.81 lbs)
Brand
Electro-Voice
