Discontinued

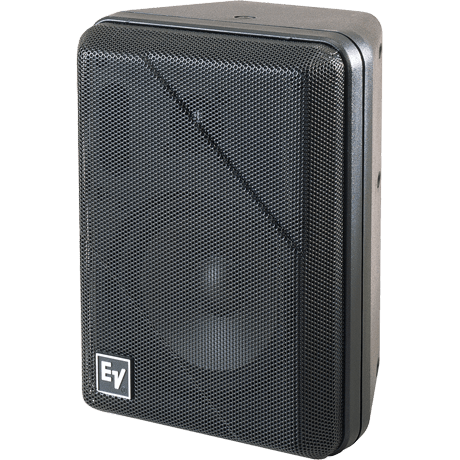

Compact 5.25″ Loudspeaker (single)

  • 160W, 4 ohm Low Impedance
  • Designed for indoor and outdoor use
  • 1-inch ferrofluid-cooled soft-dome tweeter
  • High power-handling, ultra-linear frequency response
  • Passive crossover with power protection
  • Black or White
EV
Tag: Category: SKU: SP/LOW/EV02
Delivering high performance in an ultra-compact package, the S series is ideal for both distributed and near-field applications requiring high-quality sound.
The two-way short-throw system is housed in an optimally vented, high-impact polystyrene enclosure that is suited for installation both indoors and out. Lows are handled by a 5.25- inch direct-radiating woofer with a polypropylene cone, while the high-frequency section is a one-inch direct-radiating soft-dome tweeter that is ferrofluid cooled. Built-in automatic power limiting independently protects each driver from unsafe transients. With mounting options that are flexible enough for virtually any application, the S series is perfect for anything from background and foreground music in restaurants and clubs to near-field monitoring in control rooms and broadcast studios.
  • Ideal for both distributed and near-field applications
  • 160W, 4 ohm Low Impedance
  • Designed for indoor and outdoor use
  • Direct-radiating polypropylene-cone woofer
  • 1-inch ferrofluid-cooled soft-dome tweeter
  • High power-handling, ultra-linear frequency response
  • Vented trapezoidal enclosure of high-impact polystyrene
  • Passive crossover with power protection for both woofer and tweeter
  • OmniMount(R)-compatible 0.25 inch suspension points (2)
  • Black or White
Chassis Size 133.35 mm (5.25)
Directivity Index 9.8 dB ( 3.8/-3.6 dB), 2 – 20,000 Hz
Input Connections Spring Terminal
Frequency Response 85 – 20000 ±3 dB
Sensitivity 1 W/1 m 85 dB
Max. SPL/1m (calc) 113 dB
Coverage (Nominal -6 dB) H 100 °
Coverage (Nominal -6 dB) V 100 °
System Power Handling (Continuous/Program/Peak) 120/480 Watts Short Term/Long Term
LF Transducer 5.25-inch
HF Transducer 1-inch softdome
Crossover Frequency 3500 Hz
Nominal Impedance (Passive) 4 Ω
Minimum Impedance 3.7 Ω
Height 249 mm (9.8)
Width 178 mm (7.01)
Depth 150 mm (5.91)
Weight Net 2.6 kg (5.73 lbs)

Brand

Electro-Voice

EV
