300 Watts continuous, 1,200 watt peak power handling.
Delivers over 123 dB continuous, 131 dB peaks (1 w / 1 m) at full power. 65º x 65º Constant-directivity horn allows use vertically or horizontally with identical coverage.

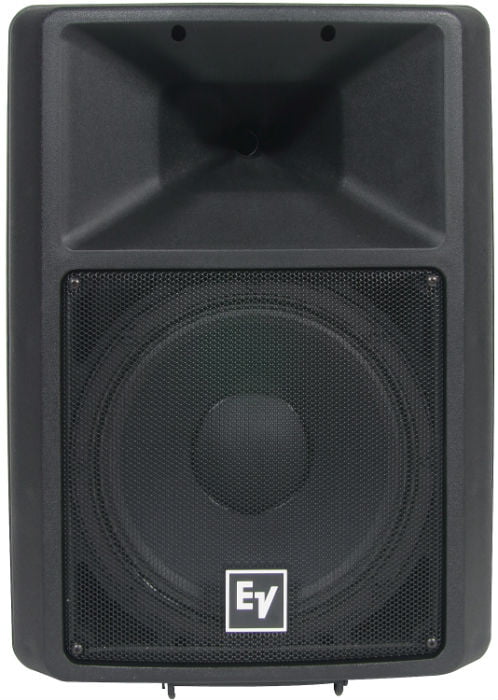

300 Watts continuous, 1,200-watt peak power handling. Delivers over 123 dB continuous, 131 dB peaks (1 w / 1 m) at full power. 65º x 65º Constant-directivity horn allows use vertically or horizontally with identical coverage. Delivers better pattern control and projection than typical 90° horns Proven, reliable EV components including DL12BFH cast-frame 12-inch woofer and DH3/2010A compression driver delivers unequalled vocals and pure, accurate instruments and mids Rugged, durable polypropylene enclosure is light and strong.
Available in black or white Built-in stand mount and inserts in enclosure allow the system to be safely suspended and arrayed using a wide range of optional cost-effective hardware. Can also be used as a floor monitor with F200 attachment Parallel Neutrik Speakon input connectors for safe, loss-free connections
- Compact, portable sound reinforcement
- Designed for use alone or in arrays
- Cast-frame DL12BFH woofer
- 1.25-inch DH3/2010A titanium HF compression driver
- 65º x 65º Constant-directivity Varipath horn
- Ring-Mode Decoupling (RMD) for increased intelligibility
- Power handling: 300 W continuous, 1200 W peak
- Dual Neutrik Speakon(R) high-current connectors
- Trapezoidal black or white polypropylene enclosure
- Rubber feet and mating sockets for stacking
- Integral handles, pole mount
Frequency Response (-10dB) 50 – 20000 Hz
Sensitivity 1W/1m 99 dB
Max. SPL / 1m (calc); full space 131 dB
Coverage (nominal -6dB) H- 65
Coverage (nominal -6dB) V- 65
System Power Handling (continuous/program/peak) 300/600/1200 Watts
LF Transducer DL12BFH
HF Transducer DH2010
Crossover Frequency 1500 Hz
Nominal Impedance (Passive) 8 Ohms
Minimum Impedance 6 Ohms
Color Black
Color White
Directivity Index 11.1 dB
Flying Yes
Input Connections Four-pin Speakon (2)
Outdoor No
Chassis Size 12 inches
Internal Crossover Yes
Speaker Type Fullrange, Mid-High, Two-Way
Weight Net 14.5 kg ( 31.97 lbs )
Dimensions (HxWxD) 586 x 429 x 312 mm (23.07″ x 16.89″ x 12.28″)
