£1,009.00 Inc VAT

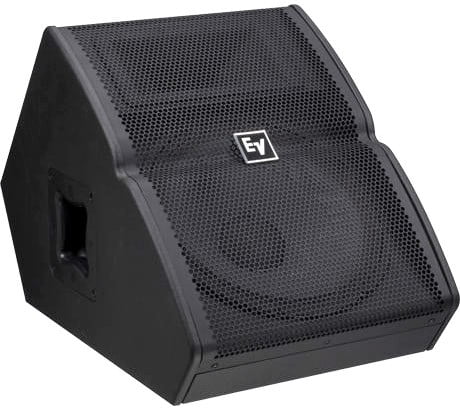

  • Tour X series 15″ two way passive monitor
  • Vertical floor monitor with Signal Synchronized Transducers“
  • Integrated crossover with steep 24 dB / octave slopes and HF protection
  • 90° x 50° coverage pattern
  • 500 W continuous, 2000 W peak power handling
EV
Categories: , SKU: SP/MON/EV03

Tour X embodies the same engineering excellence and aesthetic design found in every world-class EV tour system. Its form is seamlessly integrated into practical, functional elements that make a bold statement about the multi-application purpose and breakthrough performance. A host of innovative features and patent-pending designs make Tour X the most exciting portable loudspeaker series available.

With an undeniable combination of functional good looks, compact design and engineering breakthroughs, Tour X FM monitors will redefine the world of stage monitors for years to come.

  • Designed for Club Sound, Concert Sound, House of Worship, Pro Music, and other applications.
  • Vertical floor monitor with Signal Synchronized Transducers“
  • 100 dB sensitivity, 133 dB maximum SPL
  • DH3 1.25Œ (32 mm) diaphragm, 1Œ (25 mm)-exit pure titanium compression driver
  • SMX2151 15Œ (381 mm) LF transducer with fully symmetric drive
  • Integrated crossover with steep 24 dB / octave slopes and HF protection
  • 90° x 50° coverage pattern
  • 500 W continuous, 2000 W peak power handling

Color Black
Input Connections Parallel Neutrik® NL4
Speaker Type Fullrange
Frequency Response (-3 dB) 65 – 20000 Hz
Frequency Response (-10 dB) 45 – 20000 Hz
Internal Crossover Yes
Recommended High-Pass Frequency 45 Hz
Sensitivity 1 W/1 m 100 dB
Max. SPL/1m (calc) 133 dB
Coverage (Nominal -6 dB) H- 90
Coverage (Nominal -6 dB) V- 50
Rotatable Horn No
System Power Handling (Continuous/Program/Peak) 500 Watts
LF Transducer SMX2151
HF Transducer DH3
Crossover Frequency 1750 Hz
Nominal Impedance (Passive) 8 O
Minimum Impedance 6.2 O
Enclosure Material Plywood and MDF with EVCOAT
Flying No

Height 475 mm (18.7″)
Width 439 mm (17.28″)
Depth 655 mm (25.79″)
Weight Net 23.5 kg (51.81 lbs)

Brand

Electro-Voice

EV
