- Active, multifunctional PA system
- Integrated 5-channel mixer
- Bluetooth Audio Streaming
- 7 on-board reverb effects
- Two-band EQ for channels 1-3

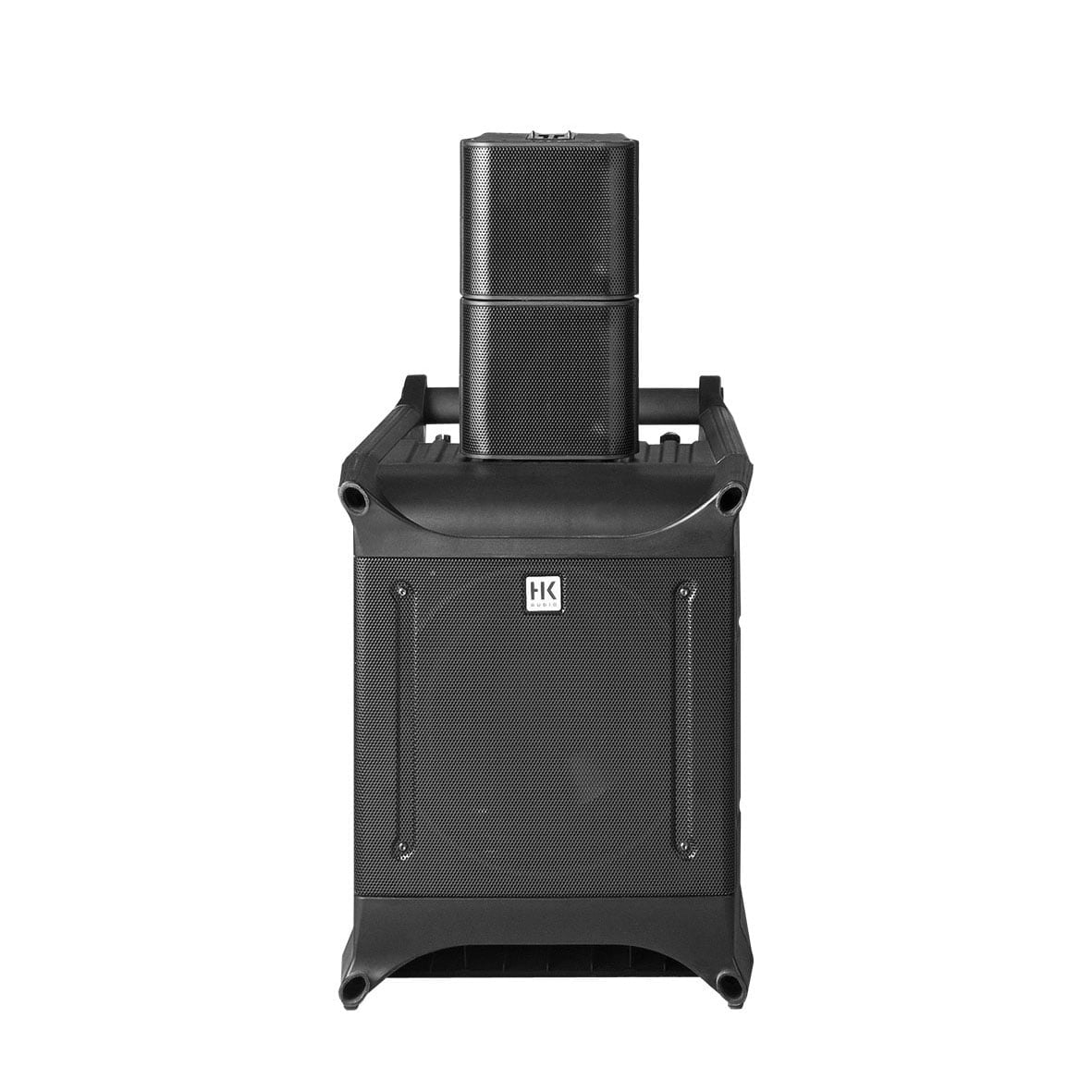

LUCAS NANO 305 FX – PROFESSIONAL SOUND TO GO
LUCAS 305 FX is a true all-rounder, featuring a 5-channel mixer, Bluetooth Audio Streaming and integrated reverb effects. The 10.3 kg system has the best sound-to-volume ratio on the market – the powerful bass and HiFi-esque sound at high SPL make listeners who can’t see the 305 FX imagine they’re experiencing a far larger and heavier system.
The best thing about the compact NANO, though, is its flexibility and intuitive ease of use: simply connect an MP3 player via Bluetooth, a microphone, a guitar, or a keyboard, and you’re ready to go. This makes LUCAS NANO 305 FX the ideal companion for many different sound system situations: be it for small acoustic concerts, as a party PA, karaoke evenings, barbecue parties with friends, Zumba courses in the gym or for background music and announcements at small events. LUCAS NANO 305 FX consists of an active system subwoofer and two satellites that are be stowed away in the subwoofer transport bay.
- Active, multifunctional PA system
- Integrated 5-channel mixer
- Bluetooth Audio Streaming
- 7 on-board reverb effects
- Two-band EQ for channels 1-3
- phantom power for channels 1-2
- Optimized for use as a 2.1 Stereo system
- Can be extended into a more powerful Twin Stereo System setup when used in conjunction with any other 300 series LUCAS NANO
- Functions as an elegant Mono PA
- Active 8” high-performance subwoofer
- 2 satellites with 3.5″ broadband woofers
- all speakers custom-made by Celestion
- 750-watt peak power (calc.)
- 120 dB max. SPL
- Low-ranging bass down to 44 Hz
- Weighs just 10.3 kg

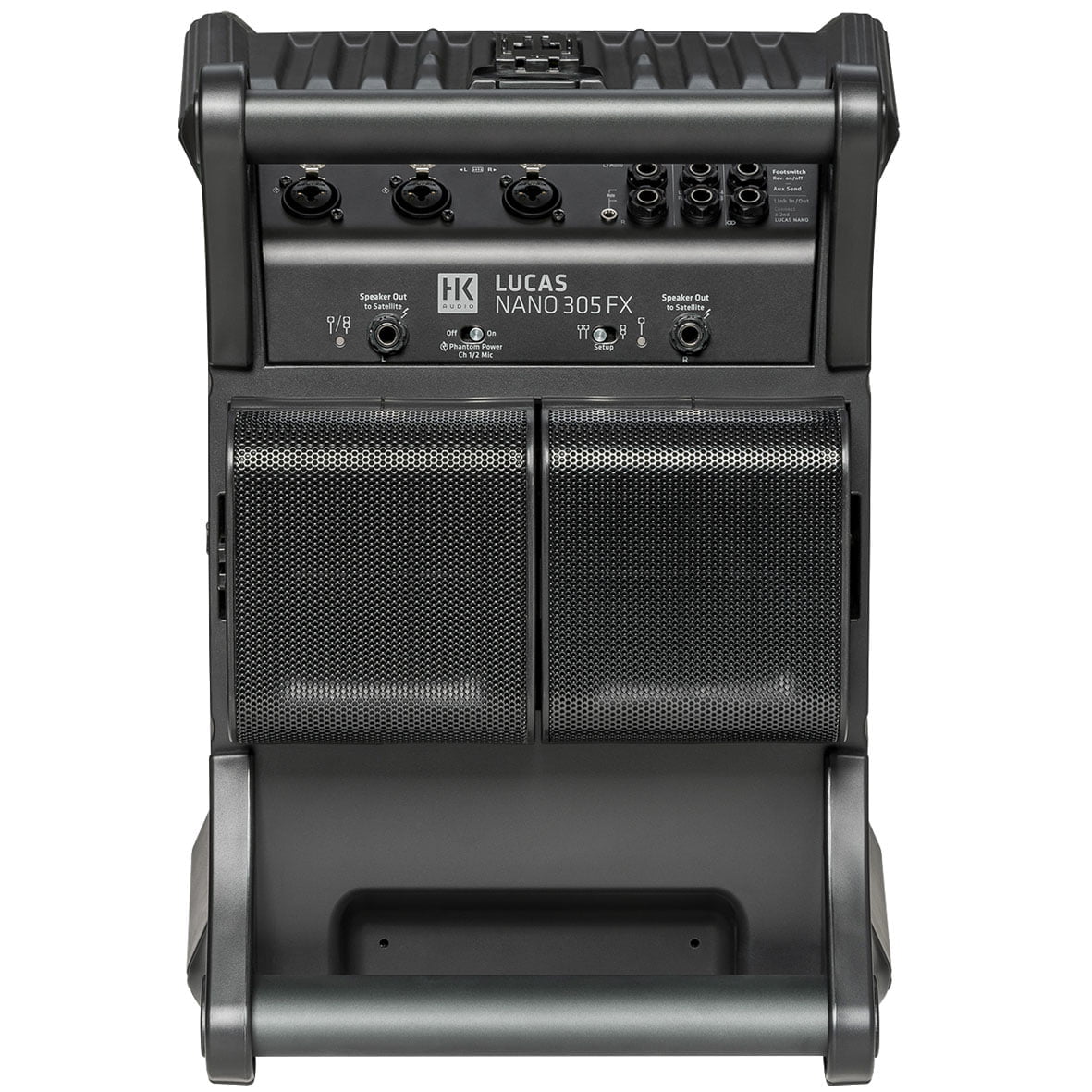

- Satellite transport bay inside the subwoofer enclosure
- Simple handling; assembles in seconds
- High quality STEREO STAND ADD-ON from König & Meyer (available separately)
- Height-adjustable, signal-carrying S-CONNECT POLE LN (available separately), for cable-free setup as Mono or Twin Stereo System setup
- Designed and engineered in Germany
- Five-year warranty (after registration)
You must be logged in to post a review.
Product Class | Portable stereo PA system |
Audience | up to 80 |
Frequency response -10 dB | 44 Hz – 20 kHz |
Power Rating | 230 W (RMS) |
Peak power (calc.) | 750 W |
Amplifier | Class D |
Active protection circuits | MulitBand limiter, Subsonic filter, Thermo protection, Overload protection |
Enclosure | Surface-coated Polypropylene |
Optional accessories | Stereo Stand Add-on, S-Connect Pole LN, Add-on Package Two, Roller Bag, Link-Kabel |
Weight | 10,3 kg / 22.7 lbs. |
Satellite Speakers
Max SPL peak | 120 dB (Satellite Array)@10%THD, Halfspace |
Frequency response -10 dB | 190 Hz – 20 kHz |
Mid/High Speaker | 3,5″ Broadband (Celestion custom-made) |
Mid/high unit dispersion pattern, horizontal/vertical | 60° x 40° (Single Satellite), |
60° x 30° (Satellite Array) | |
Pole mount | 3/8″ thread |
Dimensions (WxHxD) | 13 x 13 x 11,5 cm |
Weight | 1 kg / 2,2 lbs. |
Subwoofer
Max SPL peak | 118 dB@10%THD, half space |
Frequency response -10 dB | 44 Hz – 190 Hz |
LF Speaker | 8″ Celestion custom-made |

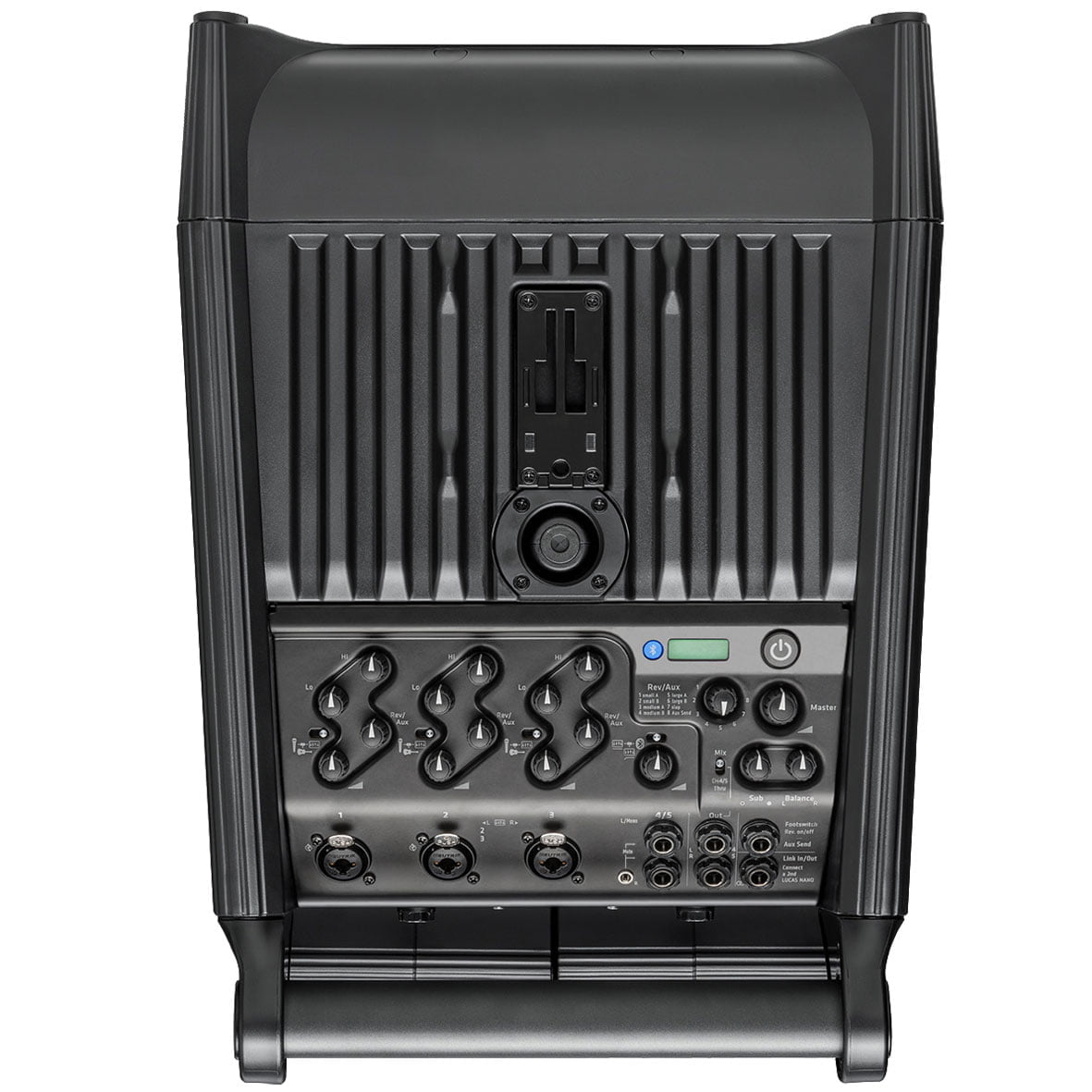

Inputs | 3x Combination 1/4″ (6.3 mm)/XLR Ports, 2x 1/4″ (6.3 mm) Jacks/Stereo Mini-Jack, Bluetooth In, Link In (for Twin Stereo Mode) |
Outputs | Speaker Out, Easy-Click, Rec Out,Link Out for Twin Stereo Mode |
Special Features | 5-Channel Mixer, 2-Band EQ for Channels 1-3, 7 Reverb Eff ects, Bluetooth Audio Streaming |
Pole mount | M33 for the (signal-routing) S-CONNECT POLE LN, a speaker pole adapter sleeve (M33 to M20) is included |
Dimensions (WxHxD) | 30 x 39 x 42 cm |
Weight | 8,3 kg / 18.3 lbs. |
