- Active compact PA
- Integrated 5-channel-mixer (3 x combination 1/4″ (6.3 mm)/XLR Ports, 2 x 1/4″ (6.3 mm) jacks/stereo mini jack, Bluetooth In, Link In)
- Bluetooth Audio Streaming
- On-board reverb effects
- Two-band EQ (low and high)
- Optimized for use as a 2.1 stereo system
LUCAS NANO 605 FX – PROFESSIONAL SOUND TO GO
LUCAS NANO is the only genuine stereo PA that can be carried in one hand. With its five inputs, Bluetooth Audio Streaming and on-board reverb effects, the 605 FX is a true all-rounder, whether it’s as a front PA with your band for audiences of up to 120. An MP3 playback party sound system. An entertainer’s stereo PA. An elegant mono solution for singer-songwriters. At home for live sports screenings or karaoke evenings. In the gym, pushing through the burn. Or at garden parties with friends.

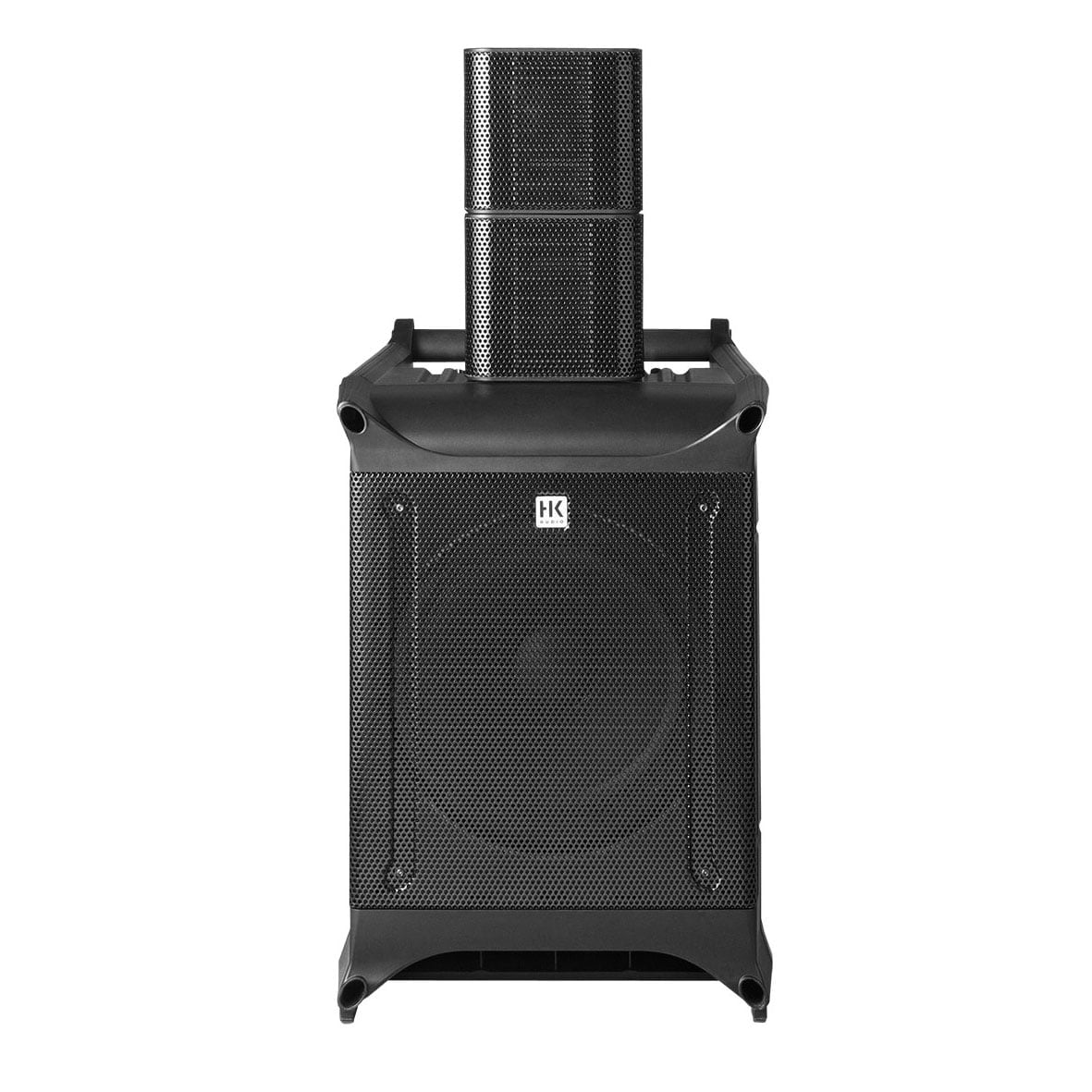

LUCAS NANO 605 FX consists of an active system subwoofer and two satellites that can be stowed in the subwoofer”s transport bay.
- Active compact PA
- Integrated 5-channel-mixer (3 x combination 1/4″ (6.3 mm)/XLR Ports, 2 x 1/4″ (6.3 mm) jacks/stereo mini jack, Bluetooth In, Link In)
- Bluetooth Audio Streaming
- On-board reverb effects
- Two-band EQ (low and high)
- Optimized for use as a 2.1 stereo system
- Can be extended into a more powerful Twin Stereo System setup when used in conjunction with any other 600 series LUCAS NANO
- Functions as an elegant mono PA
- Active 10” Celestion speaker in the low-resonance bass reflex subwoofer, which also features Anti-Resonance Bracing technology
- Two coaxial satellites with a 4.5″ woofer and 1″ tweeter, featuring Multicell Transformer technology
- 1500 watts peak power (calc.)
- Frequency response: 43 – 20,000 Hz
- 130 dB max. SPL
- Weighs just 16.3 kg
- Satellite transport bay inside the subwoofer enclosure
- High quality STEREO STAND ADD-ON package from König & Meyer (available separately) for 2.1 stereo system setup
- Height-adjustable S-CONNECT POLE LN (available separately): signal-carrying distance pole for cable-free satellite connection and a cable-free setup for mono or Twin Stereo System setups
- Simple handling; assembles in seconds
- Designed and engineered in Germany
- Five-year warranty (after registration)
You must be logged in to post a review.
Product Class | Portable stereo PA system |
Audience | up to 120 |
Max SPL peak | 130 dB |
Frequency response +/- 3 dB | 43 Hz – 20 kHz |
Power Rating | 460 W (RMS) |
Peak power (calc.) | 1500 W |
Amplifier | Class D |
Active protection circuits | MulitBand limiter, Subsonic filter, Thermo protection, Overload protection |
Enclosure | Surface-coated Polypropylene |
Optional accessories | S-CONNECT POLE LN (signal-routing speaker pole), Stereo Stand Add-on, Roller Bag (padded trolley), Desk/Wall Mount, Link Cable, Drum Rack Adapter |
Weight | 16,3 kg / 36 lbs. |
Satellite Speaker
Max SPL peak | 124 dB (Single Satellite), |
130 dB (Satellite Array)@10%THD, half space | |
Frequency response +/- 3 dB | 190 Hz – 20 kHz |
Mid/High Speaker | 4,5″ Celestion custom-made |
HF Driver | 1″ Celestion custom-made |
HF horn | HK Audio Multicell transformer |
Mid/high unit dispersion pattern, horizontal/vertical | 90° x +10/-45° (Single Satellite), |
90° x 30° (Satellite Array) | |
Pole mount | 3/8″ thread |
Dimensions (WxHxD) | 14,5 x 14,5 x 13,5 cm |
Weight | 1,2 kg / 2,6 lbs.
|
Subwoofer
Max SPL peak | 123 dB@10%THD, half space |
Frequency response +/- 3 dB | 43 Hz – 190 Hz |
LF Speaker | 10″ Celestion custom-made |

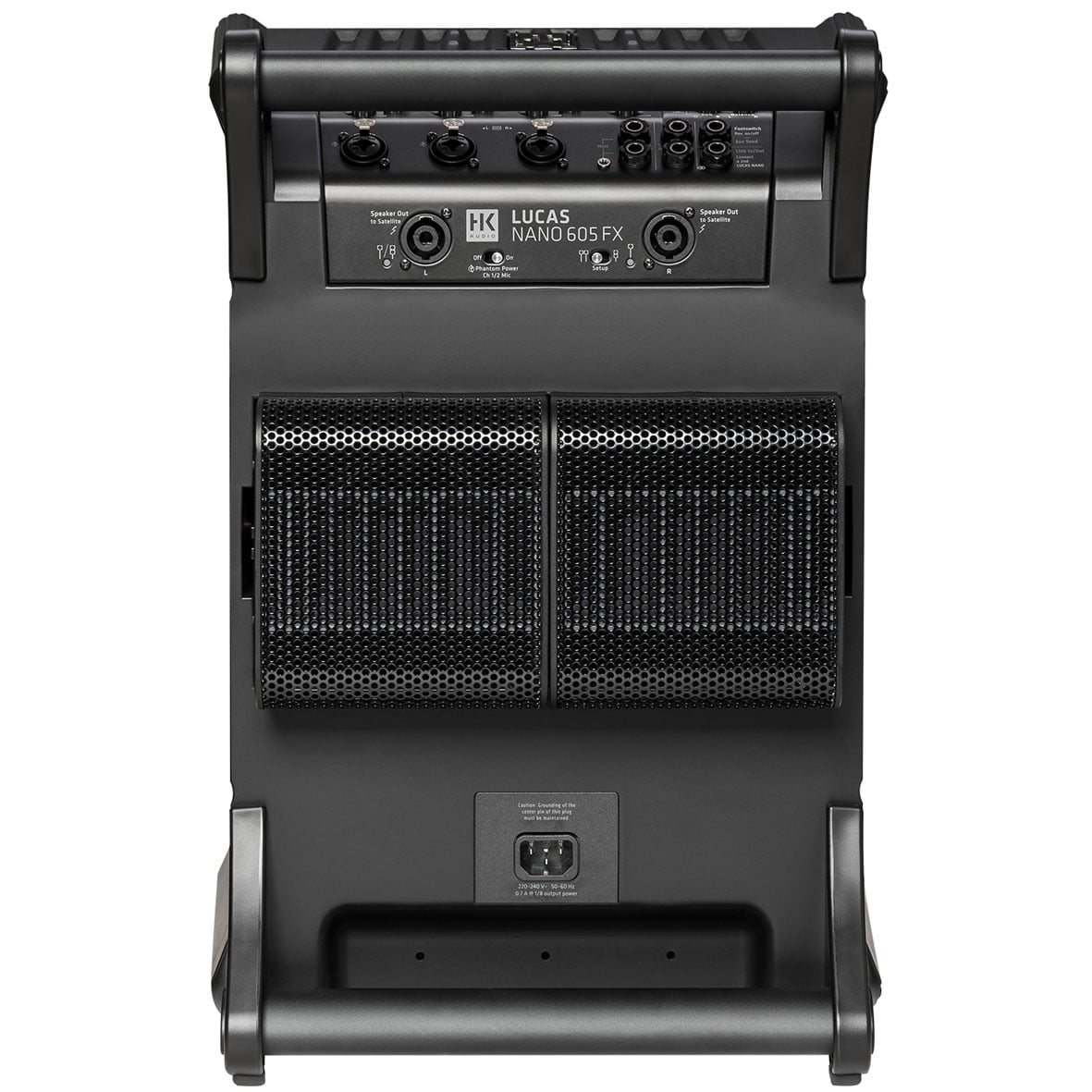

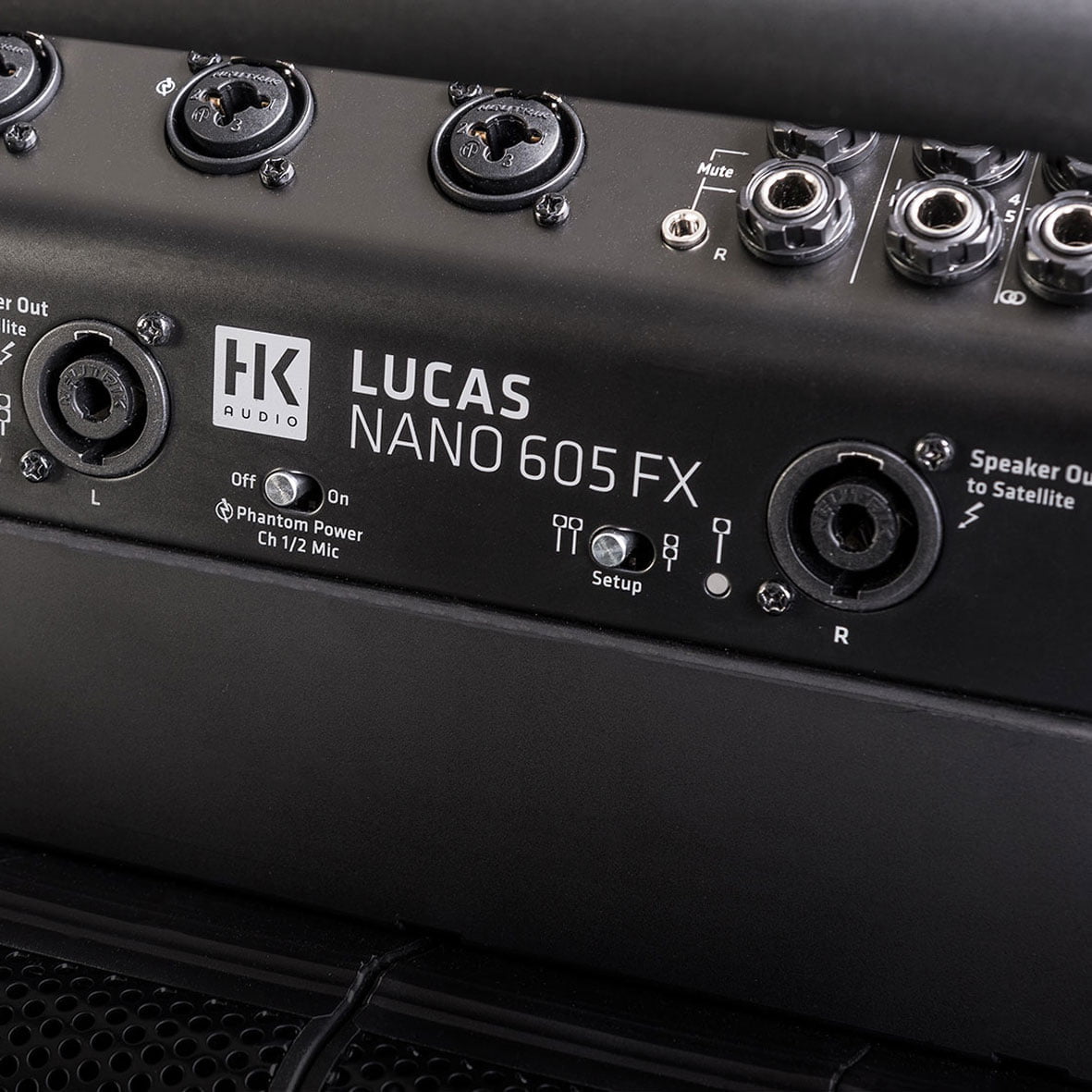

Inputs | 3x Combination 1/4″ (6.3 mm)/XLR Ports, 2x 1/4″ (6.3 mm) Jacks/Stereo Mini-Jack, Bluetooth In, Link In (for Twin Stereo Mode) |
Outputs | Speaker Out, Easy-Click, Rec Out, Footswitch/Aux Send Out, Link Out for Twin Stereo Mode |
Special Features | 5-Channel Mixer, 2-Band EQ for Channels 1-3, 7 Reverb Eff ects, Bluetooth Audio Streaming |
Pole mount | M33 for the (signal-routing) S-CONNECT POLE LN, a speaker pole adapter sleeve (M33 to M20) is included |
Dimensions (WxHxD) | 35 x 49 x 47 cm |
Weight | 13,9 kg / 30,8 lbs. |
