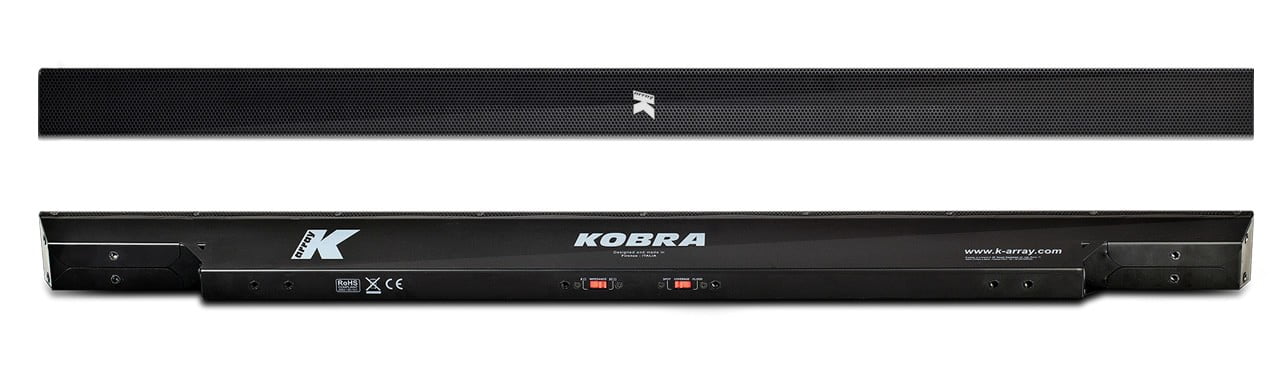

Line-array element, variable beam speaker
The K-array KK102 I is a passive speaker system comprised of sixteen 2” neodymium magnet transducers housed in an elegant and sturdy stainless steel chassis.
Black or White Finish
- Unique performance-to-size ratio
- Vertical, Horizontal and 3D line-array applications
- Multiple 2” long-excursion full-range cone drivers
- Wide horizontal coverage
- Electronically protected
- Selectable 16 Ohm or 64 Ohm impedance
- Selectable wide or narrow vertical coverage
- Weather proof, suitable for outdoor installations – IP54
Applications
- Theatre, Club, Churches
- Front fill and under-balcony fill
- Portable and installed AV systems
- Stage and AV studio monitoring
Acoustics
Power handling 400 W
Impedence 8 Ohm– 32 Ohm (Selectable)
Frequency range
150 Hz – 20 kHz.
Maximum SPL
124 dB continuous – 130 dB peak
Coverage
Horizontal 110°
Vertical 7° – 35° (Selectable)
Crossover
Type External Crossover required
Frequency High pass @150 Hz, 24 dB/oct suggested minimum
Transducers
Full-range 16×2″ Neodymium magnet with 0.75″ voice coil
Audio Input
Connectors 2×4-pin Speakon
Wiring 1 1- (signal IN & LINK); 2 2- (through)

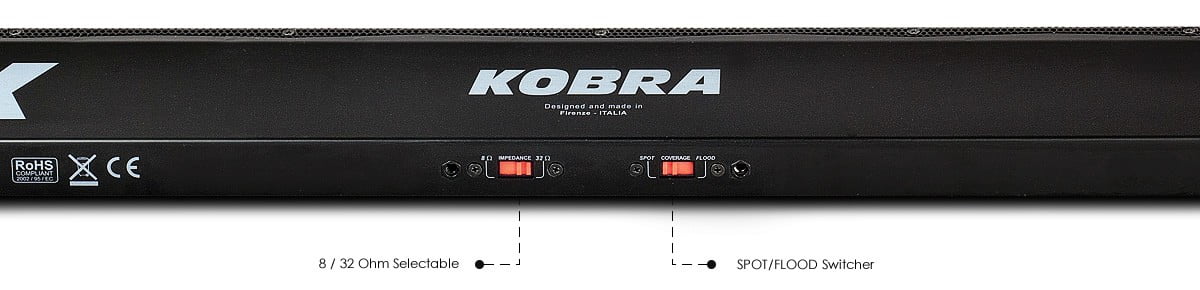

Selection Switch
Vertical pattern
Spot – Flood
Impedence 8 Ohm– 32 Ohm (Selectable)
Physical
Dimensions 8.1 x 100 x 5.9 cm (3.19″ x 39.4″ x 2.32″)
Weight 4.6 Kg (10.14 lbs)
Brand
K-Array
