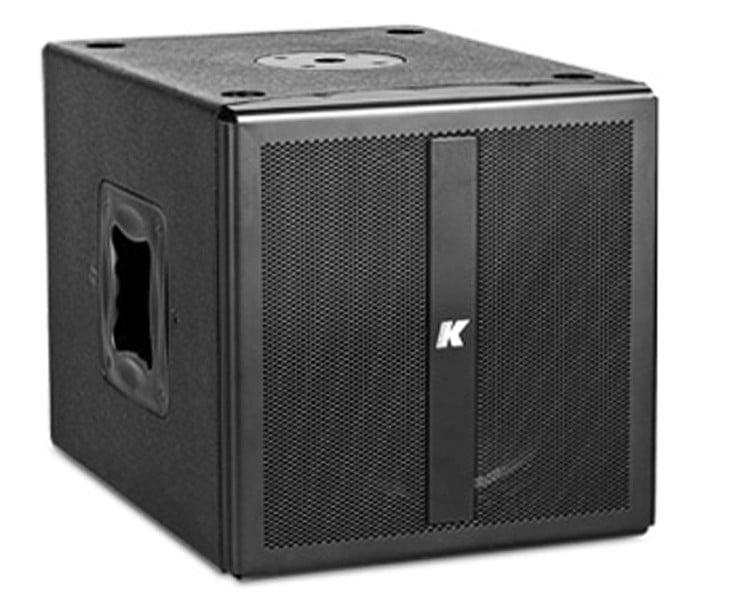

Ultra-light, high-power 12″ Subwoofer
The KMT12P is a high performance sub-bass system designed for use with small to medium wavefront systems, in both touring and install applications.
The KMT12P is a high performance sub-bass system designed for use with small to medium wavefront systems, in both touring and install applications. It features a 700 watt 12” drive unit with magnet structure and suspension engineered for maximum linear excursion.
The ultra-light reflex cabinet is fitted with two pocket handles and one M20 thread mount position for attaching mid-high speakers . It features large area porting to reduce air noise. The KMT12P is ideal for small throw applications, like theaters, concert halls, AV installations. All the KMT12P components are designed by K-array R&D department and custom made under K-array control quality system.
Features
- Unique performance-to-size ratio
- High power 128 dB continuous – 134 dB peak
- Fitted with integral handles and castors
- Direct radiating, long excursion 12” driver
- Ultra fast set-up and dismantling system
Applications
- Theatrical sound reinforcement
- Concert halls, clubs, houses of worship
- Portable and installed audio-visual systems
- Cinema surround sound and effects
Acoustics
Power handling 700 W (AES)
Impedance 8Ω
Frequency range 40 Hz – 150 Hz. /- 3dB (Preset dependent)
Maximum SPL 128 dB continuous – 134 dB peak
Coverage
Horizontal Omni
Vertical Omni
Crossover
Type External Crossover required
Frequency Low pass @ 150 Hz, 24 dB/oct suggested
Transducers
Full range 1 x 12” Neodymium magnet with 3” voice coil
Power Audio Input
Connectors 2 x 4-pin Speakon
Wiring 1 1- (signal IN & LINK); 2 2- (through)
Physical
Dimensions 32.5 x 33.5 x 43.5 cm (12.91” x 13.19” x 17.13”)
Weight 12.6 kg (27.78 lbs)
