180w Unpowered Speaker

  • Selectable horizontal coverage
  • Extended frequency response
  • Strong stainless steel chassis
  • Controlled horizontal dispersion
K-Array
Categories: , , SKU: SP/LOW/KAR16FP

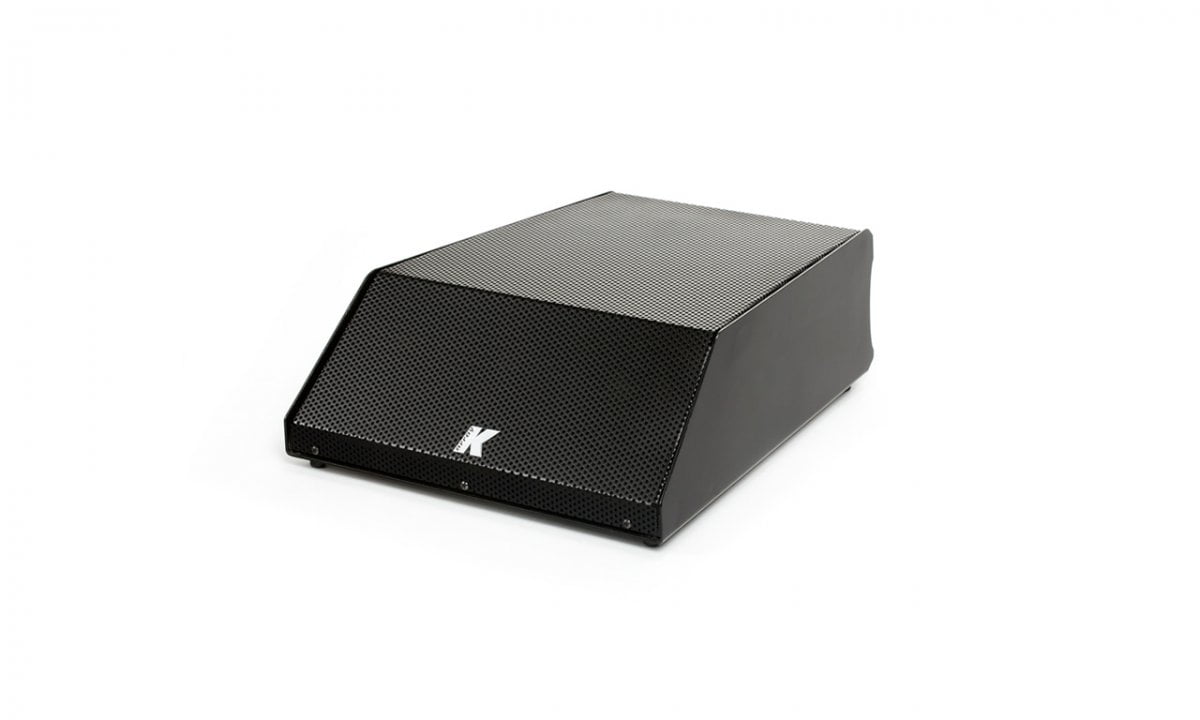

The KRM33P or “the cheese box” as it has been affectionately nicknamed, is an ultra-compact and low-profile passive wedge
speaker with a controlled horizontal pattern and has an extended frequency response. It is made up of three 3.15” cone
drivers and one 6” passive radiator. This combination guarantees a controlled and linear emission on a really wide range,
dedicated bass enhancement presets for K-array amplifiers allows to go from 70Hz to 18KHz.

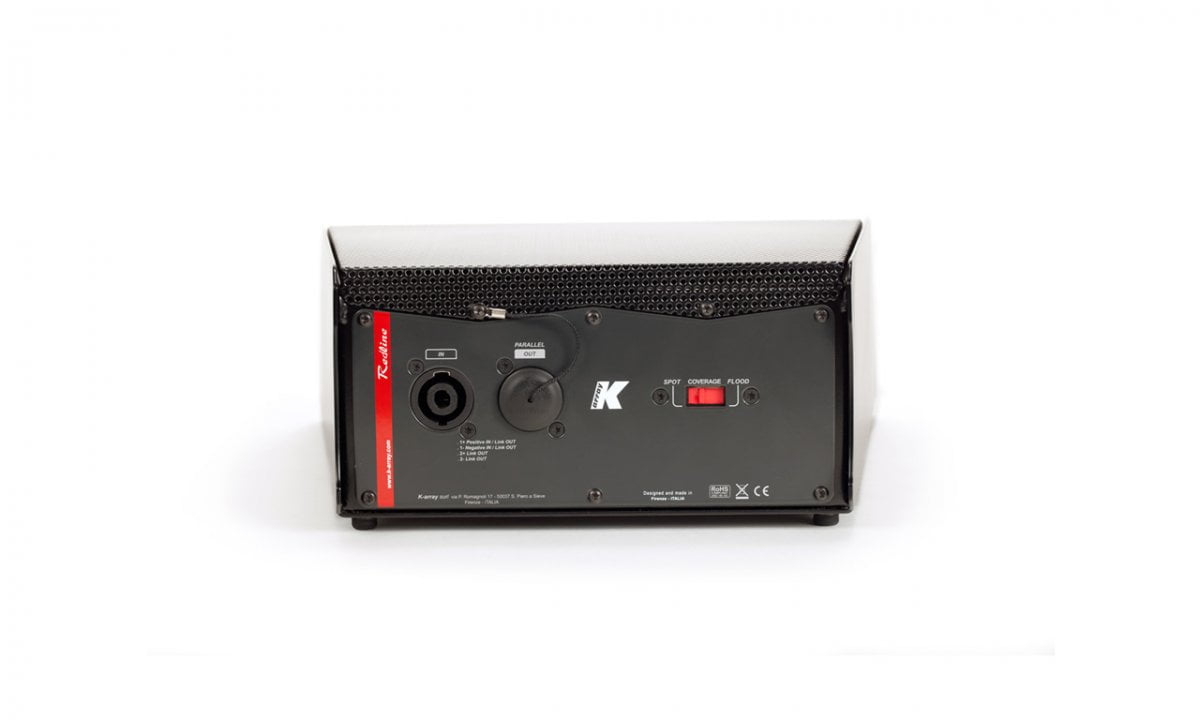

The KRM33P is equipped with a switch to select the horizontal coverage, Spot or Flood, this can be used without changing
the amplifier’s preset.

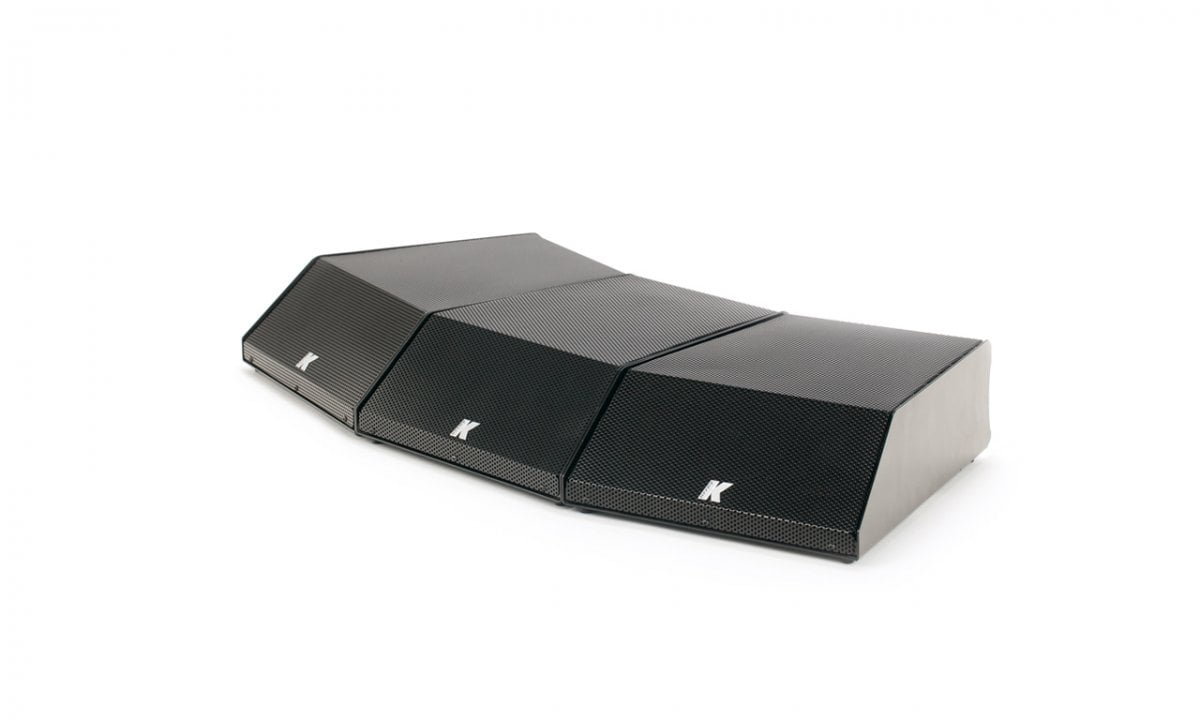

The controlled horizontal dispersion gives the possibility of creating horizontal arrays which increase the SPL and the coverage
while maintaining a high and constant signal-before-feedback within all the cluster’s beams.

The stainless steel chassis is a sturdy and durable box solution which is also remarkably short in height. Thanks to this feature
the KRM33P can be easily and discreetly integrated in scenography designs, broadcast studios as well as under-balcony
speakers in theaters.

All the components of the Redline KRM33P are designed by the K-array R&D department and made in Italy under the K-array
quality control system.

Acoustics
Speaker power handling 180 W(AES)
Max power 300 W (1)
Impedance 8 Ω
Frequency range 70 Hz – 20 KHz (2)
SPL 1W/1mt 93 dB (3)
Maximum SPL 115 dB (cont.) – 121 dB (peak) (4)

Coverage
Horizontal 30° – 70° selectable
Vertical 90°

Crossover
Type External cross over required
Frequency High pass @ 70Hz, 24dB/oct suggested minimum

Transducers
Full-range
3 X 3,15” Neodymiun cone driver with 1” voice coil
1 X 6” passive radiator

Power Audio Input
Connectors 2 x 4-pin speakon
Wiring 1 1- (signal IN & LINK) 2 2- (Through)

Selection Switch
Horizontal pattern Spot – Flood

Recommended Amplifiers
KA10, KA10-10

Certification
IP 55

Physical
Dimensions 26.6 x 10.3 x 30.2 cm (10.47” x 4.06” x 11.89”)
Weight 4.4 Kg (9.5 lbs)
