2” point source multipurpose loudspeaker

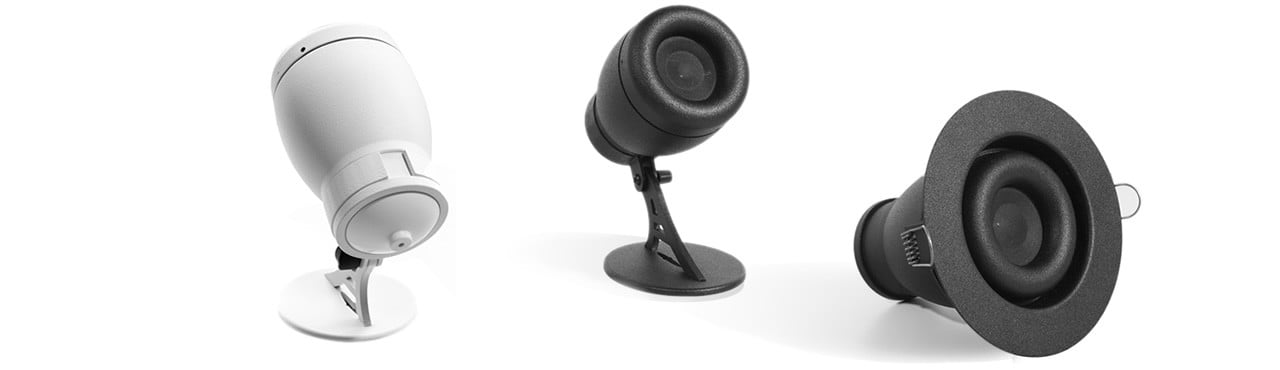

KT2 – 2″ point source compact speaker, comes with a wall bracket for fixed installations or surface applications.
KT2C – 2″ point source ceiling mount compact speaker
Features

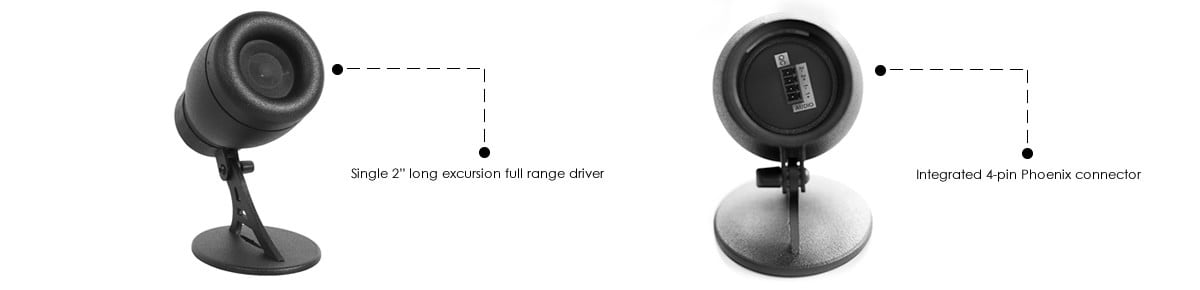

- Single 2” long excursion full range driver
- Wide-range frequency response
- Integrated 4-pin Phoenix connector
- Double voice-coil driver for variable impedance 8-32 Ohm
- Compact aluminium ultra strong chassis
- Weather resistant IP54
Applications
- Audio for museum and exhibit displays
- Space-sensitive fills and distributed systems for speech and music
- Suitable for theatres and broadcast
- Installed audio-visual systems
KT2 Version
Acoustics
Power handling 18 W
Impedence 8 Ohm – 32 Ohm (Selectable)
Frequency range 55 Hz – 19 kHz.
Maximum SPL
101 dB continuous – 107 dB peak
Coverage
Horizontal 90°
Vertical 90°
Crossover
Type External crossover required
Frequency 150 Hz 24 dB/Oct minimum required
Transducers
Full-range 2″ Neodymium magnet Woofer with 2 voice coils of 0.8″
Impedence 2 x 16 Ohm
Power Audio Input
Connectors 4-pin Phoenix connector
Wiring VoiceCoil A=1 1-, VoiceCoil B=2 2-
Dimension
Dimensions 11.0 x 7.5 x 7.0 cm (4.33″ x 2.95″ x 2.76″)
Weight 0.56 Kg (1.23 lbs)
KT2C Version
Acoustics
Power handling 18 W
Impedence 8 Ohm – 32 Ohm (Selectable)
Frequency range
150 Hz – 18 kHz.
Maximum SPL
101 dB continuous – 107 dB peak
Coverage
Horizontal 90°
Vertical 90°
Crossover
Type External crossover required
Frequency 150 Hz 24 dB/Oct minimum required
Transducers
Full-range 2″ Neodymium magnet Woofer with 2 voice coils of 0.8″
Impedence 2 x 16 Ohm
Power Audio Input
Connectors 4-pin Phoenix connector
Wiring VoiceCoil A=1 1-, VoiceCoil B=2 2-
Dimension
Dimensions 11.0 x 7.5 x 7.0 cm (4.33″ x 2.95″ x 2.76″)
Weight 0.56 Kg (1.23 lbs)
Brand
K-Array
