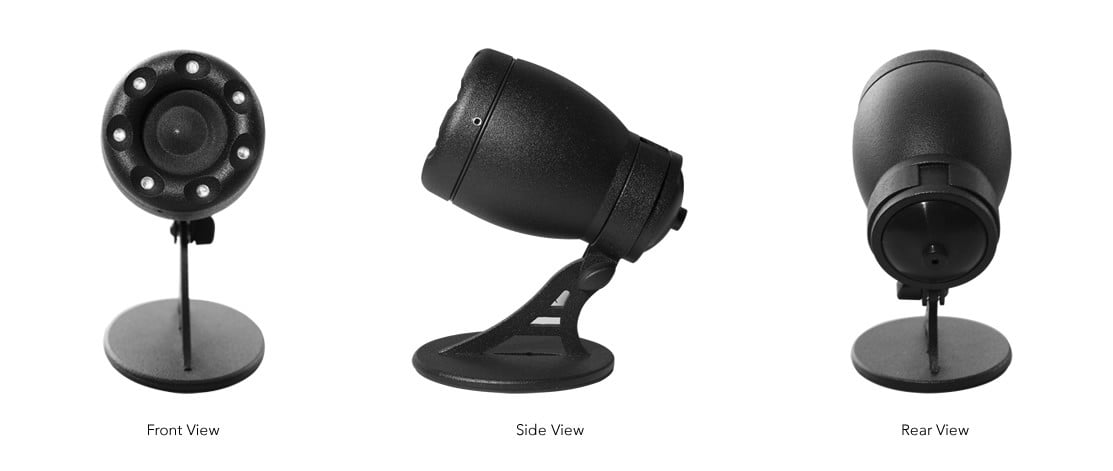

2” point source multipurpose loudspeaker with integrated RGB LEDs
The Tornado series is a miniature sound source designed for high-quality distributed systems.
Housed in a compact aluminium enclosure, the Tornado is suitable for space sensitive and architectural design installations.
The Tornados are a turn-key loudspeaker solution; designed as passive speakers, that can be easily converted into self-powered devices by inserting the KA1-T2 12V/24V amplifier module.
In addition to the standard features of the Tornado loudspeakers, the KTL2 and KTL2C have 6 integrated RGB LEDs that can be controlled thanks the wide range of K-array accessories via DMX or by remote. With its ability to effortlessly reproduce speech, music and lighting, it is an excellent choice for fixed applications such as theatre, museum displays, restaurants, portable systems for corporate AV presentations, department stores, and in hidden locations such as chancel steps in houses of worship.
The KTL2 and KTL2W come with a wall bracket for fixed installations or surface applications.
The KTL2C and KTL2CW come with a ceiling brackets for ceiling mounts.
All Tornado components are designed by the K-array R&D department and custom made under the K-array quality control system.

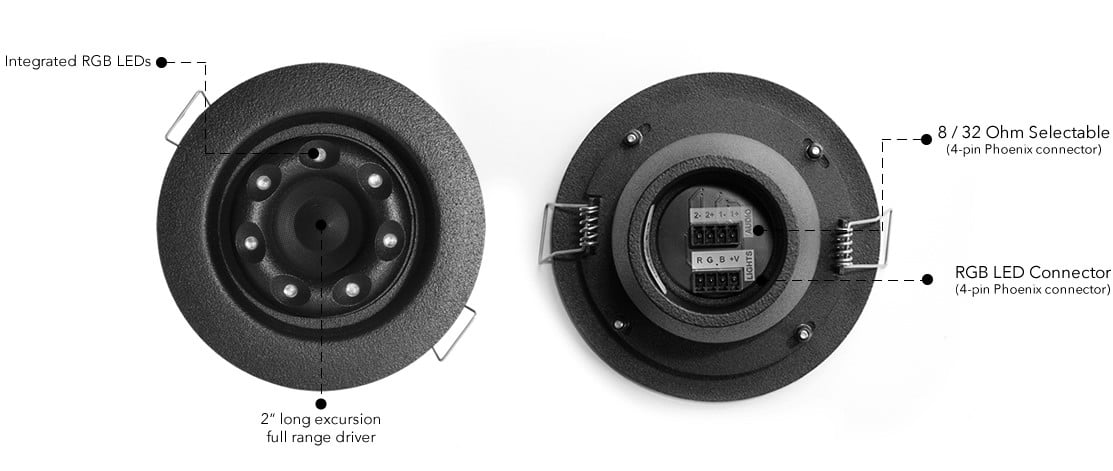

Features
- High performance-to-size ratio
- Integrated RGB LEDs
- Single 2” long excursion full range driver
- Wide-range frequency response
- Double voice-coil driver for variable impedance 8-32ohm
- Compact aluminium ultra strong chassis
Applications
- Audio for museum and exhibit displays
- Space-sensitive fills and distributed systems for speech and music
- Suitable for theatres and broadcast
- Installed audio-visual systems
Acoustics
Power handling 18 W
Impedence 8 Ohm – 32 Ohm (Selectable)
Frequency range 55 Hz – 19 kHz.
Maximum SPL
101 dB continuous – 107 dB peak
Coverage
Horizontal 90°
Vertical 90°
Crossover
Type External crossover required
Frequency 150 Hz 24 dB/Oct minimum required
Transducers
Full-range 2″ Neodymium magnet Woofer with 2 voice coils of 0.8″
Impedence 2 x 16 Ohm
Power Audio Input
Connectors 4-pin Phoenix connector
Wiring VoiceCoil A=1 1-, VoiceCoil B=2 2-
LED connections
Connectors 4-pin Phoenix connector
Wiring R=1 ; G=1-; B=2 ; B=2-
Dimension
Dimensions 11.0 x 7.5 x 7.0 cm (4.33″ x 2.95″ x 2.76″)
Weight 0.54 Kg (1.19 lbs)
