Computer Graphics Video over Twisted Pair Receiver
- Extended Range − Up to 250m (820ft), Level & EQ Controls
- Size – Ultra-Compact Pico TOOLS™ – 4 units can be rack mounted side−by−side in a 1U rack space with the optional RK−4PT rack

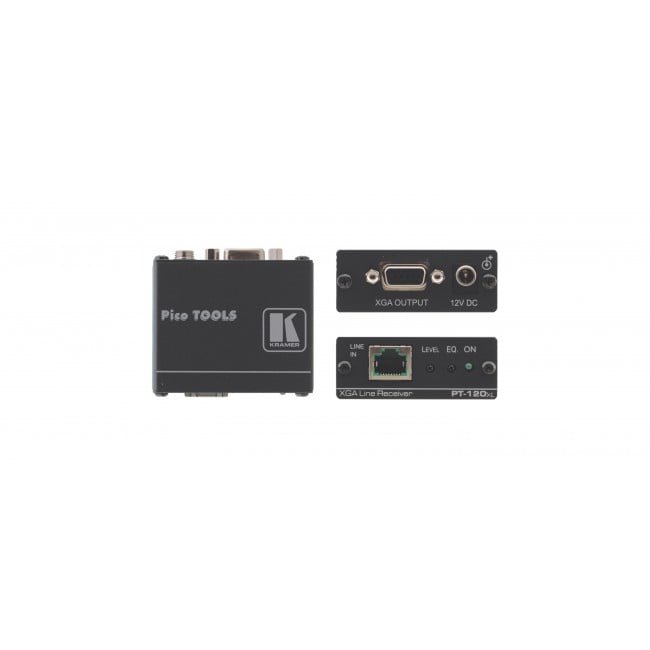

The PT−120xl is an extended range twisted pair receiver for computer graphics video signals. It converts a twisted pair signal from a WP−110 transmitter (or other compatible Kramer transmitter) to a computer graphics signal.
HDTV Compatible.
Max. Resolution – WUXGA & 1080p.
Level (Gain) & EQ (Peaking) Controls.
System Range – Up to 250m (820ft). Greater distances possible depending on signal resolution and cable.
Cable – UTP (unshielded twisted pair) or STP (shielded twisted pair) cable such as CAT 5.
Power Connect™ System – A single connection to the transmitter or the receiver powers both units when the devices are within 150ft (50m) of each other.
Size – Ultra-Compact Pico TOOLS™ – 4 units can be rack mounted side−by−side in a 1U rack space with the optional RK−4PT rack adapter.
Applications:
Presentation and multimedia applications
Long-range graphics distribution for schools, hospitals, security
INPUT: 1 RJ−45 connector.
OUTPUT: 1 VGA/UXGA on a 15−pin HD connector.
MAX. OUTPUT LEVEL: 1.3Vpp.
RESOLUTION: Up to WUXGA, 1080p.
RANGE: Up to 250m (820ft).
S/N RATIO: Paired with PT−110xl, better than 70dB (worst case).
CONTROLS: Level: 0.7v to 1.3v, 300m; EQ: 300m @120MHz.
COUPLING: DC.
POWER CONSUMPTION: 12V DC, 350mA max.
OPERATING TEMPERATURE: 0° to 40°C (32° to 104°F).
STORAGE TEMPERATURE: −40° to 70°C (−40° to 158°F).
HUMIDITY: 10% to 90%, RHL non−condensing.
DIMENSIONS: 6cm x 6.5cm x 2.5cm (2.36″ x 2.56″ x 1″) W, D, H.
WEIGHT: 0.14kg (0.31lbs) approx.
ACCESSORIES: Power supply.
OPTIONS: RK−4PT 19−inch rack adapter.
