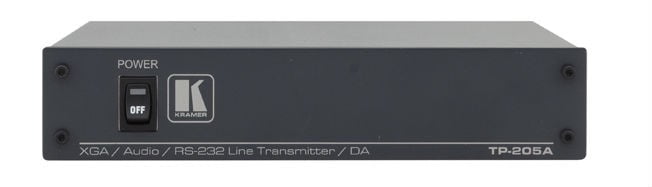

The TP−205A is a high−performance distribution amplifier for computer graphics video signals with resolutions up to UXGA, RS−232 signals, and stereo or S/PDIF audio signals.

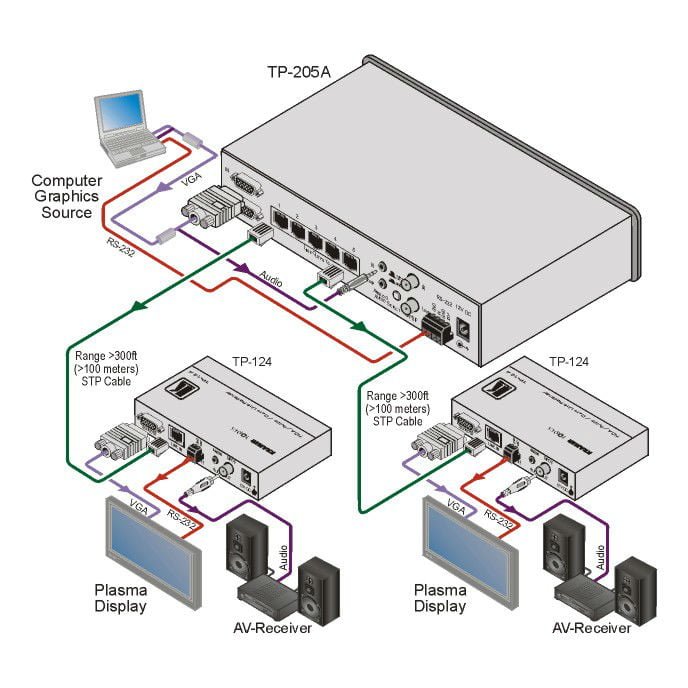

The unit takes one set of inputs and outputs five twisted pair signals to compatible receivers.
-
HDTV Compatible.
-
Max. Resolution – WUXGA & 1080p.
-
Sync Polarity Settings – H & V switches for improved HDTV compatibility with the CAT 5 outputs.
-
System Range – Up to 100m (320ft).
-
Cable – UTP (unshielded twisted pair) or STP (shielded twisted pair) such as CAT 5.
-
Power Connect™ System – A single connection to the transmitter or the receiver powers both units when the devices are within 150ft (50m) of each other.
-
Desktop Size – Compact size. 2 units can be rack mounted side−by−side in a 1U rack space with the optional RK-1 adapter.
Presentation and multimedia applications. For Long range graphics distribution for schools, hospitals, security, Churches and stores.

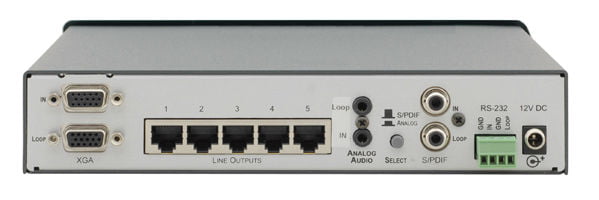

INPUTS: 1 VGA/UXGA with loop on 15-pin HD connectors, 1 unbalanced stereo audio with loop on 3.5mm
mini jacks, 1 S/PDIF with loop on RCA connectors.
OUTPUTS: 5 twisted pairs on RJ-45 connectors.
MAX. OUTPUT
LEVEL:
Video: 1V; Audio: 2.3V.
MAX. RESOLUTION: WUXGA & 1080p.
BANDWIDTH (-3dB): Audio: 20Hz to 20kHz @0.5dB
S/N RATIO: Audio: >80dB.
TOTAL AUDIO GAIN: Analog to analog: 0dB; Analog to S/PDIF: –12dBFS.
AUDIO THD N: <0.01%.
POWER
CONSUMPTION:
12V DC, 2A.
DIMENSIONS: 21.46cm x 16.25cm x 4.36cm (8.45″ x 6.4″ x 1.72″) W, D, H.
WEIGHT: 1.2kg (2.65lbs) approx.
ACCESSORIES: Power supply.
OPTIONS: RK-1 19″ rack adapter.
Brand
Kramer
