1:2 Computer Graphics Video Line & Distribution Amplifier
- Bandwidth − 400 MHz (−3dB)
- Level & EQ Controls
- AC/DC Coupling Selection − Individually for R, G, & B signals
- Rack Kit – RK-3T
- Size – Compact TOOLS – 3 units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T rack adapter.

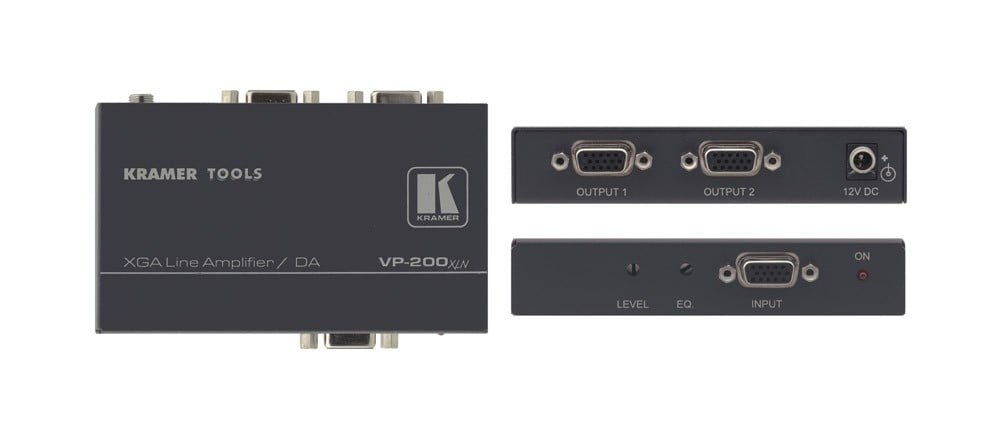

The VP−200xln is a high−performance line and distribution amplifier for computer graphics video signals with resolutions up to and exceeding UXGA. It provides controls to compensate for signal losses inherent in long cable runs.
- High Bandwidth – 400MHz (−3dB).
- HDTV Compatible.
- Level (Gain) and EQ (Peaking) Controls.
- ID Bit Control.
- AC/DC Coupling Selection – Individually for R, G, & B signals.
- Size – Compact TOOLS – 3 units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T rack adapter. – compatible with RK-3T 19-inch rack adapter for mounting 3 Kramer TOOLS™ into a 1U rack space.
- Applications:
- Dual monitor systems, stores, and points of sale.
- Presentation systems.
INPUT: 1 UXGA on a 15−pin HD (F) connector.
OUTPUTS: 2 UXGA on 15−pin HD (F) connectors.
MAX. OUTPUT LEVEL: 2Vpp.
BANDWIDTH (-3DB): 400MHz.
DIFF. GAIN: 0.05%.
DIFF. PHASE: 0.03Deg.
K-FACTOR: <0.05%.
S/N RATIO: 71dB.
CONTROLS: Level: –1.5dB to 6.1dB, EQ.: 0 to 7.3dB @50MHz.
COUPLING: AC/DC.
POWER CONSUMPTION: 12V DC, 95mA.
DIMENSIONS: 12cm x 7.15cm x 2.76cm (4.7″ x 2.8″ x 1.08″) W, D, H.
WEIGHT: 0.3kg (0.66lbs) approx.
INCLUDED ACCESSORIES: Power supply, mounting bracket.
OPTIONS: RK−3T 19″ rack adapter.
Brand
Kramer
