K-IIT XL™ Picture-in-Picture Image Insertion Technology – Ultra−stable picture−in−picture, picture−and−picture, and split screen capability. Any video source can be inserted into or positioned next to a computer graphics video source or vice versa with window positioning and sizing controls.

K-Storm™ Scaling Technology – Kramer’s extremely high performance scaling technology for converting the incoming video signal to a scaled output resolution with a minimum of motion artifacts. Up− and down−scaling of computer graphics video signals is possible.

Ultra-Fast Fade-Thru-Black (FTB™) Switching – Video switching transitions are clean and ultra−fast. The video fades to black and the new input fades from black for smooth, glitch−free switching. The output signal provides constant sync so the display never glitches.

Advanced Deinterlacing Functions – Method, sync, selectable film modes, diagonal correction and motion detection sensitivity, 3:2 and 2:2 pull−down; 24sf handling.

HDTV Compatible.

HDCP Compliant – The HDCP (High Definition Content Protection) license agreement allows copy−protected data on the HDMI input to pass only to the HDMI output.

Multi-Standard Operation – SDI (SMPTE 259M and SMPTE 344M), HD−SDI (SMPTE 292M) and 3G HD−SDI (SMPTE 424M).

Advanced Input and Output EDID Management.

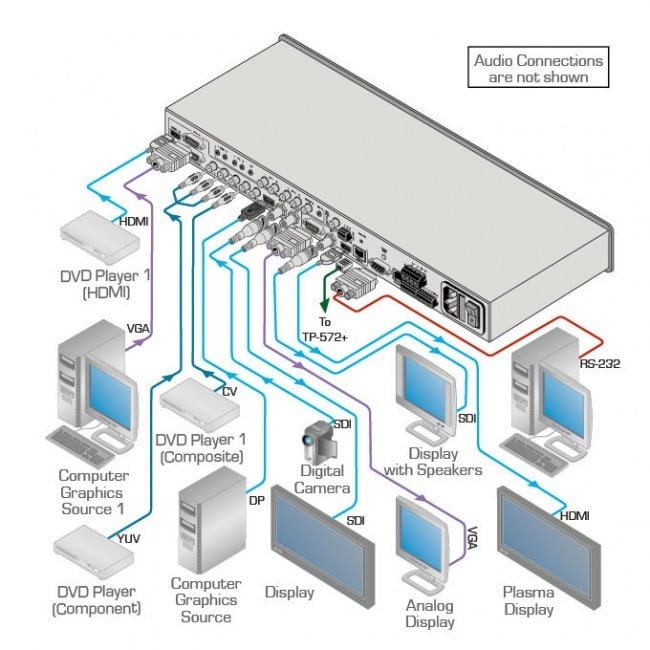

Video Inputs – Component (Y, Pb, Pr) video on RCA connectors, DisplayPort (DP), SD/HD/3G HD−SDI (including SDI loop) on BNC connectors, 2 computer graphics on 15−pin HD connectors, 2 composite video on RCA connectors and 2 HDMI.

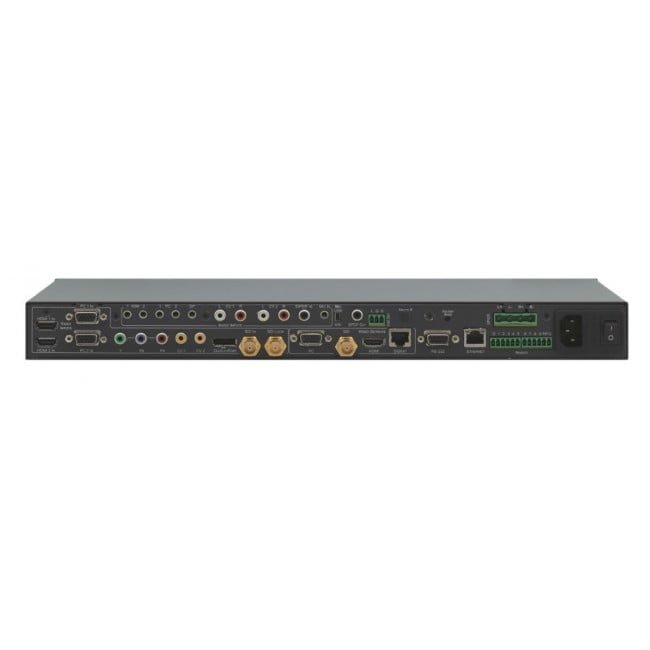

Scaled Outputs – HDMI, computer graphics on a 15−pin HD connector, SD/HD/3G HD−SDI on a BNC connector and DGKat twisted pair on an RJ−45 connector.

SDI Channeling – Select one active signal and three bypassed signals from eight embedded stereo audio channels.

Multiple Output Resolutions – Up to 2K and 1080p.

HDMI Deep Color Support.

Luma Keying – Via PIP window.

Vertical Keystoning.

Built-in ProcAmp – Color, sharpness, contrast, brightness and gamma are set individually for each input.

3D Comb Filtering – Provides the best quality color separation for composite video inputs.

Built-in Time Base Corrector – Stabilizes unstable video sources.

Powerful Noise Reduction Filters – Temporal, block, mosquito and combing.

Picture Zooming – Both on main and PIP window from 100% to 1600%, including separate V and H sharpness control.

Multiple Aspect Ratio Selections – Follow input, follow output, best fit, letterbox and overscan.

Dual Window Display – Preset picture−in−picture, picture−and−picture and split screens, as well as customized window layouts.

Audio Inputs – 2 HDMI, 2 computer graphics and 1 DisplayPort and 1 microphone in on 3.5mm mini jacks; 2 CV and 1 S/PDIF on RCA connectors.

Audio Outputs – 1 S/PDIF on an RCA connector, 1 unbalanced stereo audio on a 3−pin terminal block connector and 2x10W power amplifier for balanced speakers on terminal block connectors.

HDMI Audio – Embeds/de−embeds HDMI audio with delay of 0−90msec for lip−sync correction.

Microphone Input – Supports mix and talk−over features, as well as 0−90msec delay to prevent feedback.

Non-Volatile Memory – Saves final settings.

Firmware Upgrades – Via Ethernet and RS−232.

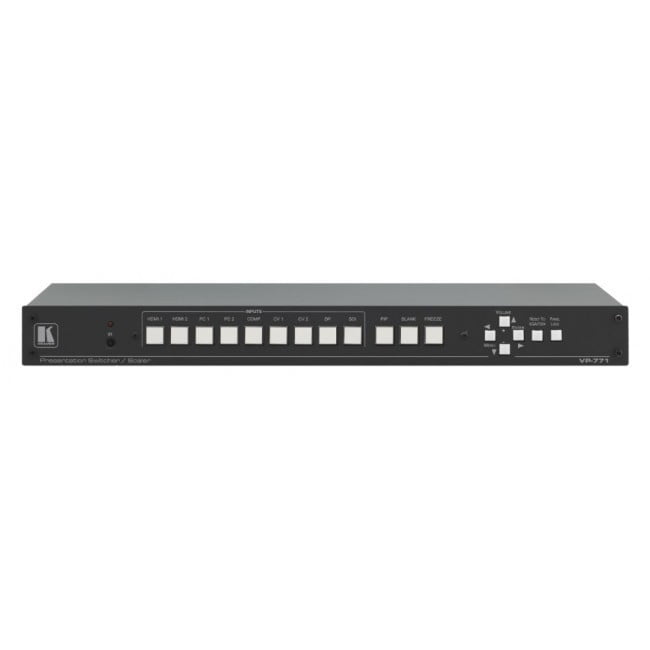

Flexible Control Options – Front panel buttons, contact closure, OSD (on−screen display) via front panel buttons or IR remote (remote control included), Control Application software for use via Ethernet and RS−232.

Selectable Power Save Modes.

Worldwide Power Supply – 100−240V AC.

Standard 19” Rack Mount Size – 1U. Rack “ears” included.
