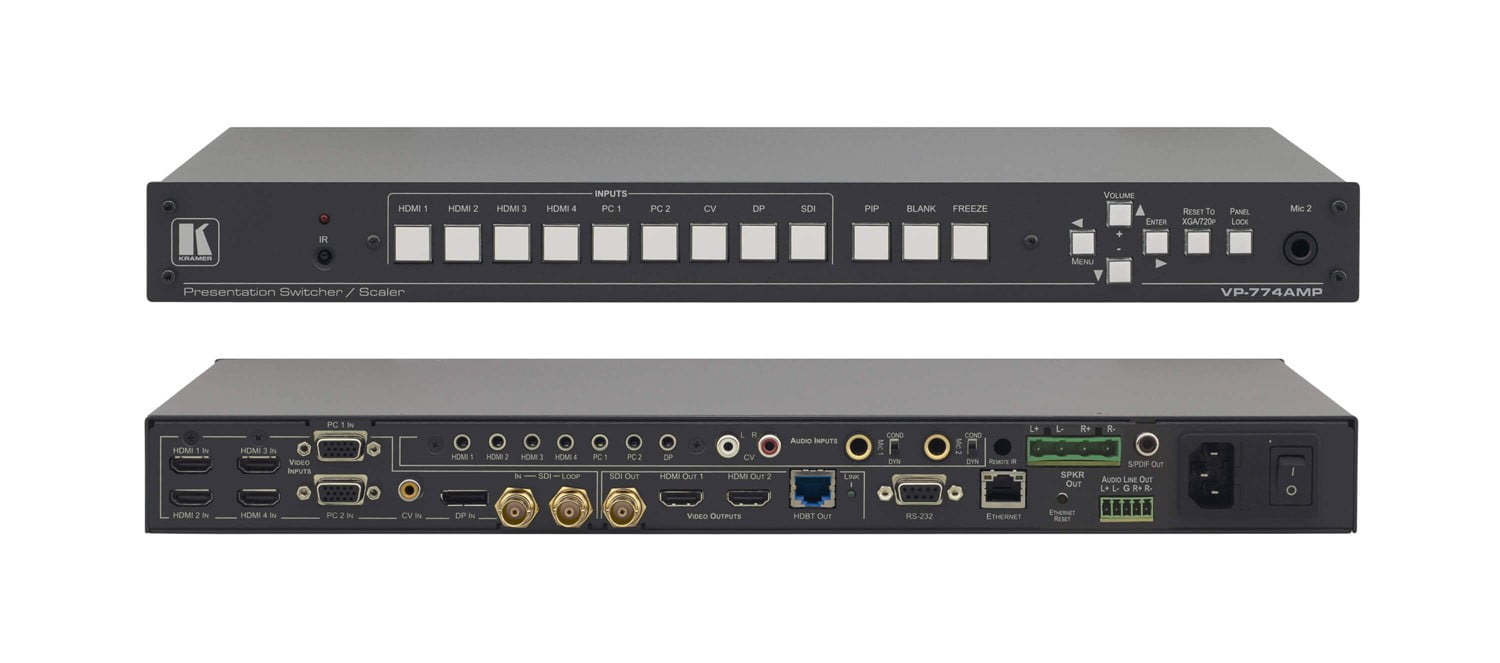

• K-IIT XL™ Picture-in-Picture Image Insertion Technology – Ultra−stable picture−in−picture, picture−and−picture, and split screen capability. Any video source can be inserted into or positioned next to any other video source with full window positioning and sizing controls.
• Kramer’s PixPerfect™ Scaling Technology – Kramer’s precision pixel mapping and high quality scaling technology. High−quality 3:2 and 2:2 pull down de−interlacing and full up− and down−scaling of all video input signals.
• State−of−the−Art Video Processing Technology – For highest quality de−interlacing, noise reduction, and scaling performance for both standard−definition and high−definition signals.
• Ultra-Fast Fade-Thru-Black (FTB™) Switching – Video switching transitions are clean and ultra fast. The video fades to black and the new input fades from black for smooth, glitch−free switching. The output signal provides constant sync so the display never glitches.
• HDCP Compliant – The HDCP (High Definition Content Protection) license agreement allows copy−protected data on the HDMI input to pass only to the HDMI output.
• Advanced EDID Management – Per input; analyzes the EDID of a selectable Master connection to one of the outputs.
• Mass Notification Emergency Communication System (MNEC) – Activates a national or campus−wide notification, immediately displayed when an emergency situation develops. It uses automatic text overlaying, either via a crawler or a full screen cover up, as well as an optional audio alert.
• Max. Data Rate – 6.75Gbps (2.25Gpbs per graphic channel).
• Multi-Standard SDI Support – SDI (SMPTE 259M), HD−SDI (SMPTE 292M) and 3G HD−SDI (SMPTE 424M).
• Scaled Outputs – 2 HDMI, 1 HDBaseT, 1 3G HD−SDI (all outputs work simultaneously).
• Output Resolutions – HDTV and computer graphics up to 2K and 1080p/UXGA with selectable refresh rates.
• HDMI Deep Color Support – For all inputs and outputs.
• Luma Keying – Via PIP window.
• Vertical Keystone Operation.
• Built-in Proc-Amp – With enhanced functions such as color correction, gamma and dither.
• Multi-Standard Video Support – NTSC (3.58/4.43), PAL (M/N/60) and SECAM with advanced de−interlacing options.
• Built-in Time Base Corrector – Stabilizes unstable video sources.
• Picture Zooming – Both on main and PIP window from 100% to 1600%, including separate V and H sharpness control.
• Input and Output Colorspace Control.
• Audio Support – Unbalanced stereo audio inputs, with two microphone inputs; digital stereo and balanced stereo outputs; input and output audio level adjustment.
• Selectable Microphone Talkover or Mix Modes.
• Microphone Inputs – 2 dynamic or condenser (with 48V phantom voltage).
• Audio Amplifier & Speaker Output – 2x10W.
• Automatic Detection and Selection of Embedded Audio – Automatically outputs the signal from the HDMI and DP embedded audio inputs or performs an analog takeover to output the respective analog audio input.
• Range – Up to 130m (430ft) normal mode; up to 180m (590ft) ultra mode (1080p @60Hz @24bpp) when using BC−HDKat6a cables.
• On-Screen Display (OSD) – For easy setup and adjustment, accessible via the IR remote control and via the front−panel buttons.
• Built-in Web Page Server.
• Non-Volatile Memory – Saves final settings.
• Firmware Upgrades – Via Ethernet and RS−232.
• Flexible Control Options – Front panel buttons, OSD (on−screen display) via front panel buttons or IR remote (remote control included), embedded Web server.
• Port Tunneling – A bidirectional RS−232 interface where simple control commands and data can flow in both directions from a controller to the VP−773 via the Ethernet, allowing status requests and control of the destination unit
• Selectable Power Save Modes – For efficient energy use.
• Worldwide Power Supply – 100−240V AC.
• Standard 19″ Rack Mount Size – 1U. Rack “ears” included.
