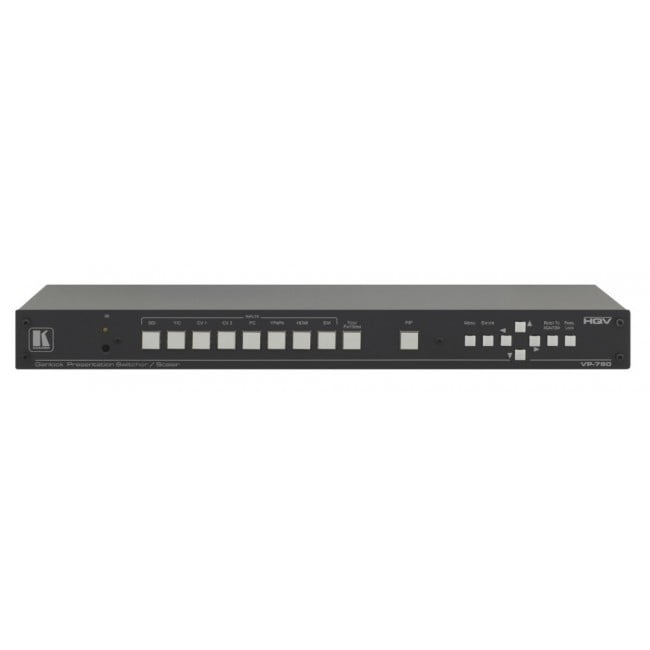

Kramer VP-790 Switcher / Scaler

Kramer VP-790 Switcher / Scaler
Kramer VP-790 Switcher / Scaler - Image 2
Kramer VP-790 Switcher / Scaler - Image 3
Call for price

8−Input ProScale™ Genlock Presentation Scaler/Switcher
HQV® Video Processing
Max Data Rate − 3Gbps (HD−SDI)
Genlock Input
Audio Output
Built−in ProcAmp
Control − IR, Ethernet & RS−232.

Kramer
Category: SKU: OB/AV/SW/KRA87

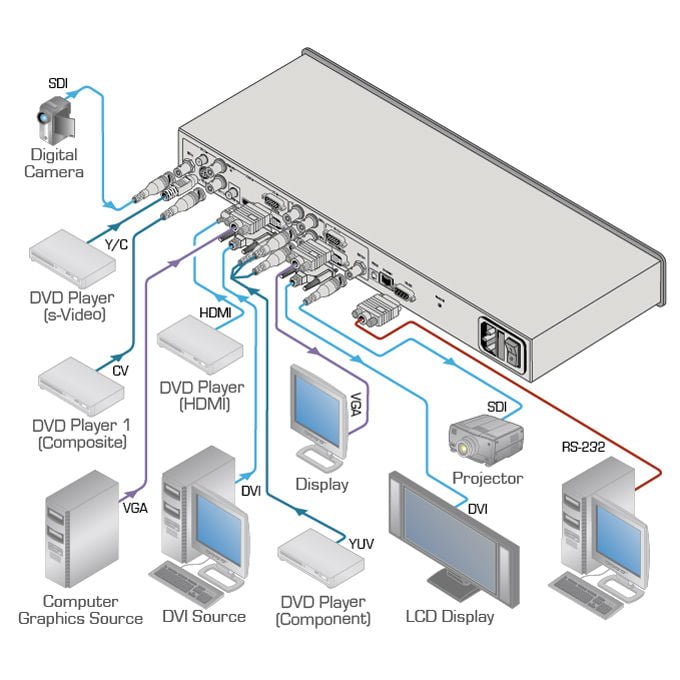

The VP−790 is a high−quality presentation scaler/switcher for RGB component, computer graphics, composite, s−Video, HDMI, DVI and 3G HD−SDI signals. The unit takes one of the inputs, scales the video, embeds the audio and outputs the signal to the computer graphics, DVI/HDMI and 3G HD−SDI outputs simultaneously.
  • HQV® Video Processing – HQV (Hollywood Quality Video) processing represents the state-of-the-art in video processing technology, with the highest quality de-interlacing (with 3:2 & 2:2 pull down), noise reduction, and scaling performance for both standard-definition and high-definition signals.
  • Max. Data Rate – 3Gbps (HD-SDI).
  • HDTV Compatible.
  • HDCP Compliant – The HDCP (High Definition Content Protection) license agreement allows copy-protected data on the HDMI input to pass only to the HDMI output.
  • Video Warping – Uses user-generated screen coordinates to match any linear or non-linear surface.
  • Edge Blending – Facilitates building large images using multiple projectors by feathering the overlapped edges.
  • Video Inputs – 1 HDMI, 1 computer graphics video (15-pin HD), 2 composite video (BNC & RCA), 1 s-Video (4-pin), component video (RGBS) & 1 DVI.
  • Genlock Input – Ideal for use in broadcast video applications.
  • Scaled Outputs – DVI/HDMI, 3G HD-SDI & computer graphics video (15-pin HD).
  • Gaming Mode Option – For minimum latency.
  • Audio Output – S/PDIF de-embedded from HDMI or SDI.
  • Multiple Aspect Ratio Selections – Full, overscan, underscan, letterbox & panscan.
  • Built-in ProcAmp – Color, hue, sharpness, noise, contrast, and brightness.
  • Front Panel Controls – OSD, front panel buttons including test pattern, PIP and Reset to XGA/720p.
  • Non-Volatile Memory – Saves final settings.
  • Front Panel Lockout.
  • Flexible Control Options – Front panel with OSD (on-screen display), IR remote, Ethernet and RS-232.
  • Worldwide Power Supply – 100-240V AC.
  • Standard 19” Rack Mount Size – 1U. Rack “ears” included.
INPUTS: 1 3G−HD−SDI on a BNC connector,
1 HDMI connector (HDCP version 1.1),
1 VGA on a 15−pin HD connector,
1 composite video on an RCA connector,
1 composite video on a BNC connector,
1 component video/RGBS on 3/4 RCA connectors,
1 DVI on a DVD−I connector,
1 s−Video on a 4−pin connector.

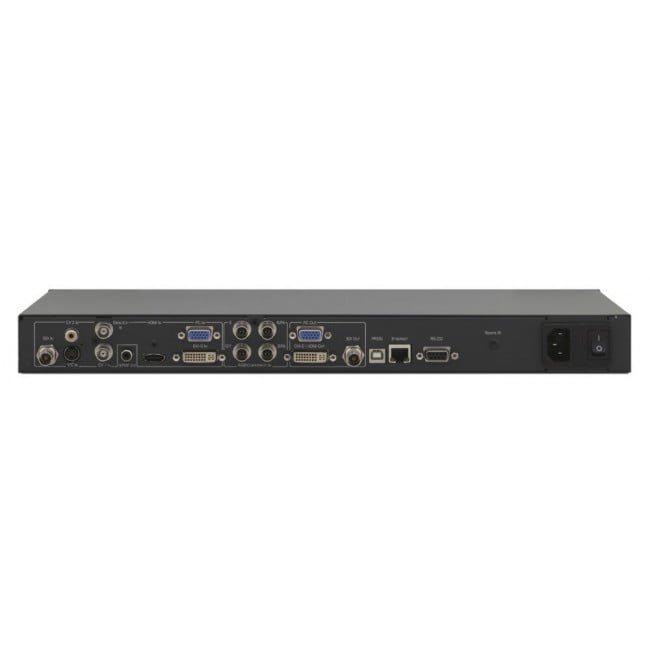

OUTPUTS: 1 3G−HD−SDI on a BNC connector,
1 DVI/HDMI on a DVI−D connector (HDCP version 1.1),
1 VGA on a 15−pin HD connector,
1 S/PDIF on an RCA connector.
OUTPUT RESOLUTIONS: 640×480, 800×600, 1024×768, 1280×768, 1280×800, 1280×1024, 1360×768, 1366×768, 1400×1050, 1440×900, 1600×1200, 1680×1050, 1920×1200, 480i, 480p, 576p, 720p, 1080i, 1080p.
CONTROLS: Input selector buttons: Blank, mute, freeze, reset to XGA/720p, panel lock. Menu functions: menu, enter, menu arrows. RS−232, Ethernet, IR.
OPERATING TEMPERATURE: 0° to 40°C (32° to 104°F).
STORAGE TEMPERATURE: −25° to 85°C (−13° to 185°F).
HUMIDITY: 5% to 95%, RHL non−condensing.
POWER SOURCE: 100−240V AC, 35VA max.
DIMENSIONS: 19″ x 7″ x 1U (W, D, H) rack mountable.
WEIGHT: 2.7kg (6lbs) approx.
ACCESSORIES: Power cord, rack ears, IR remote control transmitter.
