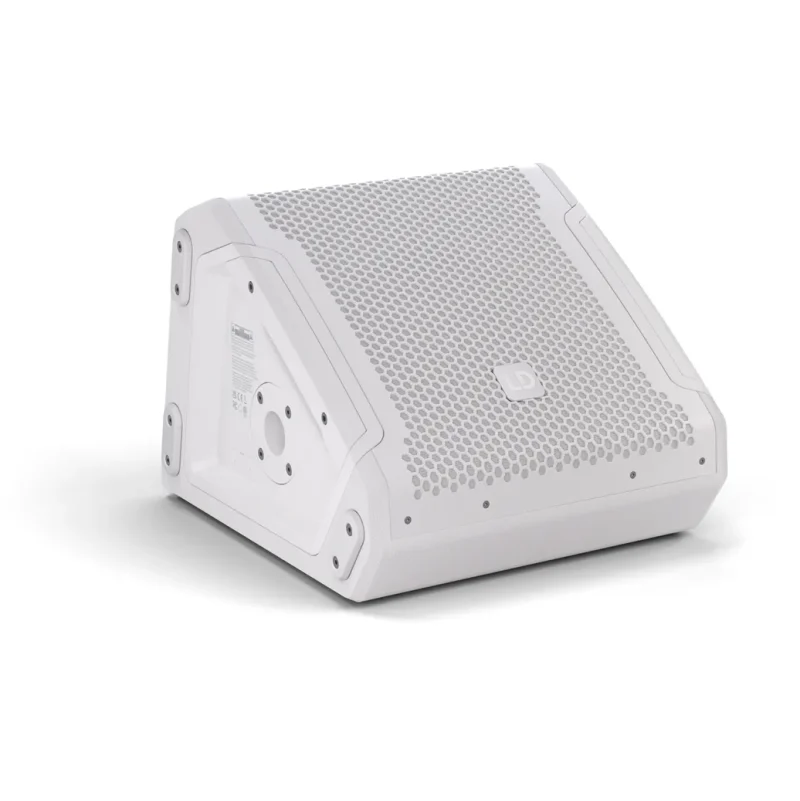

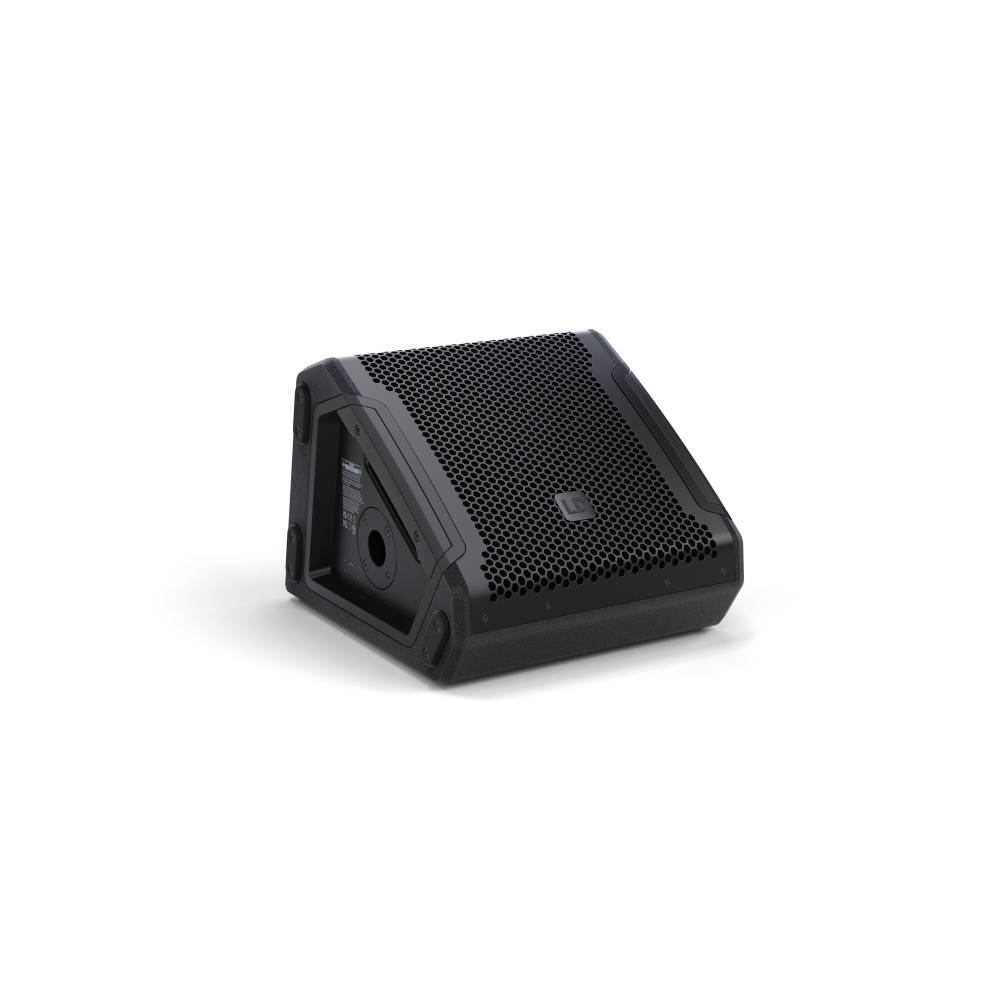

LD Systems MON 8 A G3

Call for price

8″ Powered coaxial stage monitor.

  • Compact high-performance stage monitor with top-of-the-range technologies
  • Class-D power amplifier with 300 W RMS/1200 W peak and 121 dB max. SPL
  • Coaxial design for true point source with a 1.75″ titanium-diaphragm HF driver
  • 8″ woofer with 2.5″ voice coil
  • Optimised, practical radiation pattern due to 50° x 90° CD horn
Categories: , , SKU: SP/POW/MON/LD001

The MON 8 A G3 is part of an entirely newly developed family of powered stage monitors for high performance. The MON G3 Series incorporates the advanced technology and premium materials found in high-end monitors typically rented by professionals, making this quality available to everyone. These include, for example, advanced coaxial loudspeakers with integrated 50° x 90° CD horn, which ensure the acoustic ideal of a true point source and thus outstanding audio characteristics even at short listening distances. Besides this, the series offers a high-level of robustness, a comprehensive set of features and the elegant LD Systems design.

As the smallest member of the new stage monitor family, the MON 8 A G3 is particularly inconspicuous and flexible in use as a stage monitor. At the same time, the MON 8 A G3 offers a frequency response of up to 59 Hz, which is unusually low for its size, and thus full-range sound.

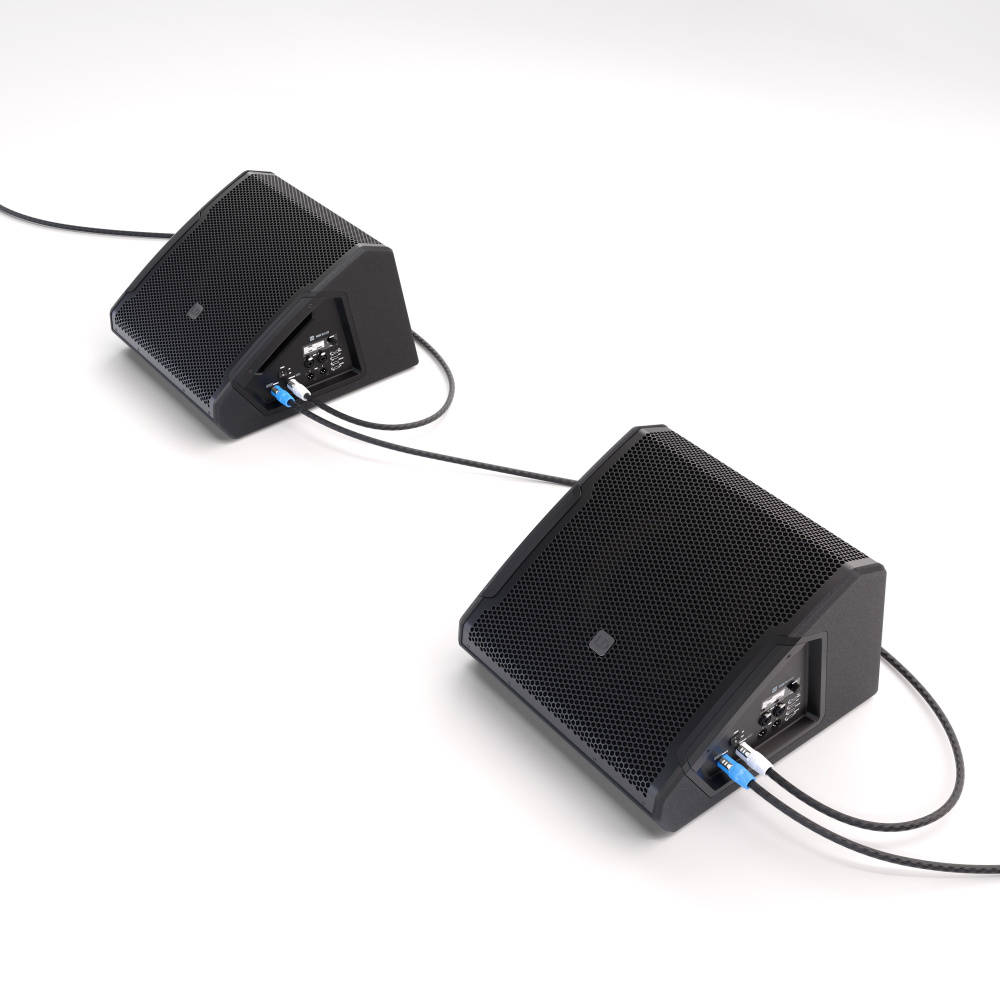

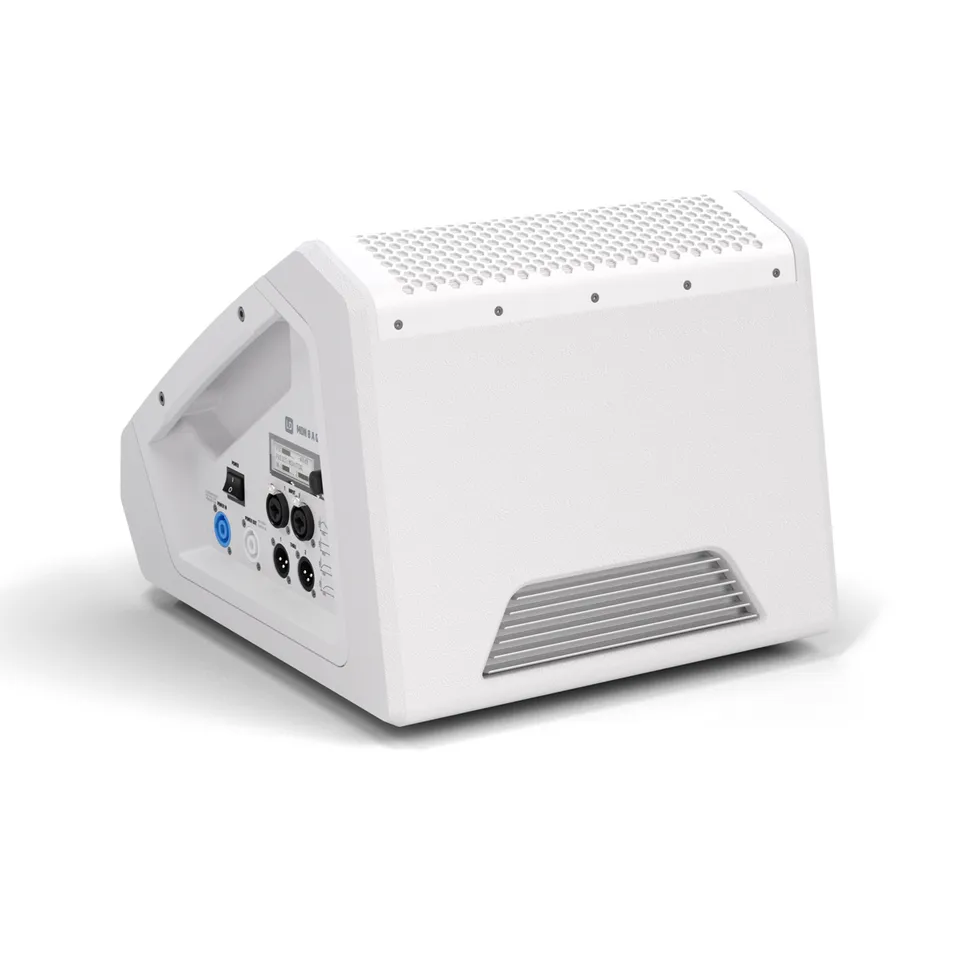

Both the signal (XLR/jack combo) and the power connection (PowerCON compatible) can be looped through. This allows for elegant, tidy cabling in multi-monitor set-ups or for distributed sound reinforcement.

  • Compact high-performance stage monitor with top-of-the-range technologies
  • Class-D power amplifier with 300 W RMS/1200 W peak and 121 dB max. SPL
  • Coaxial design for true point source with a 1.75″ titanium-diaphragm HF driver
  • 8″ woofer with 2.5″ voice coil
  • Optimised, practical radiation pattern due to 50° x 90° CD horn
  • DynX® DSP (Gen.2) for distortion-free sound even at maximum volume
  • 3-band EQ, Notch filter, 4 application presets and delay function
  • PowerCON compatible loop-through professional power connection
  • 35 mm speaker stand flange for FOH applications
  • Durable Polyurea coating and heavy-duty front grill

General

Product type – Stage monitors
Type – Powered
Color – Black
System output (RMS) – 300 W
System output (Peak) – 1200 W
Max. SPL Average (Sine burst) – 116 dB ( 100Hz – 12 kHz, fullspace @1m, 10% THD )
Max. SPL Peak (Sine burst) – 121 dB ( fullspace @1m, 10% THD )
Frequency response (-3 dB) – 68 Hz – 18000 Hz
Frequency response (-10 dB) – 59 Hz – 20000 Hz
Crossover frequency – 2500 Hz
Monitor angle – 33
Dispersion (H x V) – 50° x 90°
Width – 340 mm
Depth – 368 mm
Height – 278 mm
Features – 3-band EQ (High, Mid, Low), 4 Application presets, Delay line, Notch filter
Weight – 13,2 kg

Low/mid woofer

Low/mid Woofer dimensions – 8″
Woofer dimensions (mm) – 203.2 mm
Woofer magnet – Ferrite
Woofer brand – Custom-made
Woofer type – Coaxial loudspeaker
Woofer voice coil (inch) – 2.5″
Woofer voice coil (mm) – 65 mm
Cabinet construction – Bass Reflex
Cabinet material – 15 mm Birch Plywood, 15 mm MDF

HF

Horn – CD Horn
Tweeter dimensions – 1″
Tweeter dimensions (mm) – 25.4 mm
Tweeter magnet – Ferrite
Tweeter brand – Custom-made
Tweeter voice coil – 1.75″
Tweeter voice coil (mm) – 44.45 mm

Amplifier module (integrated)

Amplifier – Class D
Protection circuits – Multiband limiter, over-voltage, over-current, thermal overload
Operating Temperature – 0 – 40 °C
Humidity Range – < 80 % ( non-condensing )
Fuse – T4AL 250 V

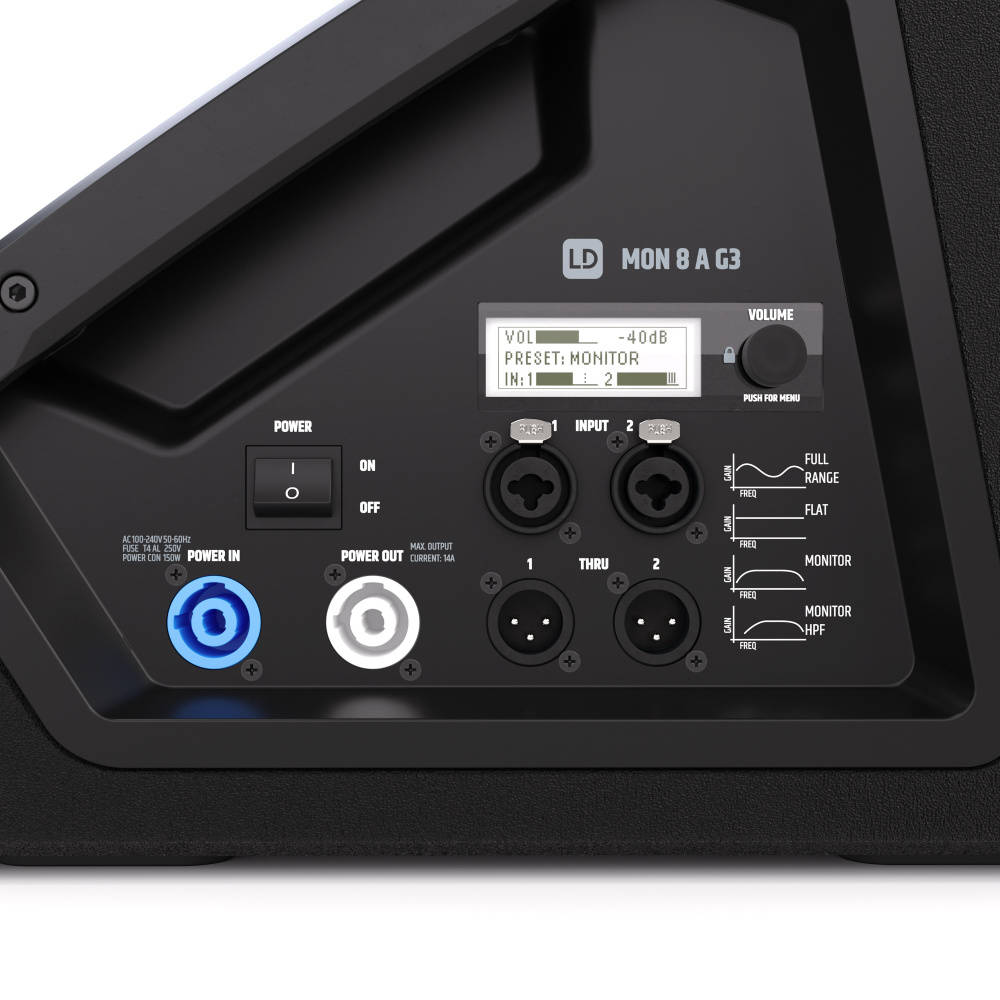

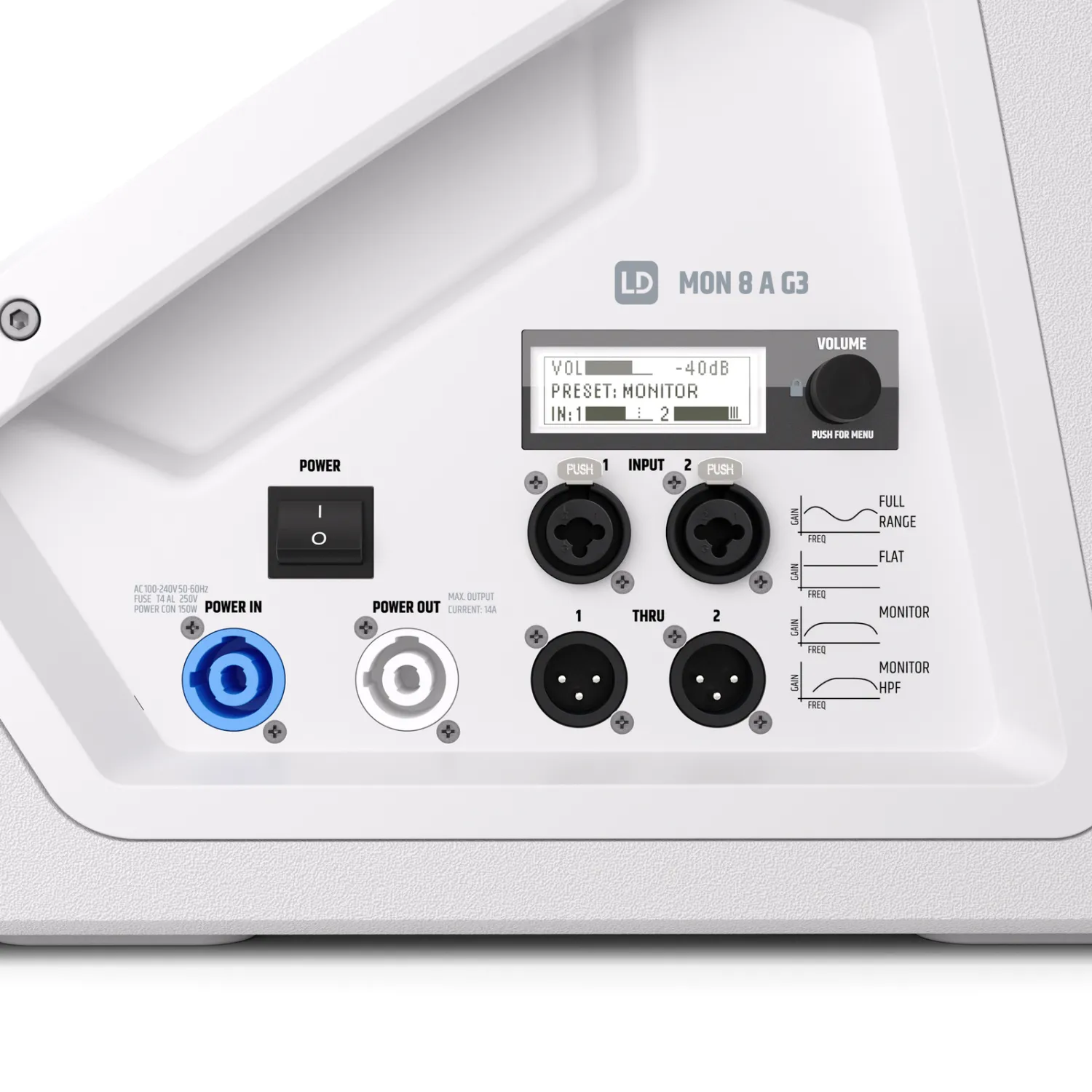

Controls – On / off switch, Rotary/push encoder
Indicators – LC display
Power supply – SMPS
Operating voltage – 100 V AC – 240 V AC, 50 – 60 Hz
Power consumption – 150 W
Power in / out – PowerCON compatible
Line inputs – 2
Line input connectors – 6.3 mm jack, XLR – combo
Line thru – 2
Line through connector – XLR
