Martin Audio ADORN A40

£125.00 Inc VAT

Ultra-Compact passive two-way system, front ported bass reflex

  • Contemporary, unobtrusive design
  • High output capability
  • High fidelity sound
  • Low and high-frequency overload protection
  • Vertical or horizontal orientation
  • Available in Black or White Finish
Martin Audio

Categories: , SKU: SP/LOW/MAR26

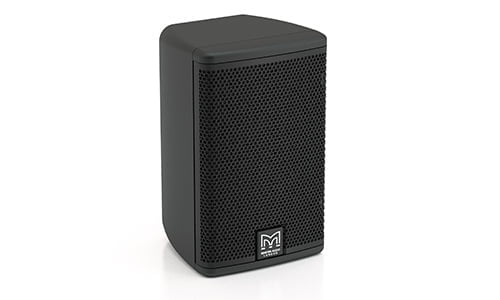

The A40 is a two-way passive speaker with an elegant design that is perfect for architectural environments that require high fidelity sound from an unobtrusive, ultra-compact enclosure. It brings class-leading performance, reliability and value to a wide range of commercial sound applications — from retail outlets, bars and restaurants to corporate offices and convention centres. The A40 is the perfect choice for background and foreground systems which require superior performance.

Its Martin Audio signature sound characteristic also provides a seamless sonic transition within a multi-zoned complex using larger Martin Audio systems such as CDD or BlacklineX. Comprising a 4” (100mm) LF driver and a 0.75” (19mm) silkdome HF driver on a 110° x 80° horn, it handles 40W AES, 160W peak and can produce 109dB peak output at 1 metre. It has a smooth frequency response and strong bass reproduction that extends down to 70Hz. With a nominal impedance of 16 ohms, multiple speakers can be driven in parallel from a single channel of a low impedance amplifier, thereby maximising efficiency and minimising cost

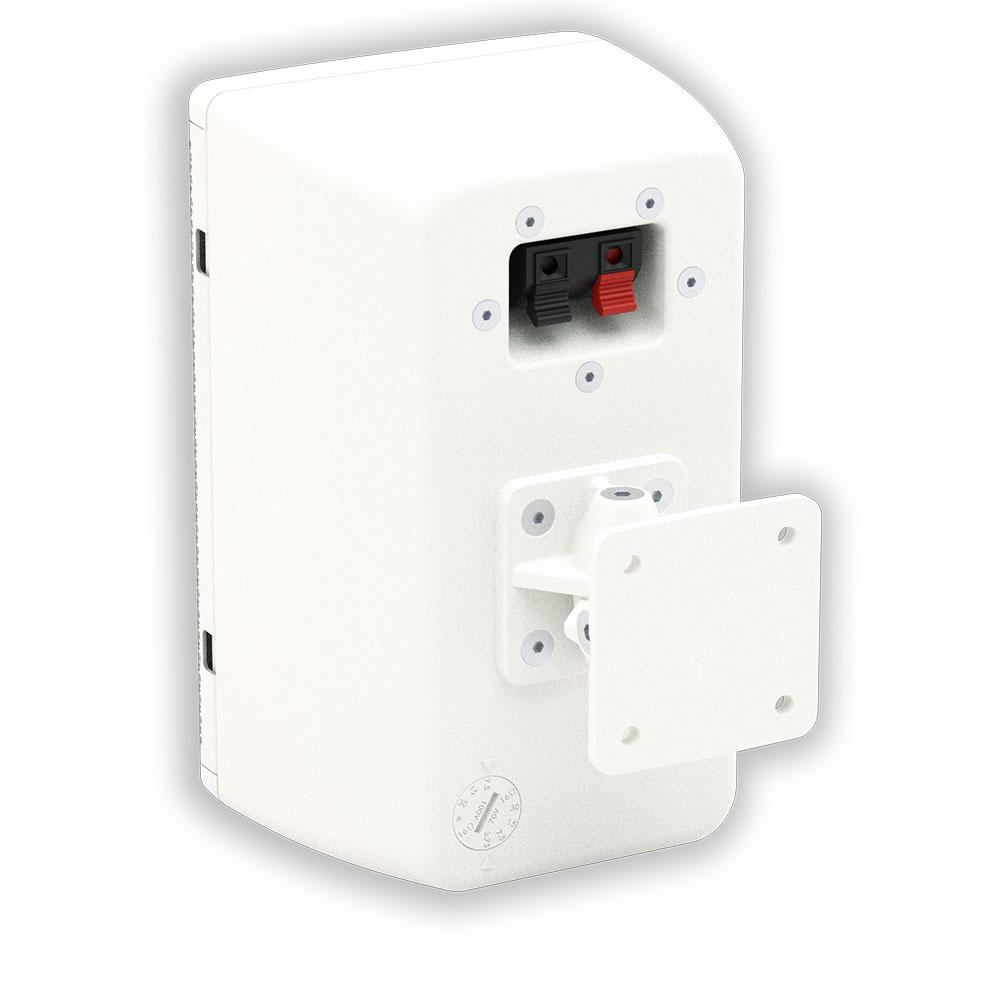

For full bandwidth protection, the low and high-frequency sections are individually protected against overload. Available in black or white as standard, it can be readily painted to match any décor, and can be wall-mounted vertically or horizontally using the wall bracket supplied.

Features

  • Contemporary, unobtrusive design
  • High output capability
  • High fidelity sound
  • Low and high-frequency overload protection
  • Vertical or horizontal orientation
  • Wide 110° x 80° coverage
  • Wall bracket included
  • 5-year warranty
  • Available in Black or White Finish

Applications

  • Retail outlets
  • Cafes, bars and restaurant chains
  • Hotels and convention centres
  • Educational facilities
  • Corporate offices

Brand

Martin Audio

Martin Audio

Reviews

There are no reviews yet.

Be the first to review “Martin Audio ADORN A40”
TYPE Ultra-Compact passive two-way system, front ported bass reflex
FREQUENCY RESPONSE (1) 98Hz-17kHz ± 3dB
-10dB @ 70Hz
DRIVERS
  • LF: 4” /1” high-temp voice coil, coated paper cone, rubber surround ferrite motor, pressed steel chassis
  • HF: 0.75” silk dome, neodymium motor
RATED POWER (2) 40W AES, 160W peak
RECOMMENDED AMPLIFIER VIA2004
SENSITIVITY(4) 87dB/1W/1m
MAXIMUM SPL (9) 109dB peak
NOMINAL IMPEDANCE 16Ω
DISPERSION (-6DB) 110° H x 80° V
CROSSOVER 3.5kHz passive (LF and HF auto-resetting fuses)
RECOMMENDED HIGH-PASS FILTER 60Hz 24dB/oct
ENCLOSURE ABS, UL 94V-0 rated
FINISH Black or white
GRILLE Perforated steel
CONNECTORS Push terminals

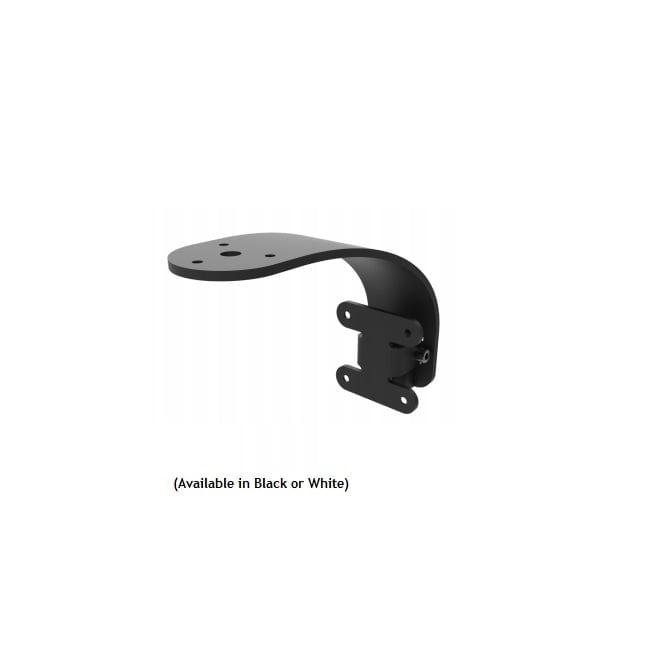

FITTINGS Wall bracket included
DIMENSIONS EXCL. BRACKET
  • (W) 124mm x (H) 200mm x (D) 114mm
  • (W) 4.9in x (H) 7.9in x (D) 4.5in
WEIGHT 1.75kg (3.9lbs)
ACCESSORIES
  • Waterproof connector cover
  • Water resistant grille
