Ultra-Compact Two-Way On-Wall System
- High fidelity sound
- Low and high-frequency overload protection
- Vertical or horizontal orientation
- Wide 110° x 80° coverage
- Wall bracket included
- Available in Black or White Finish

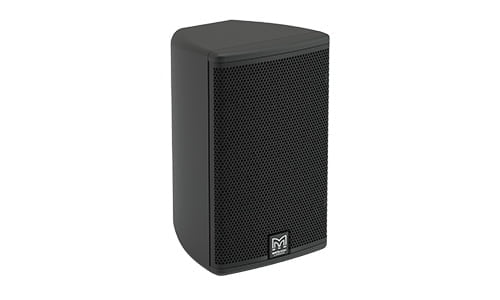

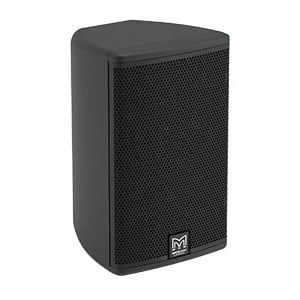

The ADORN A55 is a two-way passive speaker with an elegant design that is perfect for architectural environments that require high-fidelity sound from an unobtrusive, ultra-compact enclosure. It brings class-leading performance, reliability and value to a wide range of commercial sound applications — from retail outlets, bars and restaurants to corporate offices and convention centres.
The A55 is the perfect choice for background and foreground systems which require superior performance. Its Martin Audio signature sound characteristic also provides a seamless sonic transition within a multi-zoned complex.

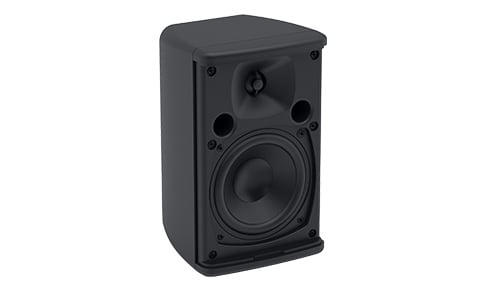

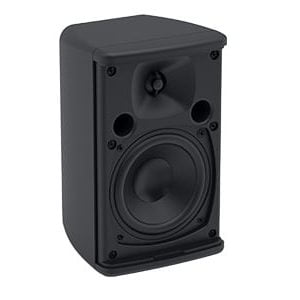

Comprising a 5.25” (135mm) LF driver and a 0.75” (19mm) silk-dome HF driver on a 110° x 80° horn, it handles 50W AES, 200W peak and can produce 113dB peak output at 1 metre. It has a smooth frequency response and strong bass reproduction that extends down to 65Hz.
With a nominal impedance of 16 ohms, multiple speakers can be driven in parallel from a single channel of a low impedance amplifier, thereby maximising efficiency and minimising cost. For full-bandwidth protection, the low and high-frequency sections are individually protected against overload.

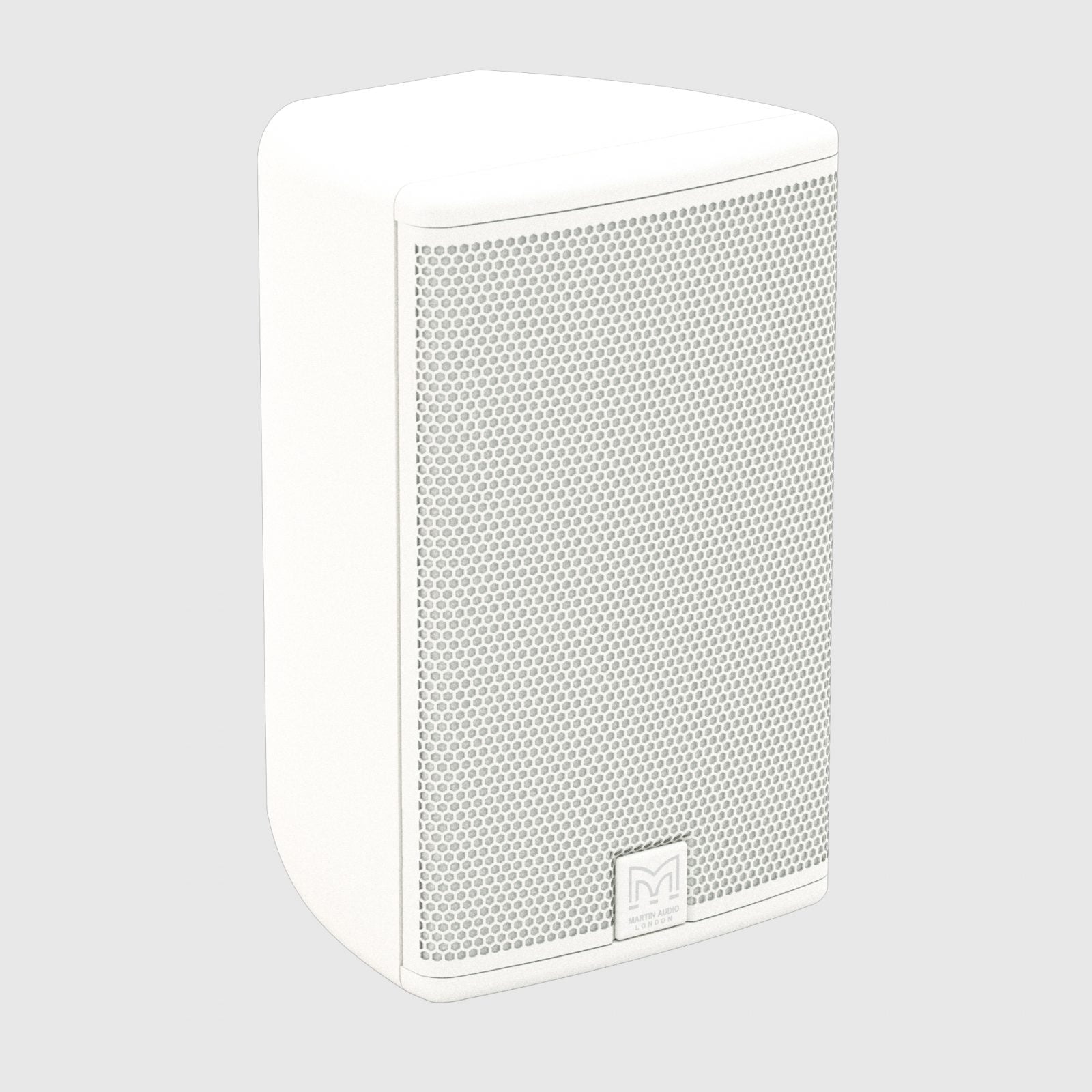

Available in black or white as standard, it can be readily painted to match any décor, and can be wall-mounted vertically or horizontally using the wall bracket supplied.
The Martin Audio SX110 subwoofer will extend the bandwidth of ADORN on-wall speakers and is ideal for foreground music applications which require increased impact and low frequency performance.
- Contemporary, unobtrusive design
- High output capability
- High fidelity sound
- Low and high-frequency overload protection
- Vertical or horizontal orientation
- Wide 110° x 80° coverage
- Wall bracket included
TYPE | Ultra-Compact passive two-way system, front ported bass reflex |
FREQUENCY RESPONSE (1) | 90Hz-17kHz ± 3dB -10dB @ 65 |
DRIVERS |
|
RATED POWER (2) | 50W AES, 200W peak |
RECOMMENDED AMPLIFIER | VIA2004 |
SENSITIVITY(4) | 90dB/1W/1m |
MAXIMUM SPL (9) | 113dB peak |
NOMINAL IMPEDANCE | 16Ω |
DISPERSION (-6DB) | 110° H x 80° V |
CROSSOVER | 3.5kHz passive (LF and HF auto-resetting fuses) |
RECOMMENDED HIGH-PASS FILTER | 60Hz 24dB/oct |
ENCLOSURE | ABS, UL 94V-0 rated |
FINISH | Black or white |
GRILLE | Perforated steel |
CONNECTORS | Push terminals |
FITTINGS | Wall bracket included |
DIMENSIONS EXCL. BRACKET |
|
WEIGHT | 2.21kg (4.9lbs) |
ACCESSORIES |
|
