Ultra-Compact Two-Way On-Wall System
- High fidelity sound
- Low and high-frequency overload protection
- 70V/100V line transformer
- Vertical or horizontal orientation
- Wide 110° x 80° coverage

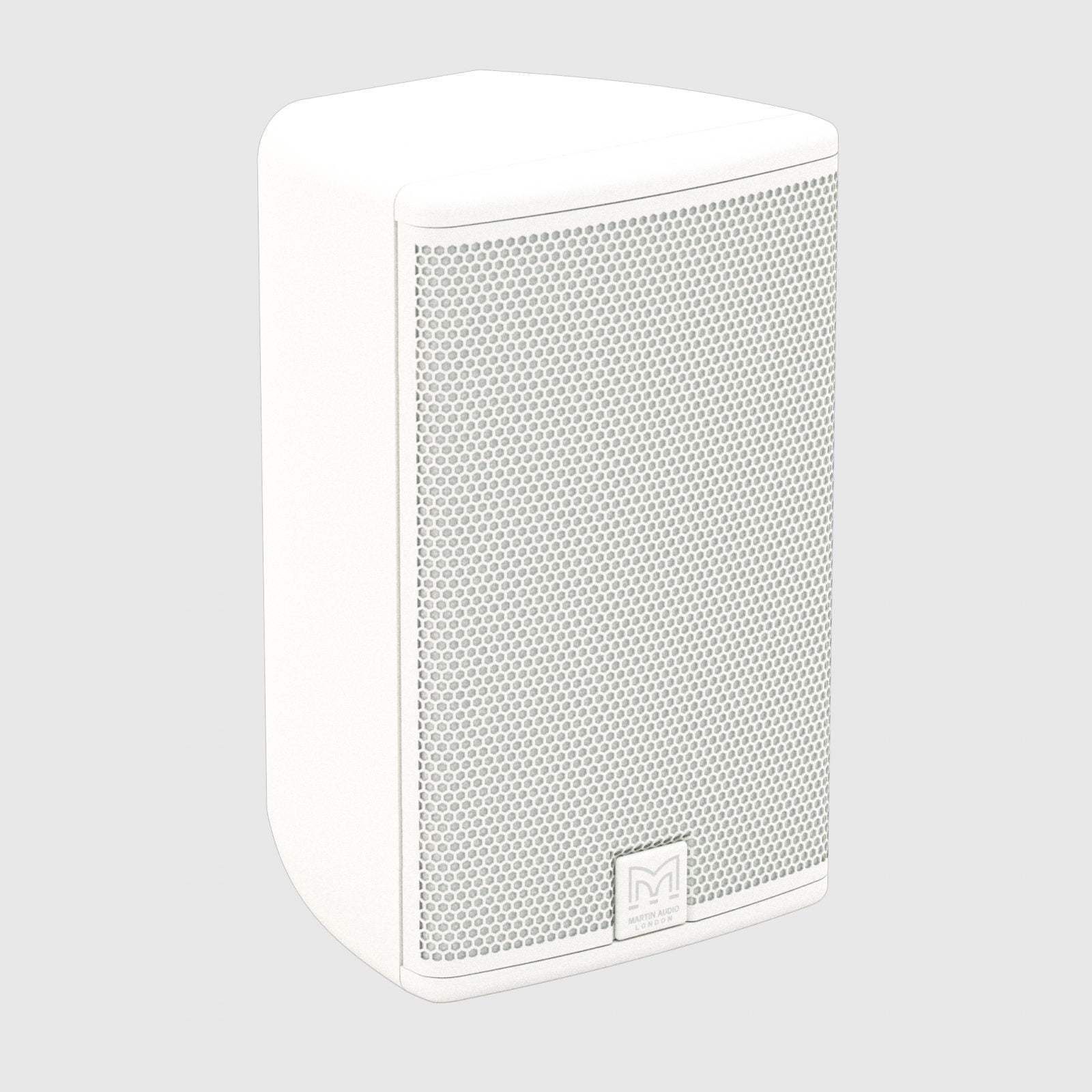

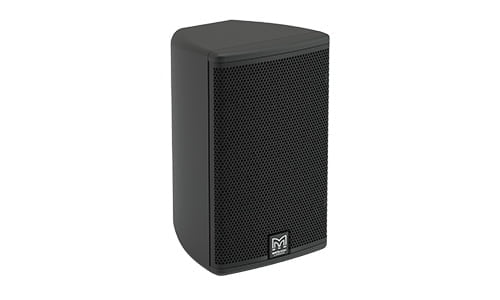

- Available in black or white finish

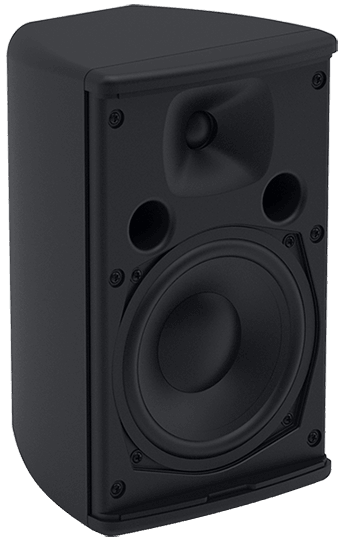

The A55T is the perfect choice for background and foreground systems which require superior performance. Its Martin Audio signature sound characteristic also provides a seamless sonic transition within a multi-zoned complex. Comprising a 5.25” (135mm) LF driver and a 0.75” (19mm) silk-dome HF driver on a 110° x 80° horn, it handles 50W AES, 200W peak and can produce 113dB peak output at 1 metre. It has a smooth frequency response and strong bass reproduction that extends down to 65Hz.
The A55T incorporates a high-quality transformer for 70V/100V line operation, with transformer taps selected by a rotary switch. For full-bandwidth protection, the low and high-frequency sections are individually protected against overload.
Available in black or white as standard, it can be readily painted to match any décor, and can be wall-mounted vertically or horizontally using the wall bracket supplied.
The Martin Audio SX110 subwoofer will extend the bandwidth of ADORN on-wall speakers and is ideal for foreground music applications which require increased impact and low frequency performance.
The A55T is a two-way passive speaker with an elegant design that is perfect for architectural environments that require high fidelity sound from an unobtrusive, ultra-compact enclosure. It brings class-leading performance, reliability and value to a wide range of commercial sound applications — from retail outlets, bars and restaurants to corporate offices and convention centres. It has a smooth frequency response and strong bass reproduction that extends down to 65Hz. The A55T incorporates a high-quality transformer for 70V/100V line operation, with transformer taps selected by a rotary switch.
For full-bandwidth protection, the low and high-frequency sections are individually protected against overload. Available in black or white as standard, it can be readily painted to match any décor, and can be wall-mounted vertically or horizontally using the wall bracket supplied. The Martin Audio SX110 subwoofer will extend the bandwidth of ADORN on-wall speakers and is ideal for foreground music applications which require increased impact and low frequency performance.
- Contemporary, unobtrusive design
- High output capability
- High fidelity sound
- Low and high-frequency overload protection
- 70V/100V line transformer
- Vertical or horizontal orientation
- Wide 110° x 80° coverage
- Wall bracket included
You must be logged in to post a review.
TYPE | Ultra-Compact passive two-way system, front ported bass reflex |
FREQUENCY RESPONSE (1) | 90Hz-17kHz ± 3dB -10dB @ 65 |
DRIVERS |
|
RATED POWER (2) | 50W AES, 200W peak |
RECOMMENDED AMPLIFIER | VIA5002 [In conjunction with suitable line transformer] |
SENSITIVITY(4) | 90dB/1W/1m |
MAXIMUM SPL (9) | 113dB peak |
NOMINAL IMPEDANCE | 16Ω |
DISPERSION (-6DB) | 110° H x 80° V |
CROSSOVER | 3.5kHz passive (LF and HF auto-resetting fuses) |
TRANSFORMER TAPS |
|
RECOMMENDED HIGH-PASS FILTER | 60Hz 24dB/oct |
ENCLOSURE | ABS, UL 94V-0 rated |
FINISH | Black or white |
GRILLE | Perforated steel |
CONNECTORS | Push terminals |
FITTINGS | Wall bracket included |
DIMENSIONS EXCL. BRACKET |
|
WEIGHT | 2.81kg (6.2lbs) |
ACCESSORIES |
|
