Slimline Subwoofer
- Slimline direct-radiator subwoofer
- 1 x 10” (250mm) driver with 2” (50mm) voice coil
- Large port for reduced air noise
- 8Ω nominal impedance
- M8 flying inserts
- Available in black or white finish

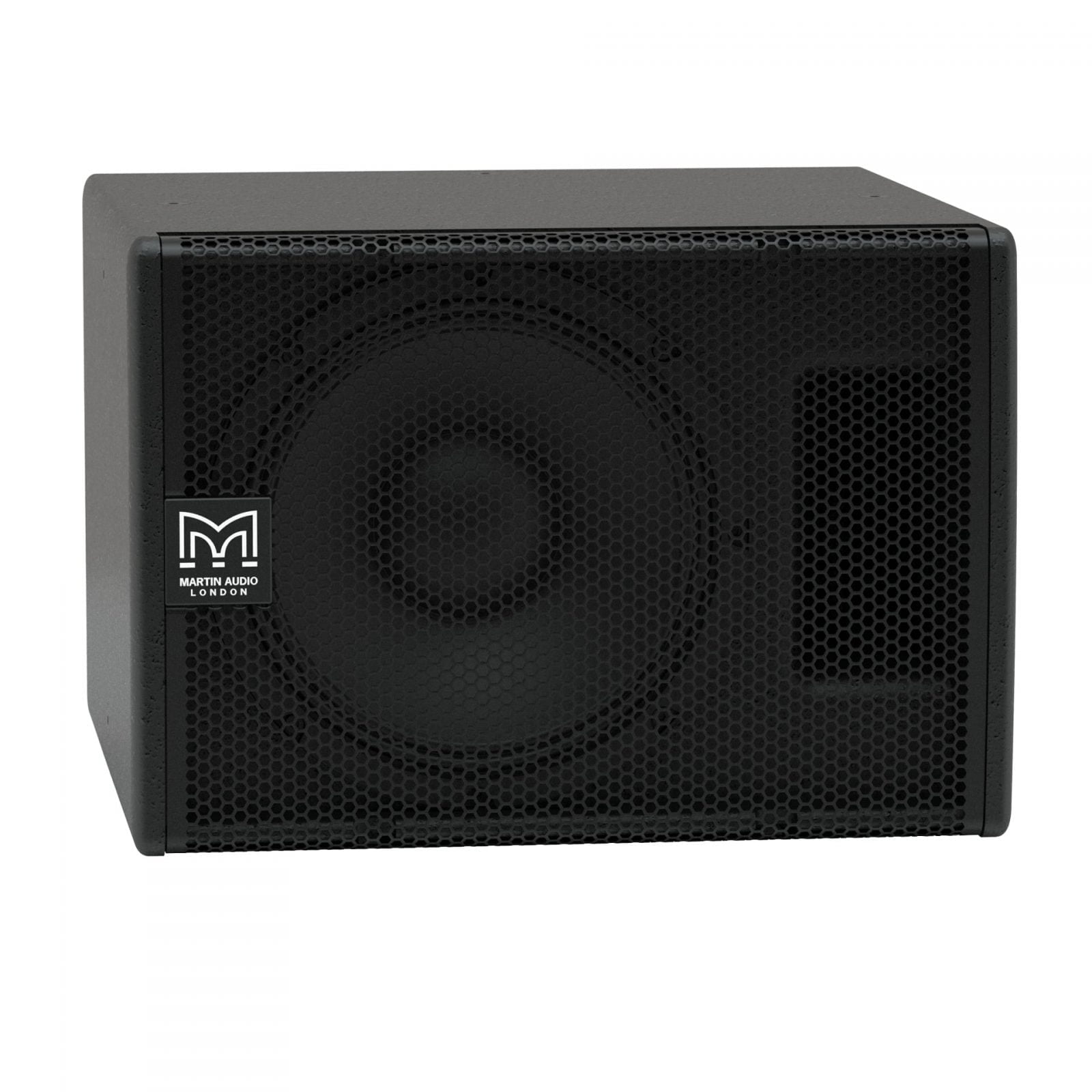

The SX110 is an slimline subwoofer designed for applications that call for increased impact and low frequency performance in a visually unobtrusive enclosure. Its very small size makes it perfectly suited to installed sound applications where space is limited.
The SX110 features a 10” (250mm)/2” (50mm) voice coil driver and generously sized low frequency port for reduced air noise. An ideal subwoofer to augment the bass output of ADORN Series or small CDD loudspeakers, it can be used on the ground or flown using integral M8 inserts.
The SX110 enclosure is constructed from plywood and finished in black or white textured paint as standard. An impact-resistant perforated steel grille protects the drivers, and rubber feet on the base resist movement.
TYPE | Slimline, direct radiating subwoofer |
FREQUENCY RESPONSE (1) | 50Hz-150Hz ± 3dB, -10dB @ 42Hz |
DRIVER | 1 x 10” (250mm)/2” (50mm) voice coil, long excursion, ferrite magnet |
RATED POWER (2) | 250W AES, 1000W peak |
RECOMMENDED AMPLIFIER | VIA 2004 |
SENSITIVITY (10) | 97dB |
MAXIMUM SPL (9) | 121dB continuous, 127dB peak (half space) |
NOMINAL IMPEDANCE | 8Ω |
DISPERSION (-6DB) | Omnidirectional |
CROSSOVER | 80-120Hz active |
ENCLOSURE | Plywood |
FINISH | Black or white |
PROTECTIVE GRILLE | Perforated steel |
CONNECTORS | 2 x NL4 type |
PIN CONNECTIONS (INPUT) | +1, -1 Link through: +2, -2 |
PINS CONNECTIONS (LINK) | +1, -1 Link through: +2, -2 |
FITTINGS | 12 x M8 inserts |
DIMENSIONS (INCL FEET) |
|
WEIGHT | 12kg (26.5lbs) |
