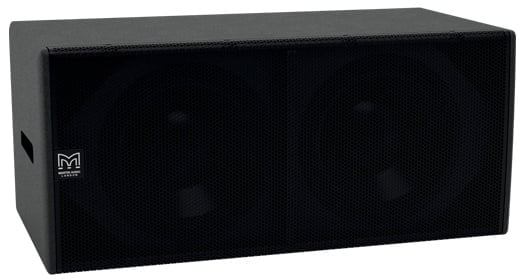

2 x12″ Compact Subwoofer
- Compact, direct-radiator subwoofer
- 2 x 12” (300mm) drivers with 3” (75mm) voice coils
- Water resistant cones
- Compact, low-profile styling
- Large ports for reduced air noise
- Perforated steel grille
- Black or white standard colour options
- Optional flying points
With twin high-efficiency 12″ (300mm)/3″ (75mm) voice coil long-throw bass drivers and optimally-sized reflex ports to minimise air noise, the SX212 is the perfect sub-bass where low frequency extension and impact is required from a very compact, unobtrusive, low-profile enclosure.
The SX212 is designed to be used with full-range loudspeaker systems and extends the low frequency operating range of the combined system down to 40Hz. The enclosure is constructed from plywood and is internally-braced to reduce energy transmission to the enclosure panels and baffle. Its perforated steel grille is pre-curved to withstand damage and it can be supplied fitted with optional flying points.
Finished in black (RAL9005) or white (RAL9016) as standard with integrated flying points.
When used with full-range systems, crossover and EQ functions can either be performed by the DX0.5 or DX4.0 system controllers.
TYPE | Compact, dual-driver, direct radiating subwoofer |
FREQUENCY RESPONSE | 48Hz-150Hz ± 3dB, -10dB @ 35Hz |
DRIVER | 2 x 12” (300mm)/3” (75mm) voice coil, long excursion, ferrite magnet, waterproof cone |
RATED POWER | 800W AES, 3200W peak |
SENSITIVITY | 106dB |
MAXIMUM SPL | 132dB continuous, 138dB peak (half space) |
NOMINAL IMPEDANCE | 4Ω |
DISPERSION (-6DB) | Omnidirectional |
CROSSOVER | 80-120Hz active |
ENCLOSURE | 100 litre, Plywood |
FINISH | Black or white textured paint |
PROTECTIVE GRILLE | Black or white perforated steel |
CONNECTORS | 2 x NL4 |
PIN CONNECTIONS | Left to right: Input+, Input -, Link -, Link+ |
FITTINGS | 12 x M10 inserts |
DIMENSIONS | (W) 872mm x (H) 385mm x (D) 437mm (W) 34.3ins x (H) 15.2ins x (D) 17.2ins |
WEIGHT | 39kg (86lbs) |
