Powersoft Duecanali 1604

Powersoft Duecanali 1604
Powersoft Duecanali 1604 - Image 2
Call for Price

2-Channel Power Amplifier for Lo-Z and Hi-Z transducers

  • Fixed frequency switchmode output stage for high-grade sound accuracy
  • Compact 1 RU for reduced rack cost and space
  • Lightweight – for easier racking and shipping: 7 kg (15.4 lbs)
  • Standard Phoenix connectors: analog and digital input, audio outputs, alarms and GPIO
Powersoft
Category: SKU: AM/POW/PWS03

The brand new Duecanali Series shines with outstandingly low power consumption and heat dissipation, with direct positive effects on investment. It is aimed at larger two-channel install applications and it is able to provide more than 16 different possible output configurations including Lo-Z, Hi-Z, bridge mode, and parallel mode.

Providing access to all functions yet easily set up, the Duecanali Series is versatile in use. Powersoft’s legendary efficiency saves valuable energy, keeping both operational cost and ‘carbon footprint’ at a minimum.

The Duecanali 1604 is designed to work with lo-Z (from 2 Ω ) and with 70V/100V distributed lines: any mixed impedance output loads can be realised.

Excellent sound quality and ample output power result from Powersoft’s unique approach to Class D amplification, making the Duecanali Series ideal for the main system in any venue where performance is priority. Providing access to all relevant amplifier parameter yet easily set up, the Duecanali Series is versatile in use, providing status feedback via its front panel LED display or a connected PC running Armonía Pro Audio Suite™ software.
Powersoft’s legendary efficiency saves valuable energy, keeping both operational cost and carbon footprint at a minimum: the Duecanali Series shines with outstandingly low power consumption and heat dissipation, with direct positive effects on investment – not to mention the benefits for the environment and a more eco friendly planet. The Duecanali series is designed to work with lo-Z (from 2Ω) and with 70V/100V distributed lines: any mixed configuration of low and high impedance output loads can be realized, making the Duecanali suitable for all application in installed sound reinforcement systems.
The full protection circuitry covers the investment from the most common unwanted conditions, such as: over/ under voltage, clipped signals, VHF emissions, and short circuits.

Power supply

  • Universal switch mode power supply up to 400VAC tolerant with Power Factor Correction
  • Patented output filter with ripple cancellation network
  • Low Inrush Limiting reduces AC inrush current, removing the need for expensive power sequencers
  • Detachable AC mains cable with IEC C19/22.2 (16A for EU, 20 A for USA) socket

Protections
Fully protected circuit design with:

  • Ac protection: shut down power supply when AC mains voltage is outside operating range
  • Clip limiter: prevents severely clipped waveforms from reaching loudspeakers, while still maintaining full peak power output
  • VHF protections: protects the loudspeakers against non-audible, strong, non-musical high-frequency signals
  • Short circuit protection: protects the amplifier from short circuit or other stressful events for the output circuits with automatic protection reset
  • Long-term limiter: protects the loudspeaker against steady long-term rms (non-audio) signals reducing maximum output
  • Thermal protection: output stages operating temperature up to 80 °C (176 °F)
  • Temperature controlled continuous variable speed fan, front to back airflow

General

  • Fixed frequency switch mode output stage for high-grade sound accuracy
  • Compact 1 RU for reduced rack cost and space
  • Lightweight – for easier racking and shipping: 7 kg (15.4 lbs)
  • Standard Phoenix connectors: analog and digital input, audio outputs, alarms and GPIO
  • Remotely dimmable inputs per channel

Loudspeaker system configuration

  • Direct drive either low impedance loads or 70V / 100V Hi-Z distributed lines
  • Switchable 35Hz / 70Hz high pass filter per channel
  • Mixed configuration with Lo-Z/Hi-Z systems possible
  • Bridged mode low impedance per channel pair

Alarms and GPI/O

  • General Purpose Input/Output alarm interfaces:
    • dangerous DC in the output power signal
    • thermal stress
  • Configurable alarm contact NC/NO per channel
  • Remote ON/OFF switch

Remote Control & Monitoring

  • Via Software:
    • Attenuation (from 0 dB to 26 dB)
    • Max output voltage
    • Output and gain reduction metering
    • Diagnostics (temperature, fans, …)
  • Via Hardware:
      • Attenuation (from 0 dB to 26 dB)
      • High Pass Filter (35 Hz, 70 Hz)
      • LoZ/HiZ/70V/100V output selection
      • Gain (from 26 dB to 35 dB)
General
Number of channels 2
Output power Single channel mode Distributed line* Bridge mode
2 Ω 4 Ω 8 Ω   70V 100V 4 Ω 8 Ω
1000 W 800 W 800 W 800 W 800 W 2000W 1600W
Max output voltage / current 115 Vpeak / 45 Apeak
AC Main Power
Power supply Universal, regulated switch mode with PFC
Nominal power requirement 100-240 V ±10%, 50-60 Hz
Operating voltage 90 V – 264 V
Power consuption** 115 V 230 V
Idle 23.1 W 0.40 A 24 W 0.28 A
1/8 of max output power @ 4 Ω 258.4 W 2.7 A 285.3 W 1.78 A
1/4 of max output power @ 4 Ω 554.4 W 5.24 A 549.2 W 2.84 A
Thermal
Operating temperature range 0° – 45° C – 32° – 113° F
Thermal dissipation** 115 V 230 V
Idle 78.9 BTU/h 19.9 kcal/h 81.9 BTU/h 20.6 kcal/h
1/8 of max output power @ 4 Ω 291.6 BTU/h 73.5 kcal/h 291.2 BTU/h 73.4 kcal/h
1/4 of max output power @ 4 Ω 527.1 BTU/h 132.8 kcal/h 509.4 BTU/h 128.4 kcal/h
AUDIO
Gain 26 dB 29 dB 32 dB 35 dB
Input sensitivity 0.4 V 2.84 V 2.0 V 1.42 V
Max input level 20 dBu 20 dBu 20 dBu 20 dBu
Frequency response 20 Hz – 20 kHz (±0.5 dB) @ 1 W, 8 Ω or (±2.5 dB) @ 32W, 70V lines / 65 W, 100V lines
S/N ratio > 109 dB (20 Hz – 20 kHz, A weighted)
Crosstalk separation <70 dB @ 1kHz
THD+N < 0.1% from 0.1 W to full power (typically <0.05%)
IMD < 0.05% from 0.1 W to full power (typically <0.05%)
Input impedance 20 kΩ balanced
Slew rate >50 V/μs @ 8Ω, input filter bypassed
Damping factor > 500 @ 20-100 Hz (Lo-Z)
DSP
DSP architecture TI C6000 DSP platform
AD Converter 24bit @ 48 kHz Tandem® architecture, 125 dB dynamic range
DA Converter 24bit @ 48 kHz Tandem® architecture, 117 dB dynamic range
Internal precision 32 bit floating point
Latency 2.5 ms fixed latency architecture
Input equalizer Raised-cosine, custom FIR, param. IIR: peaking, hi/lo-shelving, all-pass, band-pass, band-stop hi/lo-pass
Output equalizer Linear phase (FIR), hybrid (FIR-IIR), Bessel: 6 dB/oct to 48 dB/oct (IIR)
Crossover Butterworth, Linkwitz-Riley
Delay up to 100 ms per output
Input EQ
Output EQ
Limiters Peak, RMS voltage, RMS current, TruePower™
Damping control Active DampingControl™, LiveImpedance™ measurement

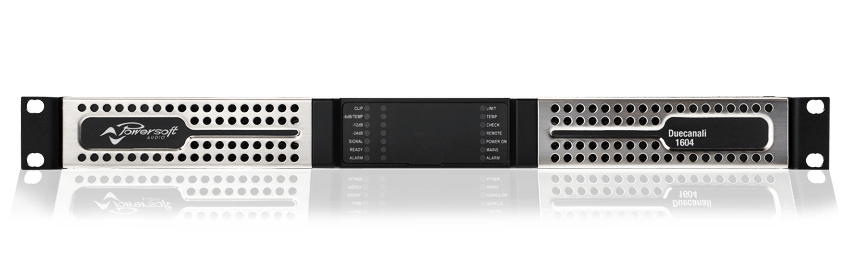

Front panel
Indicators and Controllers 1 x LED – Status
1 x LED – Over-temperature protection
1 x LED bar – Signal level + CLIP
1 x LED bar – Signal level and over-temperature protection
1 x Knob – Level attenuator (continuous)
1 x Push-button – Setting operating parameters
1 x Push-button – Preset selector
1 x DIP switch – Toggle energy save on/off per channel pair
1 x Power switch –
Connectors
AC main 1 x IEC C20 connector – 20 A max (region-specific power cord provided)
Audio signal input 2 x 3 pin Phoenix MC 1.5/3-ST-3.81 – Signal input – MAIN
Alarm 1 x 12 pin Phoenix MC 1.5/12-ST-3.81 – Alarm connector
Remote command 1 x 4 pin Phoenix MC 1.5/4-ST-3.81 – Remote on/off switch and aux voltage
Network/data 1 x USB plug – USB connection
1 x Rj45 socket – RS485 data connection (non-DSP version)
1 x Rj45 socket – DANTE®

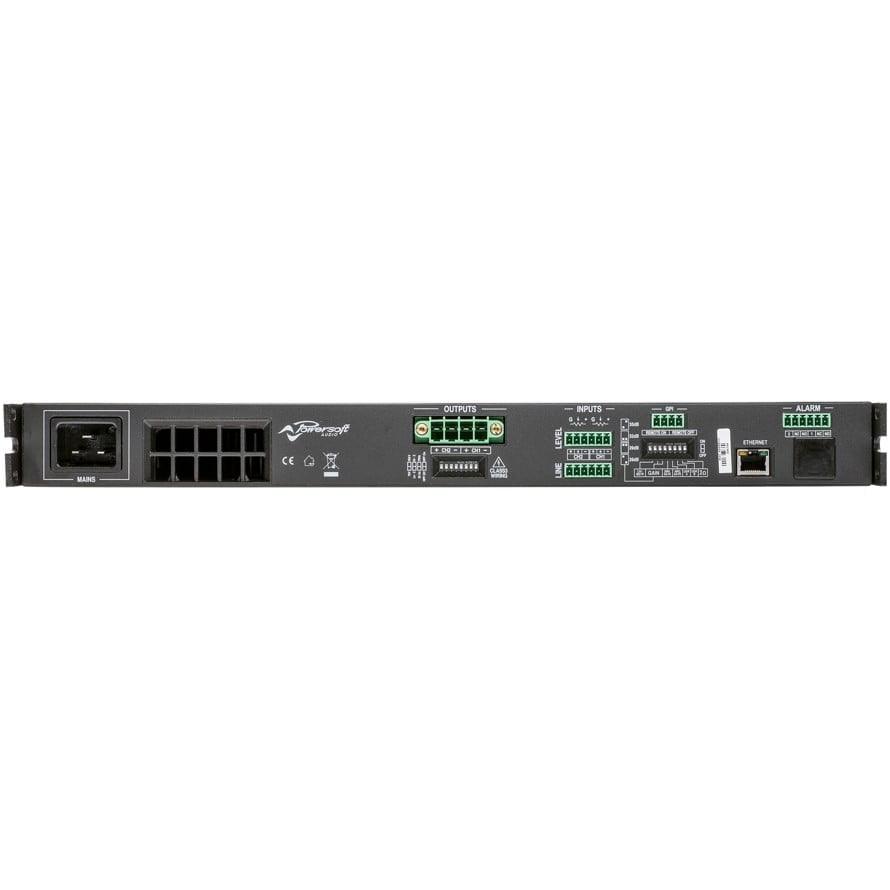

Rear panel
Indicators and Controllers 1 x DIP switch – Toggle lo/hi impedance connection
1 x DIP switch – Toggle 70V/100V distributed line nominal voltage
1 x DIP switch – Toggle High Pass Filter
1 x DIP switch – Toggle 35Hz/70Hz HPF cutting frequency
Audio
Amplifier Highly efficient Powersoft Class D circuitry
Communication
Wired Ethernet 100 Mbit/s, PoE, via internal RJ45 port
Construction
Dimensions (L x H x W) 483 mm x 44.45 mm x 360 mm (19.0 in x 1.8 in x 14.2 in)
Weight 7 kg (15.4 lb)
