This amplifier platform is ideal for medium to large sized installations that require high power outputs to drive subs and multiple speakers. Duecanali 4808 DSP+D offers Powersoft’s renowned reliability and power density in a light, compact unit.

Built in state of the art DSP, in conjunction with Dante, allows flexibility during installation and extensive controllability.

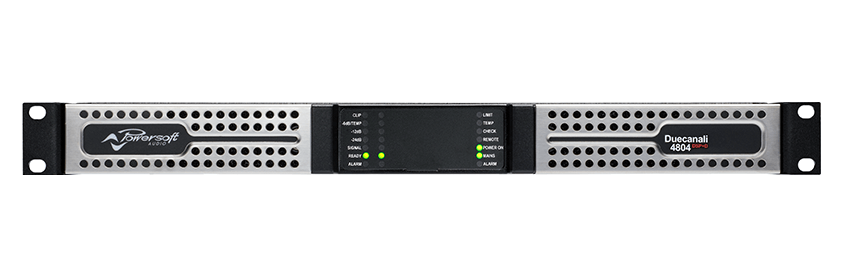

Excellent sound quality and ample output power result from Powersoft’s unique approach to Class D amplification, making the Duecanali DSP+D Series ideal for the main system in any venue where performance is priority. Providing access to all relevant amplifier parameter yet easily set up, the Duecanali DSP+D Series is versatile in use, providing status feedback via its front panel LED display or a connected PC running Armonía Pro Audio Suite™ software.

Powersoft’s legendary efficiency saves valuable energy, keeping both operational cost and carbon footprint at a minimum: the Duecanali DSP+D Series shines with outstandingly low power consumption and heat dissipation, with direct positive effects on investment – not to mention the benefits for the environment and a more eco friendly planet. A fully integrated state-of-the art DSP yields extensive system management functionality. In addition to sound shaping and limiter functions in unique Powersoft style, the DSP hardware and Armonía Pro Audio Suite™ software enable compliance with IEC 60849 for the crucial requirements of sound systems for emergency purposes.

The Duecanali DSP+D is designed to work with lo-Z (from 2Ω) and with 70V/100V distributed lines: any mixed configuration of low and high impedance output loads can be realized, making the Duecanali DSP+D suitable for all application in installed sound reinforcement systems. DSP+D versions of the Duecanali series extends system performance with the support of Dante™ digital audio networking architecture and the on board high-end signal processing.

Power supply

• Universal switch mode power supply up to 400V_AC tolerant with Power Factor Correction
• Patented output filter with ripple cancellation network
• Low Inrush Limiting reduces AC inrush current, removing the need for expensive power sequencers
• Detachable AC mains cable with IEC C19/22.2 (16A for EU, 20 A for USA) socket

Protections
Fully protected circuit design with:

• Ac protection: shut down power supply when AC mains voltage is outside operating range
• Clip limiter: prevents severely clipped waveforms from reaching loudspeakers, while still maintaining full peak power output
• VHF protections: protects the loudspeakers against non audible, strong, non musical high frequency signals
• Short circuit protection: protects the amplifier from short circuit or other stressful events for the output circuits with automatic protection reset
• Long term limiter: protects the loudspeaker against steady long term rms (non audio) signals reducing maximum output
• Thermal protection: output stages operating temperature up to 80 °C (176 °F)
• Temperature controlled continuous variable speed fan, front to back airflow

General

• Fixed frequency switch mode output stage for high grade sound accuracy
• Compact 1 RU for reduced rack cost and space
• Light weight – for easier racking and shipping: 7 kg (15.4 lbs)

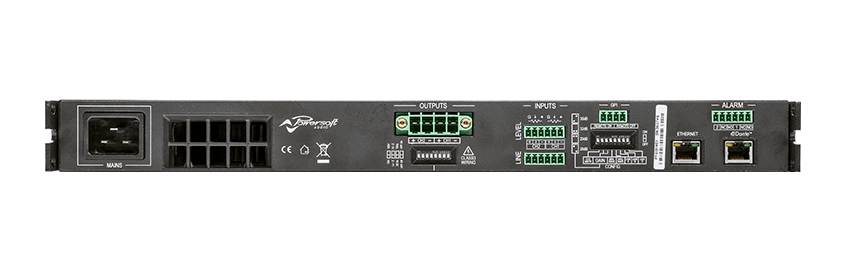

• Standard Phoenix connectors: analog and digital input, audio outputs, alarms and GPIO
• Remotely dimmable inputs per channel

Loudspeaker system configuration

• Direct drive either low impedance loads or 70V / 100V Hi-Z distributed lines
• Switchable 35Hz / 70Hz high pass filter per channel
• Mixed configuration with Lo-Z/Hi-Z systems possible
• Bridged mode low impedance per channel pair

Alarms and GPI/O

• General Purpose Input/Output alarm interfaces:
  • dangerous DC in the output power signal
  • thermal stress
• Configurable alarm contact NC/NO per channel
• Remote ON/OFF switch

Digital Signal Processing

• TI C6000 DSP platform
• AD/DA converter: dual 24bit @ 48 kHz Tandem® architecture
• Input/output independent equalizers per channel providing PEQ, raised cosine, shelving IIR filters as well as custom output FIR filters
• Delay up to 100 ms for time alignment
• Active Damping Control™ for cable compensation
• Peak, RMS voltage, RMS current, TruePower™ limiters

Remote management

• Control and monitoring through ArmoníaPlus
• Dedicated Web App

Remote Control & Monitoring

• Via Software:
  • Attenuation (from 0 dB to 26 dB)
  • Max output voltage
  • Output and gain reduction metering
  • Diagnostics (temperature, fans, …)
• Via Hardware:
  • Attenuation (from 0 dB to 26 dB)
  • High Pass Filter (35 Hz, 70 Hz)
  • LoZ/HiZ/70V/100V output selection
  • Gain (from 26 dB to 35 dB)
