Powersoft Ottocanali 1204

Call for Price

8-Channel Power Amplifier for Lo-Z and Hi-Z transducers

  • Fixed frequency switchmode output stage for high grade sound accuracy
  • Compact 1 RU for reduced rack cost and space
  • Light weight – for easier racking and shipping: 5-11 kg (11-24.3 lbs) depending on number of BatFormers
  • Standard Phoenix connectors: analog and digital input, audio outputs, aux supply, alarms and GPIO
  • Remotely switchable inputs (main and aux) per channel
Powersoft
Category: SKU: AM/POW/PWS13

Ultimately flexible and safe, 8-channels power amplifier ideal for multi-zone applications in small to mid-scale installs. Ottocanali 1204 provides adequate GPI/O, alarms, Lo-Z loudspeakers and Hi-Z distributed lines compliancy, as well as mono-bridgeable channel pairs in a compact 1 RU cabinet.

Ultimately flexible and safe, the Ottocanali 1204 provides a wide range of system control and monitoring capabilities as well as sound shaping options, and a total of up to 1,280 W output power over 8 amplifier channels for Lo-Z or constant voltage systems, all neatly packed into a single rack unit: As ‘stand-alone’ in corporate board rooms, or along with Powersoft Duecanali models in the largest setups, the Ottocanali 1204 fits any venue.

The Ottocanali 1204 offers unprecedented versatility and efficiency, also thanks to its very own set of BatFormers®. These are specifically developed, optional plug-in output transformers that can be easily installed through a dedicated lid in the amplifier chassis, and that allow the conversion of any – or all – of the 8 channels into a 70V or 100V constant voltage output.

Compliant with IEC 60849, and on par with the Duecanali Series, the Ottocanali 1204 DSP+ETH matches the crucial requirements for sound systems for emergency purposes.

Powersoft’s legendary efficiency saves space and – more importantly – valuable energy, keeping both operational cost and ‘carbon footprint’ at a minimum. Ancillary technologies, such as the super-compact BatFormers®1), developed specifically for the Ottocanali 1204, add immense practical value during system design, installation and use, resulting in substantial savings at any level. The Ottocanali 1204 is unprecedented in combining efficiency, performance and adaptability.

Power supply

  • Universal switch mode power supply up to 400VAC tolerant with Power Factor Correction
  • Patented output filter with ripple cancellation network
  • Low Inrush Limiting reduces AC inrush current, removing the need for expensive power sequencers
  • Detachable AC mains cable with IEC C19/22.2 (16A for EU, 20 A for USA) socket

Protections
Fully protected circuit design with:

  • Ac protection: shut down power supply when AC mains voltage is outside operating range
  • Clip limiter: prevents severely clipped waveforms from reaching loudspeakers, while still maintaining full peak power output
  • DC protection: protects against infrasonic signal at the outputs
  • VHF protections: protects the loudspeakers against non audible, strong, non musical high frequency signals
  • Short circuit protection: protects the amplifier from short circuit or other stressful events for the output circuits with automatic protection reset
  • Long term limiter: protects the loudspeaker against steady long term rms (non audio) signals reducing maximum output
  • Thermal protection: output stages operating temperature up to 80 °C (176 °F)
  • Temperature controlled continous variable speed fan, front to back airflow

General

  • Fixed frequency switchmode output stage for high grade sound accuracy
  • Compact 1 RU for reduced rack cost and space
  • Light weight – for easier racking and shipping: 5-11 kg (11-24.3 lbs) depending on number of BatFormers
  • Standard Phoenix connectors: analog and digital input, audio outputs, aux supply, alarms and GPIO
  • Remotely switchable inputs (main and aux) per channel

Loudspeaker system configuration

  • Direct drive either low impedance loads or 70V / 100V Hi-Z distributed lines
  • Switchable 35Hz / 70Hz high pass filter per channel
  • Mixed configuratio with Lo-Z/Hi-Z systems possible
  • Bridged mode low impedance per channel pair

Alarms and GPIO

  • General Purpose Input/Output alarm interfaces:
    • dangerous DC in the output power signal
    • thermal stress
  • Configurable alarm contact NC/NO per channel
  • Remote AUX input / MAIN input switch
  • Remote ON/OFF switch
  • PWS OUT connector providing up to 24VDC
General
Number of channels 8
Output power Single channel mode Distributed line* Bridge mode
  4 Ω 8 Ω   70V 100V   8 Ω 16 Ω
150 W 80 W 125 W 130 W 300W 150 W
Max output voltage / current 37 Vpeak / 15 Apeak 115 Vpeak 165 Vpeak 76 Vpeak
AC Main Power
Power supply Universal, regulated switch mode with PFC
Nominal power requirement 100-240 V ±10%, 50-60 Hz
Operating voltage 90 V – 264 V
Power consuption** 115 V 230 V
Idle 13.9 W 0.26 A 14.6 W 0.34 A
Idle Energy save ON 13.9 W 0.26 A 14.6 W 0.34 A
1/8 of max output power @ 4 Ω 224 W 1.99 A 223 W 1.24 A
1/4 of max output power @ 4 Ω 423 W 3.7 A 417 W 2 A
Thermal
Operating temperature range 0° – 45° C – 32° – 113° F
Thermal dissipation** 115 V 230 V
Idle 30 BTU/h 7.6 kcal/h 32 BTU/h 8.1 kcal/h
Idle Energy save ON 30 BTU/h 7.6 kcal/h 32 BTU/h 8.1 kcal/h
1/8 of max output power @ 4 Ω 252 BTU/h 63.5 kcal/h 249 BTU/h 62.7 kcal/h
1/4 of max output power @ 4 Ω 414 BTU/h 104.3 kcal/h 399 BTU/h 100.5 kcal/h
AUDIO
Gain 32 dB 41 dB 44 dB
Input sensitivity 0.63 V / -1.8 dBu 0.63 V / -1.8 dBu 0.63 V / -1.8 dBu
Max input level 7.7 V / 20 dBu 7.7 V / 20 dBu 7.7 V / 20 dBu
Frequency response 20 Hz – 20 kHz (±0.5 dB) @ 1 W, 8 Ω or (±2.5 dB) @ 32W, 70V lines / 65 W, 100V lines
S/N ratio > 92 dB (20 Hz – 20 kHz, A weighted)
Crosstalk separation > 61 dB @ 1kHz (4 Ω)
THD+N < 0.2% from 1 W to full power (typically <0.05%)
IMD < 0.2% from 1 W to full power (typically <0.05%)
Input impedance 10 kΩ balanced
Slew rate 12 V/μs @ 8Ω, input filter bypassed
Damping factor > 500 @ 2-200 Hz (Lo-Z)
DSP
DSP architecture Analog Devices ADAU® 1701 DSP
AD Converter Dual 24 bit 48 kHz with 100 dBA S/N, THD < 0.02% (20 Hz – 20 kHz)
DA Converter Dual 24 bit 48 kHz with 102 dBA S/N, THD < 0.02% (20 Hz – 20 kHz)
Internal precision Fixed point
Firmware Network upgradable firmware
Latency 1 ms fixed latency architecture
Input equalizer 5 layers: parametric, hi/lo-shelving, hi/lo-pass, band-pass, band-stop, all-pass
Output equalizer 8 layers: parametric, hi/lo-shelving, hi/lo-pass, band-pass, band-stop, all-pass
Crossover Butterworth, Linkwitz-Riley, Bessel: 6 dB/oct to 48 dB/oct
Delay up to 16 ms per output
Limiters Peak and RMS limiter
Damping control Active DampingControl™

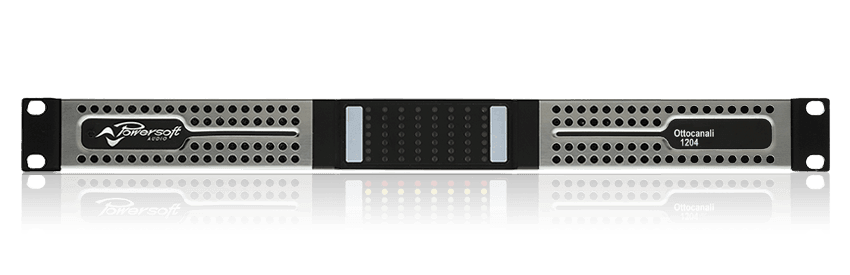

Front panel
Indicators and Controllers 8 x LED bar – Signal level and over-temperature protection
Connectors
AC main 1 x IEC C14 connector – 15 A max (region-specific power cord provided)
Audio signal input 2 x 12 pin Phoenix MC 1.5/12-ST-3.81 – Signal input – MAIN
2 x 12 pin Phoenix MC 1.5/12-ST-3.81 – Signal input – AUX
Alarm 2 x 12 pin Phoenix MC 1.5/12-ST-3.81 – Alarm connector
Remote command 1 x 4 pin Phoenix MC 1.5/4-ST-3.81 – Remote line/aux switch and PWS out
1 x 4 pin Phoenix MC 1.5/4-ST-3.81 – Remote on/off switch and aux voltage
Network/data 1 x Rj45 socket – Ethernet + AESOP connection (DSP+AESOP version only)
Rear panel
Indicators and Controllers 1 x Power switch –
Construction
Dimensions (L x H x W) 483 mm x 44.45 mm x 360 mm (19.0 in x 1.8 in x 14.2 in)
Weight 14 kg (30.9 lb)
