2 way active speaker

  • 8″ driver 1″ titanium compression driver
  • Very compact & powerful
  • Great bass response for the size
  • Includes ground lift switch for reducing mains hum
Proel
Tag: Category: SKU: SP/POW/PRO01
  • 2 way active speaker
  • 8″ driver 1″ titanium compression driver
  • Very compact & powerful
  • Great bass response for the size
  • Includes ground lift switch for reducing mains hum

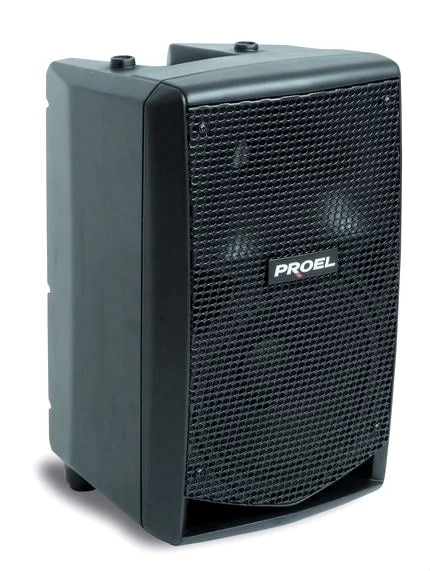

2-way processed active enclosure
In spite of its diminutive size and weight, the smallest model of our FLASH Series can deliver surprising sound pressure levels and precise, powerful sound. FLASH8 can be employed for very compact ultra-portable reinforcement systems and for live monitoring under conditions in which a low visual profile is an important feature. Because of its refined and clever design, it is the perfect solution for multimedia applications and for high-quality fixed installations.



Specifications
System type 2-way processed active enclosure
Amplifier Continuous Power 180 W 50 W bi-amp
Input Impedance LINE: 20 kohm balanced, 10 kohm unbalanced MIC: 2 kohm balanced, 1 kohm unbalanced
Frequency response 60 Hz – 20 kHz
Input Sensitivity LINE: 0 dBu / 0.775 V MIC: max -35 dBu
Maximum (peak) Output 122 dB @ 1m
Low Frequency Device 8” woofer
High Frequency Device 1” compression driver Titanium diaphragm
Crossover Frequency 3000 Hz
Low frequency equalizer 100 Hz 6 dB, -6 dB shelving
High Frequency Equalizer 8 kHz 6 dB, -6 dB shelving
Angular coverage 90° H x 60° V
Monitor Taper 42?
Power Supply 230 VAC 50Hz or 117 VAC 60 Hz
Maximum Power Consumption 200 VA
Cooling Natural convection (safety protection 65?)
Connectors IN: combo, XLR F Mix out: XLR M
Construction injection reinforced hi-density polypropylene
Cabinet Colour black
Mounting Pole 1 x bottom
Flying System 4 x M8 – top, bottom

Weight 10 kg (22.050 lb)
Dimensions (W x H x D) 27 x 42 x 26 cm
Controls mic level, line level, low eq., hi eq., gnd lift

Brand

Proel

Proel
