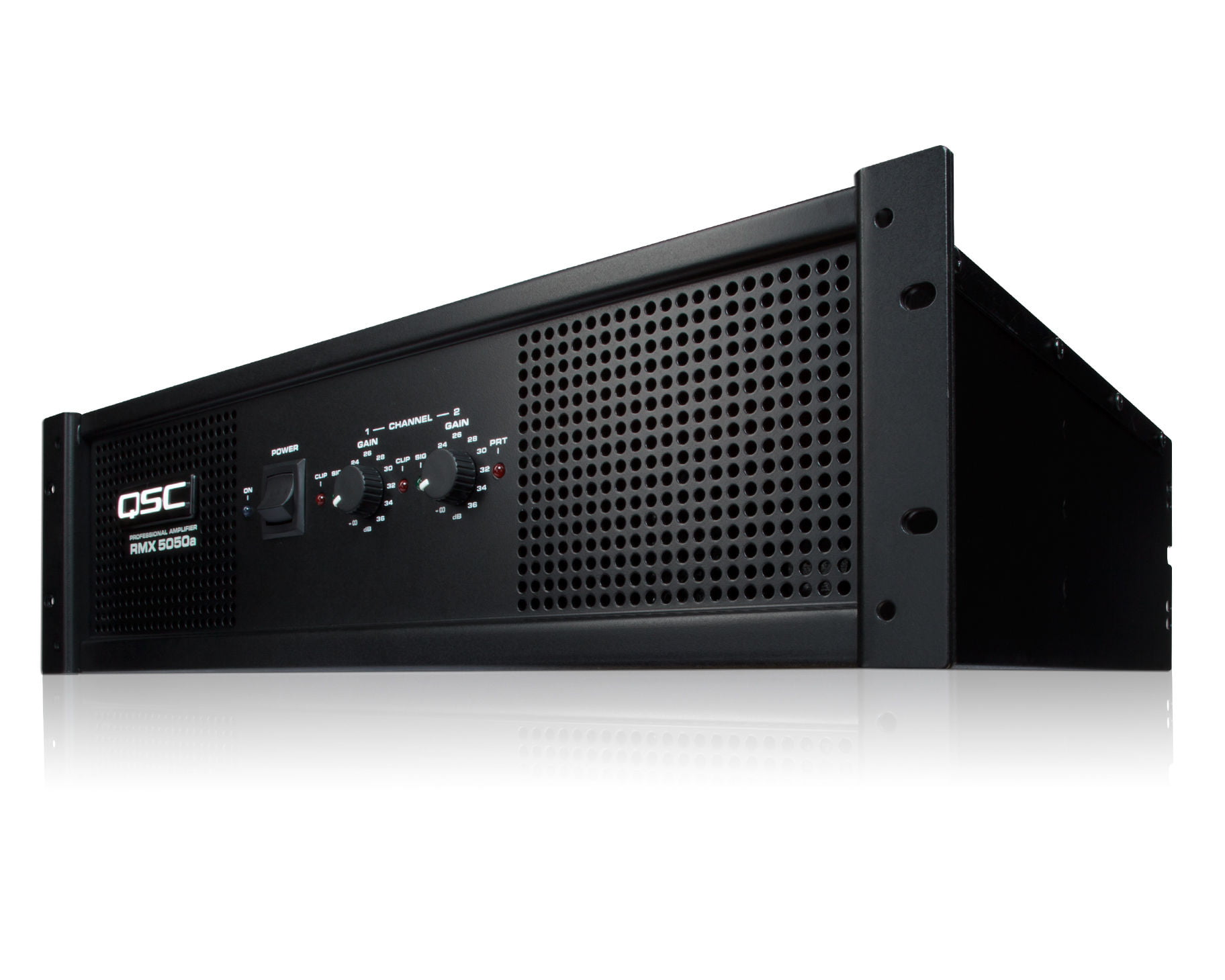

Power Amplifier 2x1800W @ 4ohms (2x2500W@2ohms) 3U
- Provides extremely high power
- 3RU chassis only 16 inch deep
- High-current toroidal transformers for power and low noise
- Independent user-defeatable clip limiters reduce distortion
- Front mounted gain controls for easy access
- Signal and Clip LED indicators to monitor performance
QSC’s RMX 5050 power amplifier represents the state-of-the-art in professional quality performance at an affordable price. Perfectly suited for a wide range of sound reinforcement applications including professional touring, performing musicians, and mobile entertainers, the RMX 5050 is optimized to deliver high levels of sustained power, extraordinary audio performance and road-proven reliability.
Product Features
- The new flagship of the RMX line, the RMX 5050 provides extremely high power
- The RMX 5050 provides advanced thermal performance, delivering higher continuous power
- Dual mono, high current power supply for increased reliability and performance
- 3RU chassis only 16″ deep
- Professional quality performance – incorporates road-proven QSC designs
- High-current toroidal transformers for greater two-ohm power and low noise
- Independent user-defeatable clip limiters reduce distortion
- Selectable low-frequency filters (30 Hz or 50 Hz) protect speakers and increase headroom
- Balanced 1/4″ (6.3 mm) TRS, XLR, and barrier strip inputs for maximum flexibility
- Binding post and Neutrik Speakon outputs
- Front mounted gain controls for easy access
- Signal and Clip LED indicators to monitor performance
- 3-year warranty. An optional 3-year extended service contract is available.
Product Specifications
Stereo Mode: 8 ohms: TC 20 Hz – 20 kHz, 0.1% THD: 1050W. EIA 1kHz, 0.1% THD: 1100W.
Stereo Mode: 4 ohms: FTC 20 Hz – 20 kHz, 0.1% THD: 1600W. EIA 1 kHz, 0.1% THD: 1800W.
Stereo Mode: 2 ohms: FTC 20 Hz-20 kHz 0.1% THD: 2000W. EIA 1 kHz, 1% THD: 2500W
Bridge Mono Mode: 8 ohms: FTC 20 Hz – 20 kHz, 0.1% THD: 3200W. EIA 1 kHz, 0.1% THD: 3600W.
Bridge Mono Mode: 4 ohms: EIA 1 kHz, 1% THD: 5000W
Signal to Noise, 20 Hz-20 kHz: 100 dB
Distortion (SMPTE-IM): Less than 0.02%
Input Sensitivity @ 8 ohms: 1.42V
Voltage Gain: 64x (36 dB)
Input Impedance: 10k ohms unbalanced, 20k ohms balanced
Power Requirements: 100, 120 or 240 Volts AC (±10%) 50-60 Hz (factory configured).
Power Requirements: 120V models require 20 Amp service and are supplied with a NEMA 5-20 plug
Dimensions: 19″ (48.3 cm) wide, 5.25″ (13.3 cm) tall, 15.9″ (40.39 cm) overall depth
Weight: 75 lbs (34.02 kg) net, 87 lbs (39.46 kg) shipping
Controls

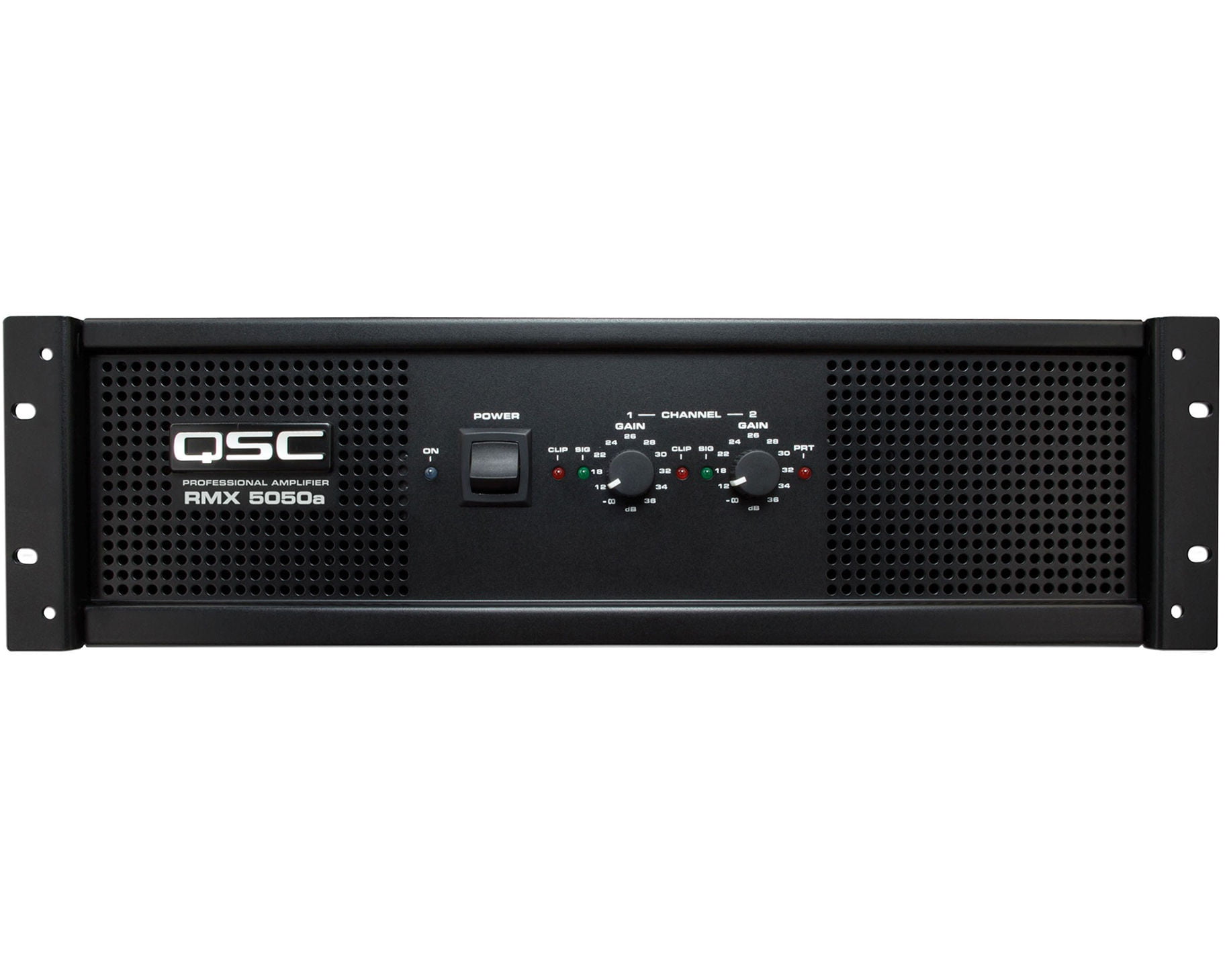

Front: AC power switch, Ch. 1 and Ch. 2 gain control.

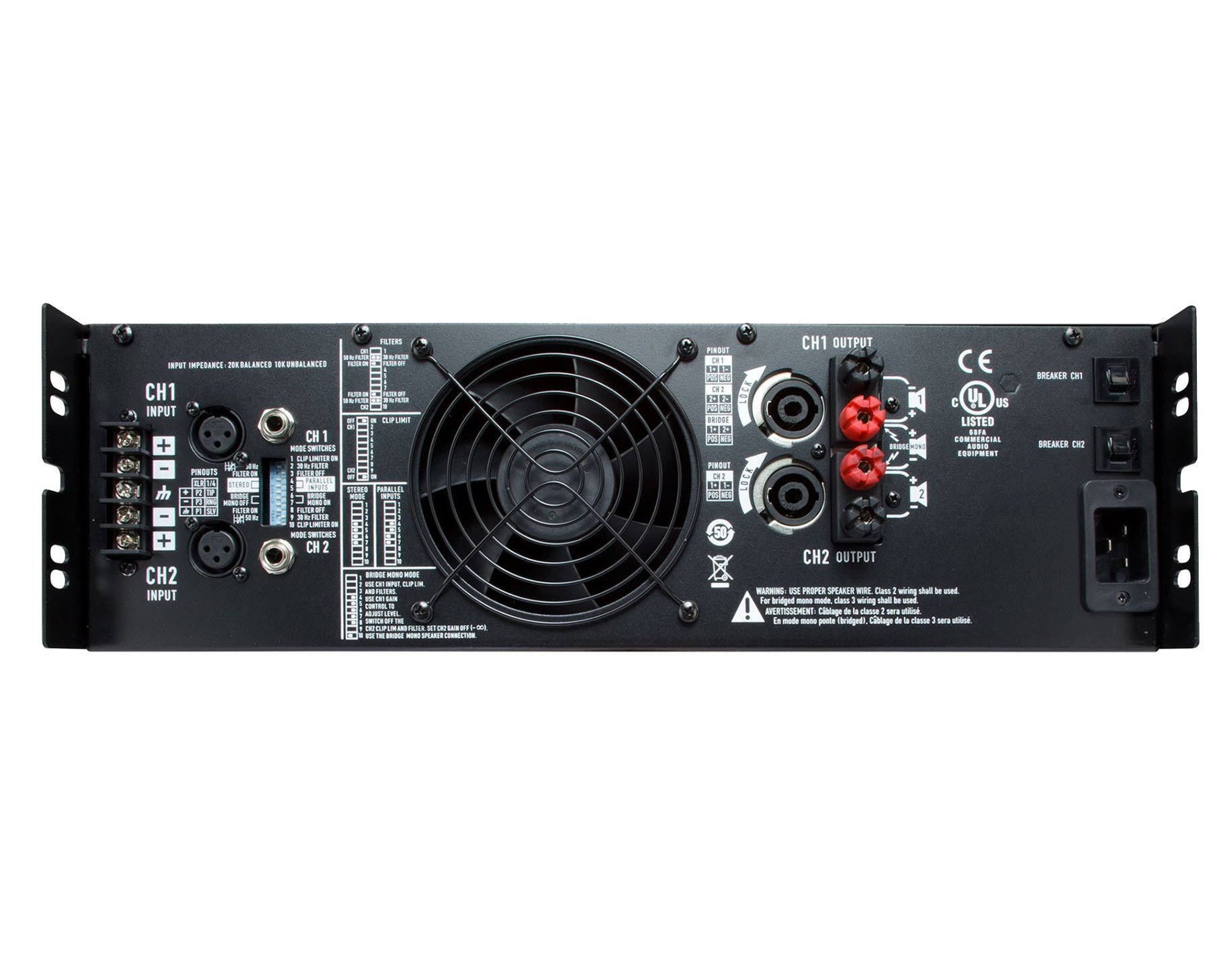

Rear: 10-pole DIP switch featuring LF filter on/off
Rear: LF filter 30/50 Hz
Rear: Clip Limiter on/off controls for each channel and switches for selecting Stereo, Parallel, or Bridge mode
Rear: Push-button circuit breaker for each channel.
