Power Amplifier 2x300W @ 4ohms (2x430W@2ohms) 2U
- Compact size – up to 2400 watts in 2 rack spaces
- Professional quality performance
- High-current toroidal transformers
- Independent user-defeatable clip limiters reduce distortion

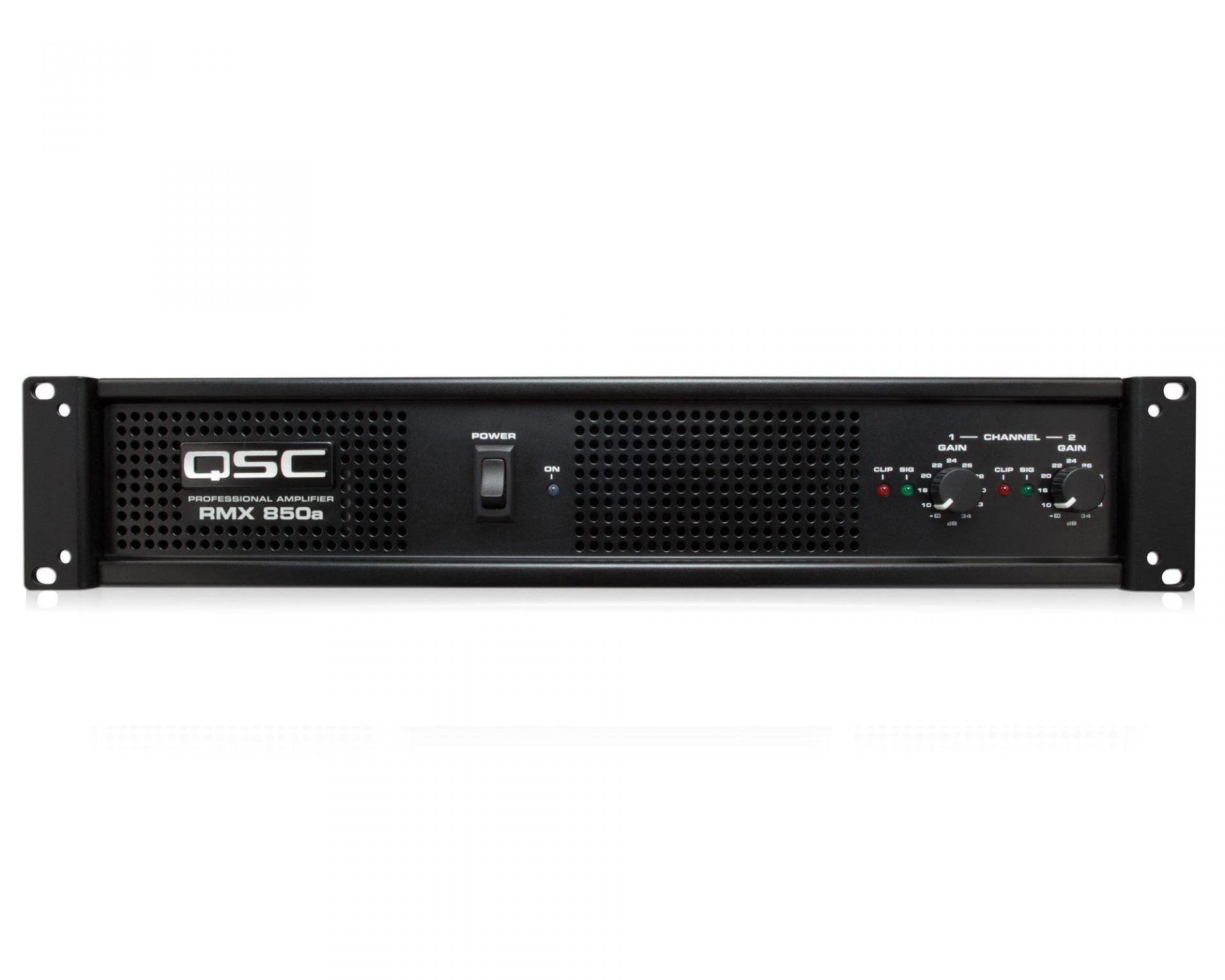

- Front mounted gain controls for easy access
- Signal and Clip LED indicators to monitor performance
The RMX Series amplifiers give you clean, dynamic power with the legendary QSC sound quality and reliability that pros depend on. The RMX Series deliver unmatched performance at a breakthrough price. And with QSC’s free 6 year warranty, the RMX is an even better value.
Product Features
- Compact size – up to 2400 watts in 2 rack spaces
- Professional quality performance – incorporates road-proven QSC designs
- High-current toroidal transformers for greater two-ohm power and low noise
- Independent user-defeatable clip limiters reduce distortion
- Selectable low-frequency filters (30 Hz or 50 Hz) protect speakers and increase headroom

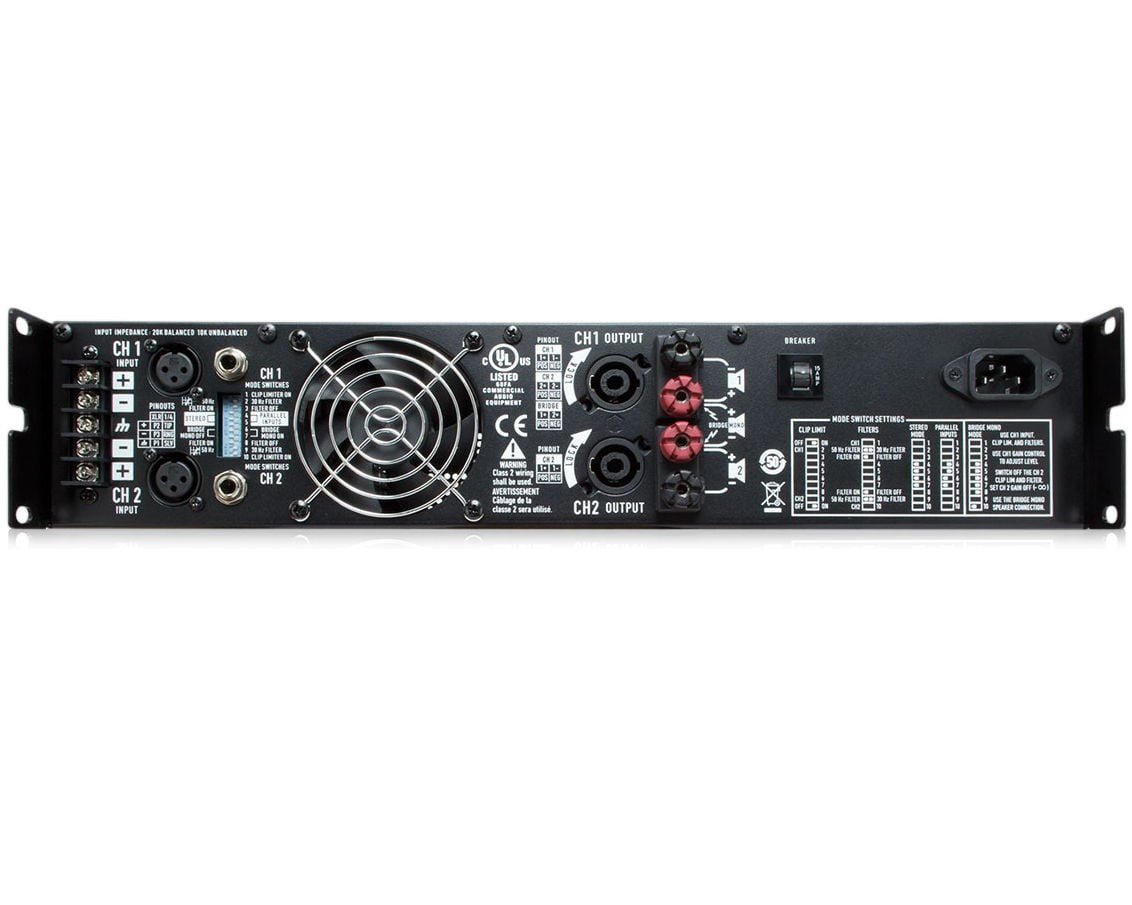

- Balanced 1/4″ (6.3mm) TRS, XLR and barrier strip inputs
- Binding post and Neutrik Speakon outputs
- Front mounted gain controls for easy access
- Signal and Clip LED indicators to monitor performance
- Independent DC and thermal overload protection on each channel automatically protects amplifier and speakers
- 3-year warranty plus optional 3-year extended service contract
Product Specifications
- Stereo Mode: 8 ohms: TC 20 Hz – 20 kHz, 0.1% THD: 185W. EIA 1kHz, 0.1% THD: 200W.
- Stereo Mode: 4 ohms: FTC 20 Hz – 20 kHz, 0.1% THD: 280W. EIA 1 kHz, 0.1% THD: 300W.
- Stereo Mode: 2 ohms: EIA 1 kHz, 1% THD: 430W
- Bridge Mono Mode: 8 ohms: FTC 20 Hz – 20 kHz, 0.1% THD: 530W. EIA 1 kHz, 0.1% THD: 600W.
- Bridge Mono Mode: 4 ohms: EIA 1 kHz, 1% THD: 830W
- Signal to Noise, 20 Hz-20 kHz: 100 dB
- Distortion (SMPTE-IM): Less than 0.01%
- Input Sensitivity @ 8 ohms: 1.15V ( 4.0 dBu)
- Voltage Gain: 40x (32 dB)
- Output Circuitry: AB
- Input Impedance: 10k ohms unbalanced, 20k ohms balanced
- Controls: Front: AC switch, Ch. 1 and Ch. 2 gain knobs. Rear: 10-position DIP switch
- Power Requirements: 100, 120, 230 VAC, 50-60 Hz
- Dimensions: 19″ (48.3 cm) rack mounting, 3.5″ (8.9 cm) tall (2 RU), 15.9″ (40 cm) deep
- Weight: 35 lbs (15.9 kg) net
